Advanced Illumination - AL126 LED bar light
High dispersion, narrow
The AL126 is a high dispersion LED bar light for reflective services and shorter working distances. It provides a narrower and less intense illumination area than AL116. Available with polarisation and diffusion light conditioning, along with a wide spectrum of wavelengths. IP65 compliant washdown option is also available.

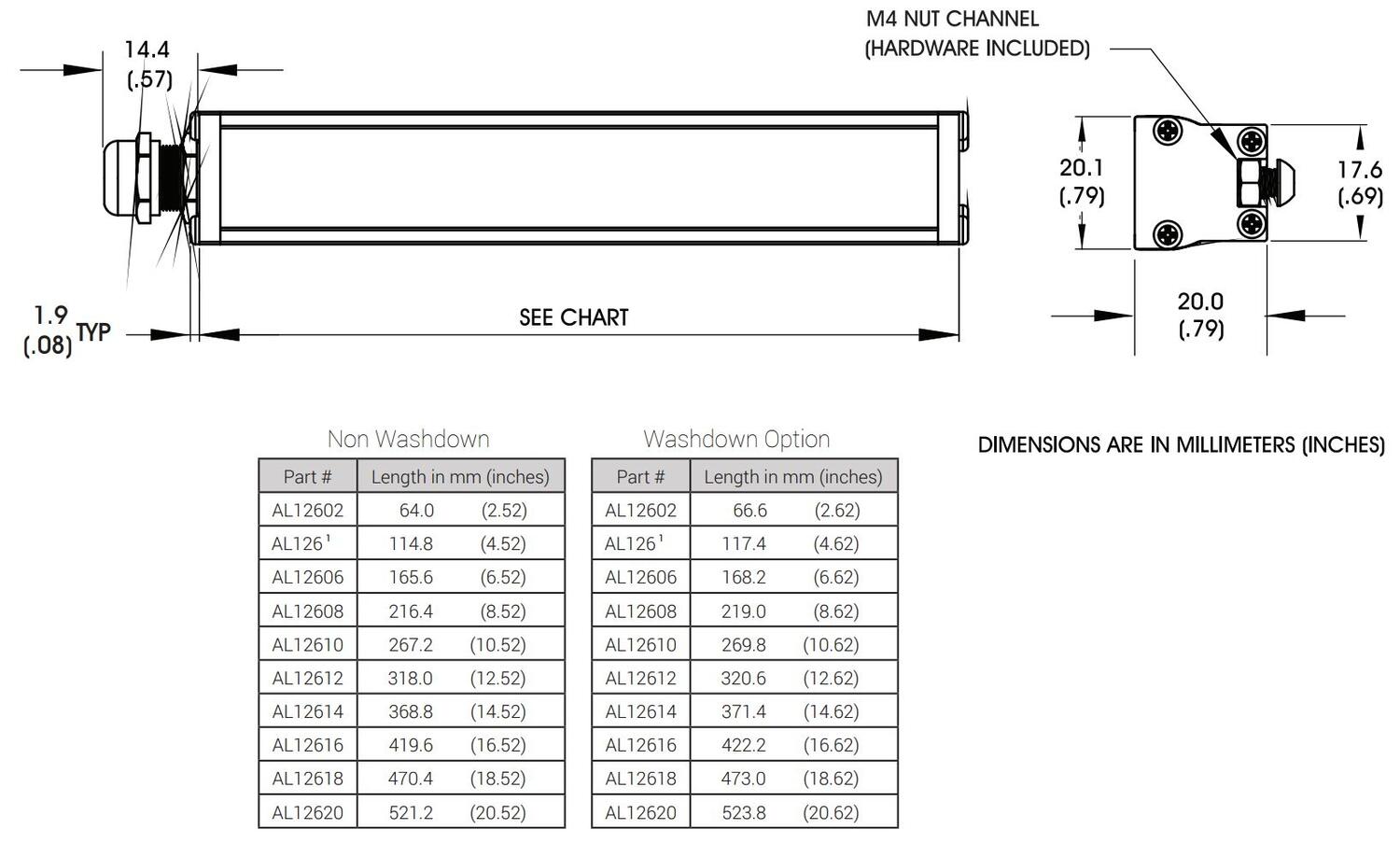

This expandable compact bar light is pre-engineered for custom lengths in 2″ increments up to 40″.
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
Other Wavelength options:
- UV - 365, 375, 385, 395, 405
- Royal blue - 455
- Blue - 470
- Cyan - 505
- Green - 530
- Amber - 590
- Red orange - 625
- Red - 660
- Infrared - 730, 850, 940
- White - WHI
For enquiries or quotes for wavelength, power options and sizes not listed here please contact us.
- Lighting with high intensity LEDs in compact format, only 20 mm wide
- Easy mounting with M4 nut channel
- Expandable in 2 inch increments from 2 "to 40"
- Available in WASH DOWN variant
Selected variant
Selected variant
Specifications
| Approvals | IEC 62471, CE, RoHS |
|---|---|
| Color | Ultraviolet |
| Connector/controller | Continuous in-line controller |
| IP Class | IP65 |
| Length | 102 |
| Operating temperature | 0°C - 60°C |
| Photobiological Risk Factor IEC 6247 | Group 2 (moderate risk) |
| Standard cable length | Up to 2 meters |
| Wave-Length | 395 |
| Width | 20 |
Downloads
Product description
The AL126 is a high dispersion LED bar light for reflective services and shorter working distances. It provides a narrower and less intense illumination area than AL116. Available with polarisation and diffusion light conditioning, along with a wide spectrum of wavelengths. IP65 compliant washdown option is also available.
This expandable compact bar light is pre-engineered for custom lengths in 2″ increments up to 40″.
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
Other Wavelength options:
- UV - 365, 375, 385, 395, 405
- Royal blue - 455
- Blue - 470
- Cyan - 505
- Green - 530
- Amber - 590
- Red orange - 625
- Red - 660
- Infrared - 730, 850, 940
- White - WHI
For enquiries or quotes for wavelength, power options and sizes not listed here please contact us.
