Advanced Illumination - AL116 bar light

Linear surface lighting

The AL116 provides wider and more intense illumination that the AL126, with high dispersion for reflective surfaces and shorter working distances. The AL116 is IP65 compliant, with washdown option available as well as a wide spectrum of wavelengths.

This expandable compact bar light is pre-engineered for custom lengths in 2″ increments up to 20″ and available with polarization and diffusion light conditioning.



Power options include:

  • C1 connector - for use with DCS series controllers
  • C5 connector - for use with Pulsar 320 strobe controller
  • Continuous in-line controller - powered by 24V power supply
  • Combination strobe/continuous in-line controller - powered by 24V power supply
  • Default-OFF strobe/continuous in-line controller - powered by 24V power supply
  • Flying/tinned leads - powered by 24V power supply



Other Wavelength options:

  • UV - 365, 375, 385, 395, 405
  • Royal blue - 455
  • Blue - 470
  • Green - 530
  • Amber - 590
  • Red orange - 625
  • Infrared - 850, 940
  • White - WHI



For enquiries or quotes for sizes and power options not listed here please contact us.

  • Compact design, 32.2x115 mm
  • High intensity LEDs
  • Easy mounting with M4 nut channel
  • Expandable in 2 inch increments from 2" to 20"
  • Available in WASH DOWN variant

Selected variant

Avaible in several variants
ADVANCEDILLUMINATION.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals IEC 62471, CE, RoHS
Color Ultraviolet
Connector/controller continuous in-line controller
IP Class IP65
Length 102
Operating temperature 0 - 60°C
Photobiological Risk Factor IEC 6247 Group 2 (moderate risk)
Standard cable length Up to 2 meters
Wave-Length 365
Weight 82.55
Width 30

Downloads

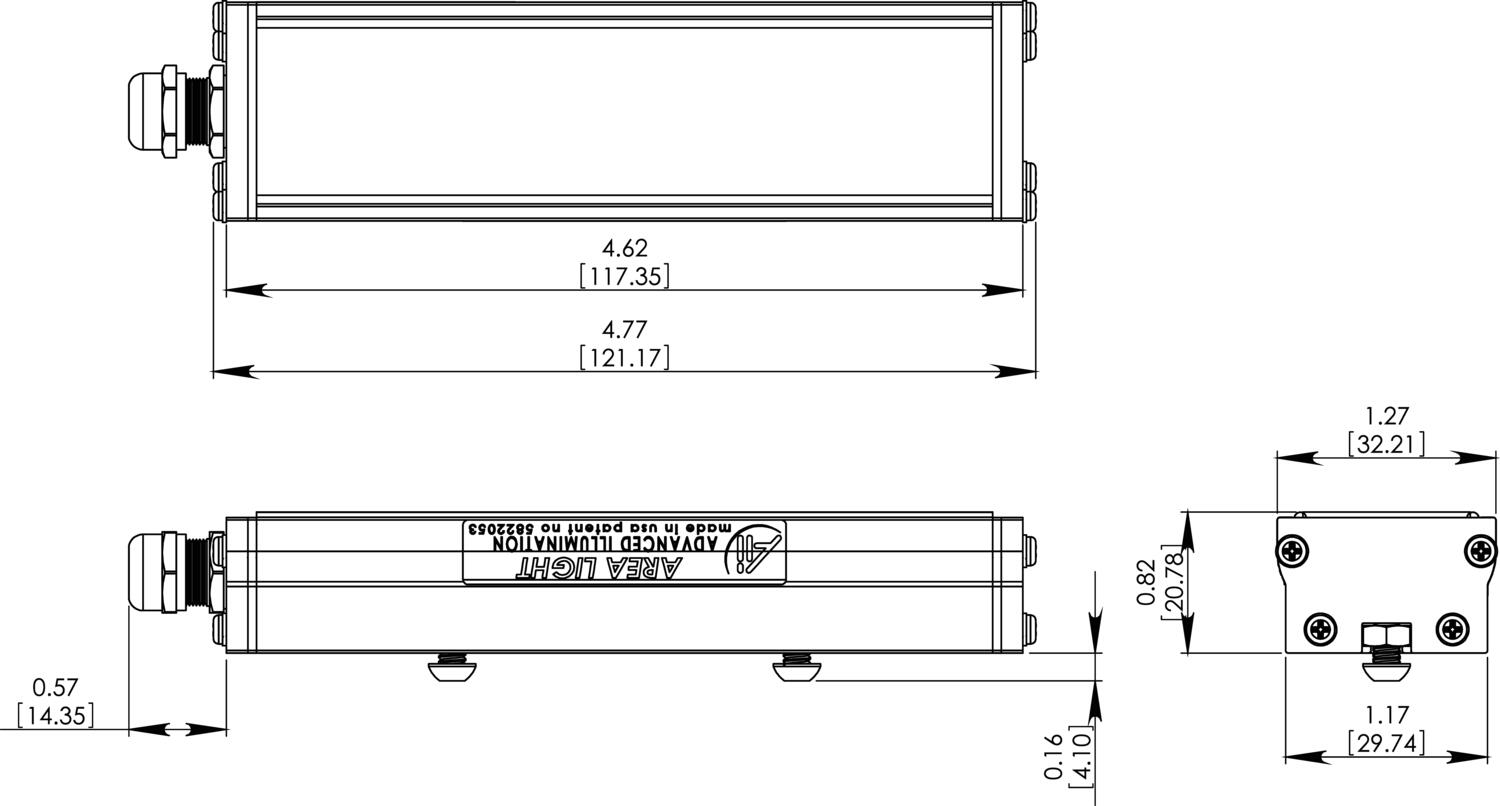

Measurements and connections

Product description

The AL116 provides wider and more intense illumination that the AL126, with high dispersion for reflective surfaces and shorter working distances. The AL116 is IP65 compliant, with washdown option available as well as a wide spectrum of wavelengths.

This expandable compact bar light is pre-engineered for custom lengths in 2″ increments up to 20″ and available with polarization and diffusion light conditioning.



Power options include:

  • C1 connector - for use with DCS series controllers
  • C5 connector - for use with Pulsar 320 strobe controller
  • Continuous in-line controller - powered by 24V power supply
  • Combination strobe/continuous in-line controller - powered by 24V power supply
  • Default-OFF strobe/continuous in-line controller - powered by 24V power supply
  • Flying/tinned leads - powered by 24V power supply



Other Wavelength options:

  • UV - 365, 375, 385, 395, 405
  • Royal blue - 455
  • Blue - 470
  • Green - 530
  • Amber - 590
  • Red orange - 625
  • Infrared - 850, 940
  • White - WHI



For enquiries or quotes for sizes and power options not listed here please contact us.

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

My favourites Articles Color Connector/controller Photobiological Risk Factor IEC 6247 Wave-Length Price
Ai Compact Bar Light, 4", UV 365, IC
Art:
AL116-365IC Copied
Ultraviolet
continuous in-line controller
Group 2 (moderate risk)
365
Ai Compact Bar Light, 4", blue 470, 24V
Art:
AL116-47024 Copied
Blue
Flying/tinned leads
Group 1 (low risk)
470
Ai Compact Bar Light, 4", blue 470, pulsar connector
Art:
AL116-470C5 Copied
Blue
C5 connector
Group 1 (low risk)
470
Ai Compact Bar Light, 4", blue 470, ICS3
Art:
AL116-470I3 Copied
Blue
Strobe/continuous in-line controller
Group 1 (low risk)
470
Ai Compact Bar Light, 4", blue 470, ICS2
Art:
AL116-470IC Copied
Blue
continuous in-line controller
Group 1 (low risk)
470
Ai Compact Bar Light, 4", red orange 625, 24V
Art:
AL116-62524 Copied
Red orange
Flying/tinned leads
Group 1 (low risk)
625
Ai Compact Bar Light, 4", red orange 625, C1
Art:
AL116-625C1 Copied
Red orange
C1 connector
Group 1 (low risk)
625
Ai Compact Bar Light, 4", red orange 625, pulsar connector
Art:
AL116-625C5 Copied
Red orange
C5 connector
Group 1 (low risk)
625
Ai Compact Bar Light, 4", red orange 625, ICS3
Art:
AL116-625I3 Copied
Red orange
Strobe/continuous in-line controller
Group 1 (low risk)
625
Ai Compact Bar Light, 4", red orange 625, I3S
Art:
AL116-625I3S Copied
Red orange
Default-off strobe/continuous in-line controller
Group 1 (low risk)
625
Ai Compact Bar Light, 4", red orange 625, ICS2
Art:
AL116-625IC Copied
Red orange
Continuous in-line controller
Group 1 (low risk)
625
Ai Compact Bar Light, 4", white , 24V
Art:
AL116-WHI24 Copied
White
Flying/tinned leads
Group 1 (low risk)
WHI
Ai Compact Bar Light, 4", white, pulsar connector
Art:
AL116-WHIC5 Copied
White
C5 connector
Group 1 (low risk)
WHI
Ai Compact Bar Light, 4", white, ICS3
Art:
AL116-WHII3 Copied
White
Strobe/continuous in-line controller
Group 1 (low risk)
WHI
Ai Compact Bar Light, 4", White WHI, I3S
Art:
AL116-WHII3S Copied
White
Default-off strobe/continuous in-line controller
Group 1 (low risk)
WHI
Ai Compact Bar Light, 4", white, ICS2
Art:
AL116-WHIIC Copied
White
Continuous in-line controller
Group 1 (low risk)
WHI
