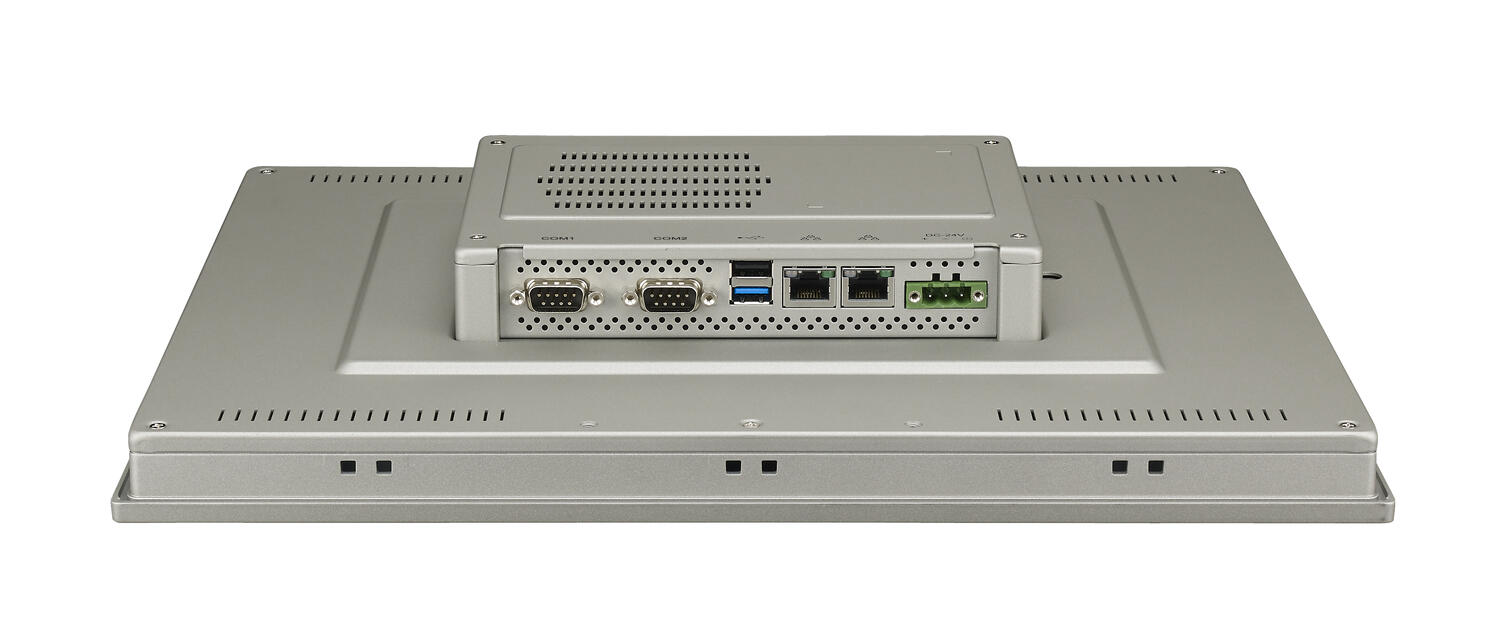

Advantech - TPC-1551T
- 15" screen
- 4:3 format
- IP66 in front
- For recessed mounting
Selected variant
15" XGA TFT LED LCD Intel® Atom™ Thin Client Terminal
Art:
Selected variant
Specifications
| Display Size | 15 |
|---|---|
| Display Resolution | 1024x768 |
| Display format | 4:3 |
| Viewing Angle | 160/140 |
| Number Of Colors Display | 16.7 |
| Backlight | LED |
| Luminance | 400 |
| Contrast | 700:1 |
| CPU | Atom E3827 |
| Number of cores CPU | 2 |
| Clock Speed | 1.75 |
| Memory RAM | 4 |
| Hard drive size | 64 |
| Approvals | CCC, CE, FCC, UL, BSMI |
| IP Class | IP66 |
|---|---|
| Width | 383.2 |
| Depth | 61.1 |
| Height | 307.3 |
| Punching | 372,7x296,7 |
| Front panel thickness | 7 |
| Weight | 3.9 |
| Power Consumption | 40.8 |
| Power Supply V DC | 24 |
| Temperature range from | -20 |
| Temperature range to | 60 |
| Temperature range bearing, from | -30 |
| Temperature range bearing, to | 70 |
Downloads
Product description
Advantech's TPC series is suitable for all types of applications. As it's IP66 classified in the front it means it can handle everything from heavy industries to clean cabinet applications.
The TPC-1551T comes with a lighter hardware suitable for client applications or web-based services.
The panel is designed with "truffle" technology, making the frame edge completely non-existent and perceived as a good overall impression.
Besides the standard ports, there is also the possibility of extra expansion thanks to the iDoor modules, these modules allow extra expansion for eg USB, Wifi, Profinet or TCP / IP. There are 35 different modules today supporting more than 450 different protocols.
