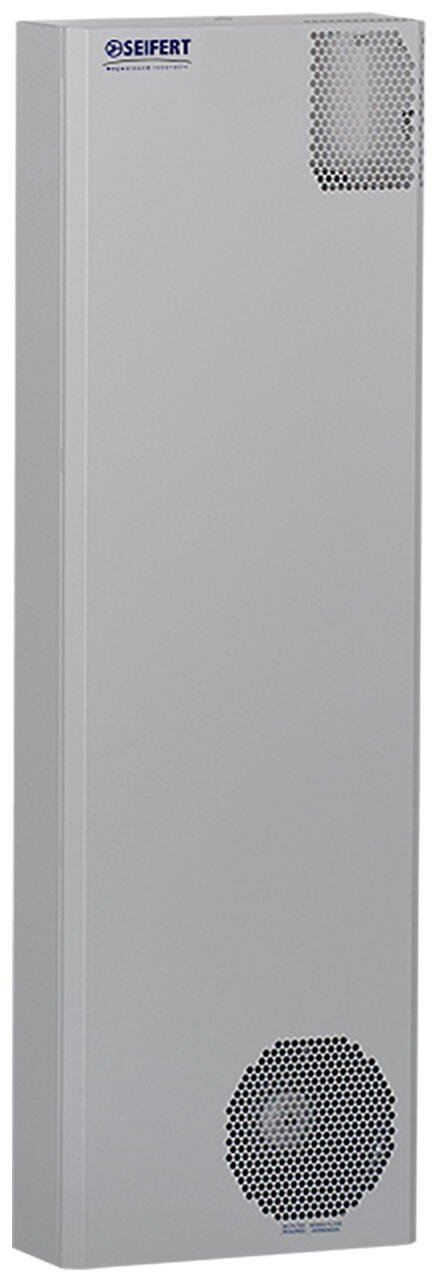

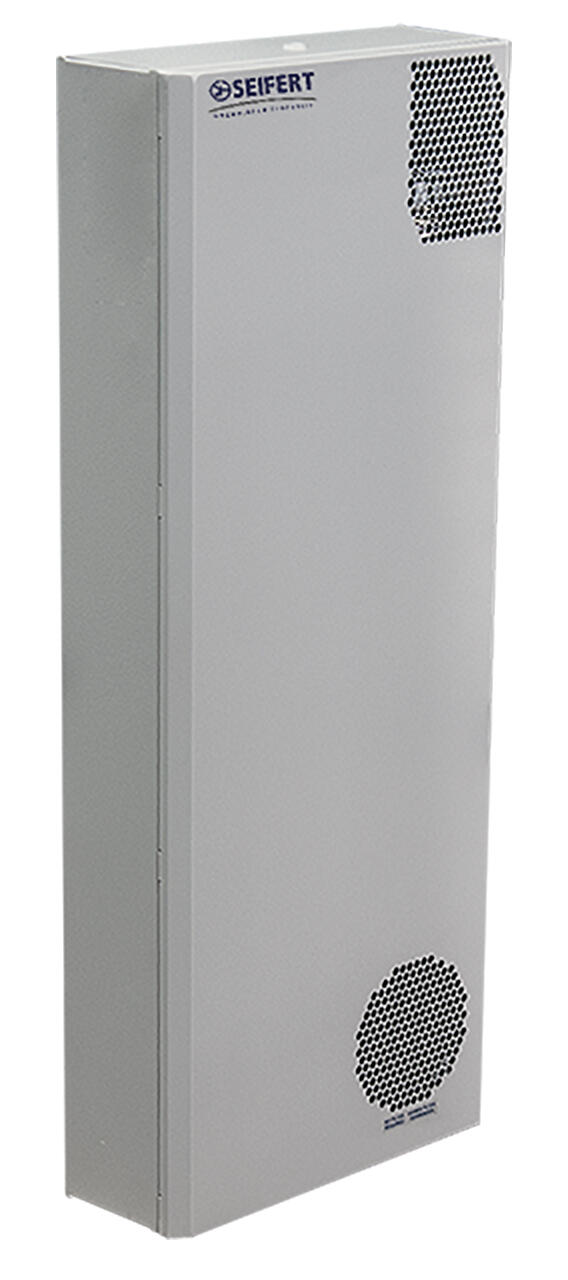

SEIFERT
SLIMLINE
- Slim, Space-Saving Design Ideal for narrow enclosures and space-restricted installation
- Reliable Temperature Control Protects sensitive components from overheating
- Energy Efficient Operation Optimised cooling with reduced power consumption. • Durable Industrial Build
Selected variant
Selected variant
Specifications
| 12406_Refrigerant / GWP | R 513A / 630 |
|---|---|
| Approvals | EN/IEC cULus |
| Color House | Grey RAL 7035 |

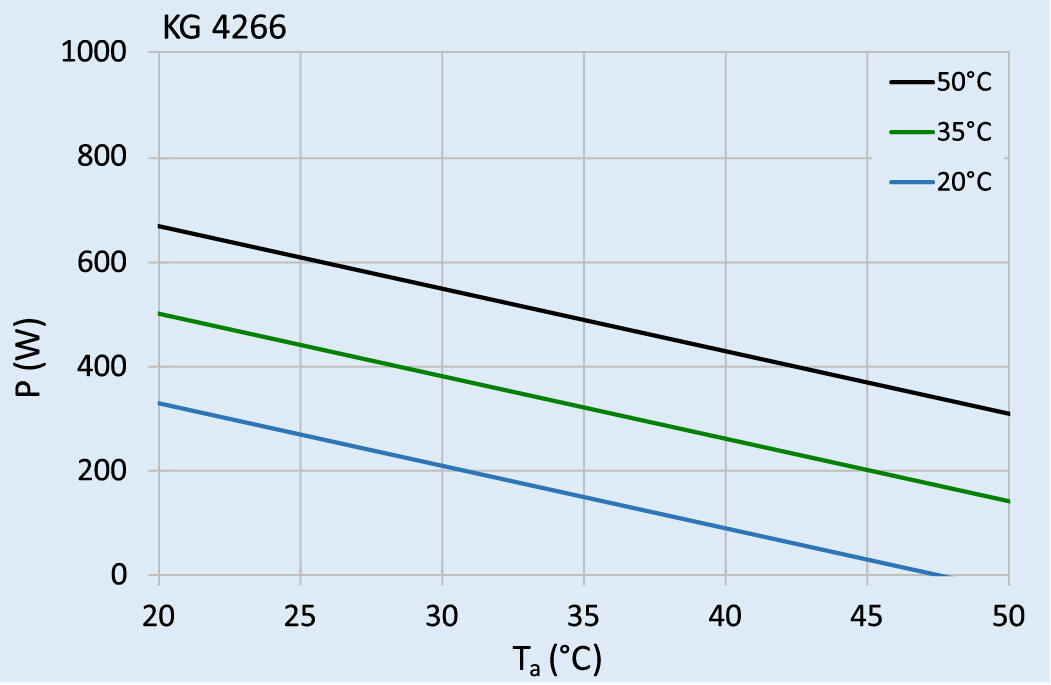

| Cooling capacity L35L35 | 320 W |
| Cooling capacity L35L50 | 140 W |
| Current L35L35 | 1.6 |
| Dimensions | 520 x 270 x 110 (25) mm |
| Fuse size | 6 A (T) |
| IP Class Housing | IP54 |
| Max current | 1.8 |
| Nominal power L35L35 | 330 W |
|---|---|
| Operating temperature range | 10°C - 50°C |
| Product series | Slimline |
| Setting range | +20°C...+50°C ( pre set +35°C) |
| Starting Current | 3.2 |
| System air flow ambient/cabinet | 170 / 125 m³/h |
| Unimpeded air flow ambient/cabinet | 250 / 250 m³/h |
| Weight | 13 |
| Voltage | 230 V |
Downloads
Product description

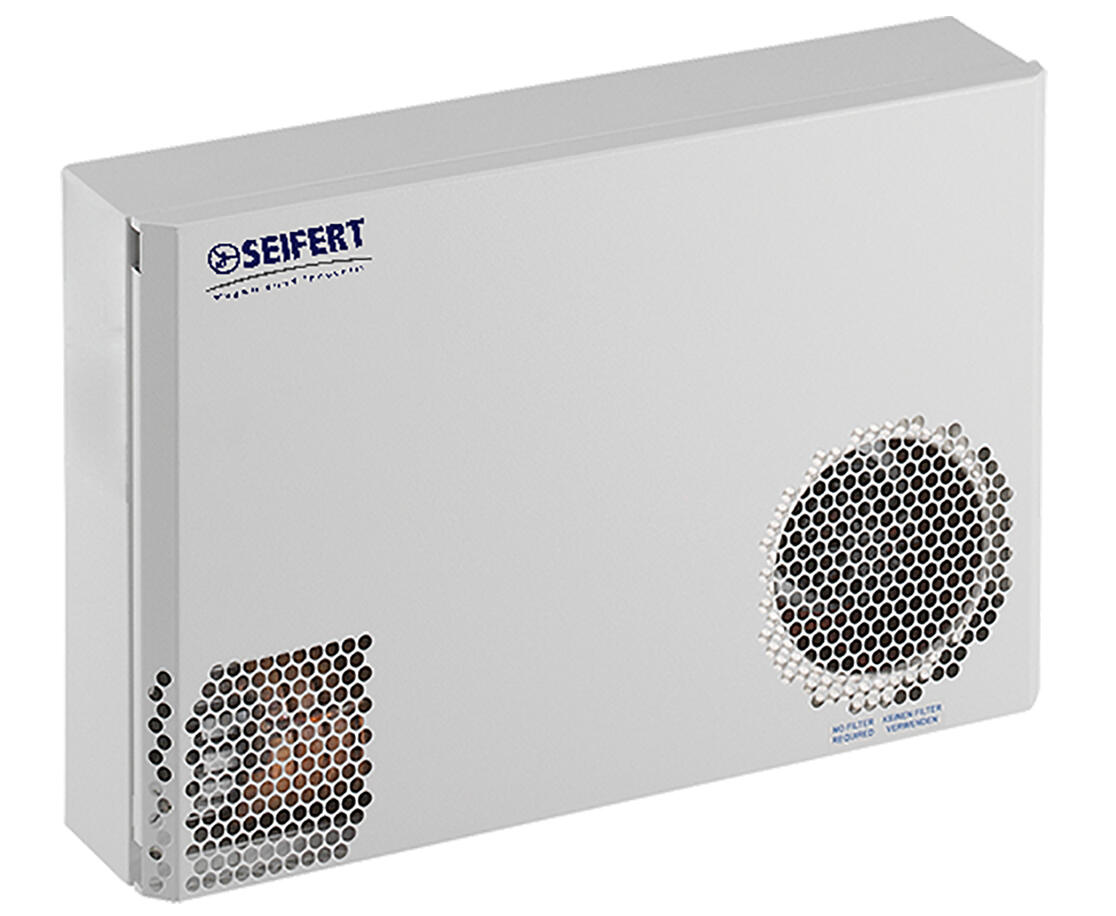

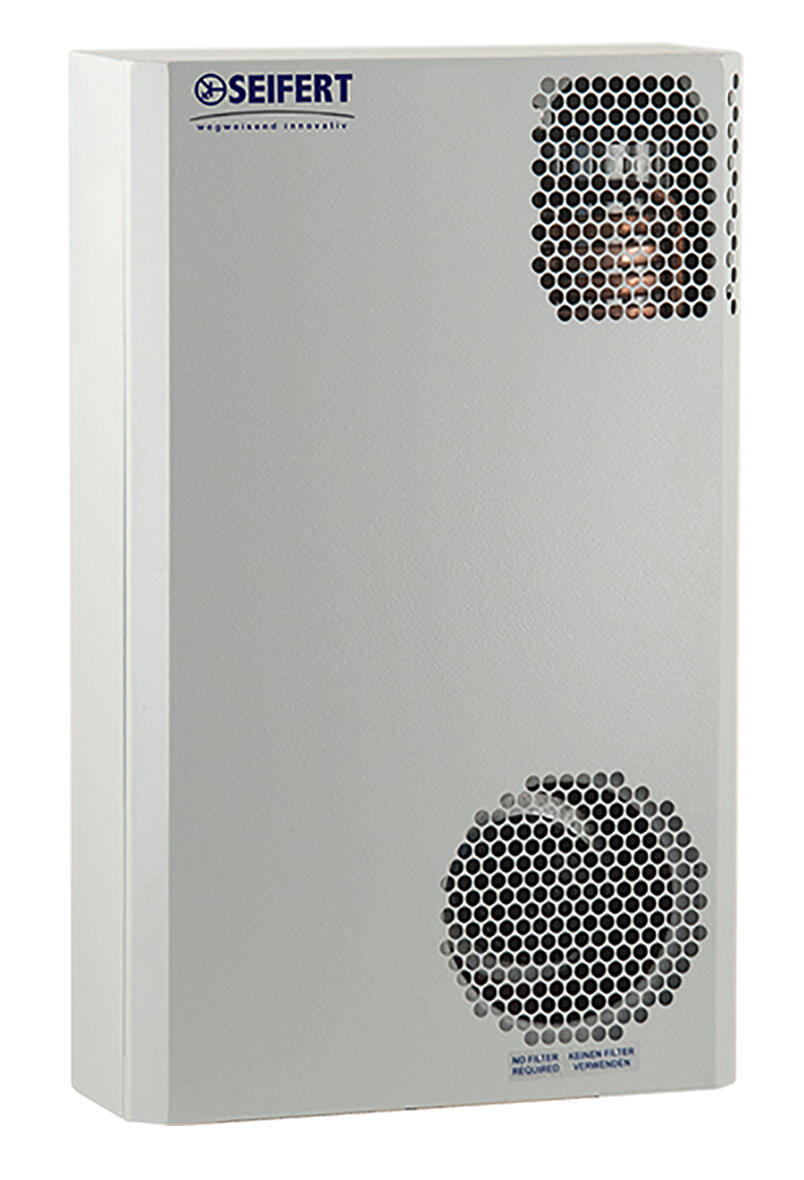

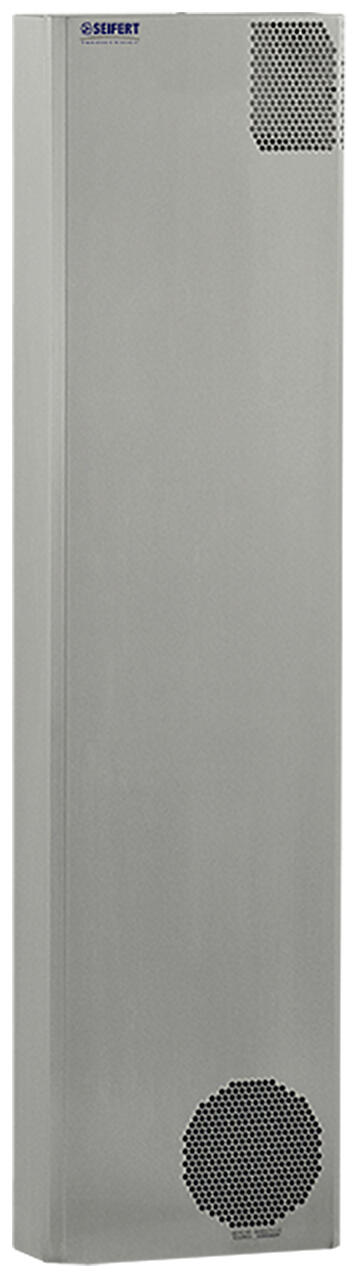

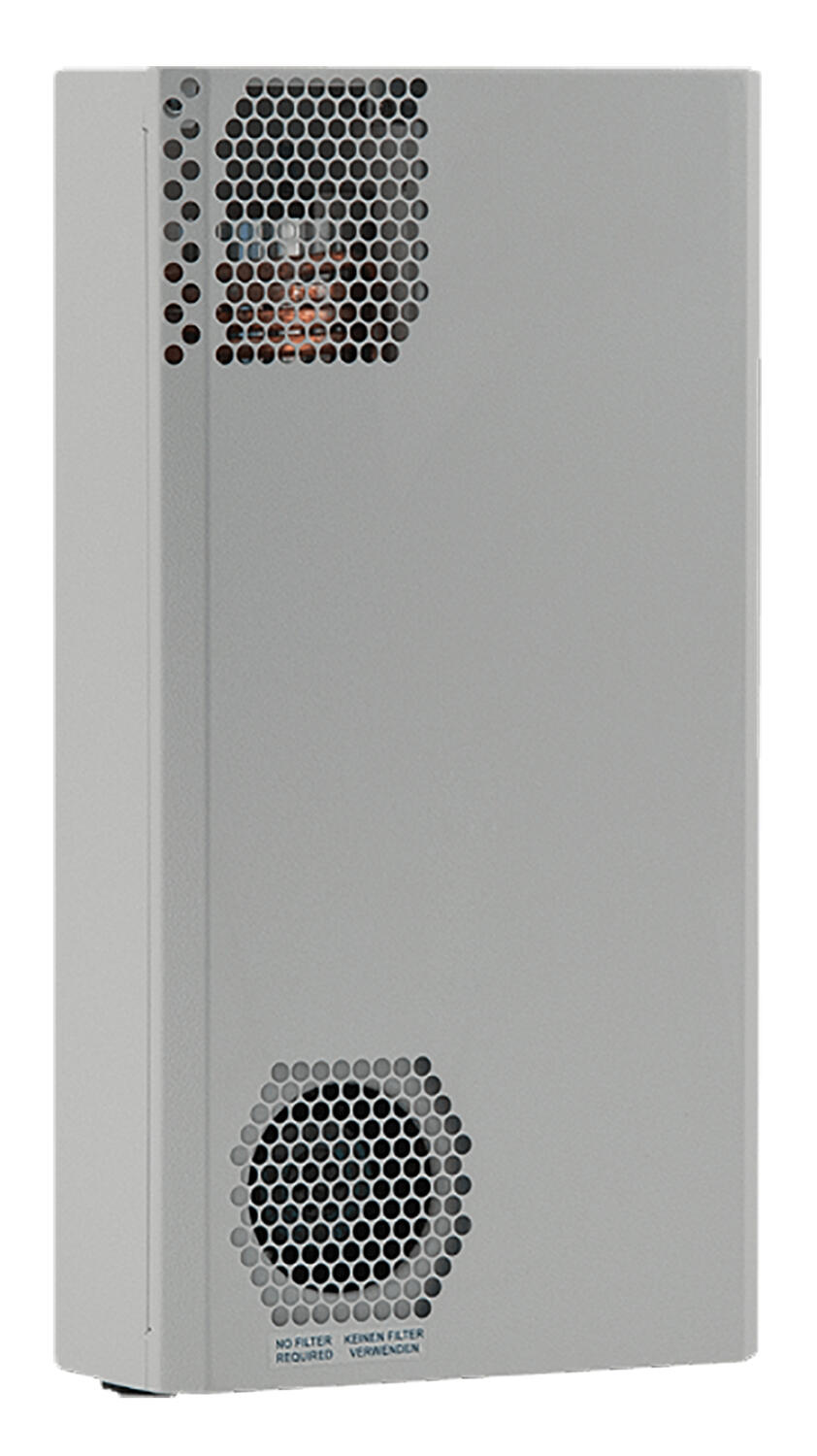

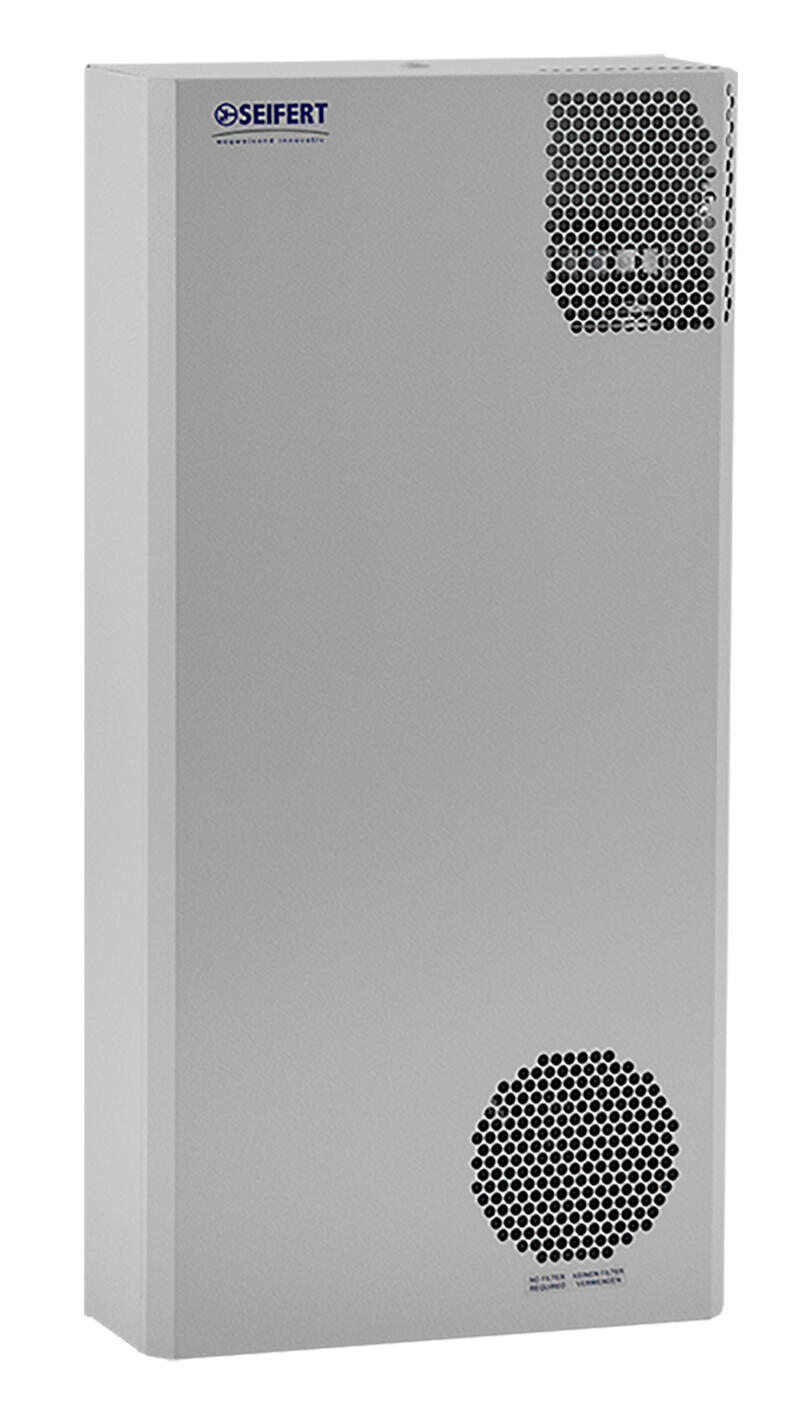

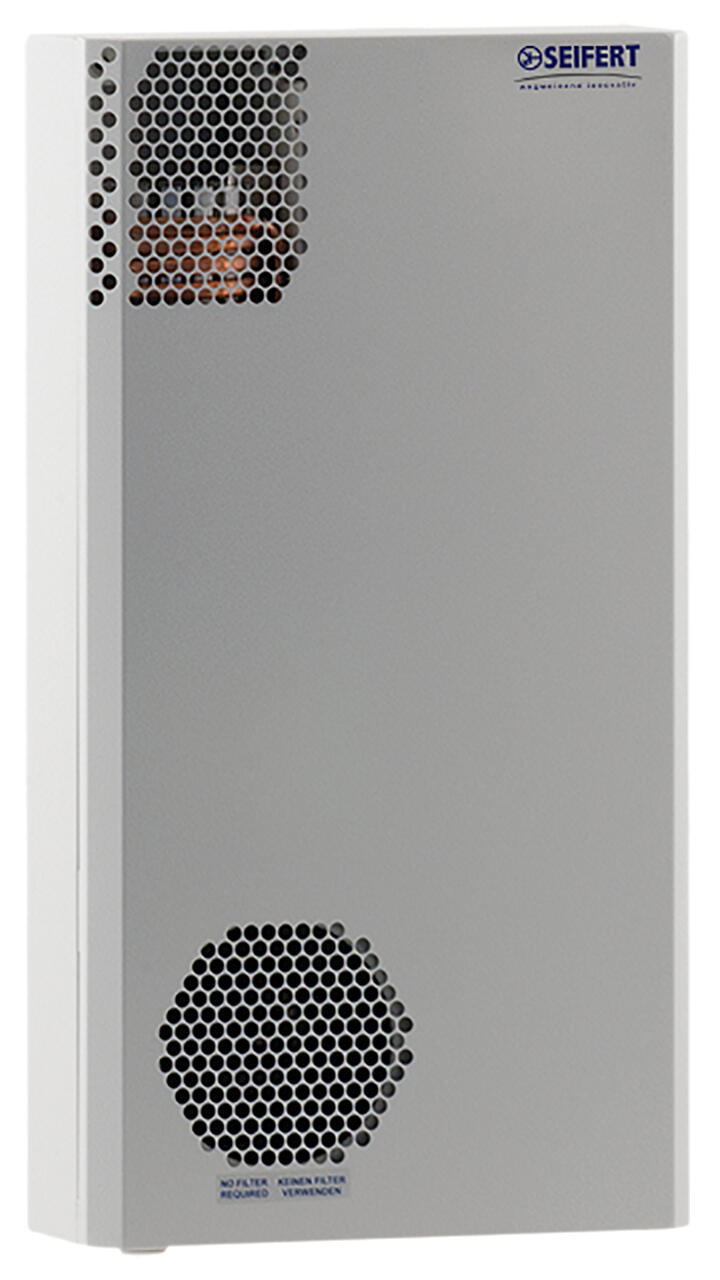

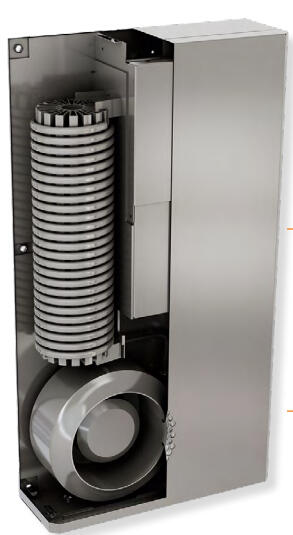

The Seifert SLIMLINE cooling units range is designed to deliver efficient and reliable temperature control in electrical enclosures where space is limited. With a compact, narrow profile, these cooling units are ideal for control panels, switchgear cabinets, and industrial enclosures requiring high performance in tight spaces.
Suitable for both indoor and outdoor applications, SLIMLINE units provide consistent cooling to protect sensitive electrical and electronic components from overheating. Their energy-efficient operation ensures optimal performance while reducing running costs, making them a practical solution for modern industrial environments.
