Power Sockets - SD 035

SD 035

The socket is easily mounted on 35 mm DIN rail and connected with screwless push clamps. Sockets are available for most countries and all with or without fuse holders.
  • Simple mounting with clips on DIN rail
  • Quick connection with push clamps
  • With or without fuse holder

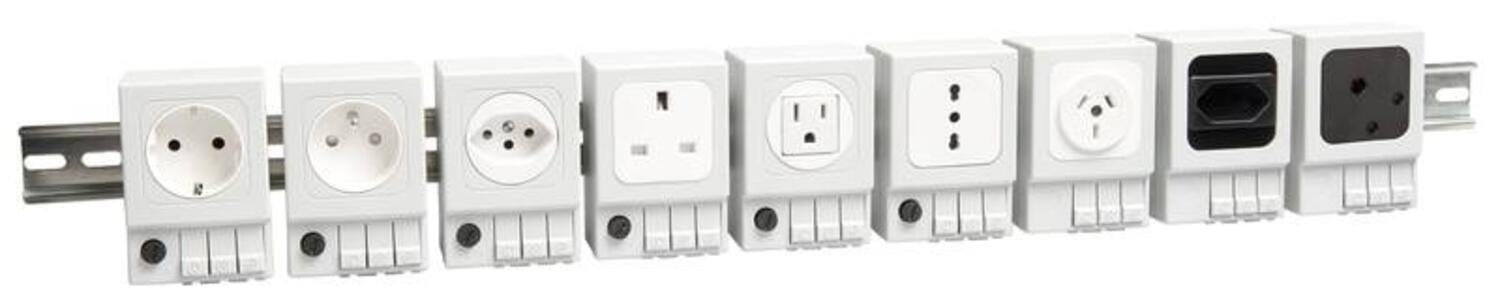

  • 9 Socket Variants

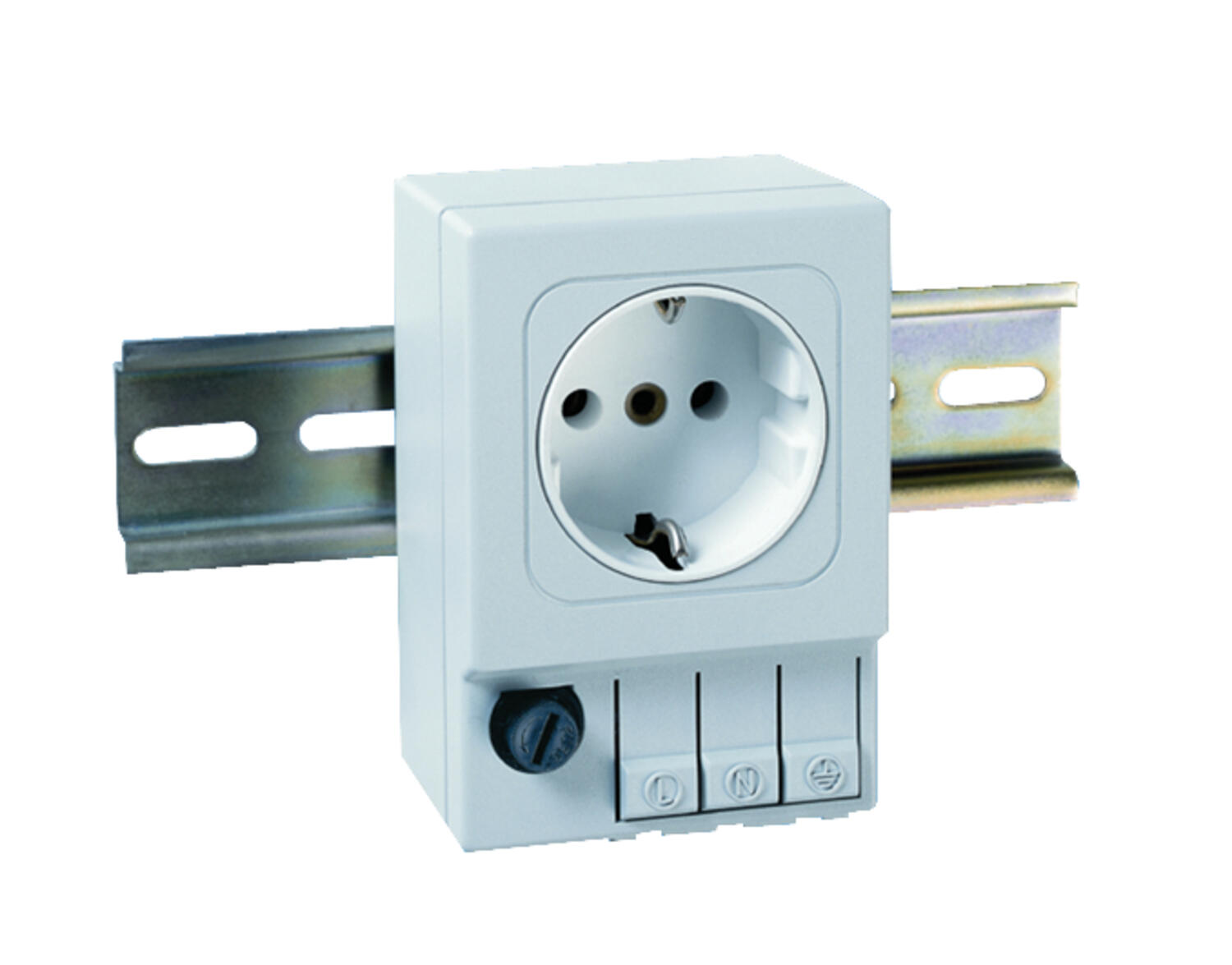

150507_812.tif

Product scetch Socket SD035 DE,RU without fuse.png

Socket Din Rail Mtd.BS.

Socket Din Rail Mtd.BS.

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals EAC, RoHS
Color Light grey
Connection 3 x pressure clamp
Flamklass UL94-V0
Fuse max 16
Height 92
Humidity Storage <90% RH
IP Class IP20
Length 92
Material Plastic Housing Plastic
Mounting Clip on, DIN rail
Nominal socket current 16
Operating Humidity < 90% RH
Operational Temperature -45°C ... +70°C
Protection Class I (earthed)
Socket DE/DK/FI/NO/RU/SE
Storage temperature -45°C ... +70°C
Weight 0,2
Width 62
Voltage max 250 V ac

Downloads

Measurements and connections

Technical illustrations

Product description

The socket is easily mounted on 35 mm DIN rail and connected with screwless push clamps. Sockets are available for most countries and all with or without fuse holders.

Technical data

Rated voltage - 250 V AC max. Rated current - 16 A max. without fuse holder 6.3 A with fuse folder Connection - 3 push clamps for cable ≤2.5 mm² Installation - Quick fastener for 35 mm DIN rail Approval - For approved outlets, see below. UL file E222026.

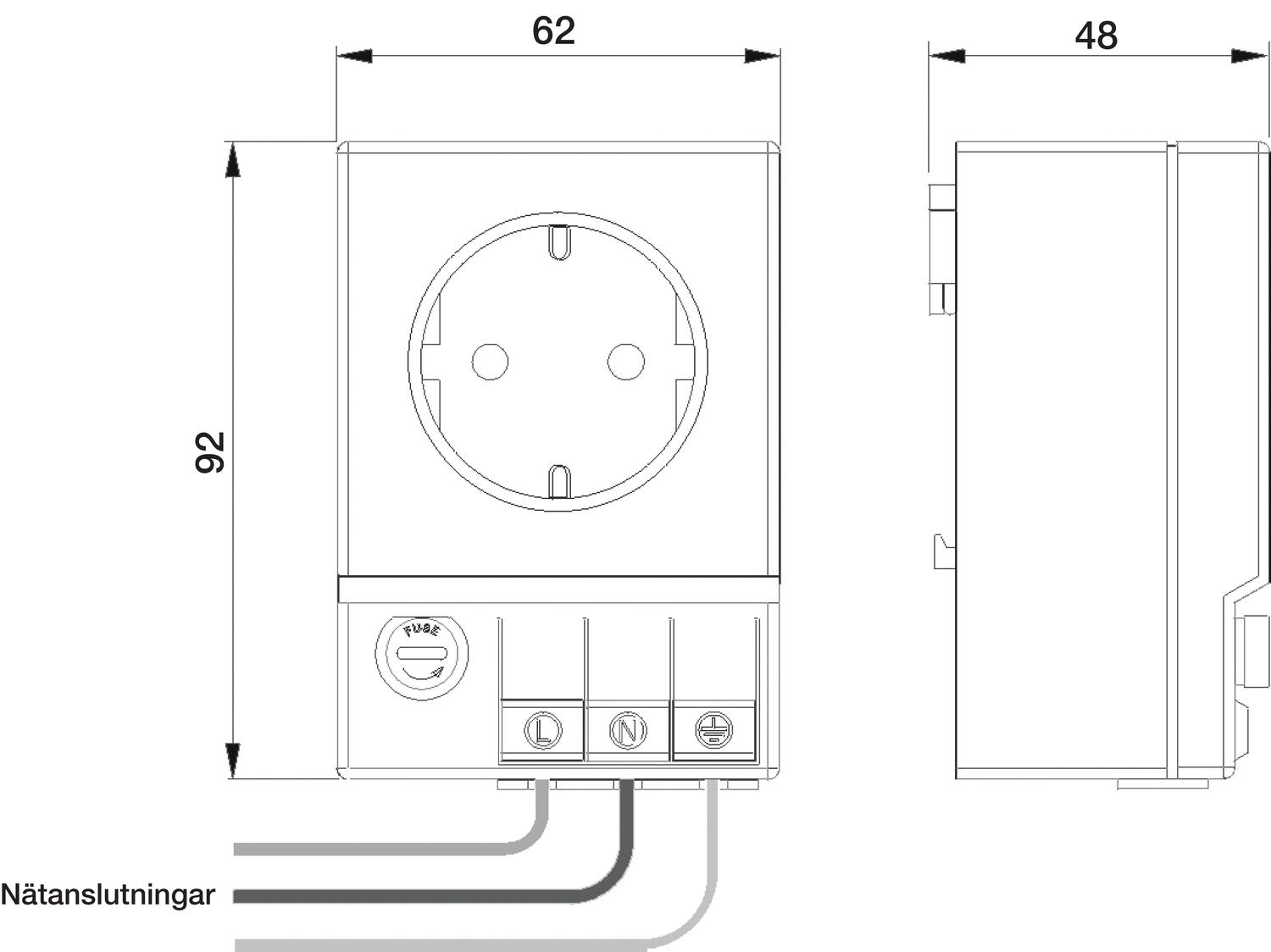

Dimensions

Germany/Nordic countries (1) Russia (1) France/Poland (2) Switzerland (3) Great Britain/Ireland (4) USA/Canada (5) Italy (6)

Order number

Order no. Designation With holder for fine-wire fuse 03500.0-00 Electrical outlets for DIN rail, Germany/Nordic countries/Russia standard (1) with fuse holder Electrical outlet for DIN rail, France/Poland standard (2) with fuse holder Electrical outlet for DIN rail, Switzerland standard (3) with fuse holder Electrical outlet for DIN rail, Great Britain standard (4) with fuse holder Electrical outlet for DIN rail, USA/Canada standard (5) with fuse holder (125 V ac max) Electrical outlet for DIN rail, Italy standard (6) with fuse holder Without holder for fine-wire fuse Electrical outlet for DIN rail, Germany/Nordic countries/Russia standard (1) without fuse holder Electrical outlet for DIN rail, France/Poland standard (2) without fuse holder Electrical outlet for DIN rail, Switzerland standard (3)without fuse holder Electrical outlet for DIN rail, Great Britain standard (4)without fuse holder Electrical outlet for DIN rail, USA/Canada standard (5) without fuse holder (125 V ac max) Electrical outlet for DIN rail, Italy standard (6) without fuse holder

Accessories

My favourites Articles Approvals Color Connection Flamklass Fuse max Height Humidity Storage IP Class Length Material Plastic Housing Mounting Nominal socket current Operating Humidity Operational Temperature Protection Class Socket Storage temperature Weight Width Voltage max Price

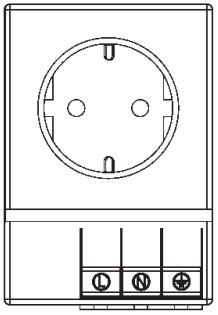

Product scetch Socket SD035 DE,RU without fuse.png
Din Rail Euro Socket
Art:
03500.0-01 Copied
EAC, RoHS
Light grey
3 x pressure clamp
UL94-V0
16
92
<90% RH
IP20
92
Plastic
Clip on, DIN rail
16
< 90% RH
-45°C ... +70°C
I (earthed)
DE/DK/FI/NO/RU/SE
-45°C ... +70°C
0,2
62
250 V ac
Socket Din Rail Mtd.BS.
Socket Din Rail Mtd.Bs 13A
Art:
03503.001 Copied
