STEGO

Enclosure Lighting LED 025 Ecoline

Ecoline

LED025 ECOLINE is a LED light from STEGO with quick connection through spring clamp. LED025 ECOLINE can be used for all types of panel or cabinet installations, but is particularly good when space is limited due to its optimal size. The lighting has a very long life due to LED technology, which results in savings in service and maintenance.
  • LED long lifetime
  • Externally switched version
  • Wide AC/DC voltage range
  • Quick connect spring terminals
STEGO_LED025_Ecoline_Photo.tif

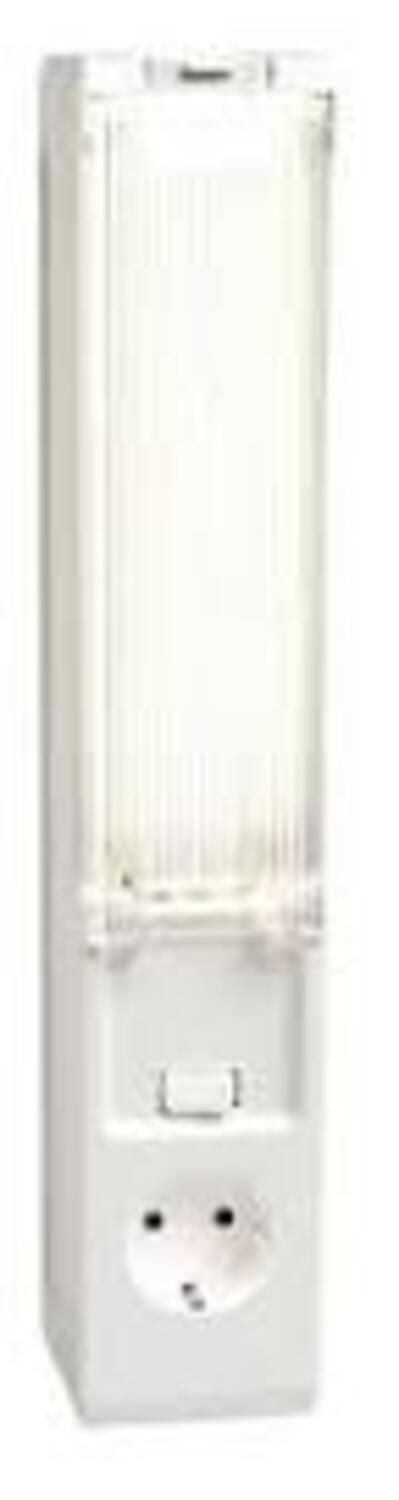

Compact Lamps 230v + Cover ( 09520.0-00)

Compact Lamps 230v + Cover (09520.0-00)

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CE, cULus, EAC, RoHS, UL, UL E234324, VDE
Color Transparent
Connection 2-pole dual cage clamp
Height 34
Humidity Storage <90% RH
IP Class IP20
Length 351
Life span 60,000h at +20°C
Lifespan Electrical 60 000h at +20 °C:ssa (+68 °F)
Luminance 400Lm at 120°
Nominal voltage 24-48 V DC
Operating Humidity < 90% RH
Operational Temperature -30°C ... +60°C
Power Consumption 5
Storage temperature -40°C ... +85°C
Voltage max 60 V dc
Voltage min 20 V dc
Weight 0.2
Width 52

Downloads

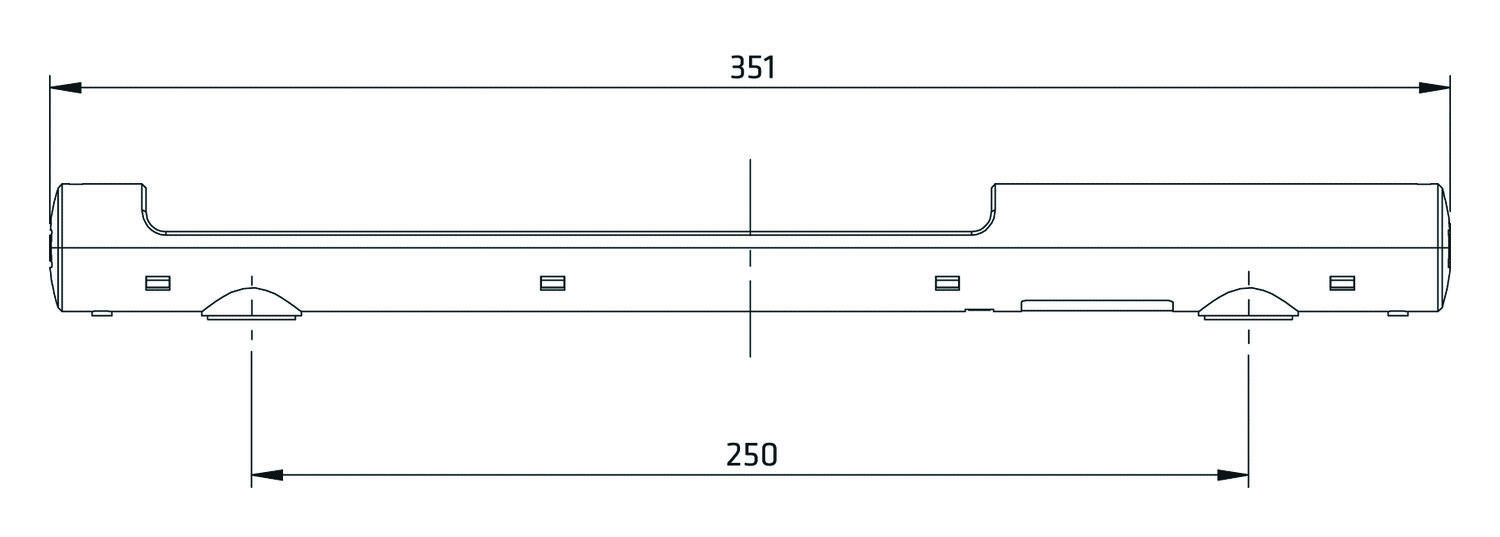

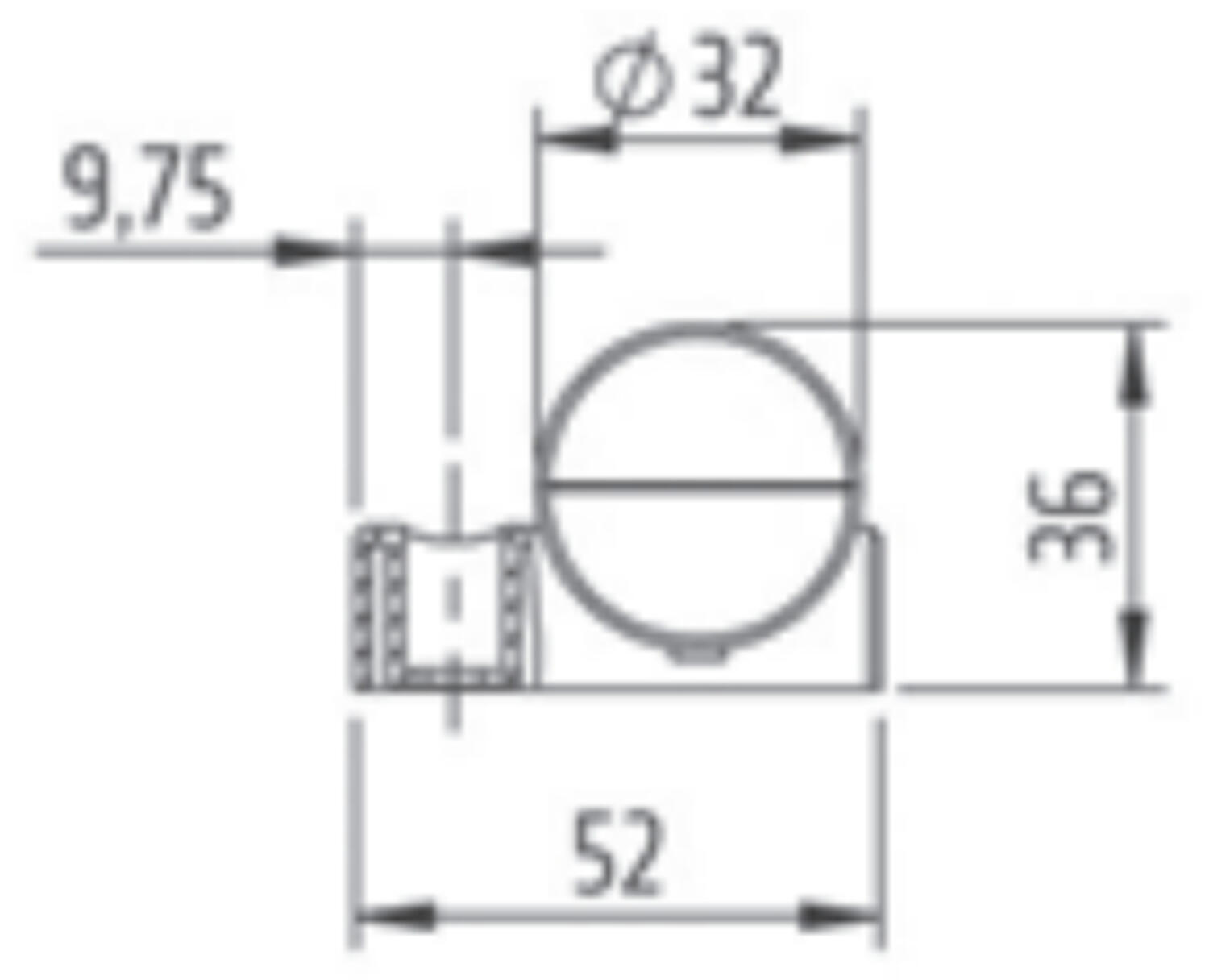

Measurements and connections

Product description

LED025 ECOLINE is available in three different mounting options to suit different applications: Magnetic assembly, which can be mounted very quickly and can be moved around the cabinet if necessary. Screw mounting, for "traditional" mounting. Clip assembly, which is a type of screw mounting, but where the lighting can be angled and also easily moved as needed LED025 ECOLINE has the same luminance as a 95W bulb, but consumes only 5 W. LED025 ECOLINE is available with both 100-240 V AC and 90-110 V DC in one and the same unit, which makes it easy for both purchases and storage.

Accessories

jim
Company News

Welcome Jim Murray to OEM Demesne

A familiar face returns. Jim Murray joins OEM-Demesne as Chief Sales & Supplier Officer, bringing 26 years of industry leadership back to the business at a defining moment in the move to OEM Automatic.

katko ksm
Blog

Katko IsoSafe KSM Safety Switch

Katko has launched a significant upgrade to its IsoSafe KSM safety switch range (16–25A), built around the realities of modern installation work. The redesigned side-operated switch combines an

wohner
Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

My favourites Articles Approvals Color Connection Height Humidity Storage IP Class Length Life span Lifespan Electrical Luminance Nominal voltage Operating Humidity Operational Temperature Power Consumption Storage temperature Voltage max Voltage min Weight Width Price
STEGO_LED025_Ecoline_Photo.tif
Ecoline Panel Lamp 24-48V DC Screw Fixing + Switch
Art:
02540.1-11 Copied
CE, cULus, EAC, RoHS, UL, UL E234324, VDE
Transparent
2-pole dual cage clamp
34
<90% RH
IP20
351
60,000h at +20°C
60 000h at +20 °C:ssa (+68 °F)
400Lm at 120°
24-48 V DC
< 90% RH
-30°C ... +60°C
5
-40°C ... +85°C
60 V dc
20 V dc
0.2
52
STEGO_LED025_Ecoline_Photo.tif
LED Panel Lamp Unswitched (100-240v ac)
Art:
02542.3-11 Copied
CE, cULus, EAC, RoHS, UL, UL E234324, VDE
Transparent
2-pole dual cage clamp
34
<90% RH
IP20
351
60,000h at +20°C
60 000h at +20 °C:ssa (+68 °F)
400Lm at 120°
100-240 V AC
< 90% RH
-30°C ... +60°C
5
-40°C ... +85°C
265 V ac/125 V dc
90 V ac/80 V dc
0.2
52
STEGO_LED025_Ecoline_Photo.tif
LED Panel Lamp Magnetic / No Switch (100-240v ac)
Art:
02542.3-10 Copied
CE, cULus, EAC, RoHS, UL, UL E234324, VDE
Transparent
2-pole dual cage clamp
34
<90% RH
IP20
351
60,000h at +20°C
60 000h at +20 °C:ssa (+68 °F)
400Lm at 120°
100-240 V AC
< 90% RH
-30°C ... +60°C
5
-40°C ... +85°C
265 V ac/125 V dc
90 V ac/80 V dc
0.2
32
STEGO_LED025_Ecoline_Photo.tif
LED Panel Lamp c/w Switch (100-240v ac)
Art:
02540.3-11 Copied
CE, cRUus, EAC, RoHS, UL, UL E234324, VDE
Transparent
2-pole dual cage clamp
36
<90% RH
IP20
351
60,000h at +20°C
60 000h at +20 °C:ssa (+68 °F)
400Lm at 120°
100-240 V AC
< 90% RH
-30°C ... +60°C
5
-40°C ... +85°C
265 V ac/125 V dc
90 V ac/80 V dc
0.2
52
Compact Lamps 230v + Cover ( 09520.0-00)
Compact Lamps 230v + Cover (09520.0-00)
Art:
02510.000 Copied

Selected variant

Select a variant in the list
