STEGO

Enclosure lighting - SL 025

SL 025

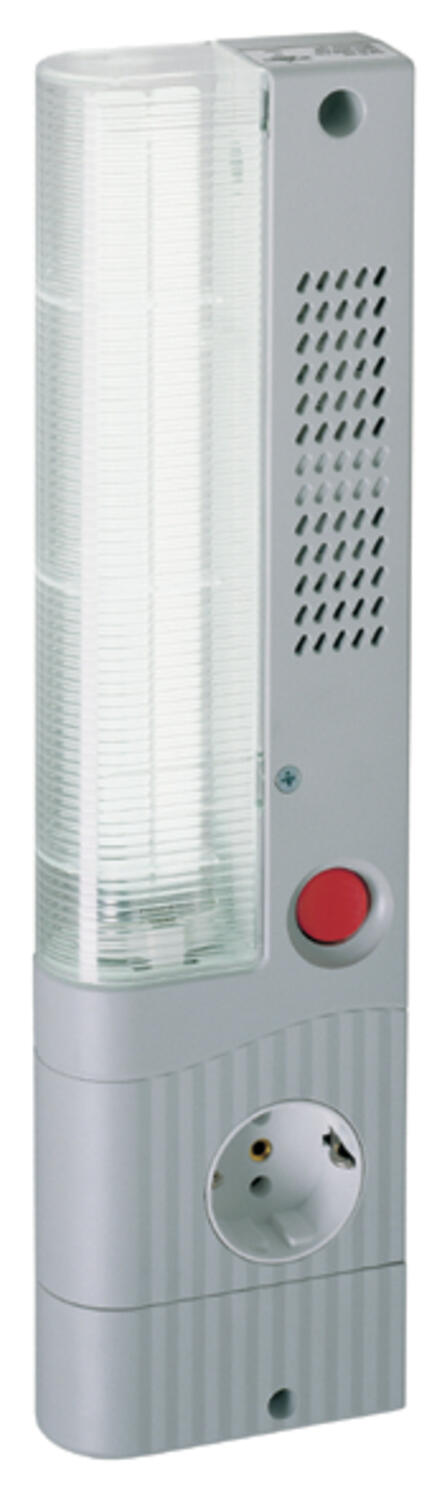

The Slimline is designed to take as little vertical space as possible and thus be concealed behind the cabinet's upper front edge. The risk for glare is thus minimal despite the 11 W low energy lamp providing as much light as a 75 W light bulb. Slimline has an integrated outlet for, for example, a soldering iron or other device, and as standard has a screw-mounted push button switch.

Slim casing
Electronic ballast
Energy saving lamp
Low energy fluorescent lamp

Selected variant

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Activation	Switch
Approvals	CE, EAC, GS, RoHS, UL, UL E234324, VDE
Color	Light grey
Connection	3-pole terminal
Flamklass	UL94-V0
Frequenze	50/60 Hz
Height	40
Humidity Storage	<90% RH
IP Class	IP20
Length	345
Life span	10,000 Hrs
Light source	Low energy Fluorescent lamp

Luminance	900Lm
Material Plastic Housing	Plastic
Mounting	Screw fixing
Nominal voltage	230 V AC
Operating Humidity	< 90% RH
Operational Temperature	-20°C ... +50°C
Storage temperature	-45°C ... +70°C
Weight	0.4
Width	345
Voltage max	230 V ac
Voltage min	230 V ac

Downloads

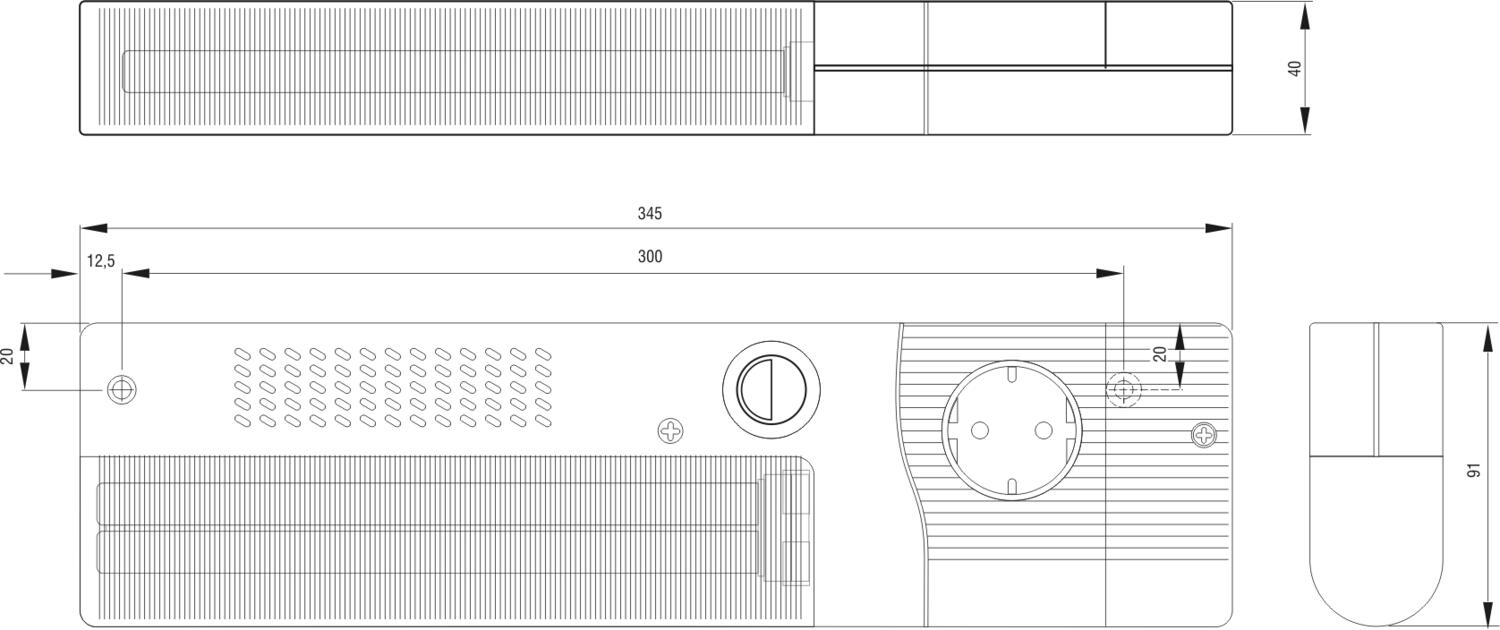

Measurements and connections

Product description

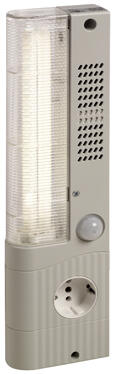

Both a magnetic bracket and IR sensor are available as options. If a magnetic bracket is chosen, installation is very simple and the lamp can be easily moved around in the cabinet to suit each situation. If you would also prefer an IR sensor, it only reacts when the door is opened, even if the door is transparent. Installation is facilitated even more in that a door switch is unnecessary.

Accessories

Articles	Activation	Additional information	Approvals	Mounting	Nominal socket current	Socket	Weight
Panel Lights Magnetic 230v Art: 02527.0-00 Copied	Switch		CE, EAC, GS, RoHS, UL, UL E234324, VDE	Screw fixing			0.4
Lamps Slimline SL025 230V (No Socket) Sensor Art: 02527.0-04 Copied	IR sensor	PIR sensor activates the light for 6 minutes	CE, EAC, GS, RoHS, UL, UL E234324, VDE	Screw fixing			0.4
Compact 11w Magnetic light 230vc/w 13a Socket Art: 02523.1-05 Copied	Switch		CE, EAC, GS, RoHS, VDE	Magnetic mount	13	UK/IE	0.5
