STEGO

Touch Safe Loop Heater 20-40W - LTS 064

LTS

Improved heating power to volume and temperature distribution than standard heaters, thanks to the new loop design. 50% quicker installation time due to pressure clamp terminals. Vibration-proof for harsh conditions, e.g. High vibration impact in environments such as transport or wind power Certified for use in the rail industry

Low surface temperature
Shock and vibration proof
Wide voltage range
Double insulated
Pressure clamp connections

Selected variant

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals	RoHS 3, CE, UKCA, cRUus, EAC, UL E234324, VDE
Color	Black, White
Connection	2-pole terminal 2.5mm²
Depth	99
Heat Output	20
Heat Source	Self-regulating PTC-element
Height	105
Housing	Plastic enclosure, UL94 V-0
Humidity Storage	<90% RH
IP Class	IP20
Mounting	DIN-rail 35mm
Nominal voltage	120-240 V AC/DC

Operating Humidity	<90% RH
Operational Temperature	-45°C ... +70°C
Pre fuse (slow)	4
Starting Current Max	2
Storage temperature	-45°C ... +70°C
Temperature 50 Mm Above The Heater	<+80°C (+176°F)
Voltage max	265 V ac/dc
Voltage min	110 V ac/dc
Weight	2
Width	38

Downloads

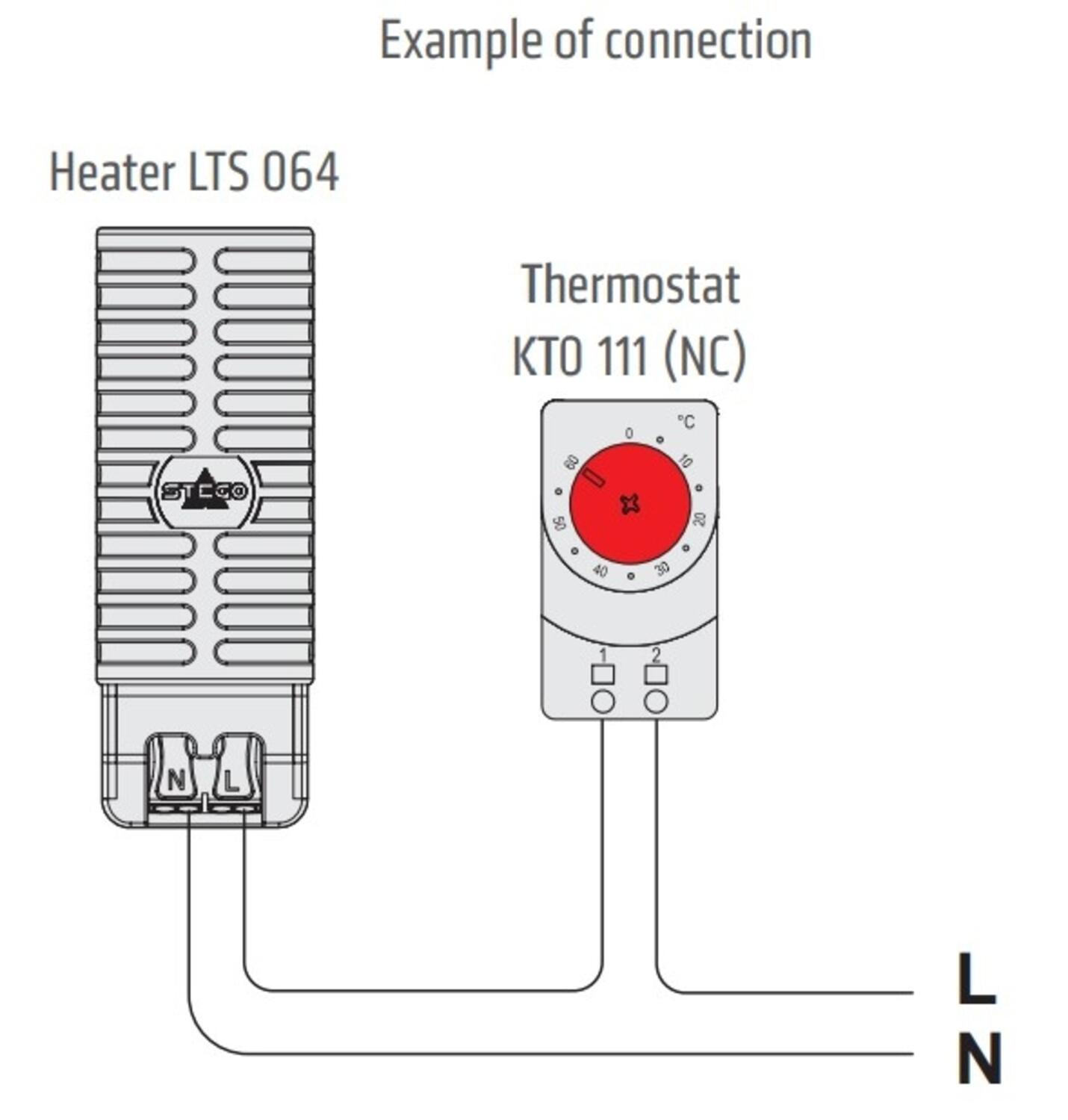

Measurements and connections

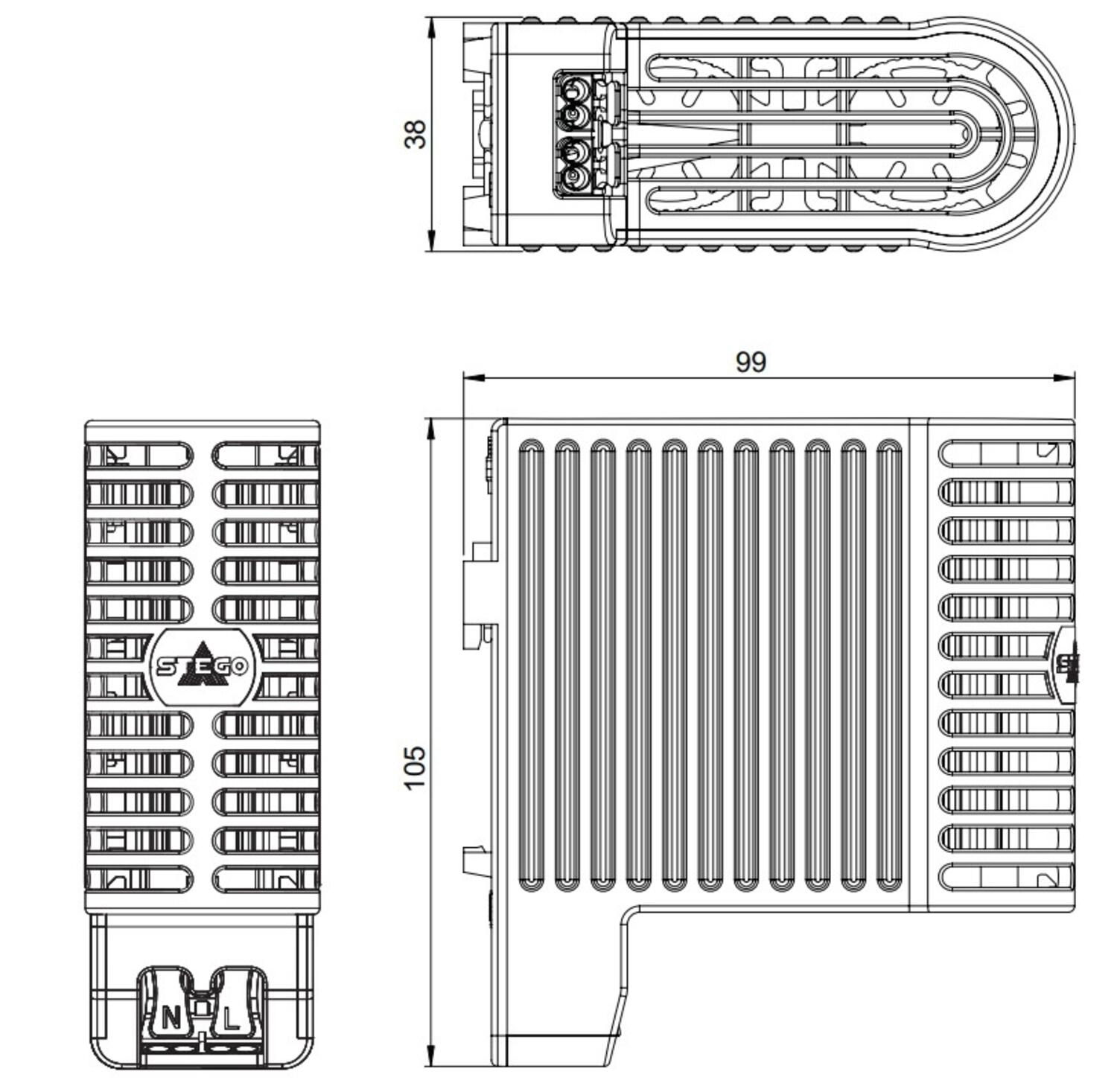

Technical illustrations

Product description

Accessories

Blog

F-Gas Regulation & Enclosure Cooling in Ireland

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

Company News

Welcome Jim Murray to OEM Demesne

A familiar face returns. Jim Murray joins OEM-Demesne as Chief Sales & Supplier Officer, bringing 26 years of industry leadership back to the business at a defining moment in the move to OEM Automatic.

Blog

Katko IsoSafe KSM Safety Switch

Katko has launched a significant upgrade to its IsoSafe KSM safety switch range (16–25A), built around the realities of modern installation work. The redesigned side-operated switch combines an

Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Articles	Approvals	Color	Connection	Depth	Heat Output	Heat Source	Height	Housing	Humidity Storage	IP Class	Mounting	Nominal voltage	Operating Humidity	Operational Temperature	Pre fuse (slow)	Starting Current Max	Storage temperature	Temperature 50 Mm Above The Heater	Voltage max	Voltage min	Weight	Width
Loop Heater (touch safe) 20W 120-240V ac/dc Art: 06401.0-00 Copied	RoHS 3, CE, UKCA, cRUus, EAC, UL E234324, VDE	Black, White	2-pole terminal 2.5mm²	99	20	Self-regulating PTC-element	105	Plastic enclosure, UL94 V-0	<90% RH	IP20	DIN-rail 35mm	120-240 V AC/DC	<90% RH	-45°C ... +70°C	4	2	-45°C ... +70°C	<+80°C (+176°F)	265 V ac/dc	110 V ac/dc	2	38
LTS064 Loop Touch-safe Enclosure Heater 30W 1 Art: 06402.0-00 Copied	RoHS 3, CE, UKCA, cRUus, EAC, UL E234324, VDE	Black, White	2-pole terminal 2.5mm²	99	30	Self-regulating PTC-element	105	Plastic enclosure, UL94 V-0	<90% RH	IP20	DIN-rail 35mm	120-240 V AC/DC	<90% RH	-45°C ... +70°C	4	2	-45°C ... +70°C	<+80°C (+176°F)	265 V ac/dc	110 V ac/dc	2	38
STEGO Touch safe Fan assisted 150W heate Art: 02800.000 Copied
Fan assisted heater 250w Art: 02811.000 Copied

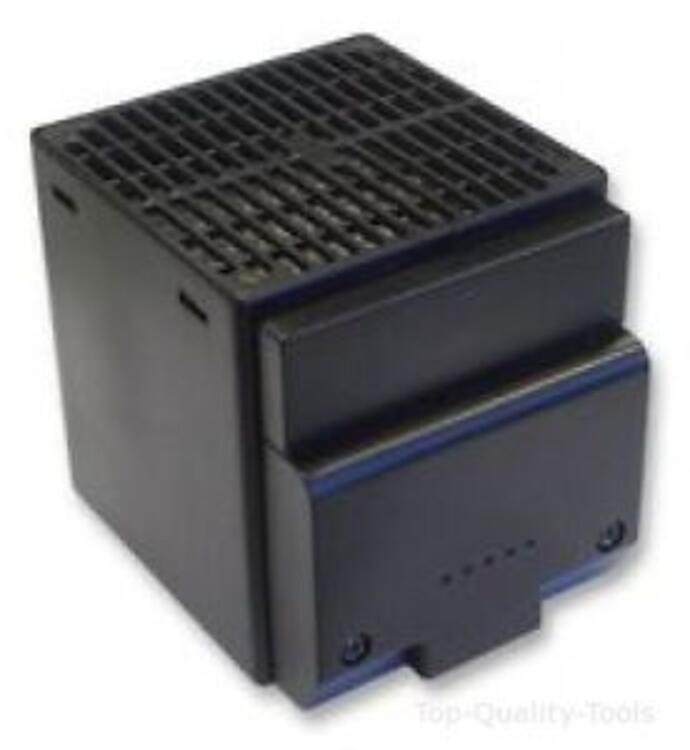

Fan Assisted Heater 400W Art: 02810.000 Copied
