DF ELECTRIC

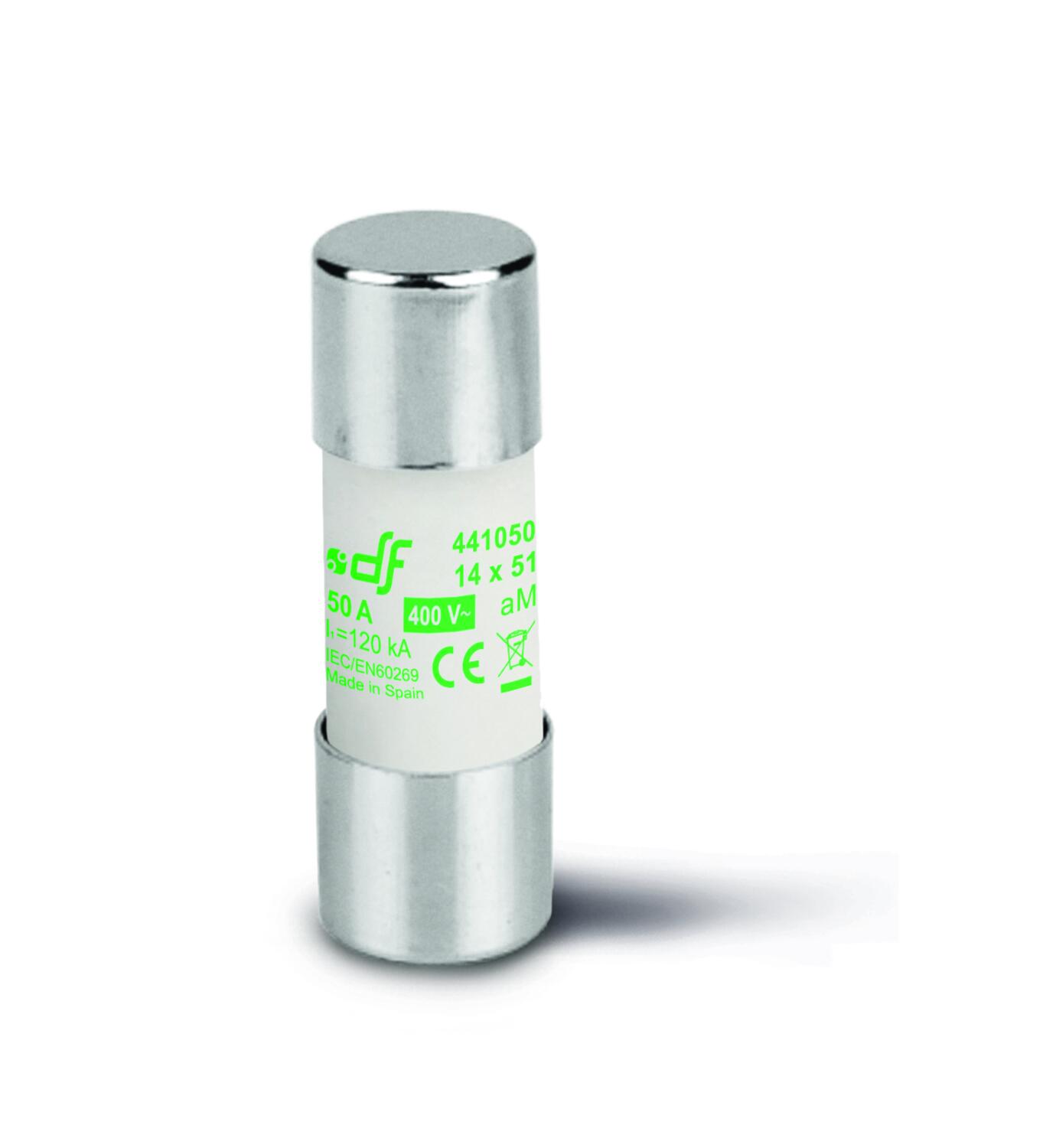

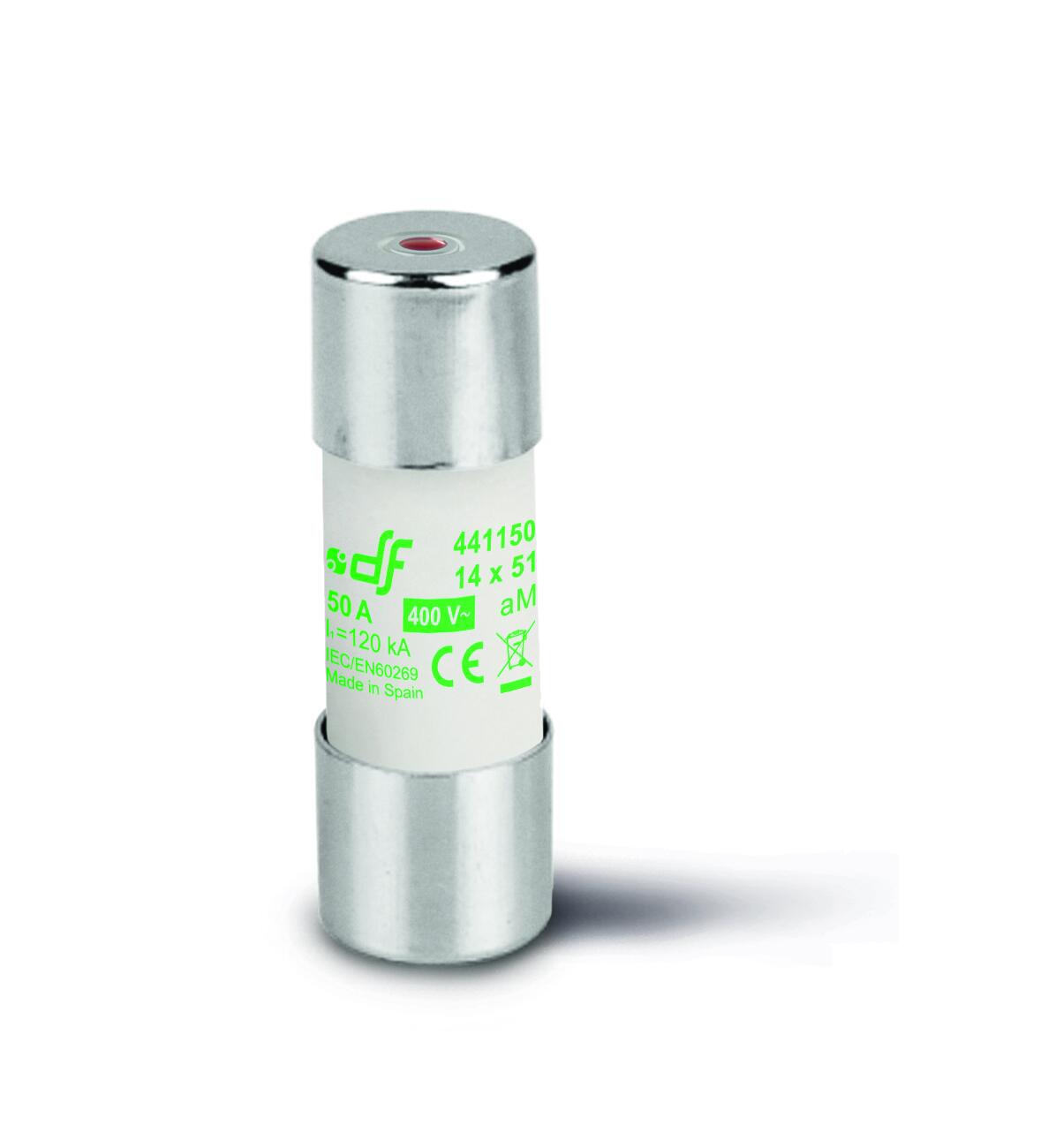

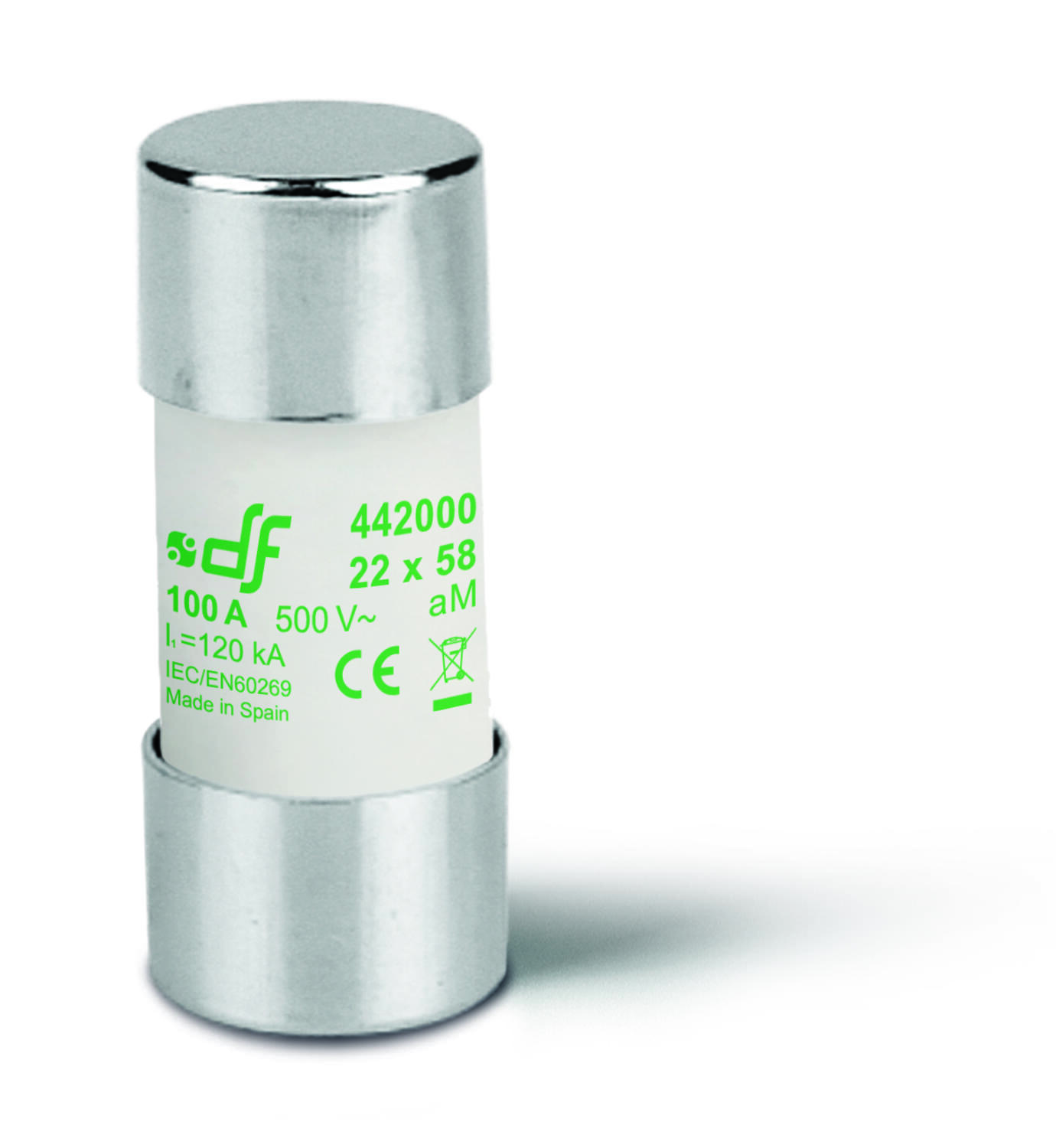

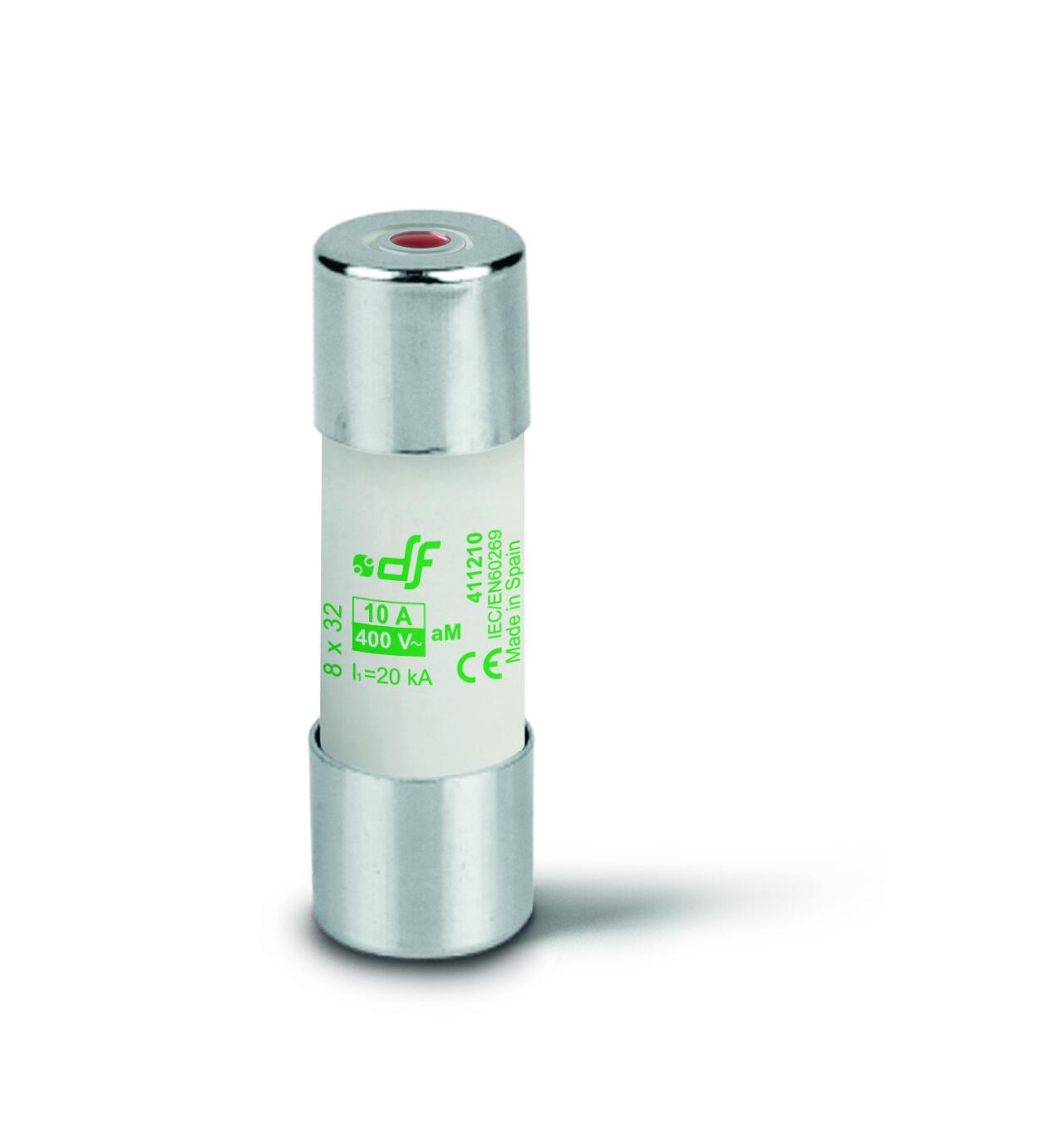

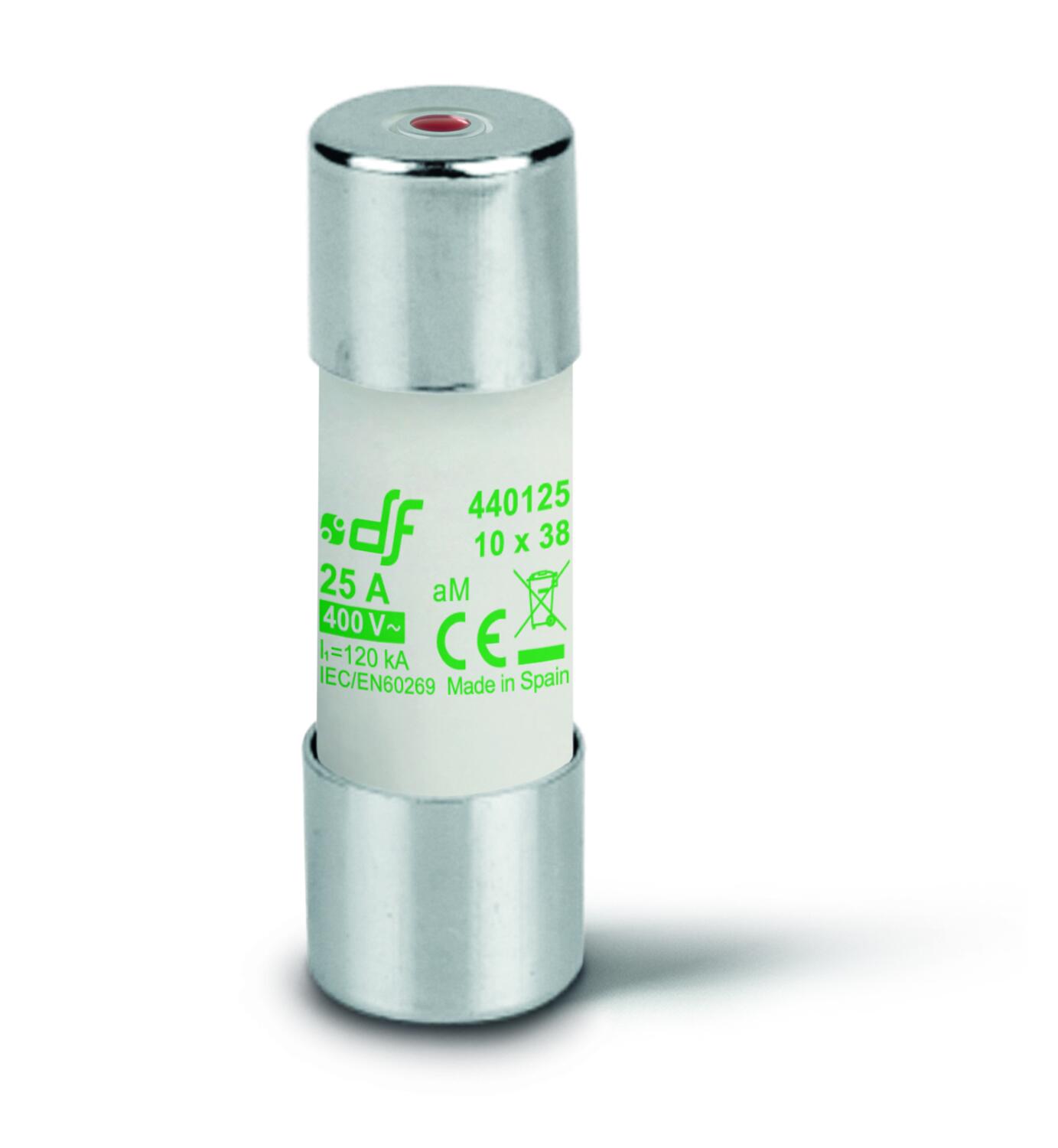

aM Cylindrical Fuse Links
- Available in 8x32, 10x38, 14x51 and 22x58
- Most current ratings available with indicators
- Striker versions available
- High breaking capacity – Up to 80 kA
Selected variant
Selected variant
Specifications
| 4853_Size (mm) | 8x32 |
|---|---|
| Breaking Capacity | 20 |
| Country | ES |
| Frequency | 42...62Hz |
| Indicator | No |
| Pack Size | 10 |
| Rated Current | 4 |
| Tariff code | 85361010 |
| Type | aM |
| Weight | 4.1 |
| Voltage AC / DC Max | 400 |
Product description
aM Cylindrical Fuse Links – High Inrush/Short-Circuit Protection
The aM class cylindrical fuse links are specially engineered for protecting motors, transformers and other loads that exhibit high inrush currents. These fuses deliver strong current-limiting capability, low I²t values, and high breaking capacities — making them ideal for use in demanding industrial environments.
