DF ELECTRIC
gBat NH fuse links 440V/550V DC
- High DC voltage rating – Supports 440 V and 550 V DC systems, ideal for battery storage and renewable DC networks.
- High fault-clearing capacity – Up to 30 kA breaking capacity ensures reliable protection under fault condition

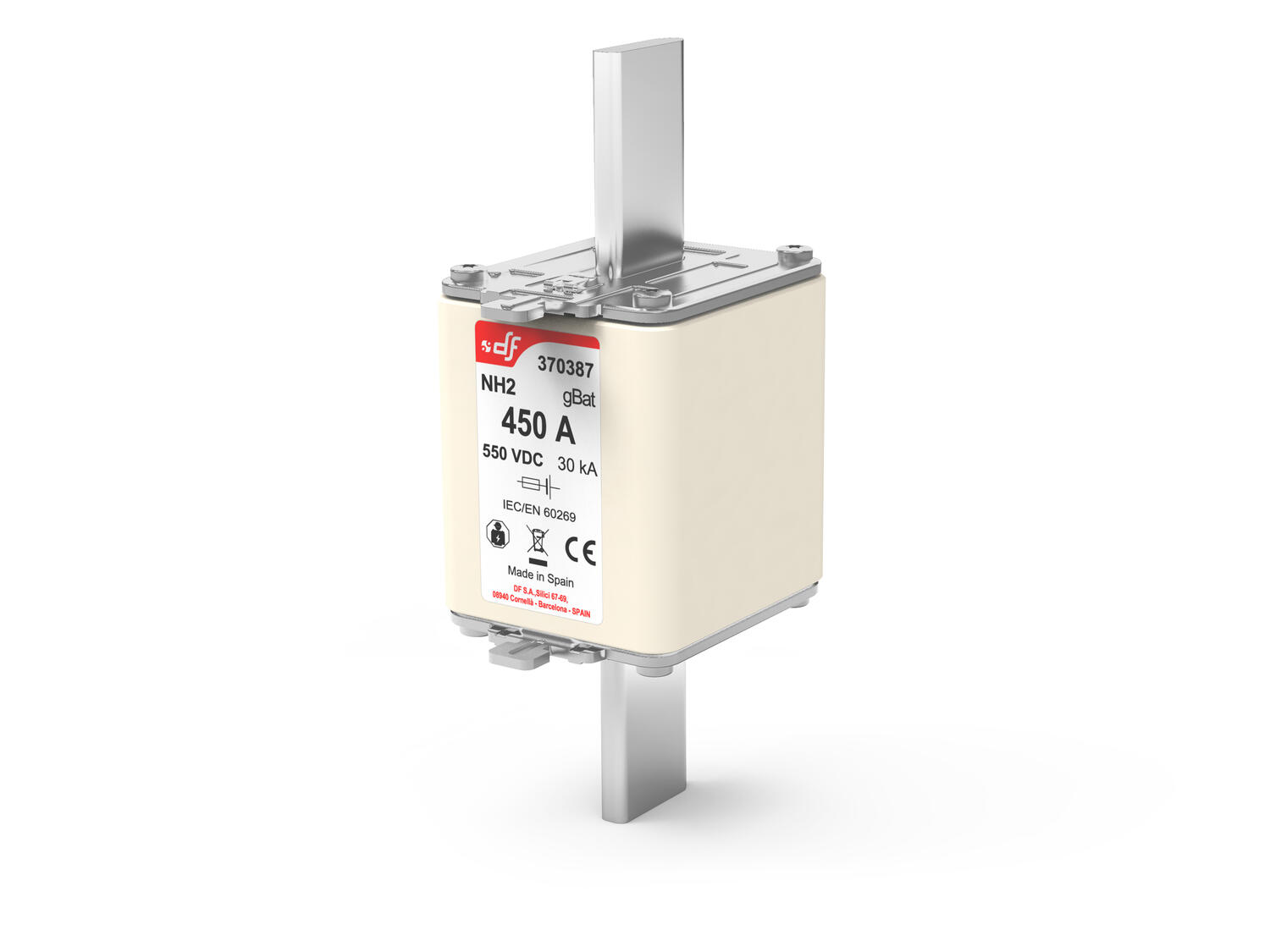

- Wide current range – From 20 A up to 630 A depending on NH size (for example NH1 range 200-280 A at 550 V DC)
Selected variant
Selected variant
Specifications
| Breaking Capacity | 30 |
|---|---|
| Operational Temperature | -40-80 |
| Pack Size | 3 |
| Rated Current | 20 |
| Tariff code | 85361050 |
| Type | NH000 gBat |
| Weight | 120 |
| Voltage DC max | 440 |
Product description
gBat NH Fuse Links – 440 / 550 V DC

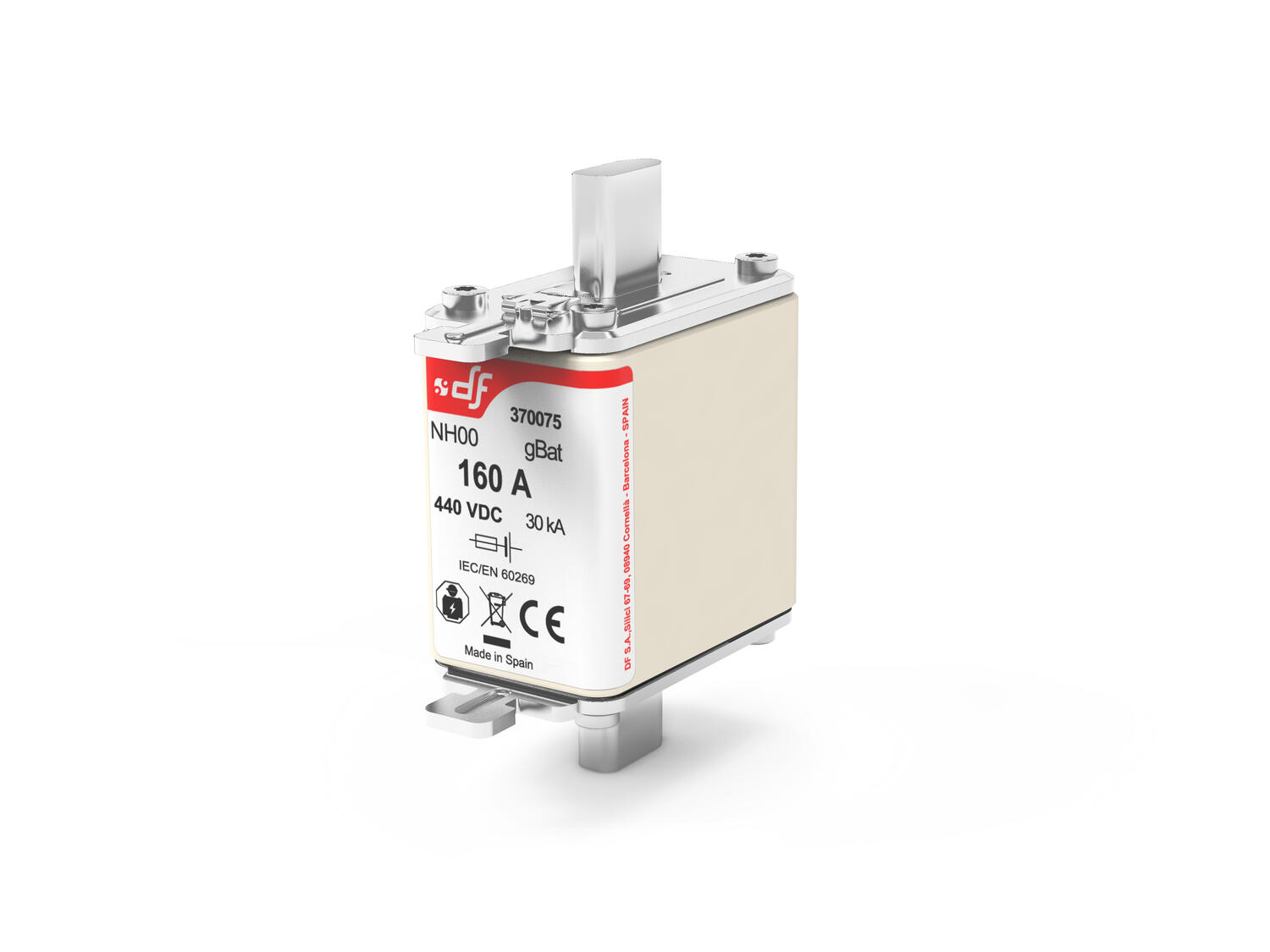

gBat NH fuse links are specially engineered for high-voltage DC systems like battery energy storage systems (BESS), renewable installations and other DC distribution networks. These fuse links comply with the battery-protection designation “gBat” and are built in the NH format (sizes NH000, NH00, NH1, NH2, NH3) covering currents from 20 A up to 630 A.
