DF ELECTRIC
gBat NH fuse links 1000V DC

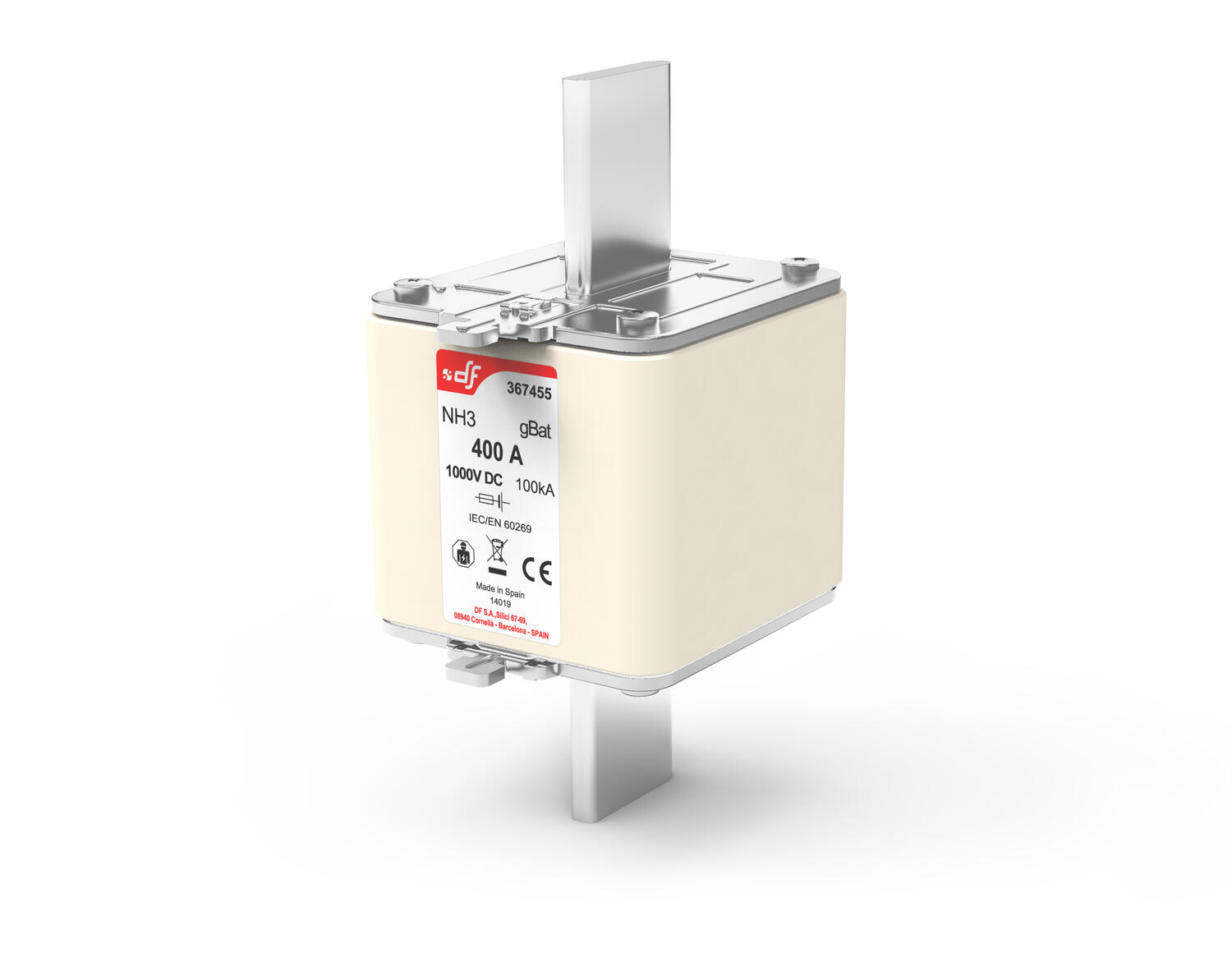

gBat NH Fuse Links – 1000 V DC
The gBat NH fuse links are purpose-built for high-voltage DC applications, including battery energy storage systems (BESS), DC distribution networks and photovoltaic installations. These fuse links carry a rated voltage of 1 000 V DC, adhere to the latest battery-protection standard IEC 60269‑7, and deliver high breaking capacity for safe and reliable performance
- Rated 1000 V DC – Ideal for battery/inverter systems and DC busbars.
- Wide current range – Available in NH1 and NH3 sizes, currents from ~40 A up to ~400 A
- High interrupting capacity – Up to 100 kA DC breaking capacity in many variants.
Selected variant
Selected variant
Specifications
| Breaking Capacity | 100 |
|---|---|
| Operational Temperature | -40-80 |
| Pack Size | 1 |
| Rated Current | 40 |
| Tariff code | 85361050 |
| Type | NH1 gBat |
| Weight | 380 |
| Voltage DC max | 1000 |
Product description
gBat NH Fuse Links – 1000 V DC
The gBat NH fuse links are purpose-built for high-voltage DC applications, including battery energy storage systems (BESS), DC distribution networks and photovoltaic installations. These fuse links carry a rated voltage of 1 000 V DC, adhere to the latest battery-protection standard IEC 60269‑7, and deliver high breaking capacity for safe and reliable performance
