gBat Cylindrical Fuse Links
gBat Cylindrical Fuse Links – Battery & DC Protection
The gBat cylindrical fuse links are purpose-built to protect battery systems and DC networks, in full compliance with the standard IEC 60269‑7 for battery-protection fuse links.

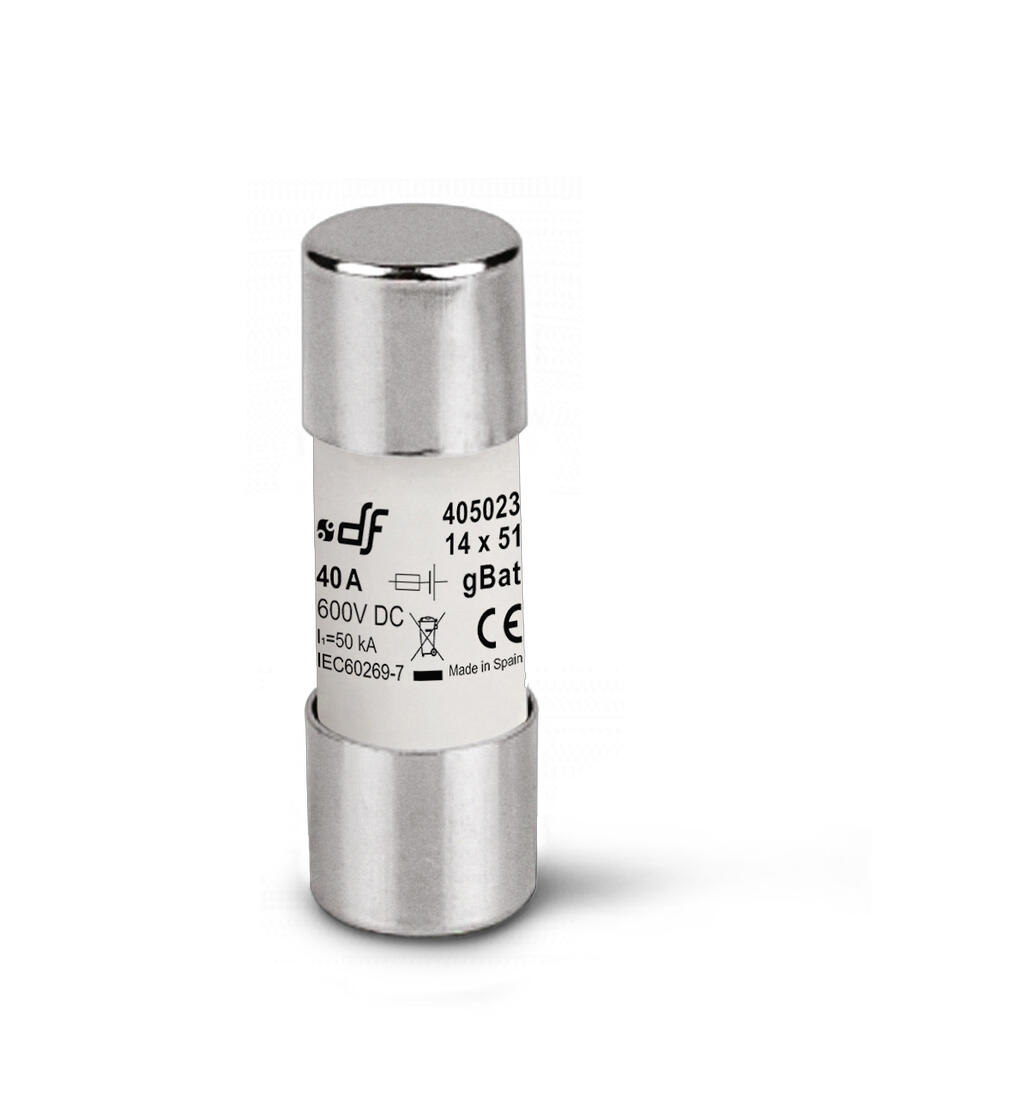

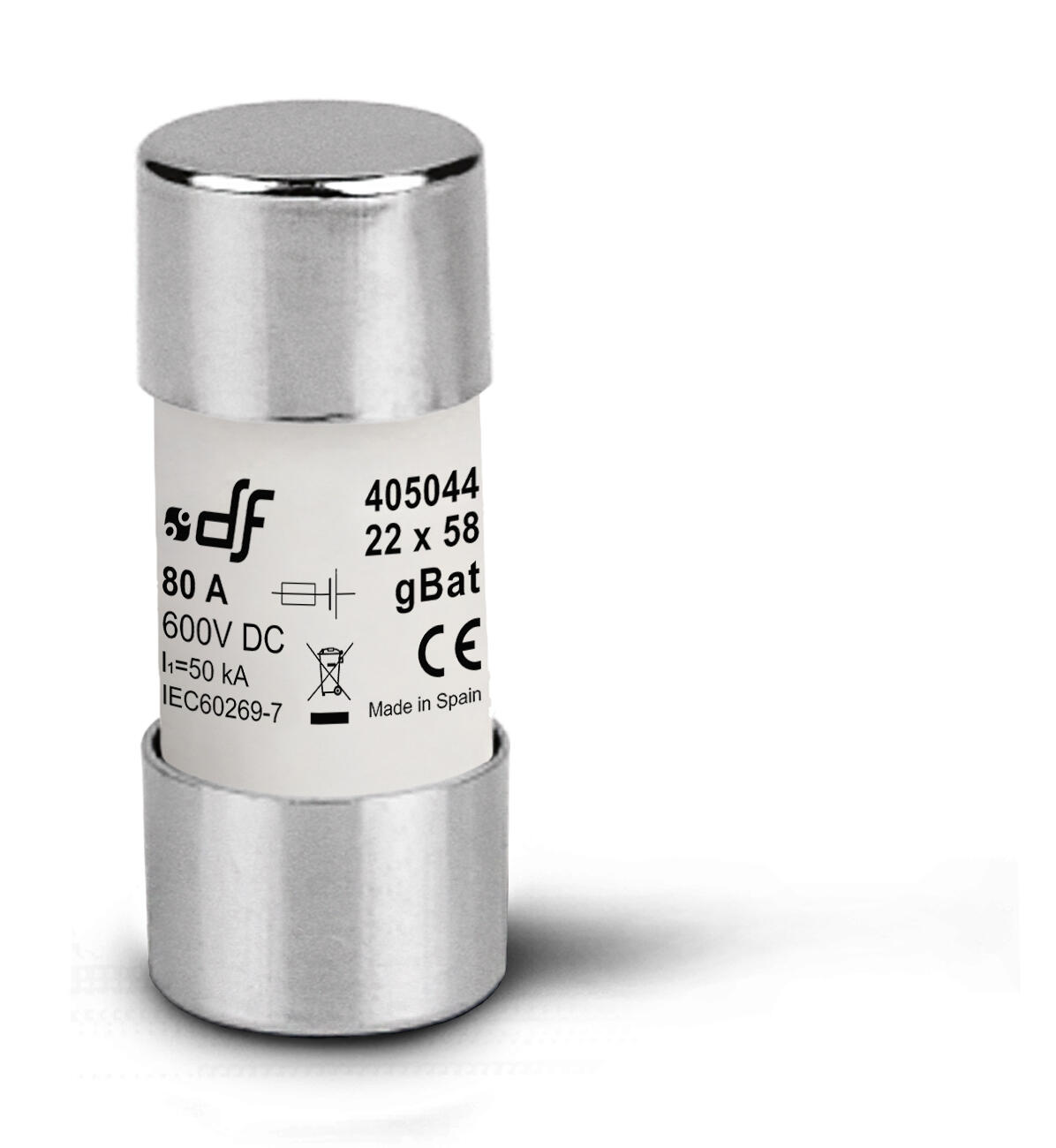

Available in sizes 14 × 51 and 22 × 58, they cover current ratings from 2 A to 80 A, with a rated voltage of 600 V DC in the base cylindrical format.These links are designed for fast clearing of overloads and short-circuits, and are optimised for battery systems, offering low power dissipation and durable performance in charge/discharge cycles.
- Purpose-built for battery protection – Specifically engineered for BESS and other battery applications.
- Rapid fault clearing – Extremely low L/R values (≤ 3 ms) in certain versions
- Compact cylindrical format – Fits standard fuse bases (14×51, 22×58) making integration easier.
Selected variant
Selected variant
Specifications
| 4853_Size (mm) | 14x51 |
|---|---|
| Breaking Capacity | 50 |
| Country | ES |
| Frequency | 42...62Hz |
| Indicator | No |
| Pack Size | 10 |
| Rated Current | 2 |
| Tariff code | 85361010 |
| Type | gBat |
| Voltage DC max | 600 |
| Weight | 18 |
Product description
gBat Cylindrical Fuse Links – Battery & DC Protection
The gBat cylindrical fuse links are purpose-built to protect battery systems and DC networks, in full compliance with the standard IEC 60269‑7 for battery-protection fuse links.
Available in sizes 14 × 51 and 22 × 58, they cover current ratings from 2 A to 80 A, with a rated voltage of 600 V DC in the base cylindrical format.These links are designed for fast clearing of overloads and short-circuits, and are optimised for battery systems, offering low power dissipation and durable performance in charge/discharge cycles.
