CONTA-CLIP

Test-disconnect terminals PTK

Test-disconnect terminals are mostly used in the sectors of electricity generation and supply.They are tailored to the variety of switching demands for current-converter secondary circuits that predominate in these sectors. Current transformers must always have a secondary circuit when electricity meters and measuring instruments are being replaced, or when making comparative measurements.
  • Multi-foot TS35/TS32
  • Touch-safe to VBG 4
  • Dual function, disconnect & test

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 10
Color Beige
Rated Voltage IEC 400
Rated Current IEC 10
Rated impulse voltage 4
Overvoltage category III
Contamination degree 3
Approvals CSA, CSA US
Length 72
Width 8
Height TS 35/7.5 47
Height TS 32 51.5
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A5
Cross connect channels 2
Cross section single wire from 0.2
Cross section single wire to 10
Cross section stranded wire from 0.2
Cross section stranded wire to 10
Cross section stranded with ferrule from 0.2
Cross section stranded with ferrule to 10
Rated wire cross section from (AWG) 8
Rated wire cross section to (AWG) 22
Stripping Length 12
Screw size M 4
Torque Min 1.2
Torque max 2
Flamklass UL94-V2
Operating temperature from -40
Operating temperature to 105
Voltage CSA 600
Rated Current CSA 45
CSA test standard C22.2 No 158
Rated voltage CSAus 600
Rated current CSAus 45
CSAus test standard UL 1059
Tariff code 85369010
Country of origin DE
Weight 24.66
Pack Size 50

Downloads

Measurements and connections

Product description

CONTA-CLIP test-disconnect terminals are available in the following three basic versions, each with or without a pre-assembled socket plug. All versions provide touch-safe protection according to DGUV-3. A captive, screw-on sliding partition is used to separate the current and voltage paths. The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve. In all versions, the STB 14/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs. The VH 19 connecting sleeves and the BS 25 screws or STB 14/4 socket plugs are required for fastening the QVS cross-switches above the terminal block. The cross-switches are available from 2 to 4 poles. The QSB internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles. The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVS cross-switches.

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Seifert cooling unit
Blog

F-Gas Regulation & Enclosure Cooling in Ireland

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

jim
Company News

Welcome Jim Murray to OEM Demesne

A familiar face returns. Jim Murray joins OEM-Demesne as Chief Sales & Supplier Officer, bringing 26 years of industry leadership back to the business at a defining moment in the move to OEM Automatic.

katko ksm
Blog

Katko IsoSafe KSM Safety Switch

Katko has launched a significant upgrade to its IsoSafe KSM safety switch range (16–25A), built around the realities of modern installation work. The redesigned side-operated switch combines an

wohner
Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

My favourites Articles Approvals Additional information Width Height TS 35/7.5 Height TS 32 Cross connect channels Number of test pick off options Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Weight Price
Bloc teirminéil le dhá nasc agus cnaipe buí, deartha le haghaidh nasc leictreach éifeachtach.
Terminal Block Test Disconnect PTK 10sq Beige
Art:
1130.2 Copied
CSA, CSA US
8
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
24.66
Bloc teirminéil le comhpháirteanna miotail agus cnaipe buí, deartha le haghaidh naisc leictreacha.
PTK 10/LT/STB, Test-disconnect terminal with sockets
Art:
1131.2 Copied
CSA, CSA US
with sockets
8
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
28.9
Bloc teirminéil le comhpháirteanna miotail agus cnaipe buí, deartha le haghaidh suiteálacha leictreacha.

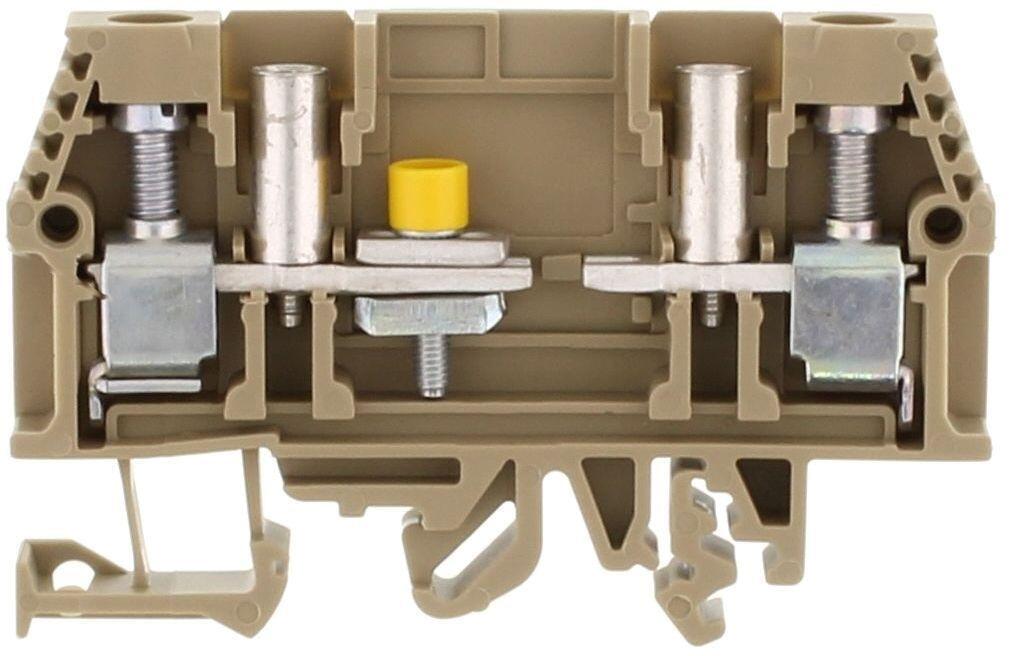

PTK 10/QT, Test-disconnect terminal, separated perpendicularly
Art:
1132.2 Copied
CSA, CSA US
8
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
25.14
Bloc teirminéil le comhpháirteanna miotail agus cuid phlaisteach bhuí, deartha le haghaidh naisc leictreacha.
PTK 10/QT, Test-disconnect terminal with sockets, separated perpendicularly
Art:
1133.2 Copied
CSA, CSA US
with sockets
8
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
29.74
Bloc críochfoirt i plaisteach beige le comhpháirteanna miotail do naisc leictreacha

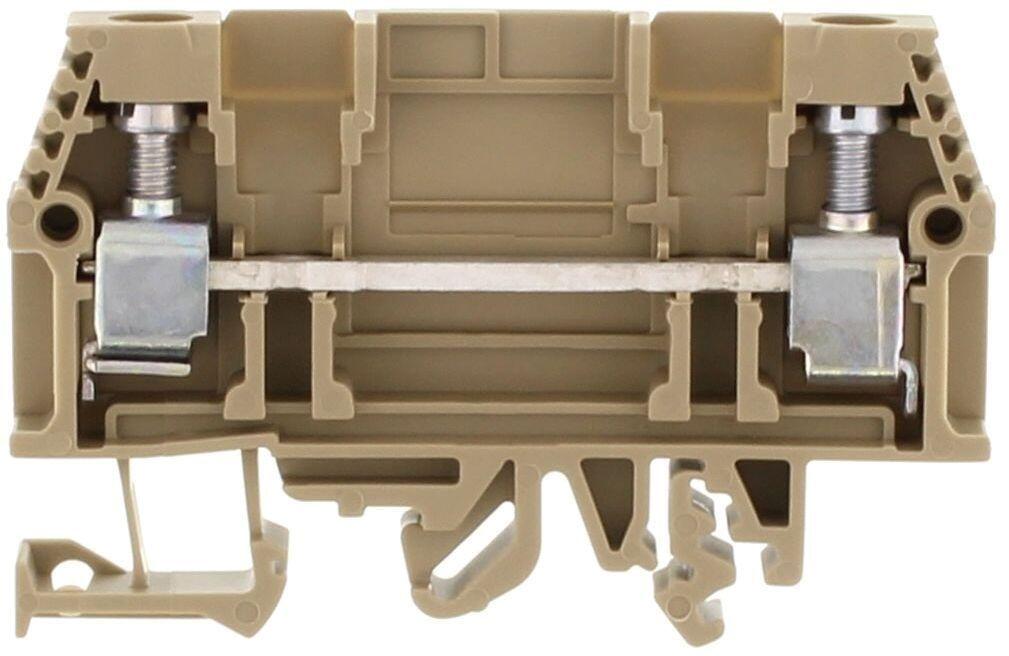

PTK 10/DU, Test-disconnect feed through terminal
Art:
1134.2 Copied
CSA, CSA US
8
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
22.56
Bloc críochfoirt i plaisteach beige le comhpháirteanna miotail do naisc leictreacha

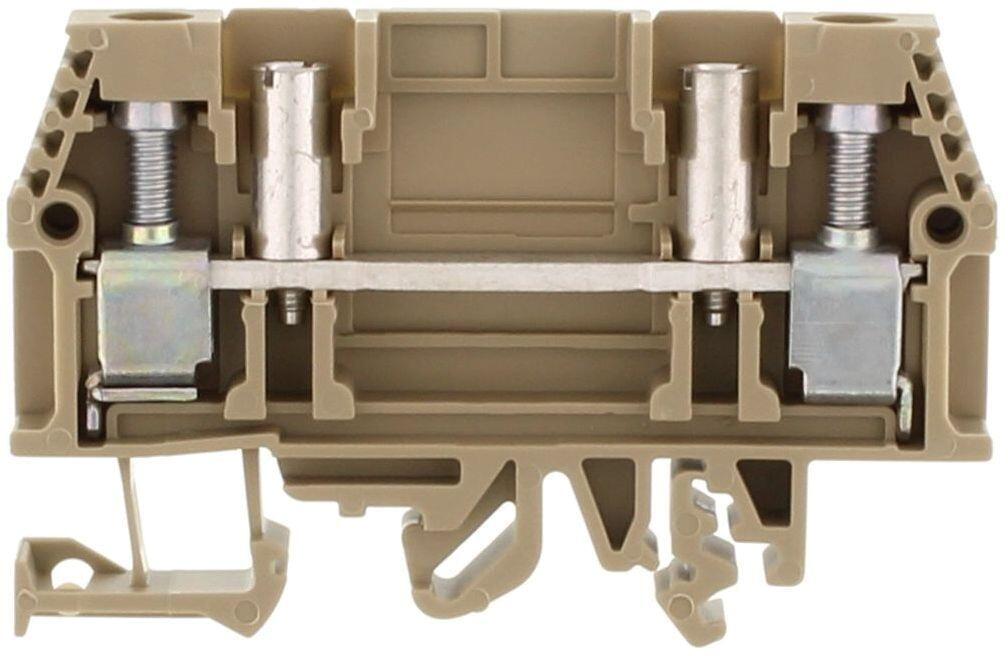

PTK 10/DU/STB,Test-disconnect feed through terminal with sockets
Art:
1135.2 Copied
CSA, CSA US
with sockets
8
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
22.56
Bloc teirminéil le cnaipe coigeartaithe buí agus teagmhálacha miotail le haghaidh suiteálacha leictreacha

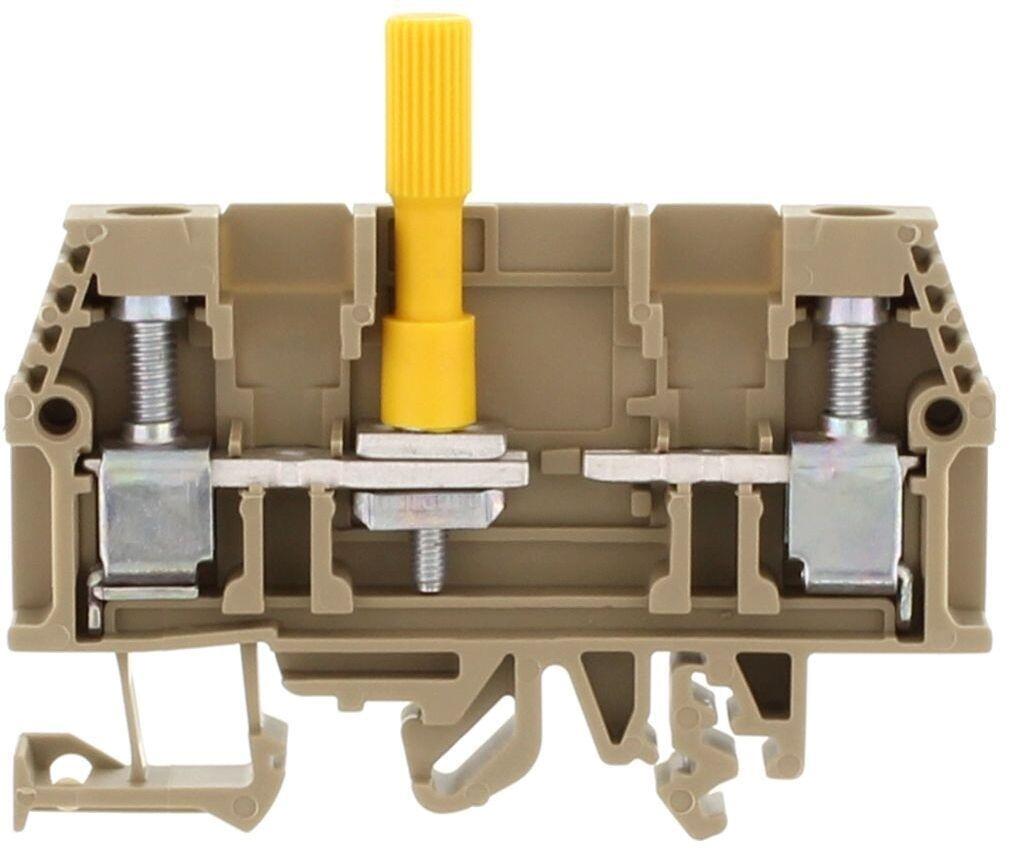

PTK 10/LT/HB, Test-disconnect terminal, Finger screw operated
Art:
17366.2 Copied
hand lever
8
63
67.5
2
31.66
Bloc teirminéil le cnaipe rothlach buí agus comhpháirteanna miotail le haghaidh naisc leictreacha

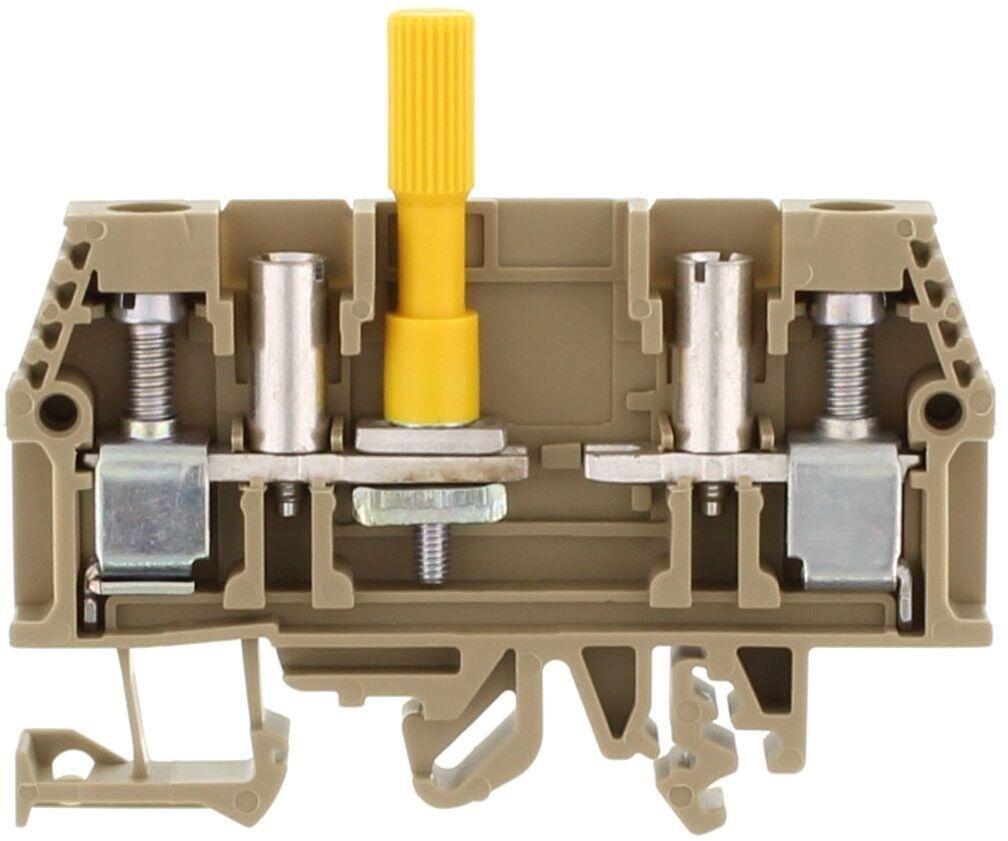

PTK 10/LT/STB/HB, Test-disconnect terminal with sockets, Finger screw operated
Art:
17367.2 Copied
hand lever
8
63
67.5
2
35.86

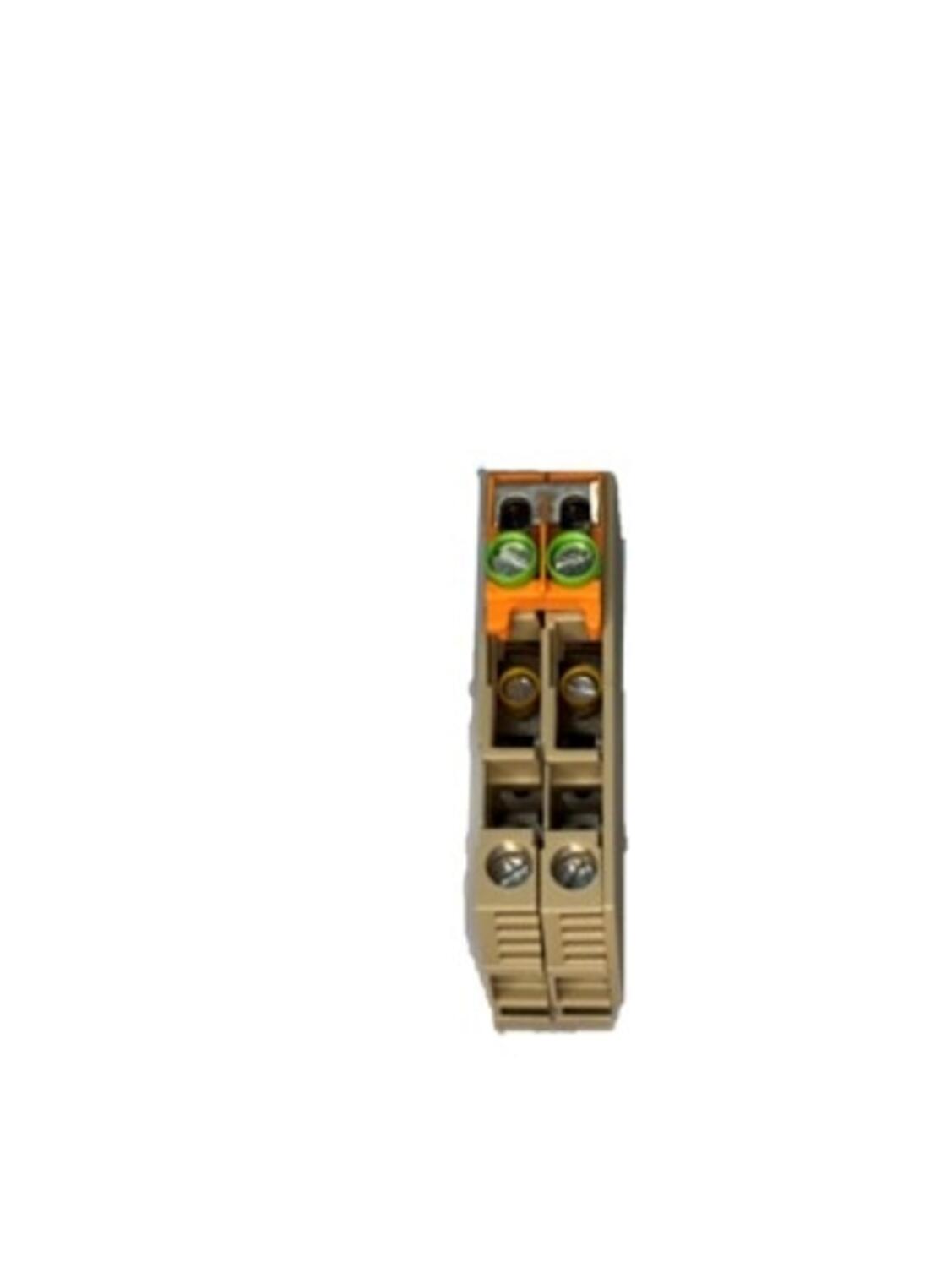

Conector plint ó CONTA-CLIP le dhá nasc agus téarmaí scriú
Art:
87780.0 Copied
CSA, CSA US
18
47
51.5
2
600
45
C22.2 No 158
600
45
UL 1059
60
Conneacht plint ó CONTA-CLIP le dhá nasc agus comhlacht gorm, oiriúnach do shuiteálacha leictreacha.
CT- LINK Assembly Single Phase
Art:
820100000008 Copied
CSA, CSA US
18
47
51.5
2
2
600
45
C22.2 No 158
600
45
UL 1059
64
Conector plint ó CONTA-CLIP le roinnt ceangaltóirí agus téarnamh dathchódaithe
CT - LINK 2 Assembly 3-Phase with voltage feed trough terminals
Art:
820100000009 Copied
CSA, CSA US
84
47
51.5
2
14
600
45
C22.2 No 158
600
45
UL 1059
283
Conector plint ó CONTA-CLIP le roinnt ceangaltóirí agus téarnamh dathchódaithe
CT-LINK 3 Assembly 3-Phase with Voltage Disconnects
Art:
820100000010 Copied
CSA, CSA US
84
47
51.5
2
14
600
45
C22.2 No 158
600
45
UL 1059
287
