CONTA-CLIP

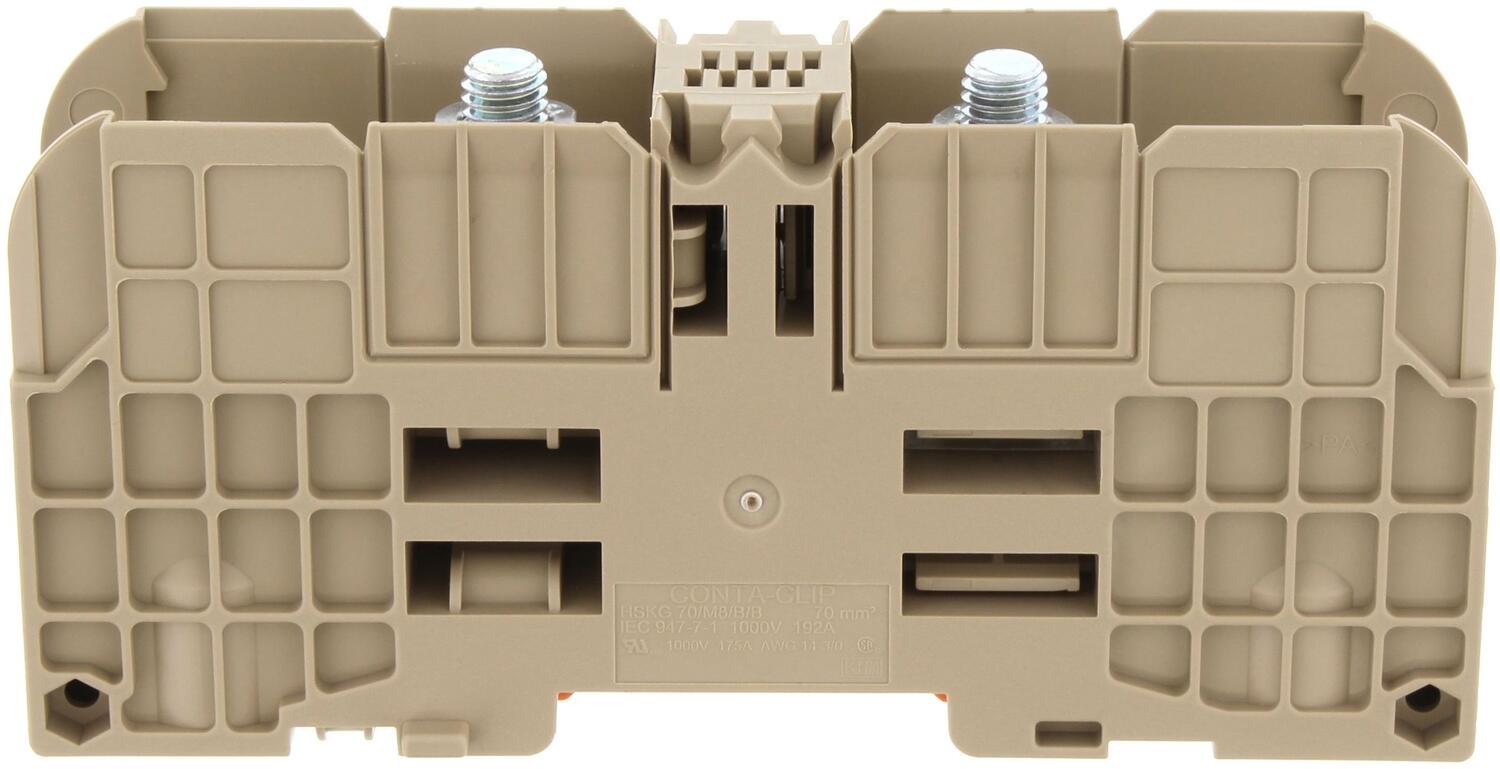

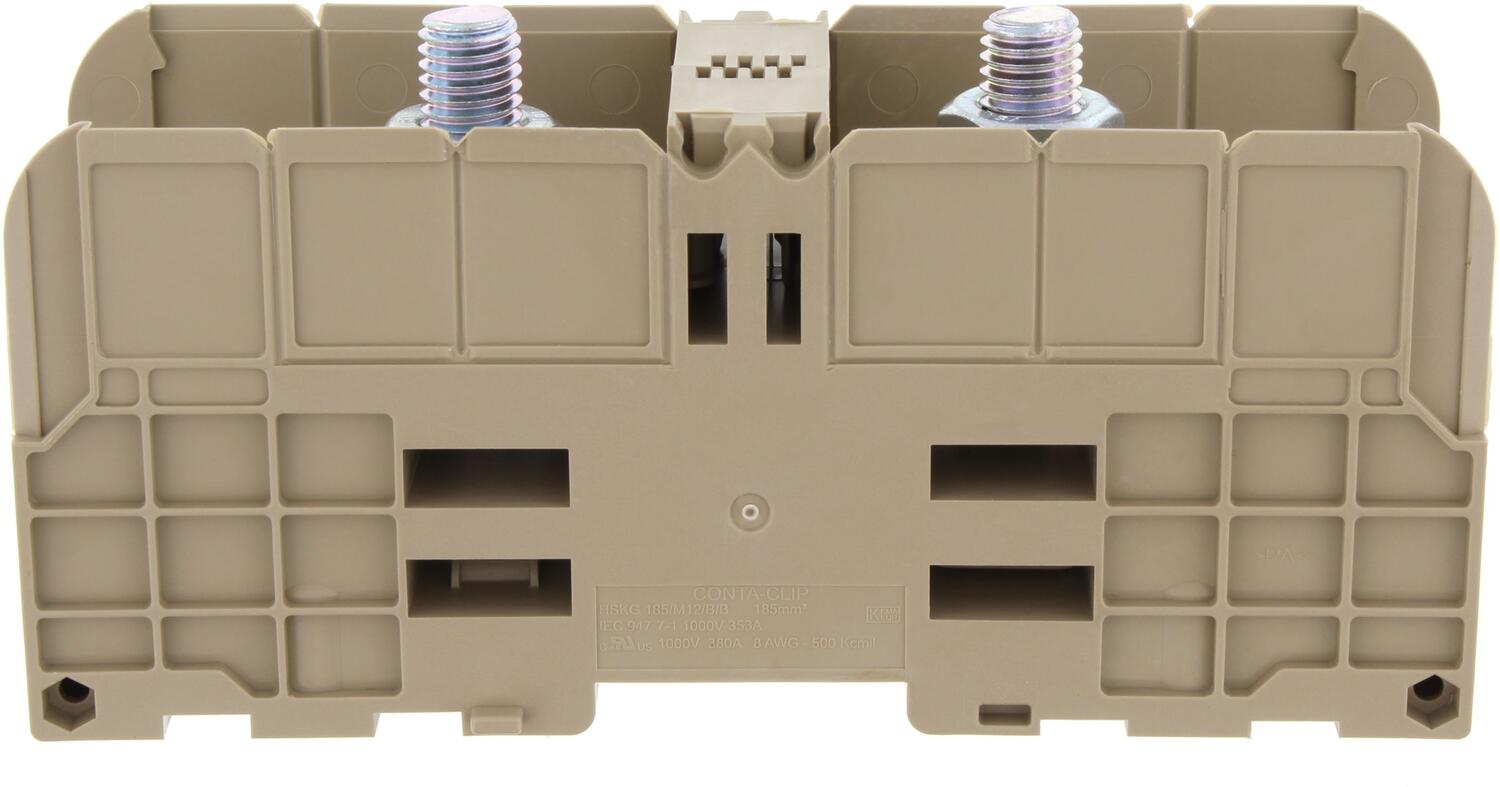

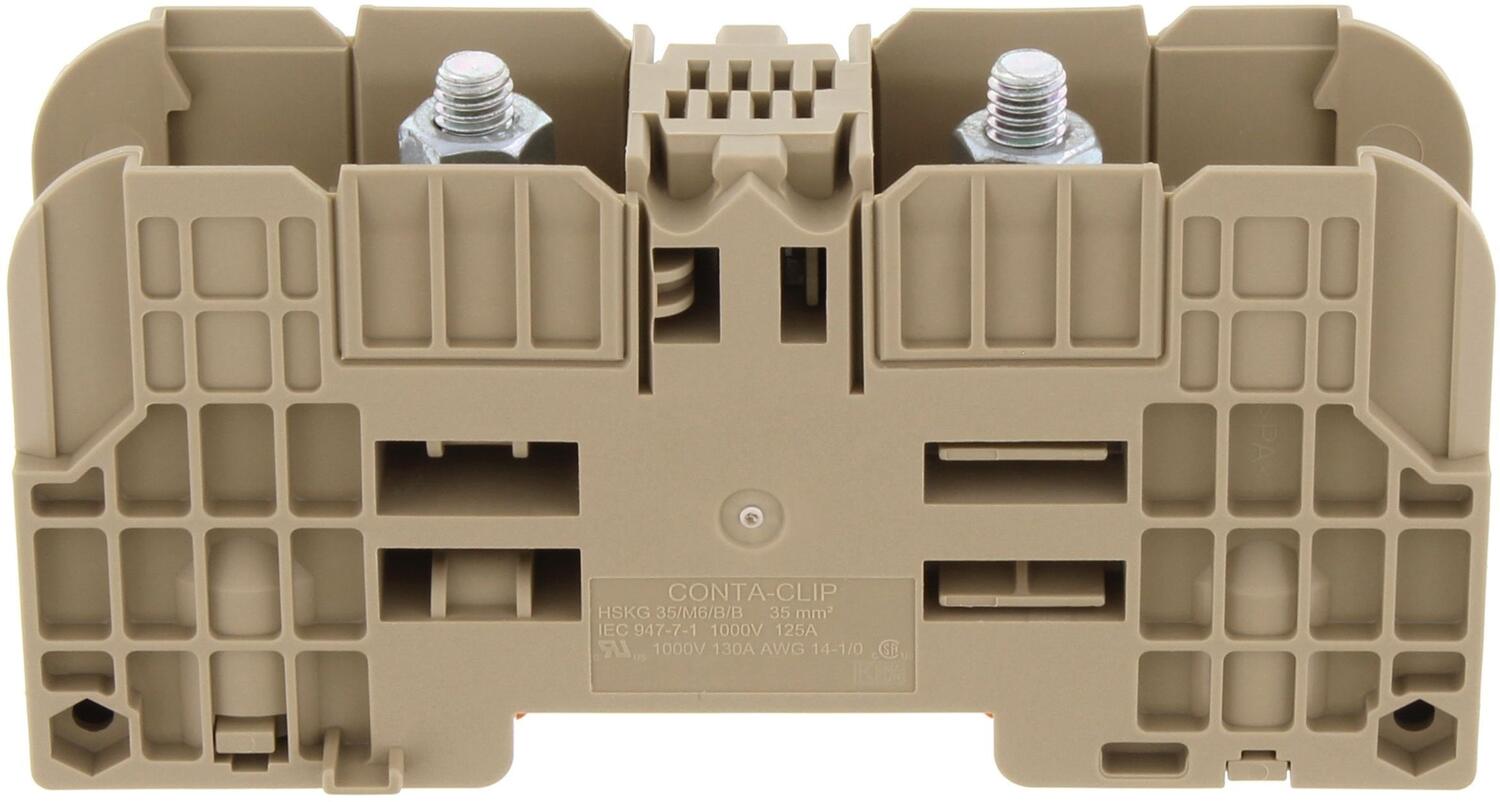

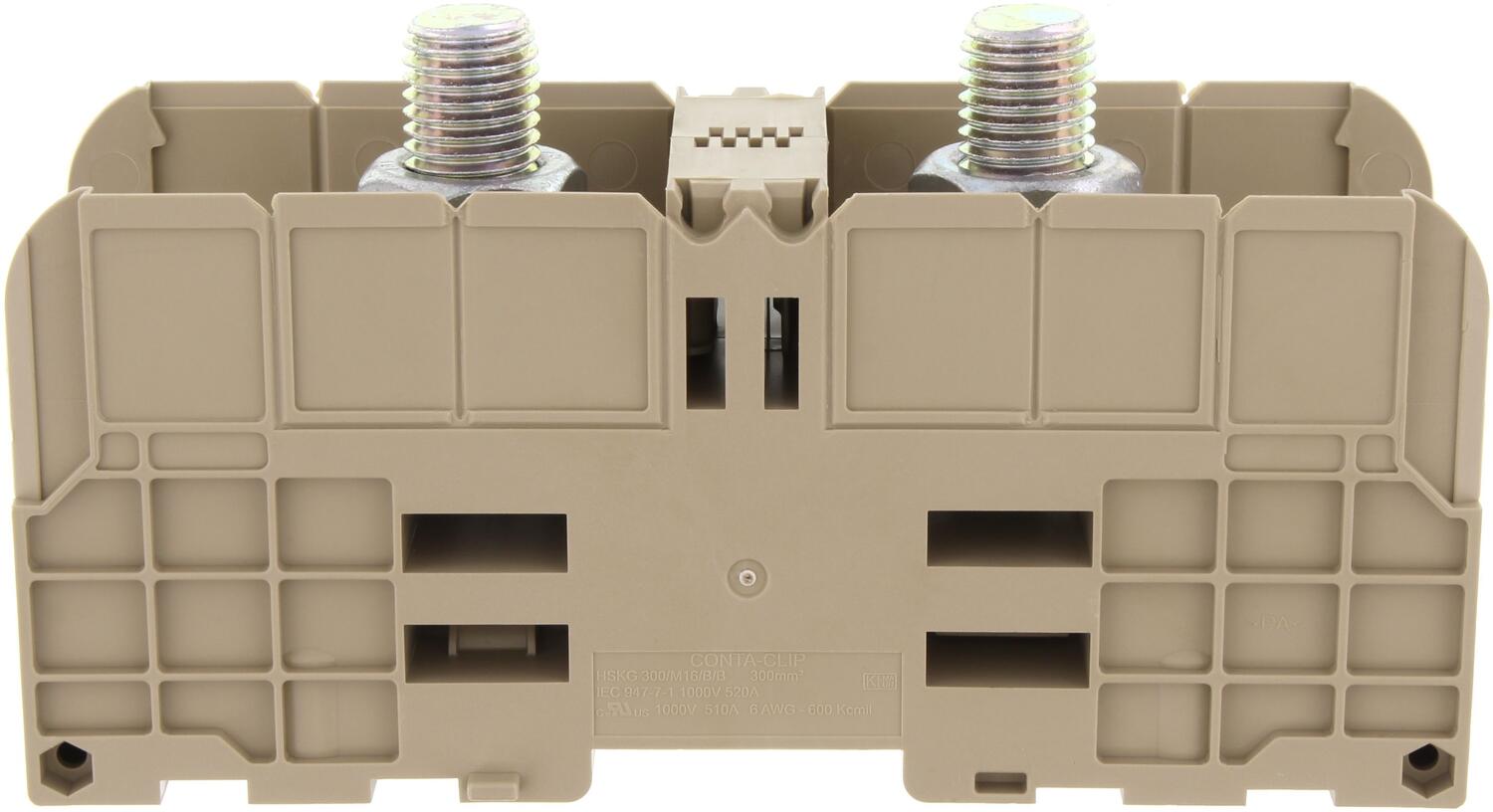

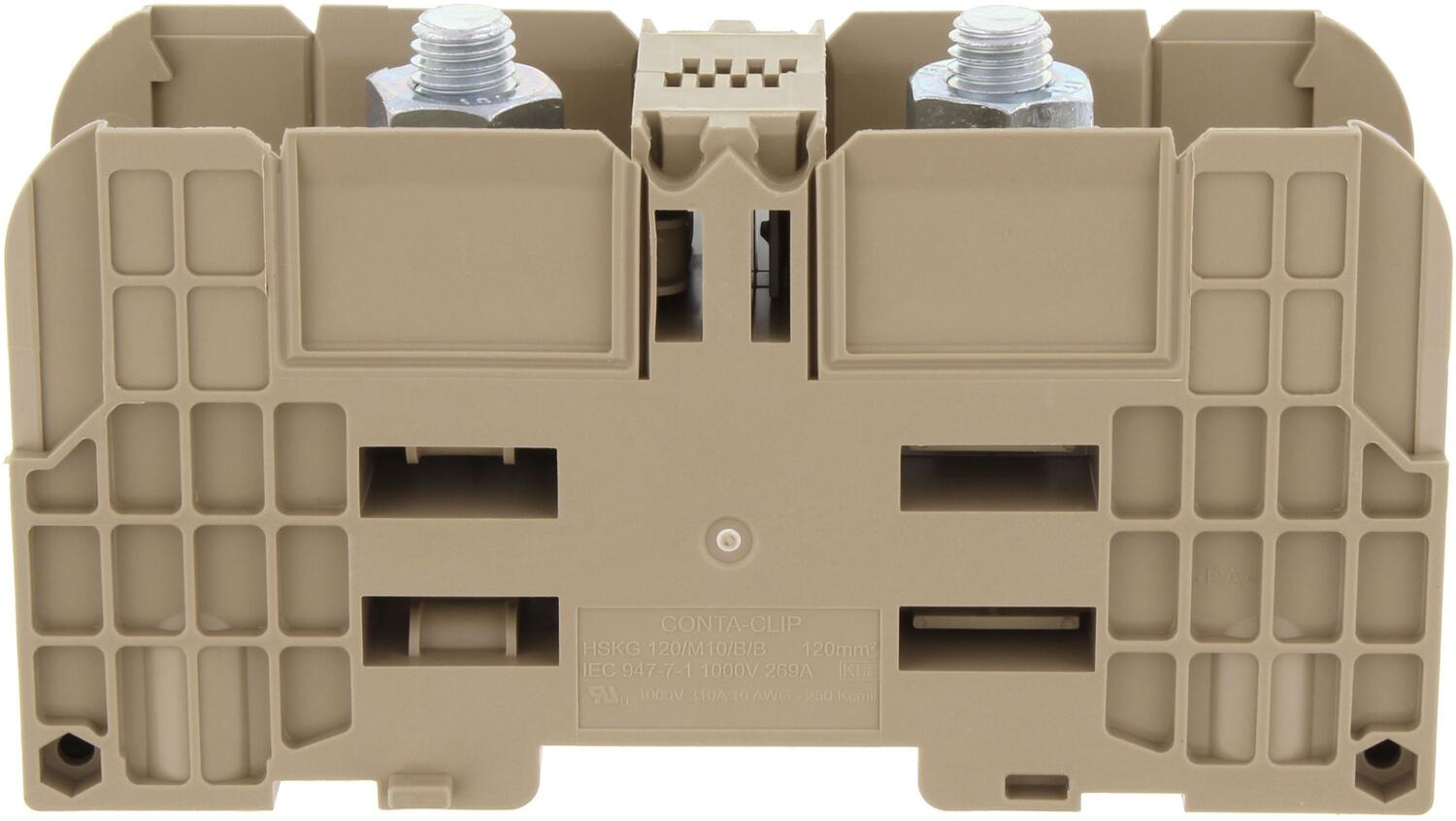

High-power stud terminals - HSKG 35-300mm²
HSKG
- Dual stud connection
- Direct & TS35 mount

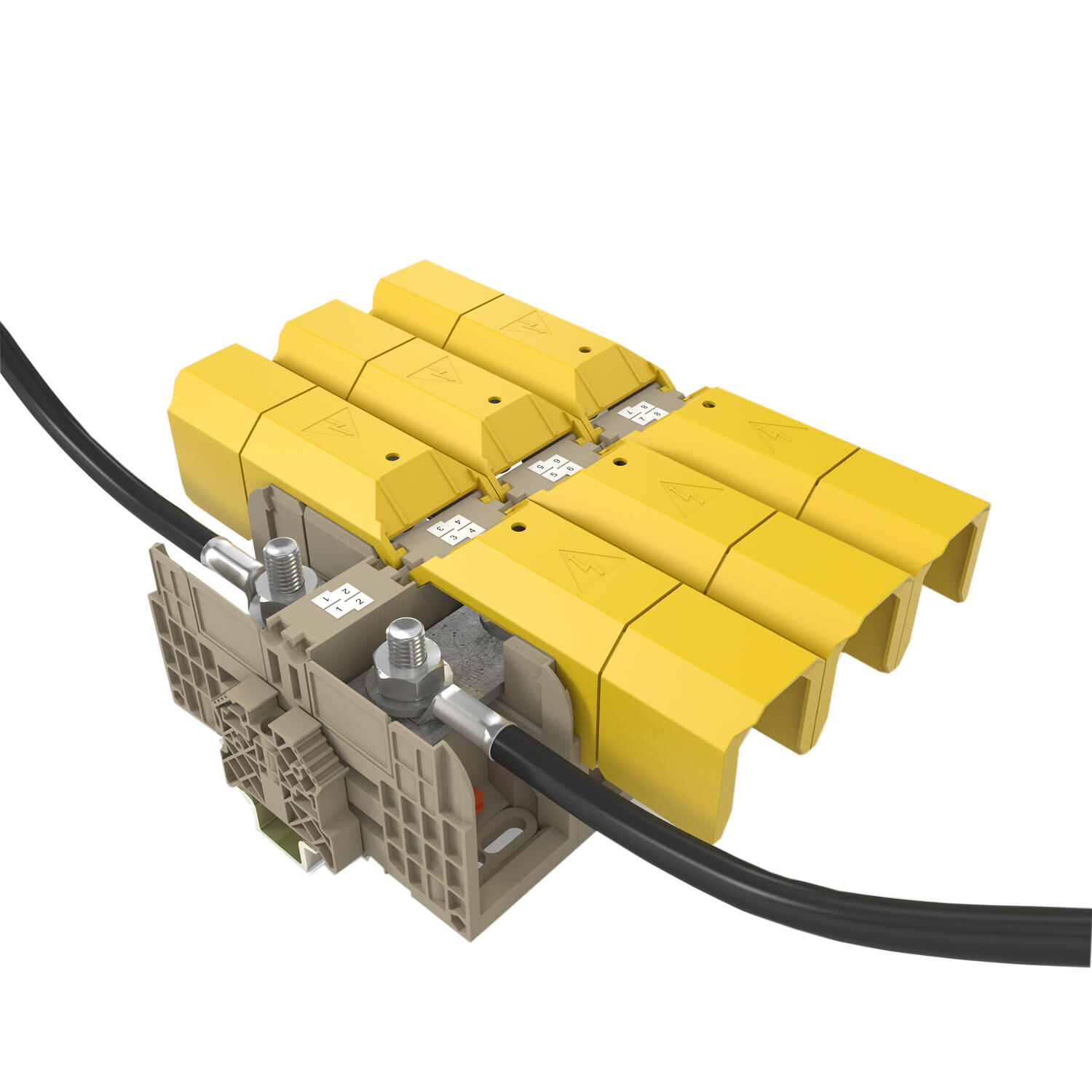

- IP20 with Gull Wing Covers fitted
- Material polyamide 6.6
- Fire-resistance class V0
Selected variant
Selected variant
Specifications
| Cross-Section | 35 |
|---|---|
| Color | Beige |
| Rated Voltage IEC | 1000 |
| Rated Current IEC | 125 |
| Rated impulse voltage | 8 |
| Overvoltage category | III |
| Contamination degree | 3 |
| Approvals | UL, CSA, CSA US, cUL, KEMA KUR |
| Length | 107 |
| Width | 27 |
| Height TS 35/7.5 | 51 |
| Height with TW/ADH | 60 |
| Length with TW/ADH | 131 |
| Contact clamping area | ≤ 50 mm² |
| Connections | 2 |
| Number of levels | 1 |
| Stud size | M 6 |
| Rated wire cross section from (AWG) | 14 |
| Rated wire cross section to (AWG) | 1/0 |
| Torque Min | 3 |
| Torque max | 6 |
| DIN 46234 / 1 cable lug per side, min. | 2.5 |
| DIN 46234 / 1 cable lug per side, max. | 50 |
| DIN 46235: 1 cable lug per side, min. | 6 |
|---|---|
| DIN 46235: 1 cable lug per side, max. | 25 |
| Flamklass | UL94-V0 |
| Operating temperature from | -40 |
| Operating temperature to | 120 |
| Rated Voltage To UL | 1000 |
| UL test standard | UL 1059 |
| Voltage CSA | 1000 |
| Rated Current CSA | 130 |
| CSA test standard | C22.2 No 158 |
| Rated voltage CSAus | 1000 |
| Rated current CSAus | 130 |
| CSAus test standard | UL 1059 |
| Rated voltage cUL | 1000 |
| Rated current cUL | 130 |
| cUL test standard | C22.2 No 158 |
| KEMA KEUR test standard | EN 60947-7-1:2028 |
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 88.6 |
| Pack Size | 10 |
Product description
