Power supply 3-phase, 72 V dc Dimension X Series
The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated dc voltage from a three-phase mains system.

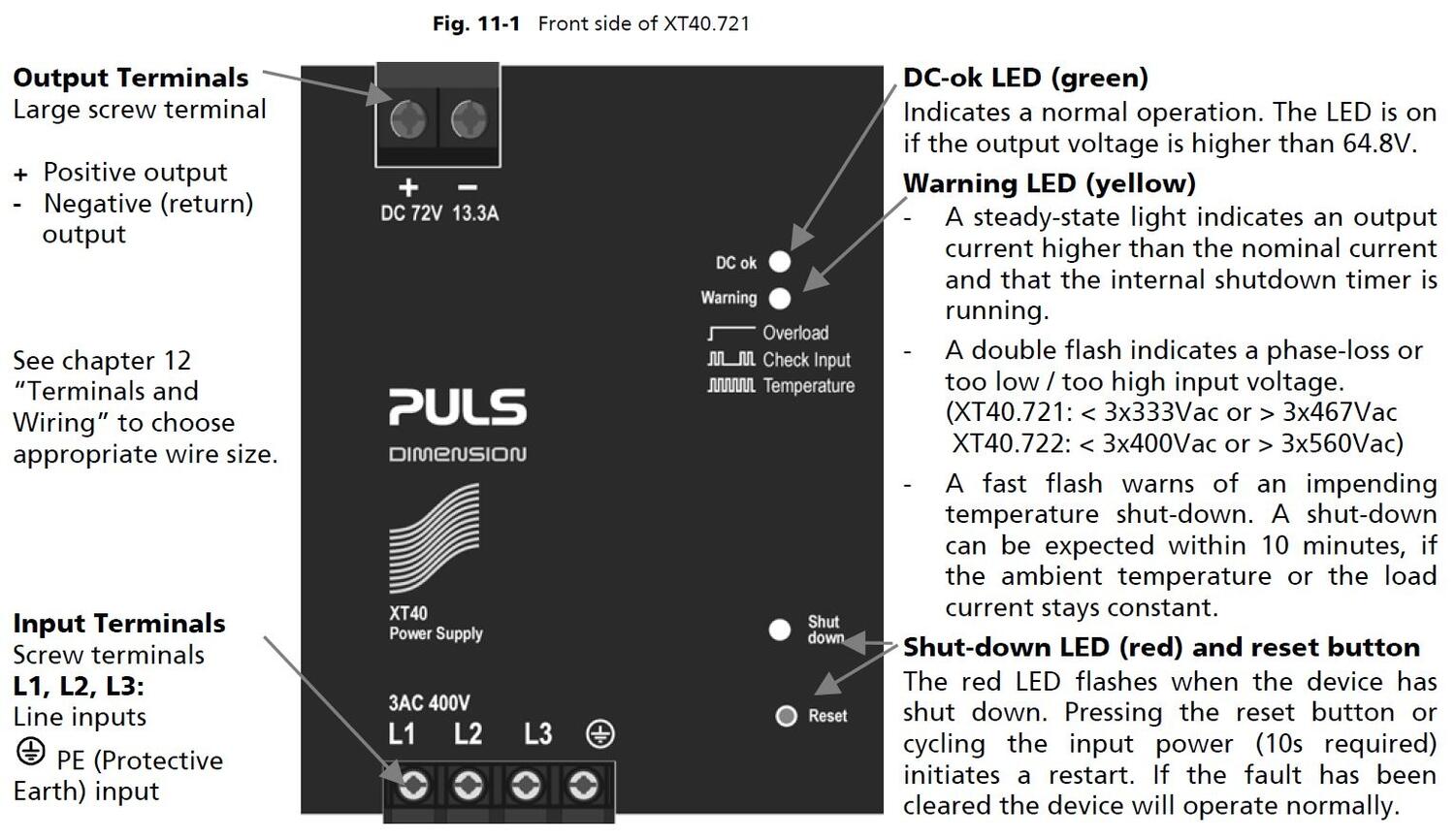

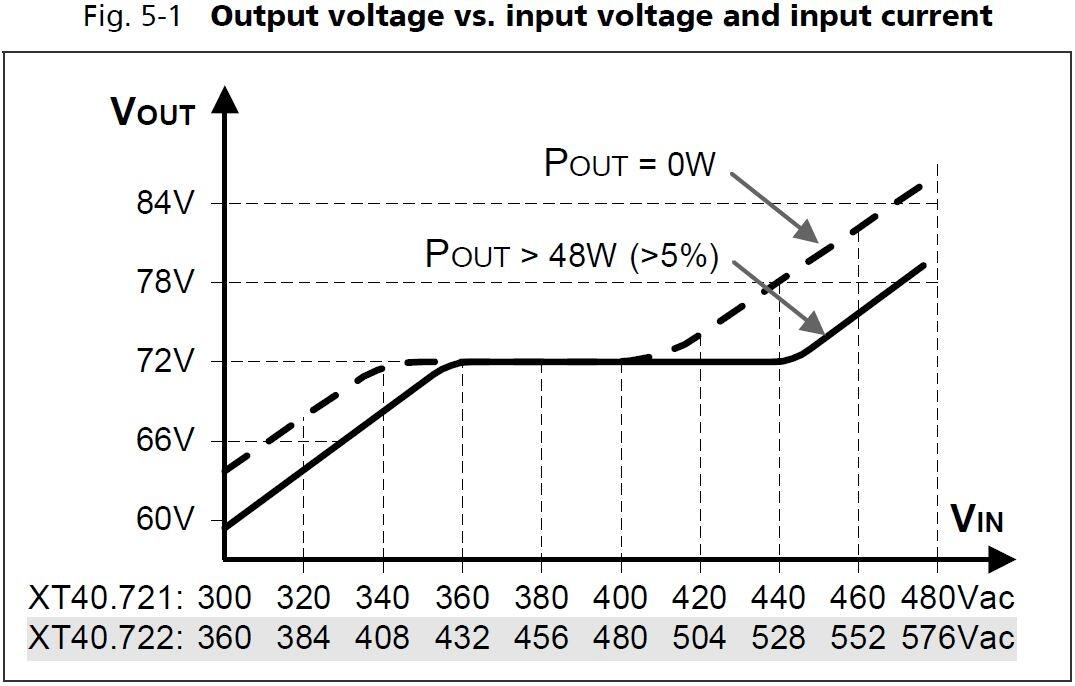

A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.

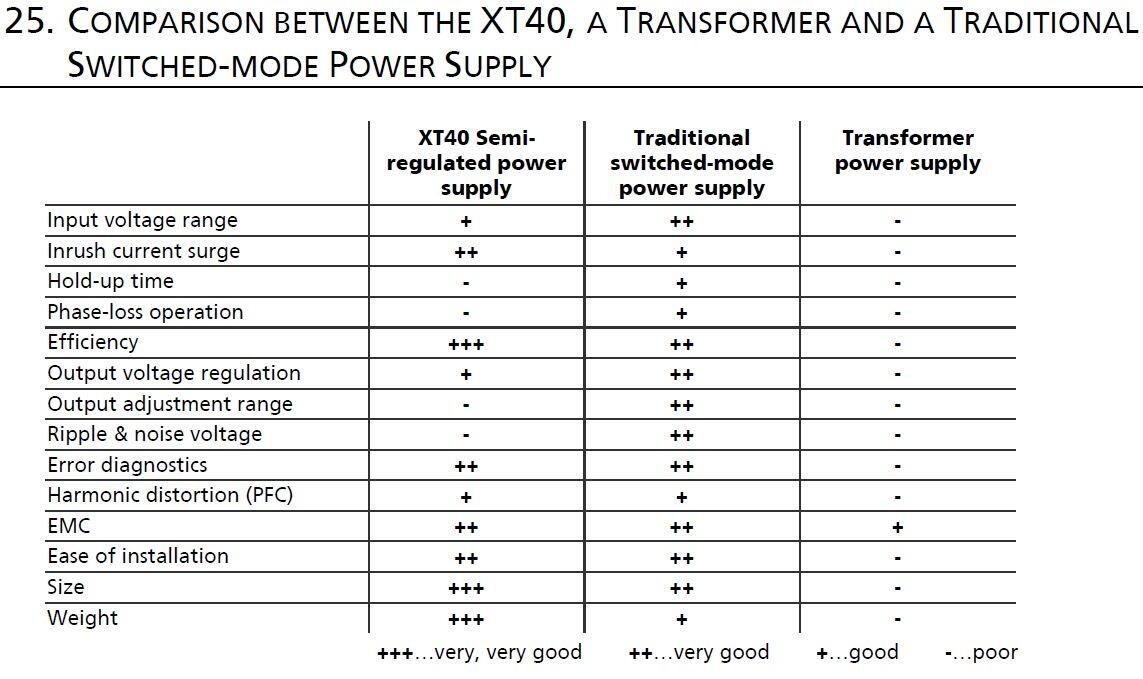

Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
We recommend free space of 40 mm above and 20 mm under the unit, and 5 mm at the sides. (If adjacent components are considered as heat sources, a distance of 15 mm is recommended.)
Input voltage range | Output characteristics |
- Output current of 13 A
- 95.5% efficiency
- 96 mm wide
- 25% power boost

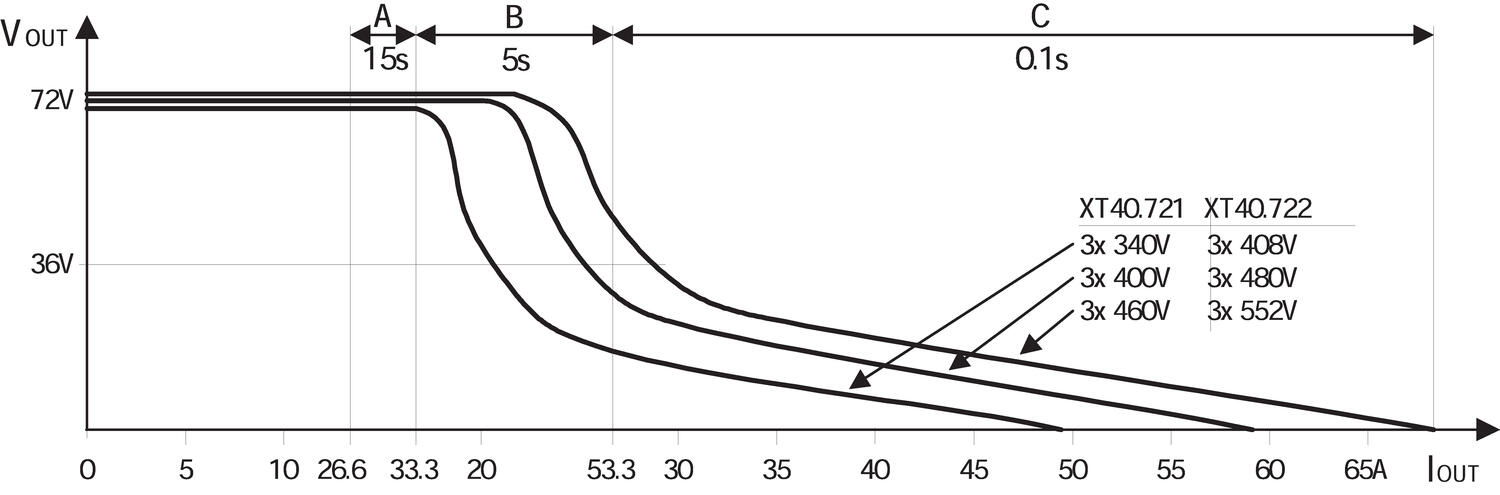

- Very high short-circuit current
Selected variant
Selected variant
Specifications
| Active Transient | Yes |
|---|---|
| Approvals | CB, CE, CSA, UL |

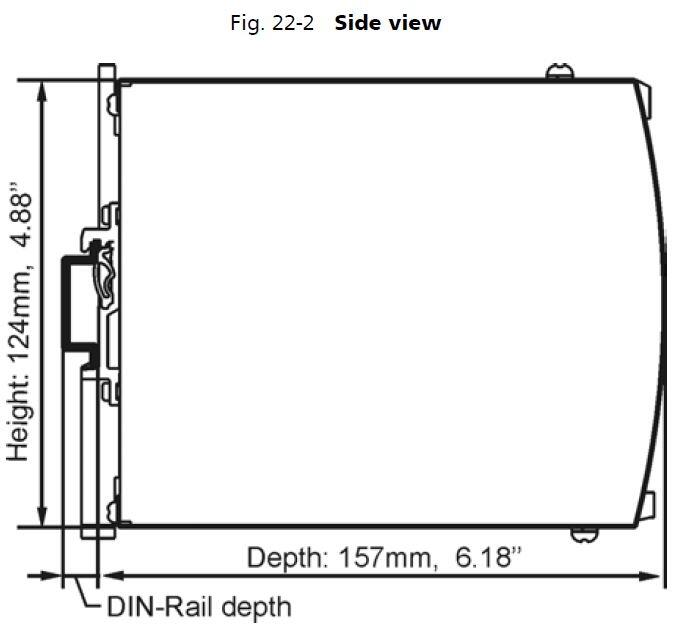

| Depth | 159 |
| Effect | 960 |

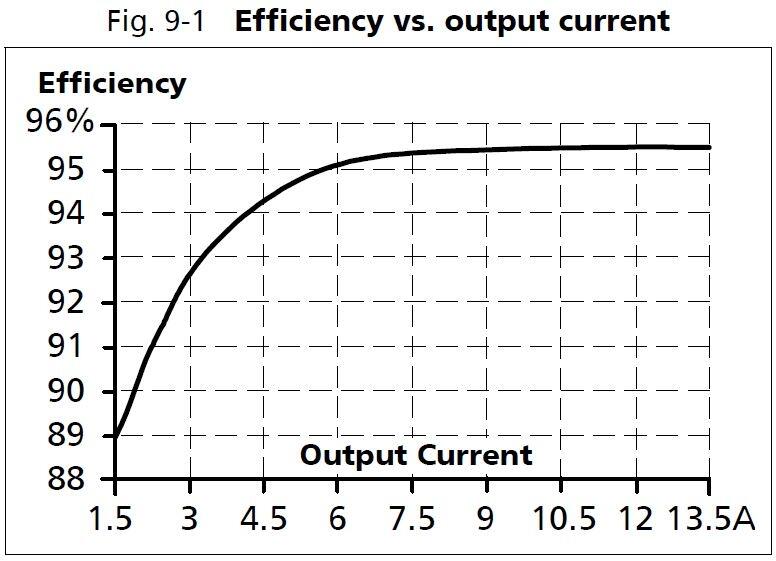

| Efficiency At 400 V AC, full load. Typical | 95.5 |
| Height | 124 |
| Hold-up time at 400 V AC, full load. Typical. | 3 |
| Input voltage AC | 400 V |
| Input voltage ac max | 440 |
| Input voltage ac min | 360 |
| Inrush current at 400 V ac typical | 4 |
| IP Class | IP20 |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 539000 |
| Number of phases | 3 |
| Output Current | 13.3 |
| Output voltage | 72 |
|---|---|
| Output voltage max | 72 |
| Output voltage min | 72 |
| Power consumption at 400 V ac | 1.65 |
| Power Factor at 400 V AC, full load. Typical | 0.93 |

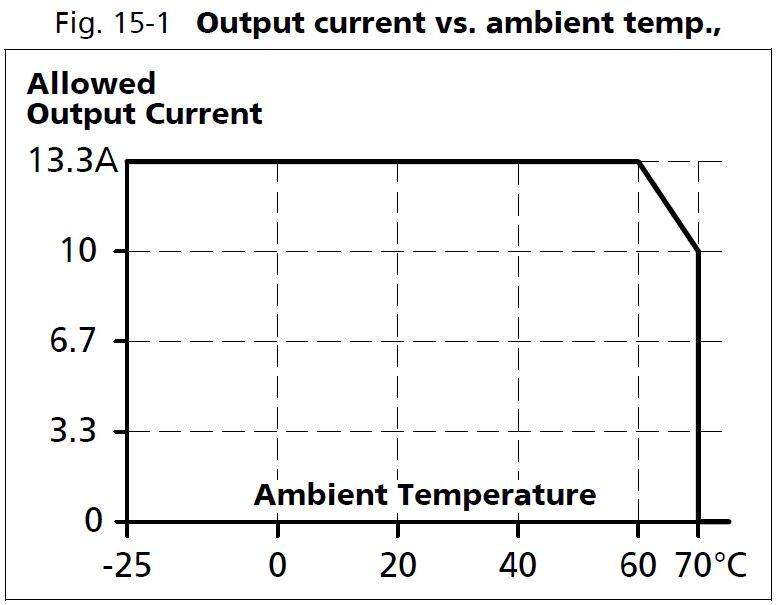

| Power Reduction Of 60 To 70 ° C | 24 |
| Ripple. max | 200 |
| Series | Dimension X |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -25 |
| Temperature Range Without Derating To | 60 |
| Weight | 1.4 |

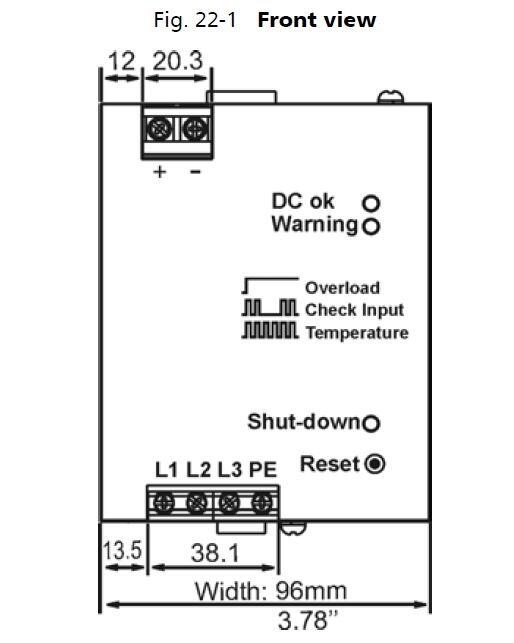

| Width | 96 |
Product description
The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated dc voltage from a three-phase mains system.
A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.
Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
We recommend free space of 40 mm above and 20 mm under the unit, and 5 mm at the sides. (If adjacent components are considered as heat sources, a distance of 15 mm is recommended.)
Input voltage range | Output characteristics |
