Power supply 3-phase, 24 V dc Dimension C Series
Puls Dimension C is a series of very high quality, reliability and performance.
CT10 has built primary fuses that make it possible to connect the unit without the need for intermediate fuses up to 32 A (UL) which saves space and money.

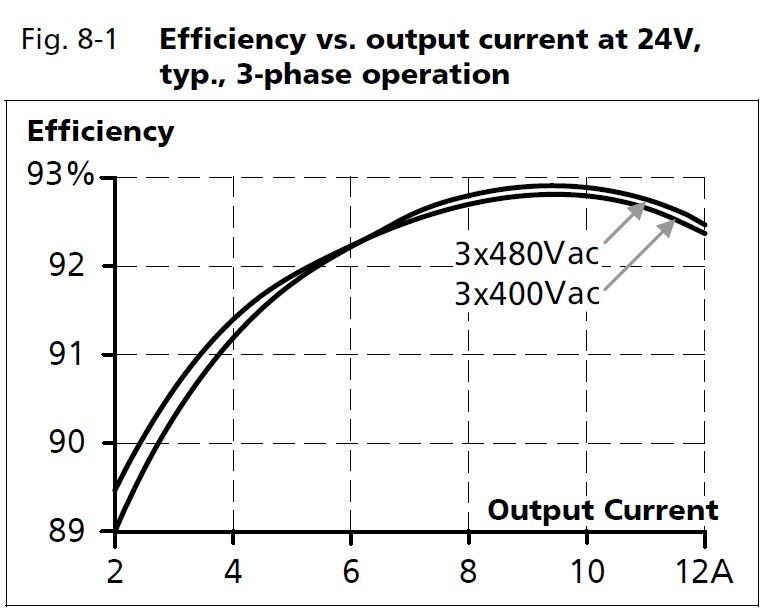

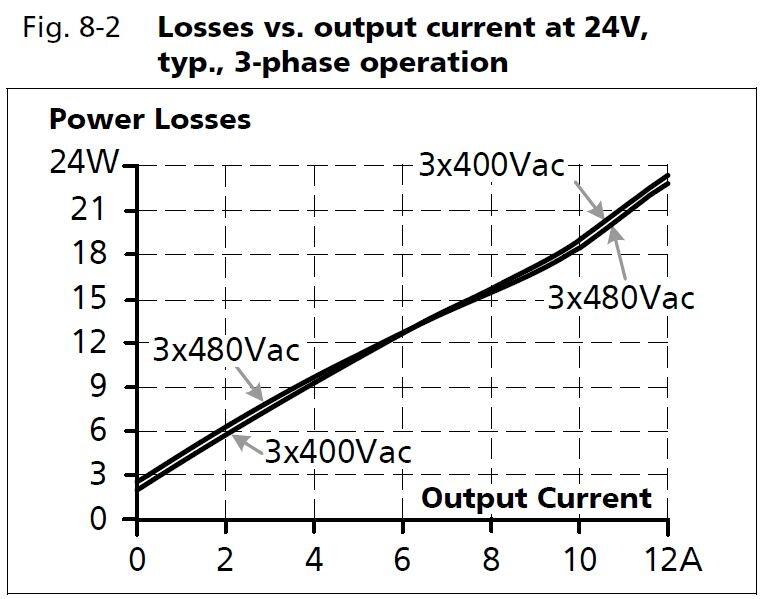

The efficiency is high over a wide load range, which results in reduced power consumption and longer life regardless of load current. A mean value of the efficiency from 50% to 100% load is 92.6% with a peak value of 93.2%.

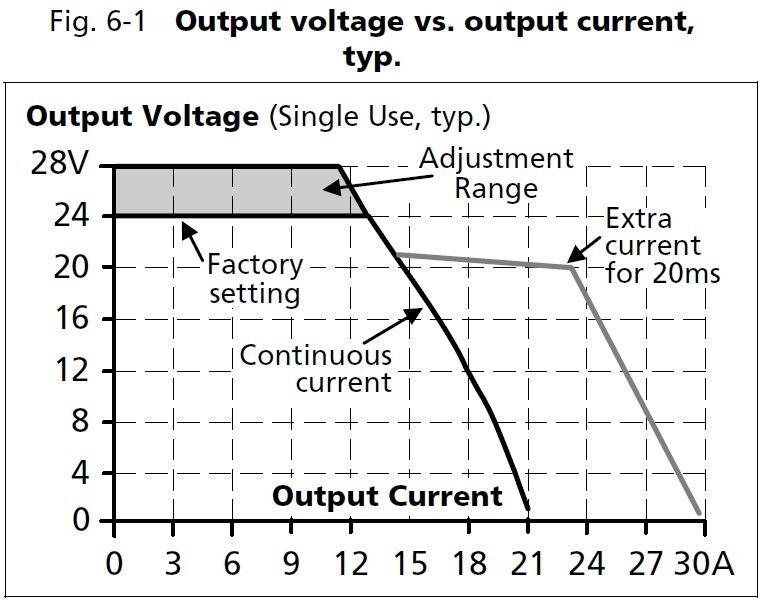

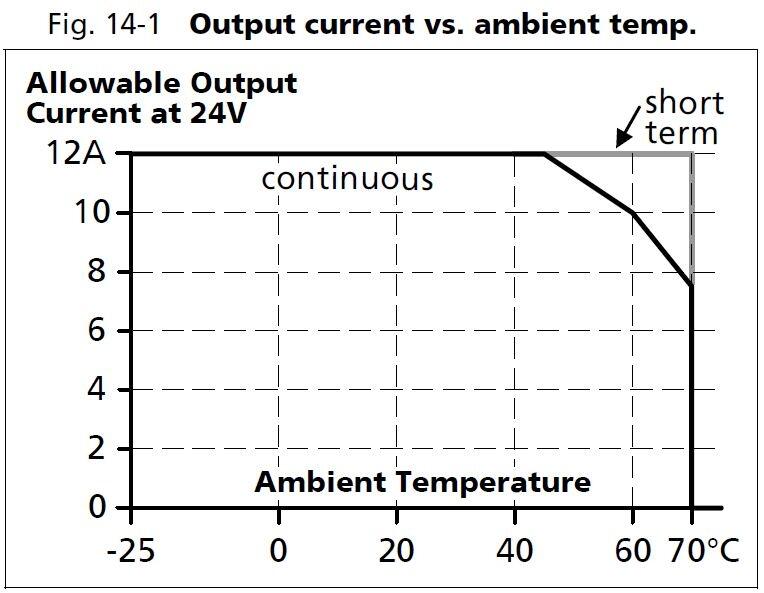

The short circuit current is 3 x rated current for 20 ms, which helps secondary fuses. Power boost of 20% enables higher current extraction without voltage drops. This is especially useful during start-ups and to bridge the current peaks in the application. Power can be used continually up to +45°C and short periods from +45 to +60°C.
Active transient ensure operation also in very störrik electrical environment in addition, CT10 active inrush current protection, which means a very low starting current, even if the unit has been in operation for a longer time. Especially useful for redundant / parallel-connected systems.
Power supply connected with 3 stages but can operate on only two phases, taking into account the load and ambient temperature.
We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides.
- Output current of 10 A
- Up to 92.9% efficiency
- High reliability
- Integrated primary fuses
Selected variant
Selected variant
Specifications
| Active Transient | Yes |
|---|---|
| Approvals | ABS, CB, CE, CSA US, cRUus, cULus, GL |
| Depth | 117 |
| Effect | 240 |
| Efficiency At 400 V AC, full load. Typical | 92.8 |
| Efficiency At 400 V AC. Typical | 92.2 |
| Height | 124 |
| Hold-up time at 400 V AC, full load. Typical. | 34 |
| Input voltage AC | 380-480 V |
| Input voltage ac max | 576 |
| Input voltage ac min | 323 |
| Input voltage range | Wide-range |
| Inrush current at 400 V ac typical | 4 |
| IP Class | IP20 |
| Lifetime at 400 V ac, full load and +40 ° C | 54000 |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 975000 |
| Number of phases | 3 |
|---|---|
| Output Current | 10 |
| Output voltage | 24 |
| Output voltage max | 28 |
| Output voltage min | 24 |
| Power consumption at 400 V ac | 0.7 |
| Power Factor at 400 V AC, full load. Typical | 0.53 |
| Power Reduction Of 60 To 70 ° C | 6 |
| Ripple. max | 50 |
| Series | Dimension C |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -25 |
| Temperature Range Without Derating To | 60 |
| Weight | 0.75 |
| Width | 62 |
Product description
Puls Dimension C is a series of very high quality, reliability and performance.
CT10 has built primary fuses that make it possible to connect the unit without the need for intermediate fuses up to 32 A (UL) which saves space and money.
The efficiency is high over a wide load range, which results in reduced power consumption and longer life regardless of load current. A mean value of the efficiency from 50% to 100% load is 92.6% with a peak value of 93.2%.
The short circuit current is 3 x rated current for 20 ms, which helps secondary fuses. Power boost of 20% enables higher current extraction without voltage drops. This is especially useful during start-ups and to bridge the current peaks in the application. Power can be used continually up to +45°C and short periods from +45 to +60°C.
Active transient ensure operation also in very störrik electrical environment in addition, CT10 active inrush current protection, which means a very low starting current, even if the unit has been in operation for a longer time. Especially useful for redundant / parallel-connected systems.
Power supply connected with 3 stages but can operate on only two phases, taking into account the load and ambient temperature.
We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides.
