PULS

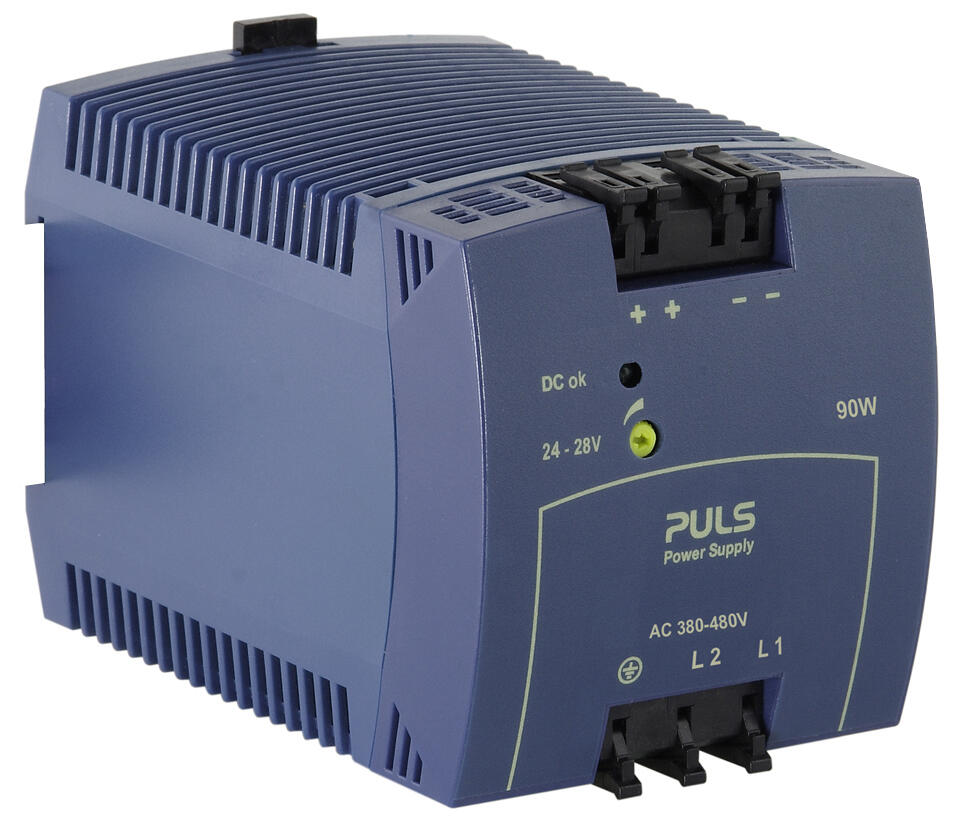

Power supply 2-phase, 24 V dc Miniline Series

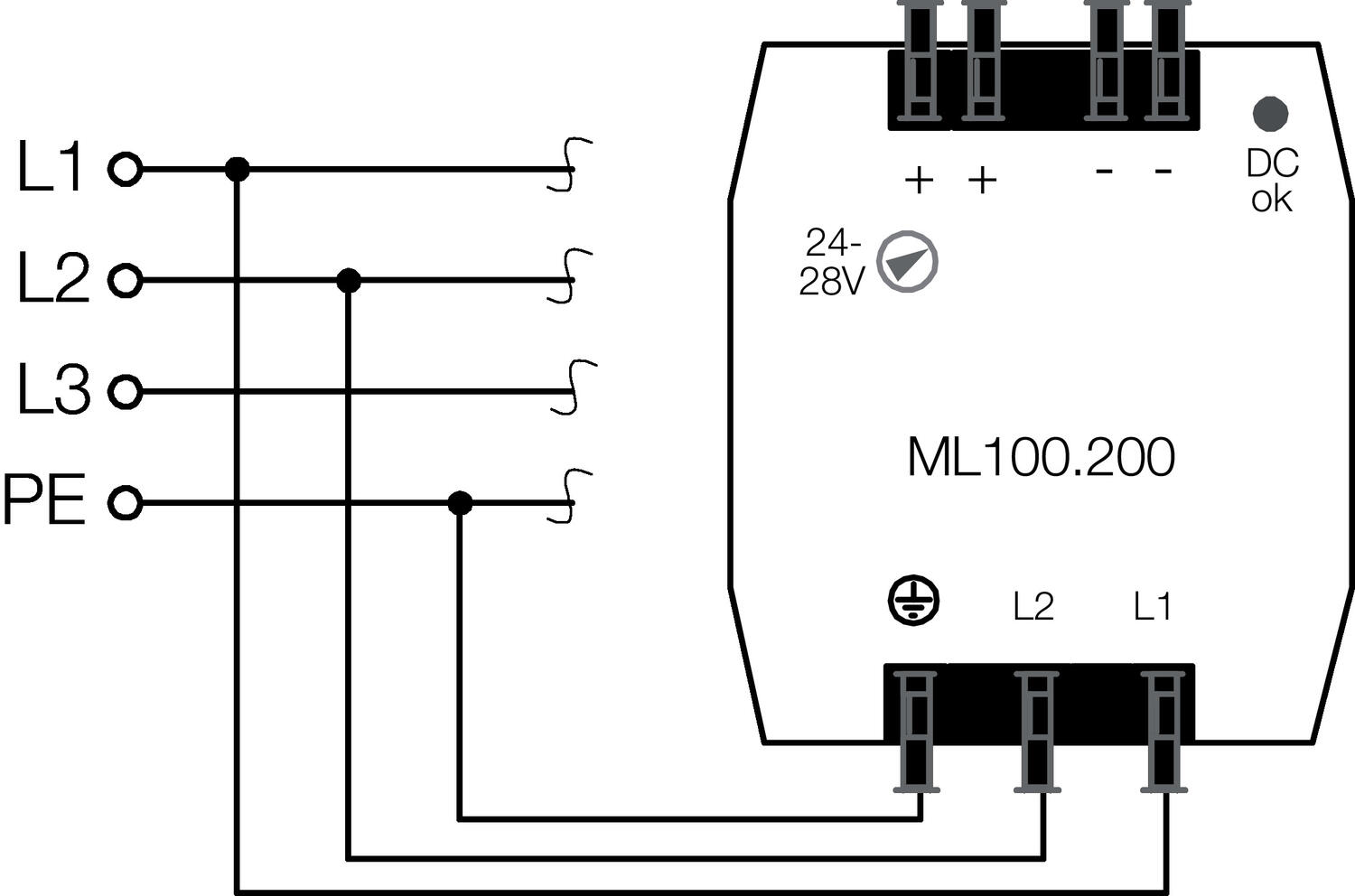

The ML100.200 is a simple and cost effective approach to convert the ac voltage of a typical three phase system into a regulated dc voltage. It only requires two phases and thereby saves terminal space, terminal cost, wires, fuses and installation time.
The ML100.200 is very compact, high efficient and easy to use. The input is internally protected, which makes external fuses unnecessary in many cases.
Weighing only 360g, it is a lightweight compared to the 50/60Hz control transformers, which are commonly used for low-power control voltages where a neutral wire is not available.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
For approved cooling, free space of 40 mm above and 20 mm under is recommended.
If adjacent components on the rail radiate heat, free space of 15 mm is recommended at all sides.
- Output current of 4.2 A or 3.75 A
- 2-phase supply
- Compact dimensions
- Efficiency up to 90 %
- 380-480 V ac
Selected variant
Selected variant
Specifications
| Approvals | CB, CE, CSA, GL, NEC Class 2, UL |
|---|---|

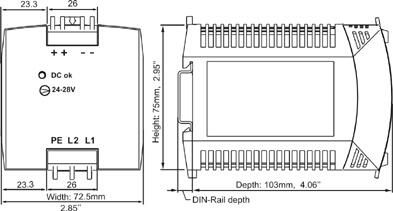

| Depth | 103 |
| Effect | 90 |
| Efficiency At 400 V AC, full load. Typical | 89.5 |
| Height | 75 |
| Hold-up time at 400 V AC, full load. Typical. | 52 |
| Input voltage AC | 380-480 V |
| Input voltage ac max | 552 |
| Input voltage ac min | 323 |
| Input voltage range | Wide-range |
| Inrush current at 400 V ac typical | 36 |
| IP Class | IP20 |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 1594000 |
| Number of phases | 2 |
| Output Current | 3.75 |
| Output voltage | 24 |
|---|---|
| Output voltage max | 28 |
| Output voltage min | 24 |
| Power consumption at 400 V ac | 0.42 |
| Power Factor at 400 V AC, full load. Typical | 0.6 |
| Power Reduction Of 60 To 70 ° C | 2 |
| Ripple. max | 50 |
| Series | Miniline |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -10 |
| Temperature Range Without Derating To | 60 |
| Weight | 0.36 |
| Width | 72.5 |
Product description
The ML100.200 is a simple and cost effective approach to convert the ac voltage of a typical three phase system into a regulated dc voltage. It only requires two phases and thereby saves terminal space, terminal cost, wires, fuses and installation time.
The ML100.200 is very compact, high efficient and easy to use. The input is internally protected, which makes external fuses unnecessary in many cases.
Weighing only 360g, it is a lightweight compared to the 50/60Hz control transformers, which are commonly used for low-power control voltages where a neutral wire is not available.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
For approved cooling, free space of 40 mm above and 20 mm under is recommended.
If adjacent components on the rail radiate heat, free space of 15 mm is recommended at all sides.
