PULS
Power supply 1-phase, 5 V dc Miniline Series
3 A model included in Pulse series Mini Line 2 is the latest development series of small power supplies with very compact dimensions and low weight. The units have high efficiency, low EMC interference and good protection against mains transients. This makes them useful in almost all electrical environments and are a great addition to the earlier Mini Line series.
Very low quiescent current and high efficiency even at loads down to 60% makes the aggregates at a good energy and environmental choices.
5 A model is included in the earlier series Miniline having a very proven design and spring terminals for the best connection.
For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap
Output characteristics | |
ML15.051 (3 A) | ML30.101 (5A) |
| |
- Output current 3 A and 5 A
- Up to 80% efficiency
- AC and dc input voltage
- Width of 22.5 mm
Selected variant
Selected variant
Specifications
| Approvals | ABS, CB, CE, CSA, GL, NEC Class 2, UL |
|---|---|

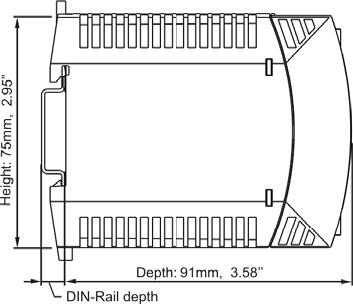

| Depth | 91 |
| Effect | 15 |

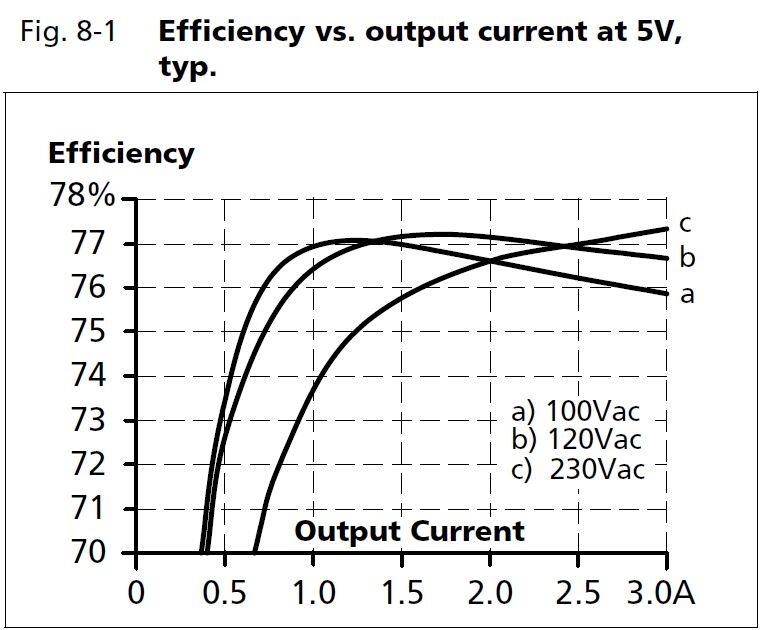

| Efficiency At 120 V AC, full load. Typical | 76.8 |
| Efficiency At 230 V AC, full load. Typical | 77.2 |
| Height | 75 |
| Hold-up time at 120 V AC, full load. Typical. | 45 |
| Hold-up time at 230 V AC, full load. Typical. | 186 |
| Input voltage AC | 100-240 V |
| Input voltage ac max | 264 |
| Input voltage ac min | 85 |
| Input voltage DC | 110-300 V |
| Input voltage dc max | 375 |
| Input voltage dc min | 88 |
| Input voltage range | Wide-range |
| Inrush current at 120 V ac typical | 13 |
| Inrush current at 230 V ac typical | 26 |
| IP Class | IP20 |
| Lifetime at 120 V ac, full load and +40 ° C | 70000 |
| Lifetime at 230 V ac, full load and +40 ° C | 93000 |

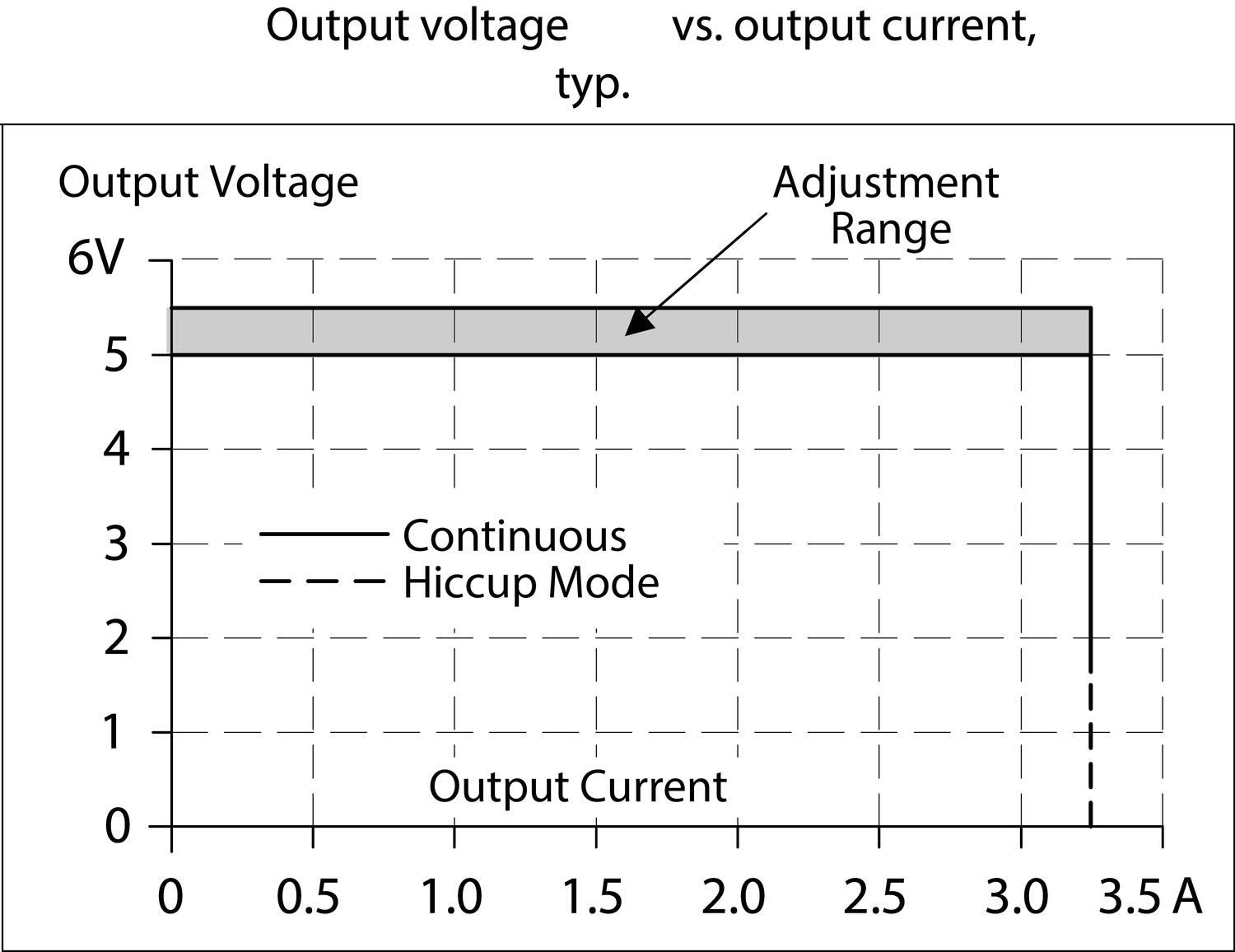

| Load Regulation | <100 mV (0-3 A) |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 2686000 |
|---|---|
| Number of phases | 1 |
| Output Current | 3 |
| Output voltage | 5 |
| Output voltage max | 5.5 |
| Output voltage min | 5 |
| Parallel Connection For Increased Power | Yes. See manufacturers datasheet or contact OEM Automatic for more details. |
| Power Consumption At 120 V AC | 0.28 |
| Power Consumption At 230 V AC | 0.17 |
| Power Factor at 120 V AC, full load. Typical | 0.51 |
| Power Factor at 230 V AC, full load. Typical | 0.44 |

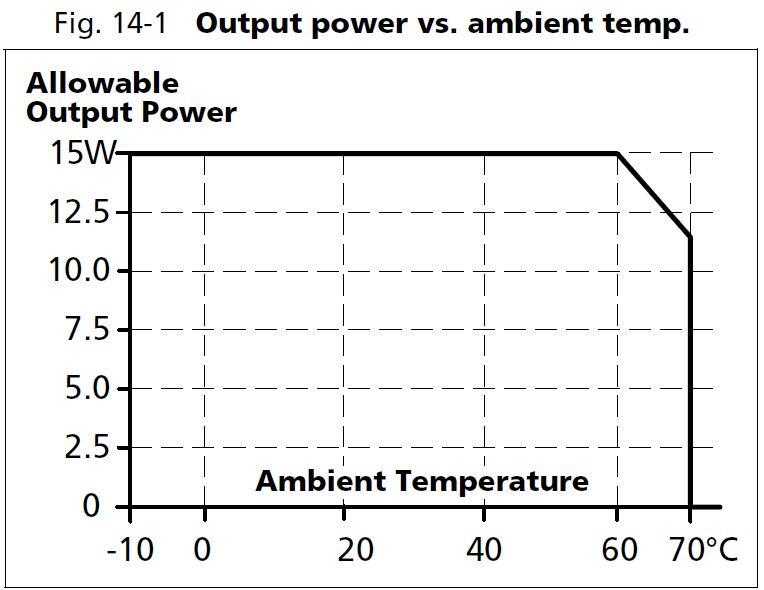

| Power Reduction Of 60 To 70 ° C | 0.4 |
| Ripple. max | 50 |
| Series | Miniline |
| Series Connection For Increased Tension | Yes. See manufacturers datasheet or contact OEM Automatic for more details. |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -10 |
| Temperature Range Without Derating To | 60 |
| Weight | 0.13 |

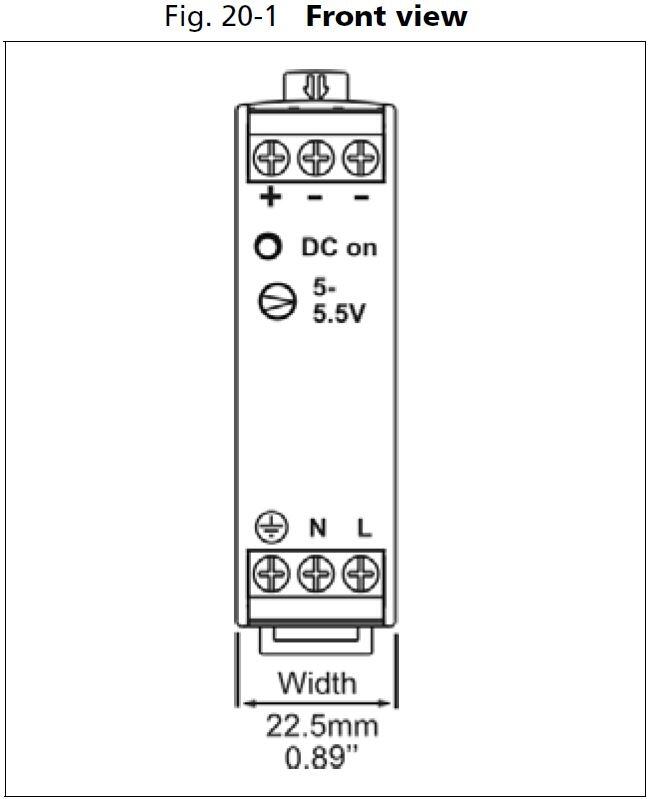

| Width | 22.5 |
Product description
3 A model included in Pulse series Mini Line 2 is the latest development series of small power supplies with very compact dimensions and low weight. The units have high efficiency, low EMC interference and good protection against mains transients. This makes them useful in almost all electrical environments and are a great addition to the earlier Mini Line series.
Very low quiescent current and high efficiency even at loads down to 60% makes the aggregates at a good energy and environmental choices.
5 A model is included in the earlier series Miniline having a very proven design and spring terminals for the best connection.
For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap
Output characteristics | |
ML15.051 (3 A) | ML30.101 (5A) |
| |
