PULS
Power supply 1-phase, 24V dc Low Power Piano Series

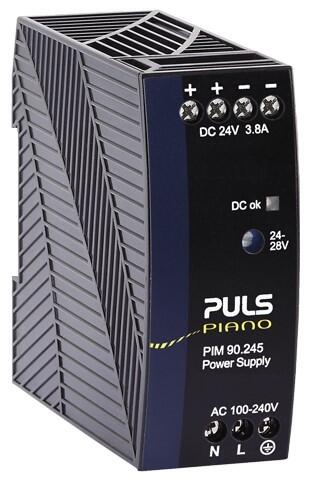

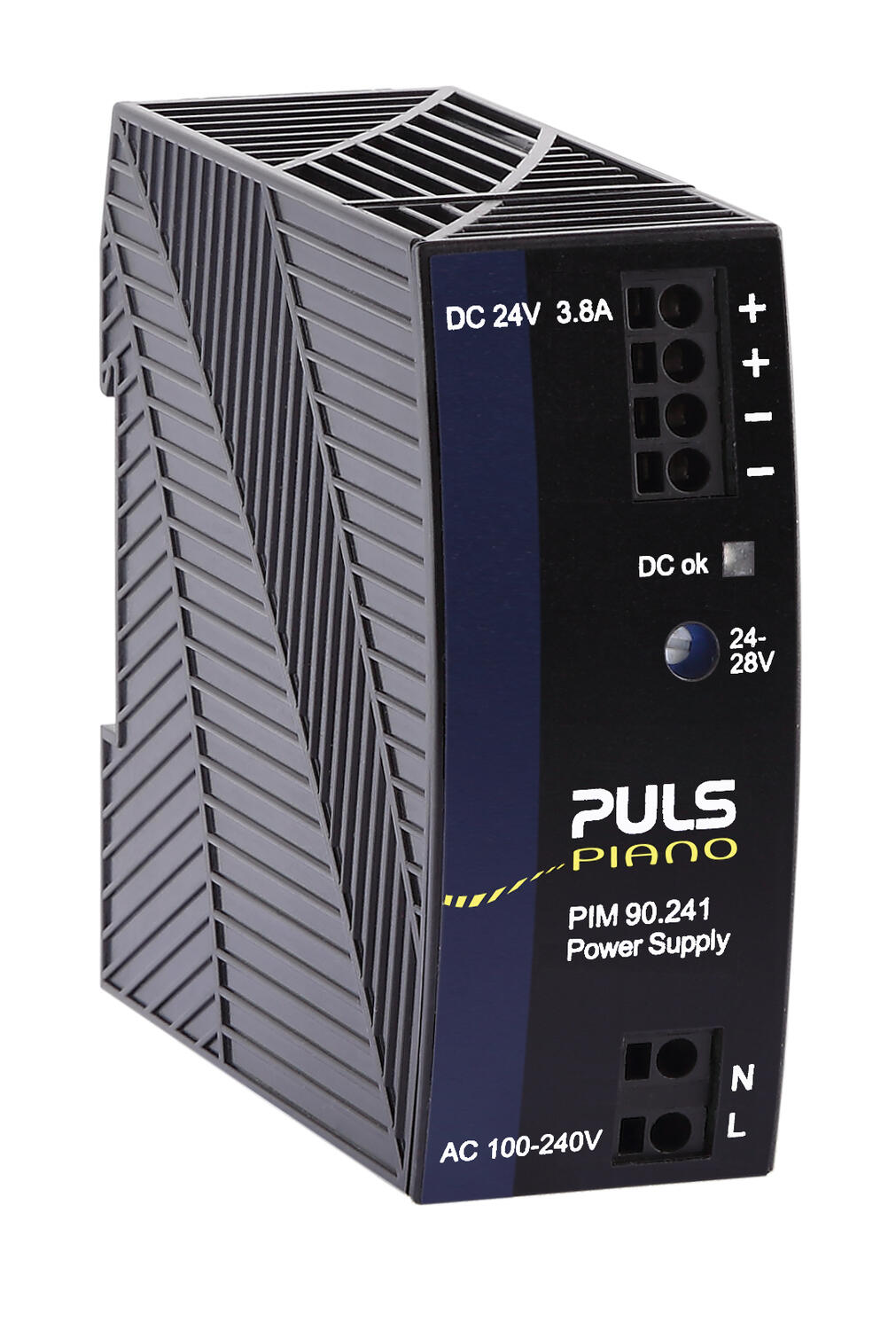

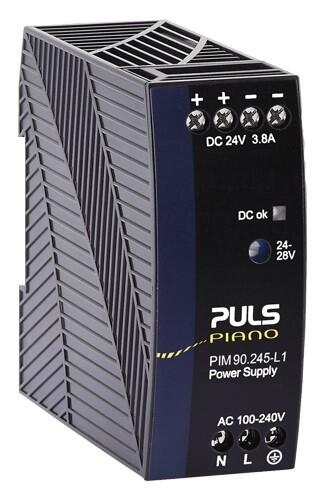

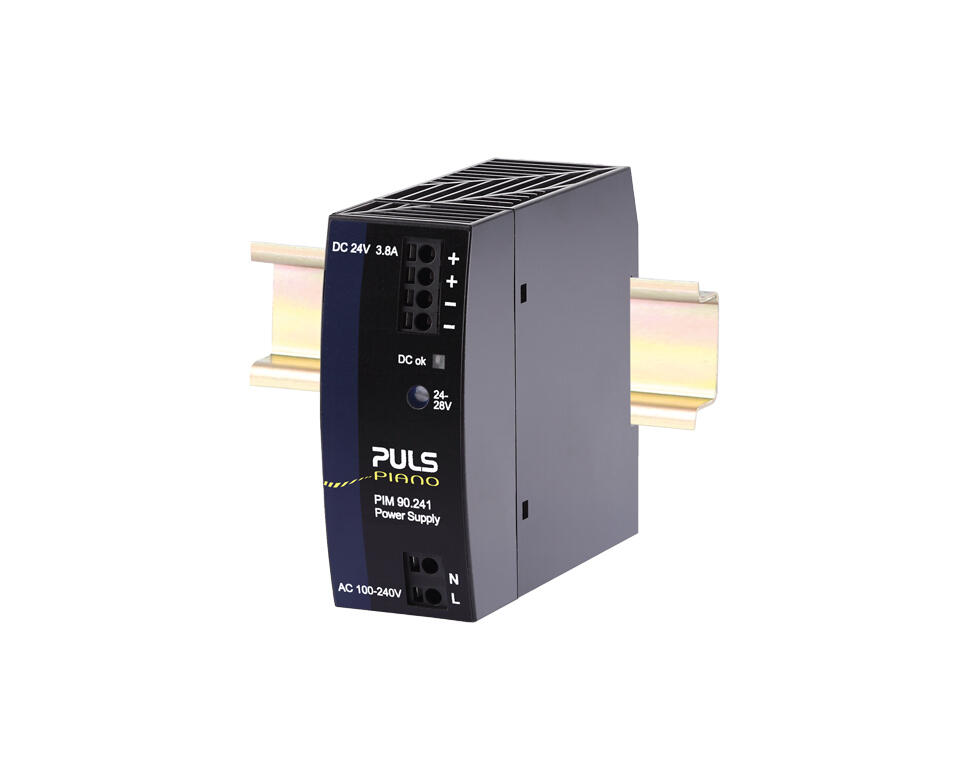

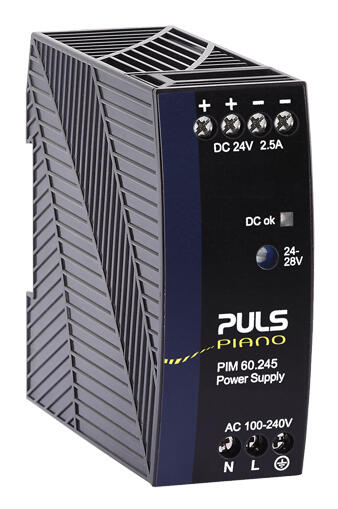

The latest and smallest representatives of the PIANO product family are currently the 24V DIN rail power supplies PIM36 (36W), PIM60 (60W) and PIM90 (90W).
Mini power supplies. New space opportunities.

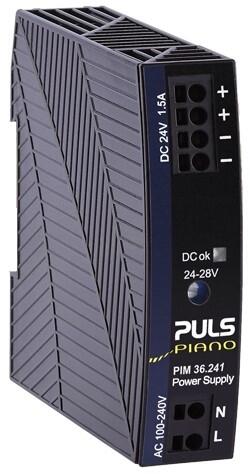

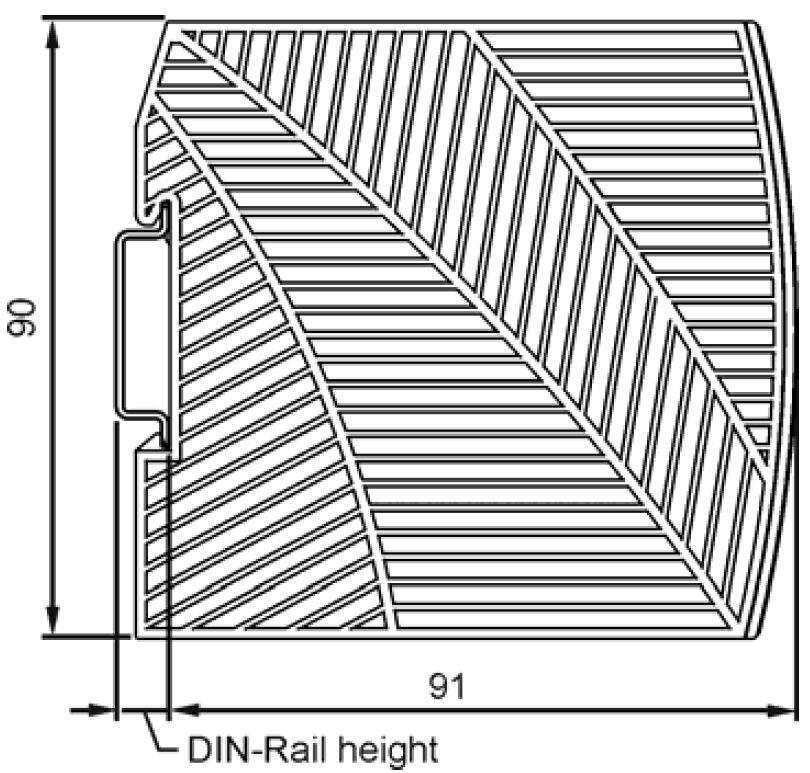

The new PIANO Mini (PIM) power supplies create space in your systems or machines and allow you a more flexible planning. A 90W DIN rail power supply in a 36 x 90 x 91mm (WxHxD) housing is currently unique in the market. The width of the 36W version is only 22.5mm - so literally a thumb's width. This results in completely new space opportunities for you.
Focus on core features.
The most important characteristic of the PIANO devices is their focus on the core features of a power supply: efficiency, lifetime, reliability and size. The very high PULS quality is maintained in each of these features.
An example is the high efficiency of 91.8% (PIM60) and 93.8% (PIM90) at full load and +40°C ambient temperature. This means lower heat losses. It makes the power supplies more durable and reduces your costs for the cooling of your system.
Push-in or screw terminals - you decide.

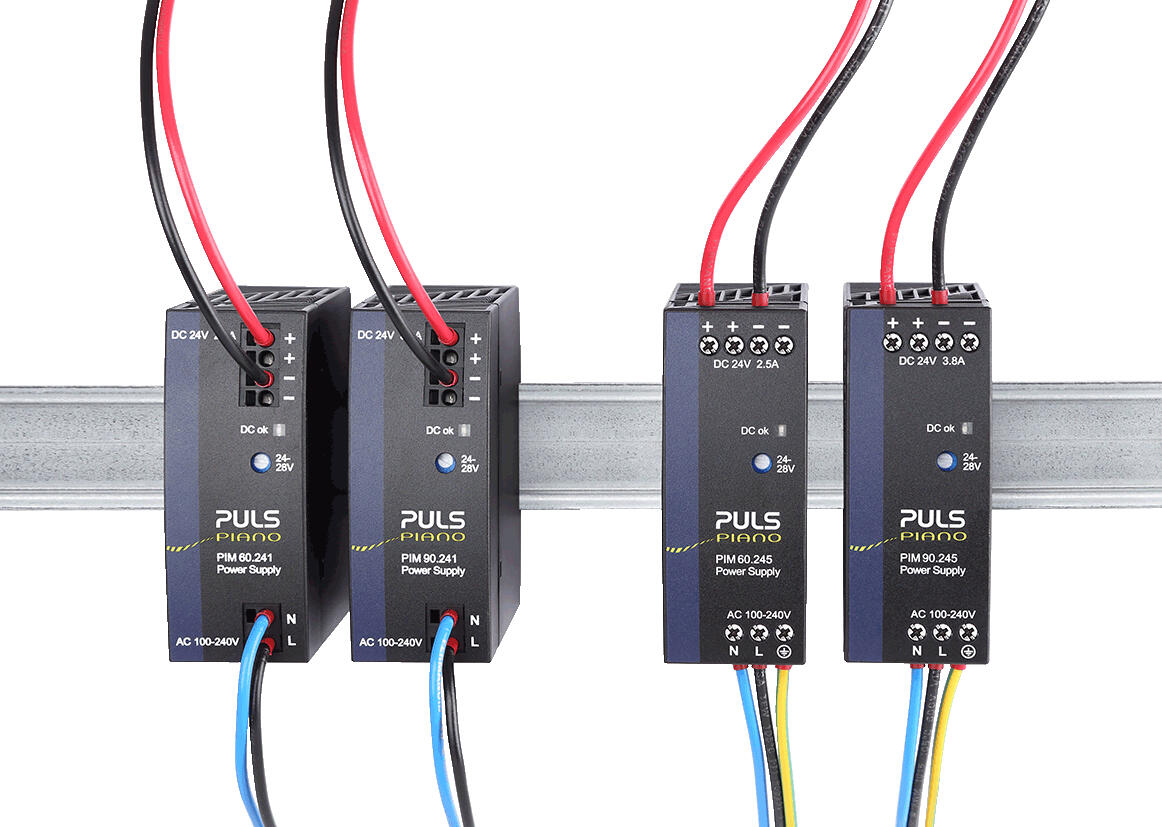

For the PIM60 and PIM90 you can choose between push-in and screw terminals. The push-in terminals reduce installation time, and are very reliable in environments prone to shock and vibration. In addition, they are ideally suited for robot-assisted wiring processes.
The screw terminals, that accommodate large diameter wires, are still popular in environments with minimal shock and vibration.
Growing power supply family.
With the new PIANO Mini products, PULS now provides a complete, cost-oriented product family in the 36-480W power range.
- Output current between 1.5 A to 3.8 A
- Push-in or screw terminals
- Up to 93.8% efficiency
- Low no-load power losses
Selected variant
Selected variant
Specifications
| Approvals | CB, CE, cULus, NEC Class 2 |
|---|---|
| Cable Connection | Push-in max. 2.5mm² |
| Depth | 91 |
| Effect | 36 |
| Efficiency At 120 V AC, full load. Typical | 90.5 |
| Efficiency At 230 V AC, full load. Typical | 90.6 |
| Efficiency At 230 V AC. Typical | 88.2 |
| Height | 90 |
| Hold-up time at 120 V AC, full load. Typical. | 37 |
| Hold-up time at 230 V AC, full load. Typical. | 162 |
| Input voltage AC | 100-240 V |
| Input voltage ac max | 264 |
| Input voltage ac min | 90 |
| Input voltage range | Wide-range |
| Inrush current at 120 V ac typical | 14 |
| Inrush current at 230 V ac typical | 40 |
| IP Class | IP20 |
| Lifetime at 120 V ac, full load and +40 ° C | 162000 |
| Lifetime at 230 V ac, full load and +40 ° C | 161000 |
| Load Regulation | <50 mV (0-1,5 A) |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 2081000 |
| Number of phases | 1 |

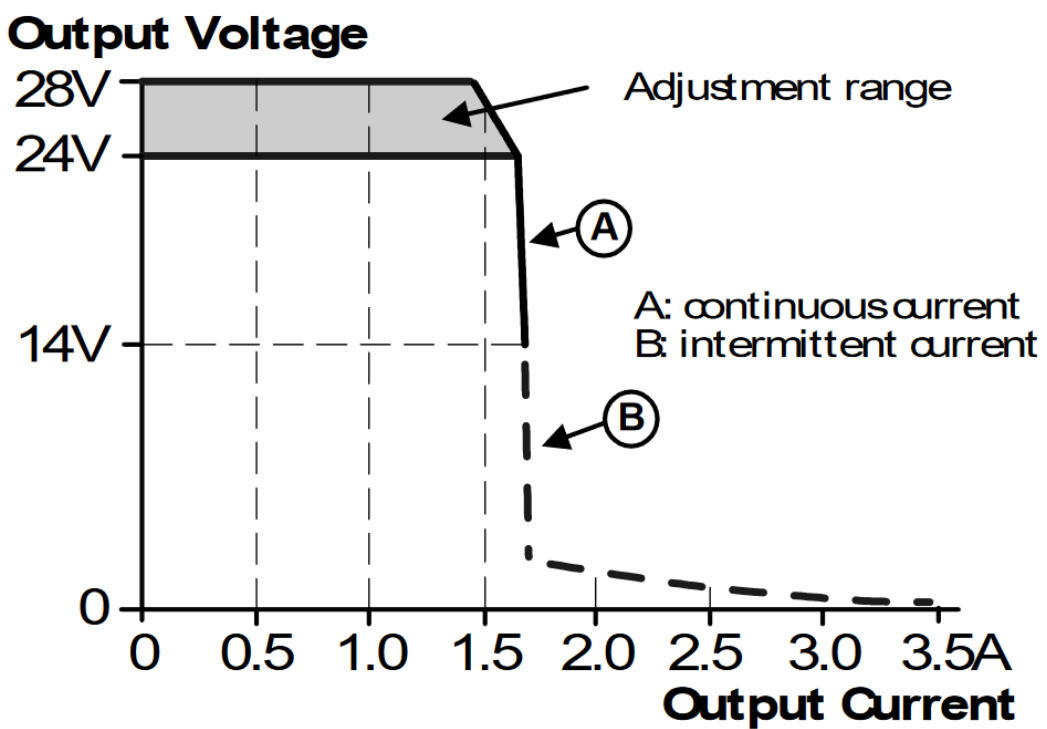

| Output Current | 1.5 |
|---|---|
| Output voltage | 24 |
| Output voltage max | 28 |
| Output voltage min | 24 |
| Parallel Connection For Increased Power | Not allowed |
| PFA (EN61000-3-2) | Fulfilled (Class A) |
| Power Consumption At 120 V AC | 0.63 |
| Power Consumption At 230 V AC | 0.38 |
| Power Factor at 120 V AC, full load. Typical | 0.53 |
| Power Factor at 230 V AC, full load. Typical | 0.46 |
| Power Reduction Of 60 To 70 ° C | 0.96 |
| Primary Fuse | Min 6A B type or 4A C type |
| Ripple. max | 50 |
| Series | Piano |
| Series Connection For Increased Tension | Yes |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -10 |
| Temperature Range Without Derating To | 60 |
| Transient | VDE 0160 (750 V, 1,3 ms) |
| Weight | 0.14 |
| Width | 22.5 |
Product description
The latest and smallest representatives of the PIANO product family are currently the 24V DIN rail power supplies PIM36 (36W), PIM60 (60W) and PIM90 (90W).
Mini power supplies. New space opportunities.
The new PIANO Mini (PIM) power supplies create space in your systems or machines and allow you a more flexible planning. A 90W DIN rail power supply in a 36 x 90 x 91mm (WxHxD) housing is currently unique in the market. The width of the 36W version is only 22.5mm - so literally a thumb's width. This results in completely new space opportunities for you.
Focus on core features.
The most important characteristic of the PIANO devices is their focus on the core features of a power supply: efficiency, lifetime, reliability and size. The very high PULS quality is maintained in each of these features.
An example is the high efficiency of 91.8% (PIM60) and 93.8% (PIM90) at full load and +40°C ambient temperature. This means lower heat losses. It makes the power supplies more durable and reduces your costs for the cooling of your system.
Push-in or screw terminals - you decide.
For the PIM60 and PIM90 you can choose between push-in and screw terminals. The push-in terminals reduce installation time, and are very reliable in environments prone to shock and vibration. In addition, they are ideally suited for robot-assisted wiring processes.
The screw terminals, that accommodate large diameter wires, are still popular in environments with minimal shock and vibration.
Growing power supply family.
With the new PIANO Mini products, PULS now provides a complete, cost-oriented product family in the 36-480W power range.
