PULS

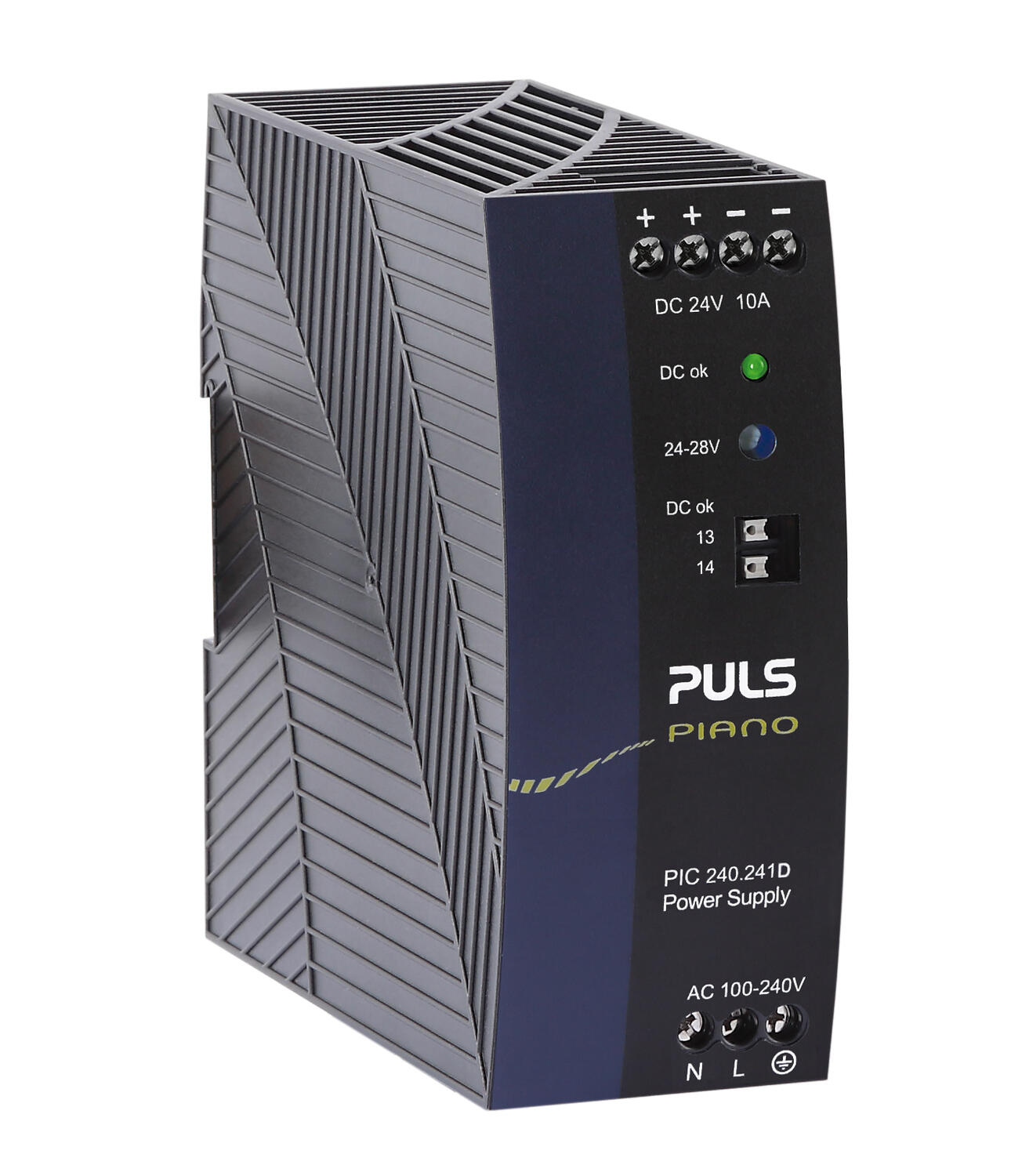

Power supply 1-phase, 24 V dc Piano, 10A
These PIANO series units are extraordinarily compact, industrial grade power supplies that focus on the essential features required in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.
The mechanically robust housing is made of a high-grade, reinforced molded material, which permits the units to be used in surrounding temperatures up to +70°C.
Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200 240V) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.
The integrated DC-OK signal makes the unit suitable for many industry applications, such as process, automation and many other critical applications where preventive function monitoring can help to avoid long downtimes.

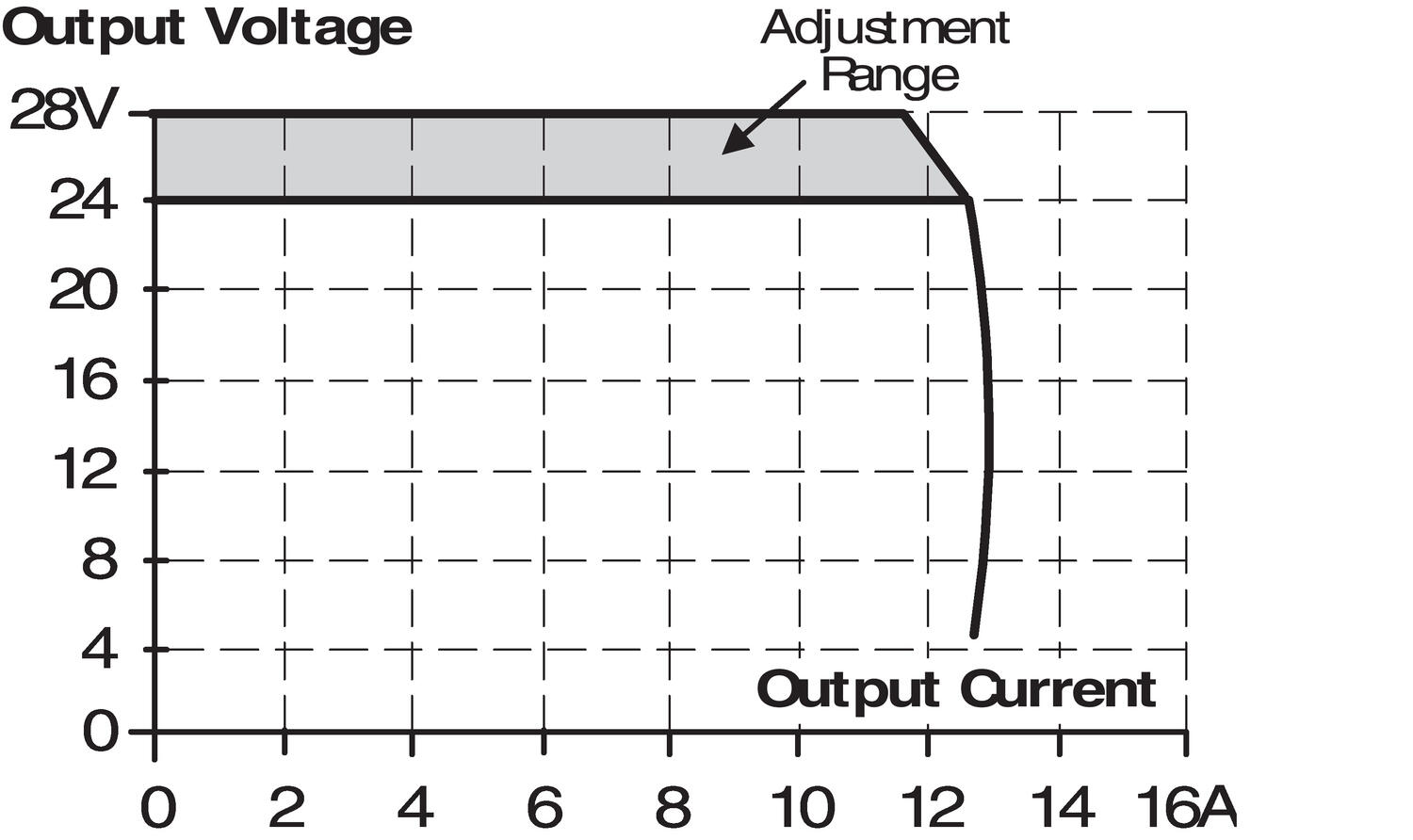

Output characteristics | ||
|
|
|

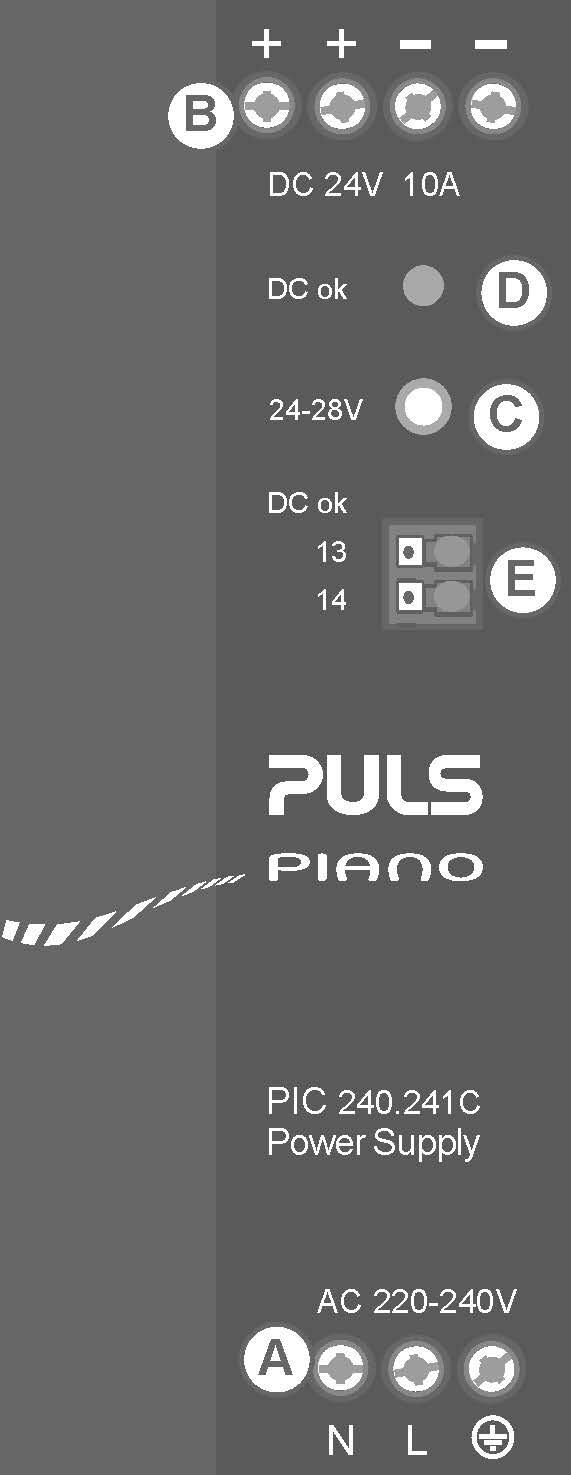

Wiring | |
|
|
- Output current of 10 A
- Up to 91.4% efficiency

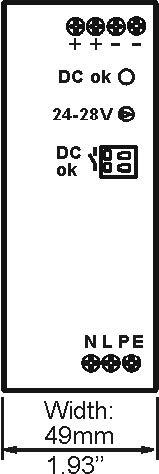

- Only 49 mm wide
- DC-OK relay output
Selected variant
Selected variant
Specifications
| Approvals | CB, CE, cRUus, cULus, GL |
|---|---|
| Cable Connection | Screw max 6 mm² solid, 4 mm² stranded |
| DC relay output | Yes |
| Depth | 124 |
| Effect | 240 |
| Efficiency At 230 V AC, full load. Typical | 91.4 |
| Efficiency At 230 V AC. Typical | 90.9 |
| Height | 124 |
| Hold-up time at 230 V AC, full load. Typical. | 33 |
| Input voltage AC | 200-240 V |
| Input voltage ac max | 264 |
| Input voltage ac min | 180 |
| Inrush current at 230 V ac typical | 48 |
| IP Class | IP20 |
| Lifetime at 230 V ac, full load and +40 ° C | 38000 |
| Load Regulation | <150 mV (0-10 A) |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 791000 |
| Number of phases | 1 |
| Output Current | 10 |
| Output voltage | 24 |
|---|---|
| Output voltage max | 28 |
| Output voltage min | 24 |
| Parallel Connection For Increased Power | Not allowed |
| PFA (EN61000-3-2) | Not met |
| Power Consumption At 230 V AC | 2.2 |
| Power Factor at 230 V AC, full load. Typical | 0.52 |

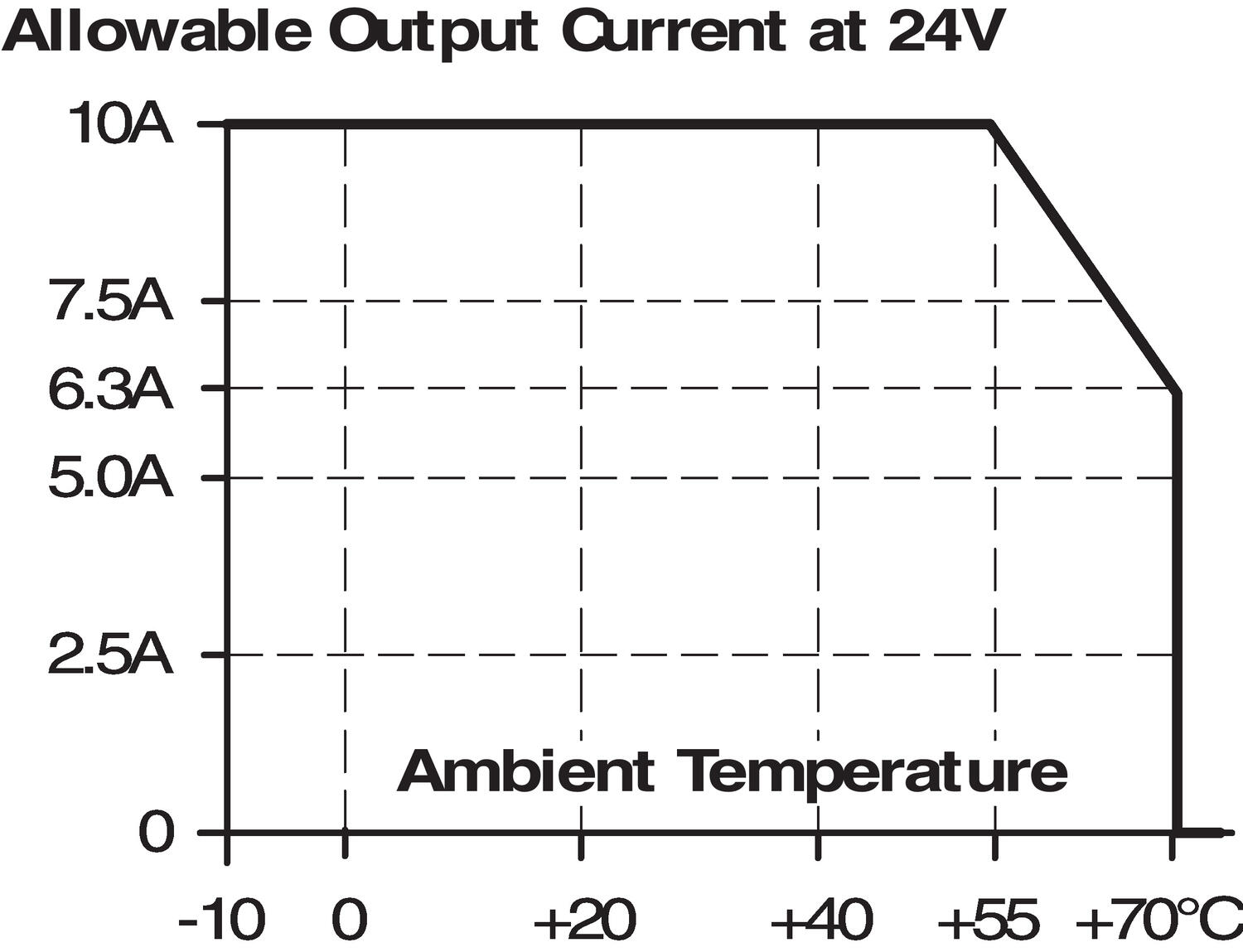

| Power Reduction Of 60 To 70 ° C | 6 |
| Primary Fuse | Min 16A B type or 10A C type |
| Ripple. max | 100 |
| Series | Piano |
| Series Connection For Increased Tension | Yes |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -10 |
| Temperature Range Without Derating To | 55 |
| Transient | VDE 0160 (750 V, 1,3 ms) |
| Weight | 0.55 |
| Width | 49 |
Product description
These PIANO series units are extraordinarily compact, industrial grade power supplies that focus on the essential features required in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.
The mechanically robust housing is made of a high-grade, reinforced molded material, which permits the units to be used in surrounding temperatures up to +70°C.
Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200 240V) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.
The integrated DC-OK signal makes the unit suitable for many industry applications, such as process, automation and many other critical applications where preventive function monitoring can help to avoid long downtimes.
Output characteristics | ||
|
|
|

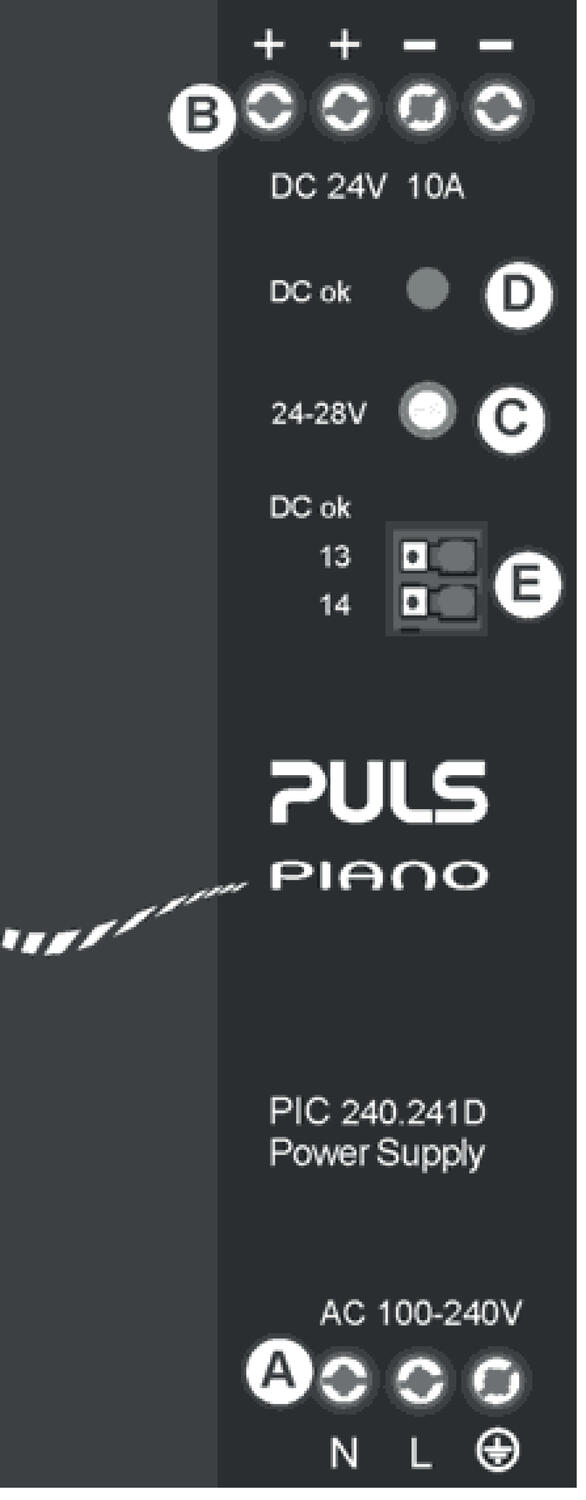

Wiring | |
|
|
