Power Supply 1-Phase, 24 V DC Dimension C Series, Generation 2, 20A
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20 series are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size.

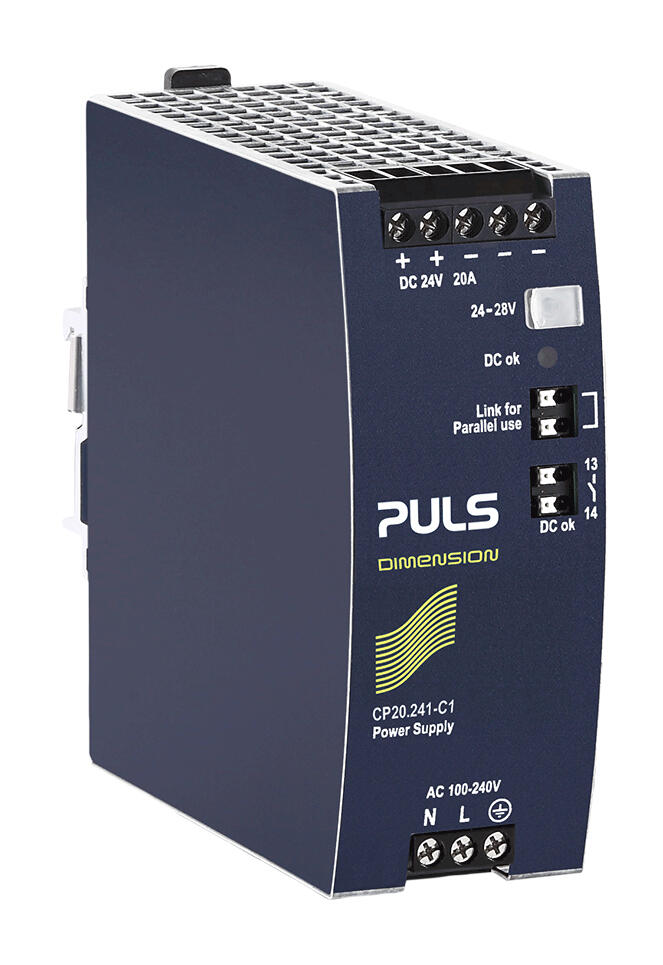

The CP20.241-C1 is equipped with conformal coated pc-boards preferred for applications in harsh areas.

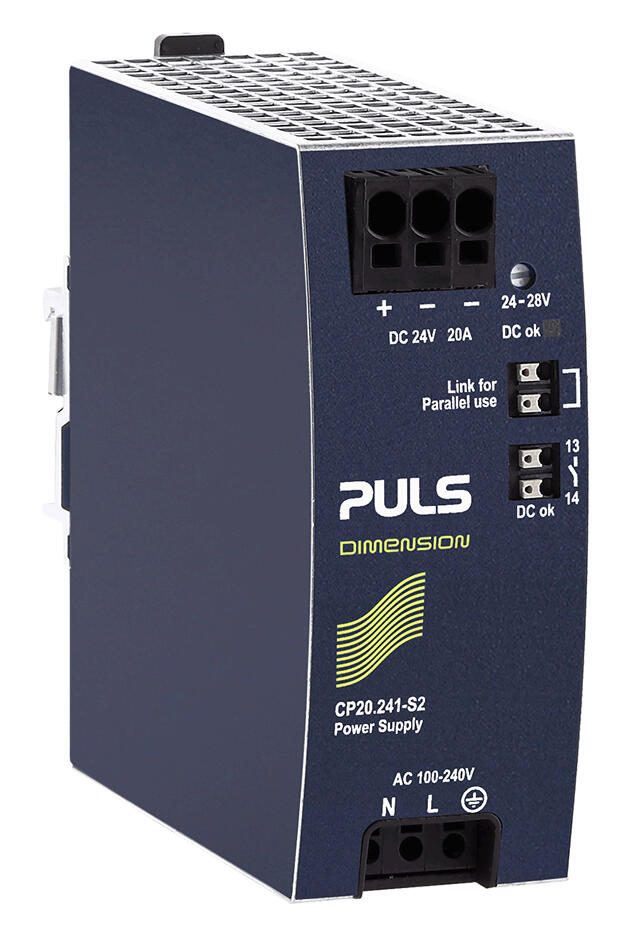

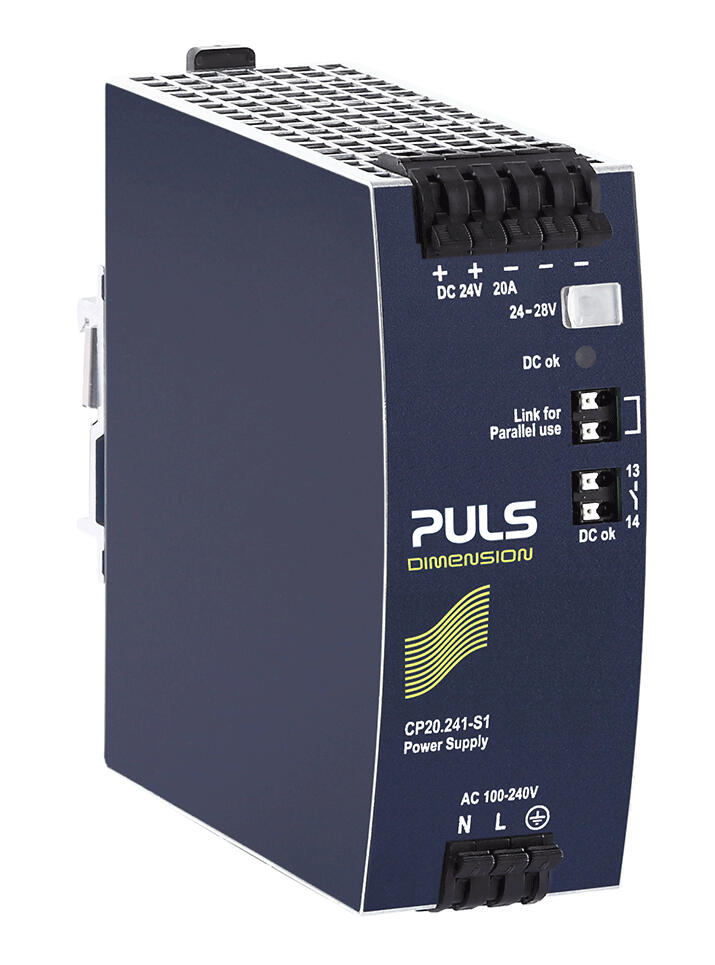

The CP20.241-S1 is equipped with quick-connect spring-clamp terminals preferred for applications which are exposed to mechanical vibration. The CP20.241-S2 has push-in terminals optimized for easy cabinet wiring.

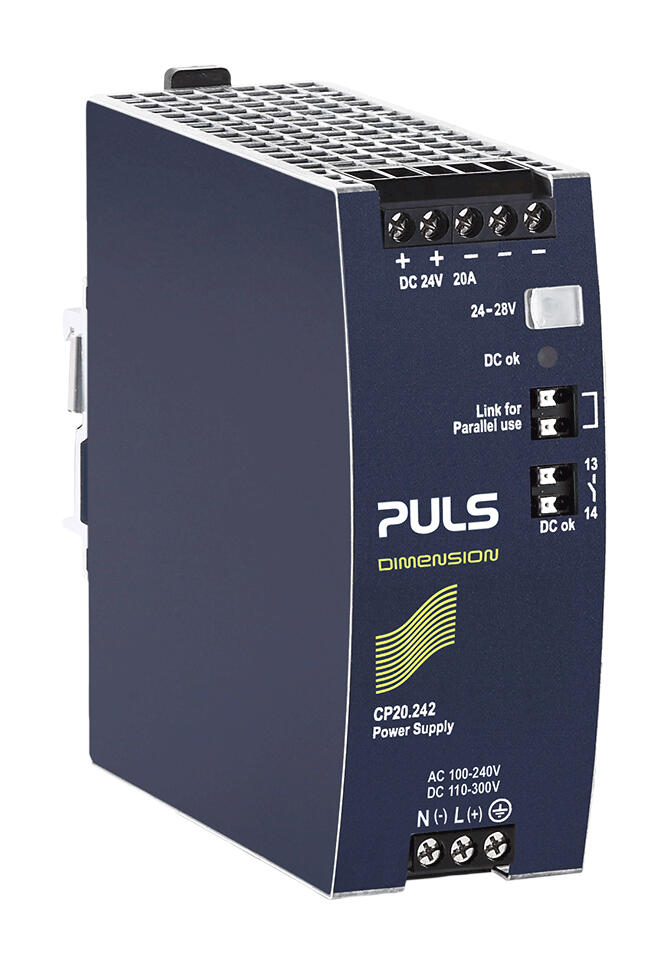

The CP20.241-V1 is equipped with a remote ON/OFF feature and the CP20.242 features an enhanced DC input voltage range.
The devices have a power reserve of 20% included, which may even be used continuously up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package makes this unit suitable for nearly every situation.

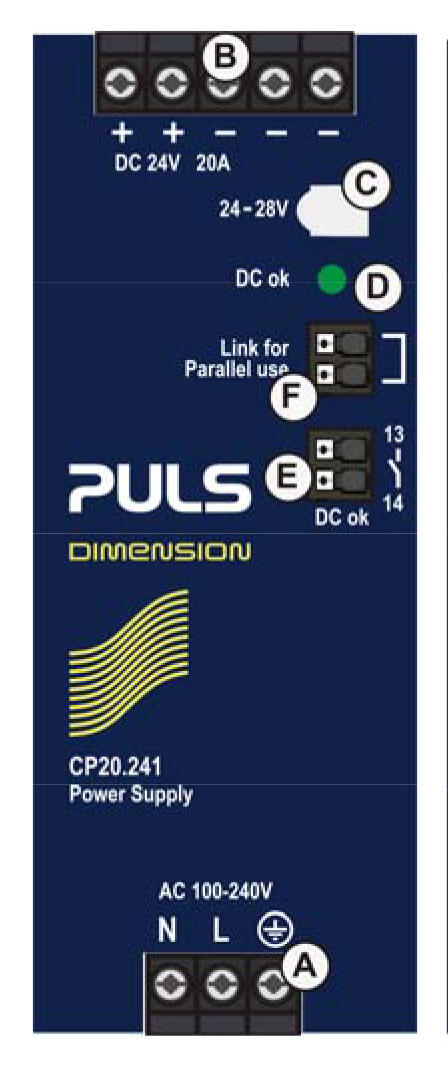

- AC 100-240V Wide-range Input
- Width only 48mm

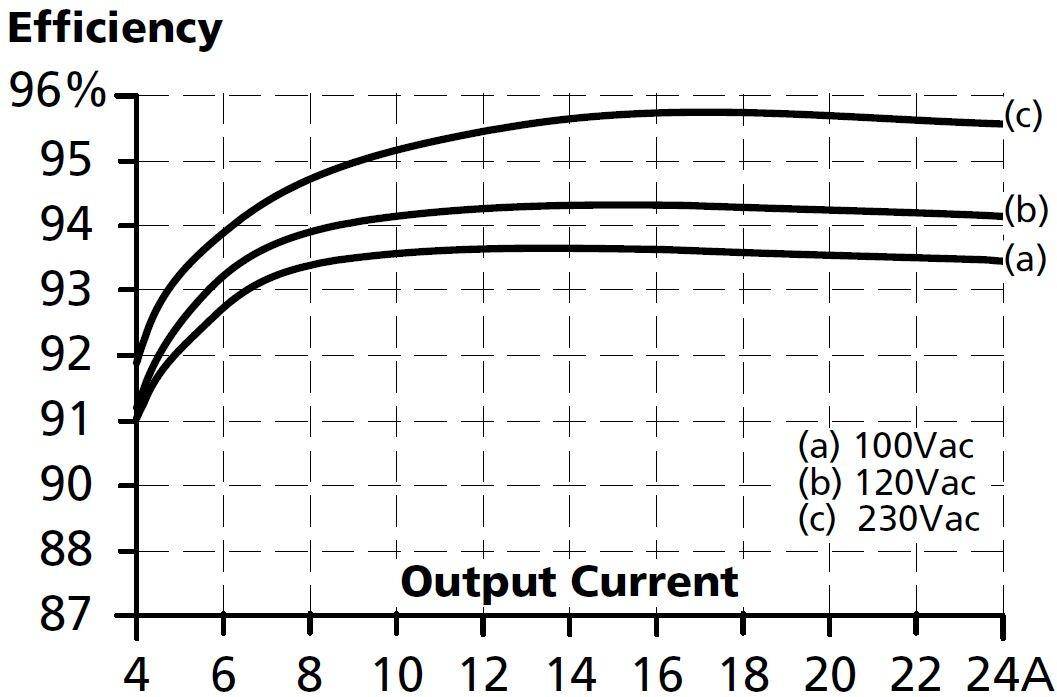

- Efficiency up to 95.6%
- Excellent Partial Load Efficiency
- 20% Output Power Reserves

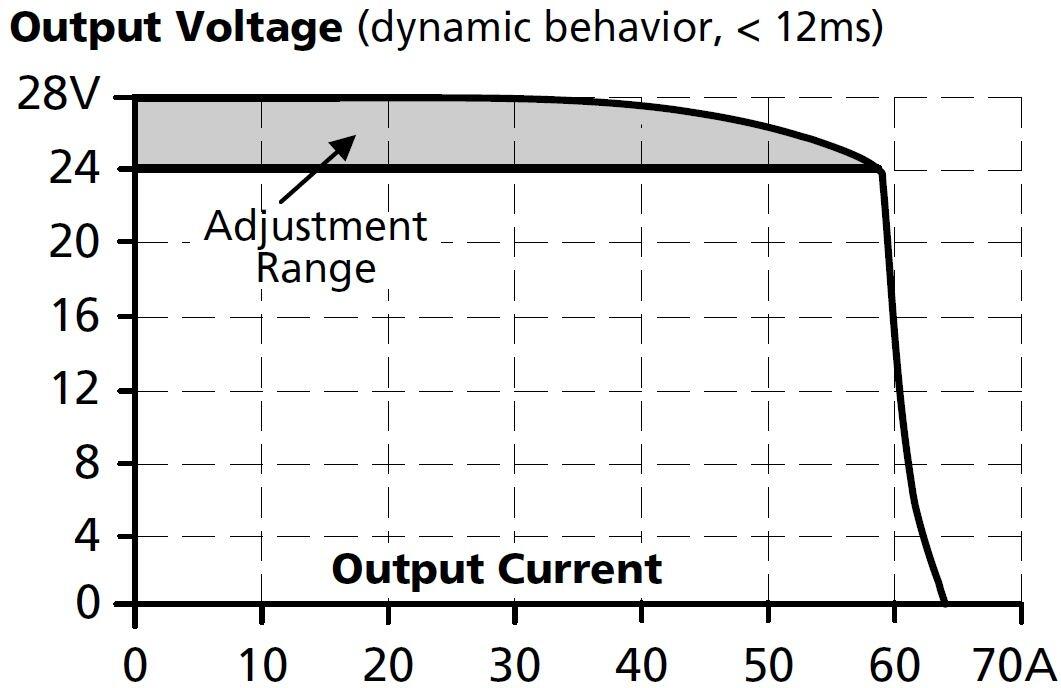

- Easy Fuse Breaking – 3 times nominal current for 12ms

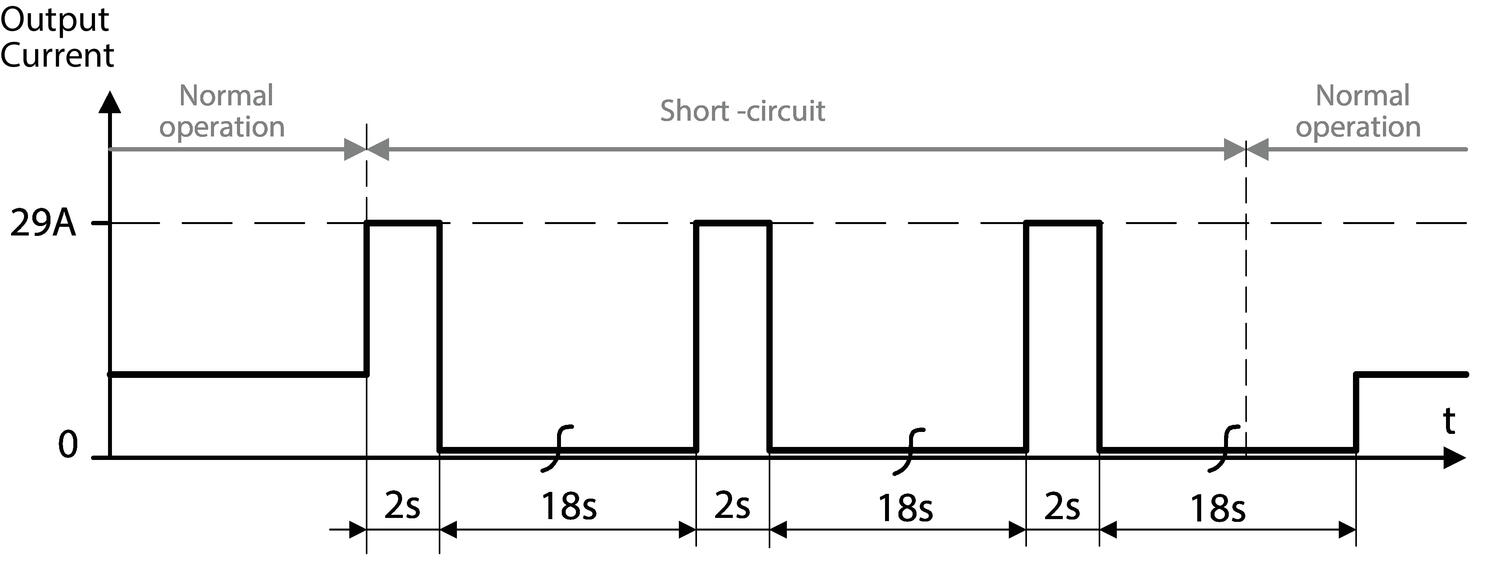

- Safe HiccupPLUS Overload Mode
- Active Power Factor Correction (PFC)
- Minimal Inrush Current Surge
- Full Power Between -25°C and +60°C
- DC-OK Relay Contact
- Current Sharing Feature for Parallel Use
- 3 Year Warranty
- Output current 20 A
- Efficiency up to 95.6%
- Only 48 mm wide
- 20 % output power reserves
Selected variant
Selected variant
Specifications

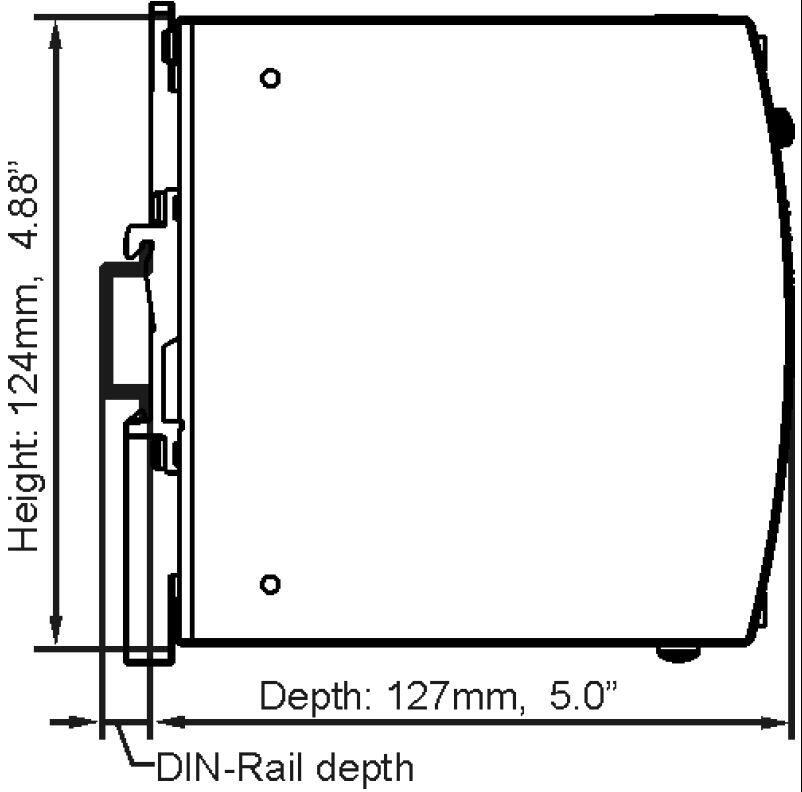

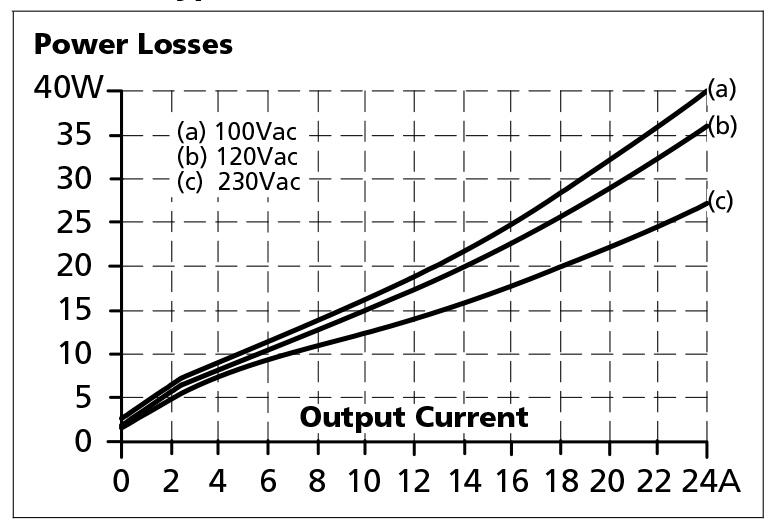

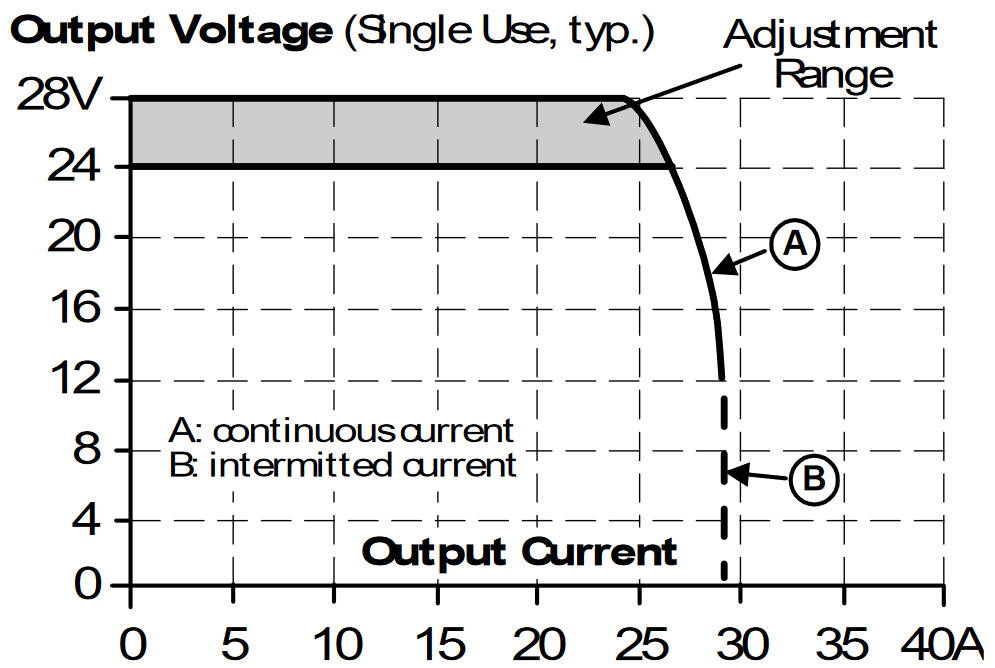

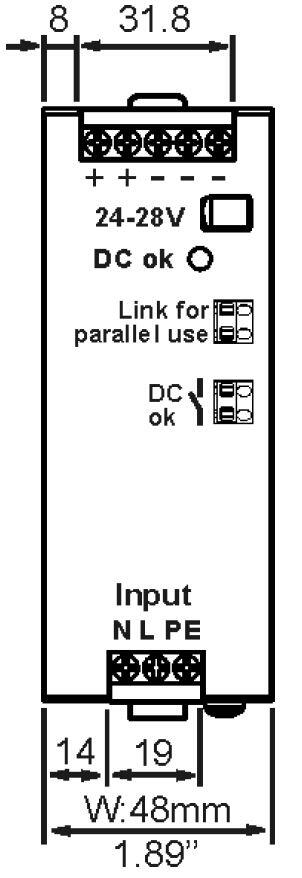

| Active Transient | Yes |
|---|---|
| Approvals | ATEX, CB, CE, CSA US, cULus, IECEx |
| DC relay output | Yes |
| Depth | 127 |
| Effect | 480 |
| Efficiency At 120 V AC, full load. Typical | 94.2 |
| Efficiency At 230 V AC, full load. Typical | 95.6 |
| Efficiency At 230 V AC. Typical | 95 |
| Height | 124 |
| Hold-up time at 120 V AC, full load. Typical. | 32 |
| Hold-up time at 230 V AC, full load. Typical. | 32 |
| Input current at 230 V ac typical | 4.5 |
| Input voltage AC | 100-240 V |
| Input voltage ac max | 264 |
| Input voltage ac min | 85 |
| Input voltage DC | 110-150 V |
| Input voltage dc max | 180 |
| Input voltage dc min | 88 |
| Input voltage range | Wide-range |
| Inrush current at 120 V ac typical | 10 |
| IP Class | IP20 |
| Lifetime at 120 V ac, full load and +40 ° C | 60000 |
|---|---|
| Lifetime at 230 V ac, full load and +40 ° C | 94000 |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 590000 |
| Number of phases | 1 |
| Output Current | 20 |
| Output voltage | 24 |
| Output voltage max | 28 |
| Output voltage min | 24 |
| Power Consumption At 120 V AC | 4.26 |
| Power Consumption At 230 V AC | 2.23 |
| Power Factor at 120 V AC, full load. Typical | 0.99 |
| Power Factor at 230 V AC, full load. Typical | 0.98 |
| Power Reduction Of 60 To 70 ° C | 12 |
| Ripple. max | 50 |
| Series | Dimension C |
| Supply Frequency | 50-60 ±6 % |
| Temperature Range Without Derating From | -25 |
| Temperature Range Without Derating To | 60 |
| Weight | 0.83 |
| Width | 48 |
Product description
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20 series are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size.
The CP20.241-C1 is equipped with conformal coated pc-boards preferred for applications in harsh areas.
The CP20.241-S1 is equipped with quick-connect spring-clamp terminals preferred for applications which are exposed to mechanical vibration. The CP20.241-S2 has push-in terminals optimized for easy cabinet wiring.
The CP20.241-V1 is equipped with a remote ON/OFF feature and the CP20.242 features an enhanced DC input voltage range.
The devices have a power reserve of 20% included, which may even be used continuously up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package makes this unit suitable for nearly every situation.
- AC 100-240V Wide-range Input
- Width only 48mm
- Efficiency up to 95.6%
- Excellent Partial Load Efficiency
- 20% Output Power Reserves
- Easy Fuse Breaking – 3 times nominal current for 12ms
- Safe HiccupPLUS Overload Mode
- Active Power Factor Correction (PFC)
- Minimal Inrush Current Surge
- Full Power Between -25°C and +60°C
- DC-OK Relay Contact
- Current Sharing Feature for Parallel Use
- 3 Year Warranty
