INTERFLEX

FLEXIBLE CONDUIT SUPPORTS AND LOCKNUTS

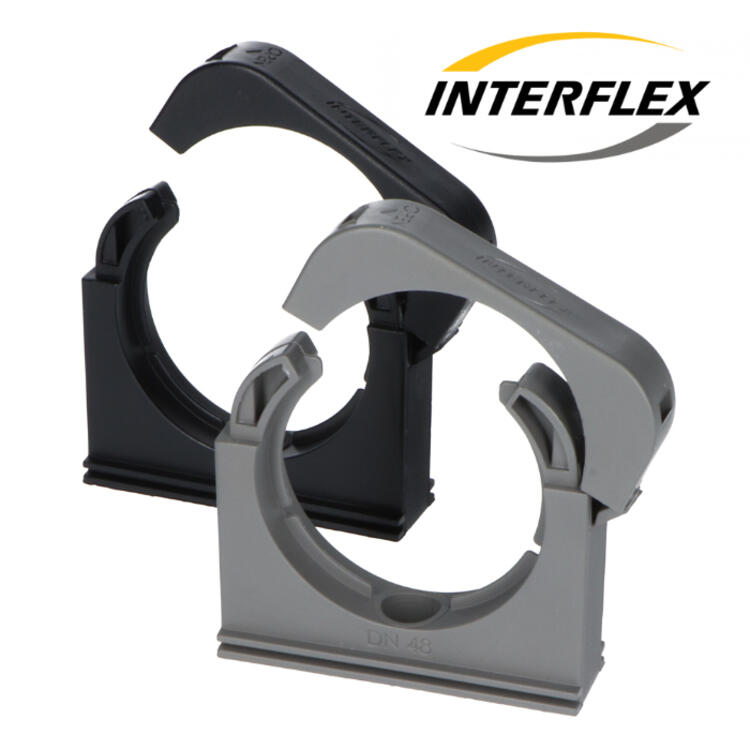

Supports for securing sections of corrugated conduits between the various parts of the electrical installation on machines. Integrated lid to secure the conduit inside its structure, especially useful for wall or ceiling installation. No tools are needed to close it, and it can be easily opened using a slotted screwdriver. Manufactured with specially modified polyamide (PA6).

Free of halogens, phosphorus and cadmium.
Self-extinguishing.
Shock resistant
With base for its fixation to RWL support guides.
Temperature range: from -40°C up to +105°C (150°C short term).

Selected variant

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Measurements and connections

Product description

Incorporated conduit entry guide to make the conduit installation easier and to secure it when a tensile strength is applied.

Accessories

My favourites	Articles	Price

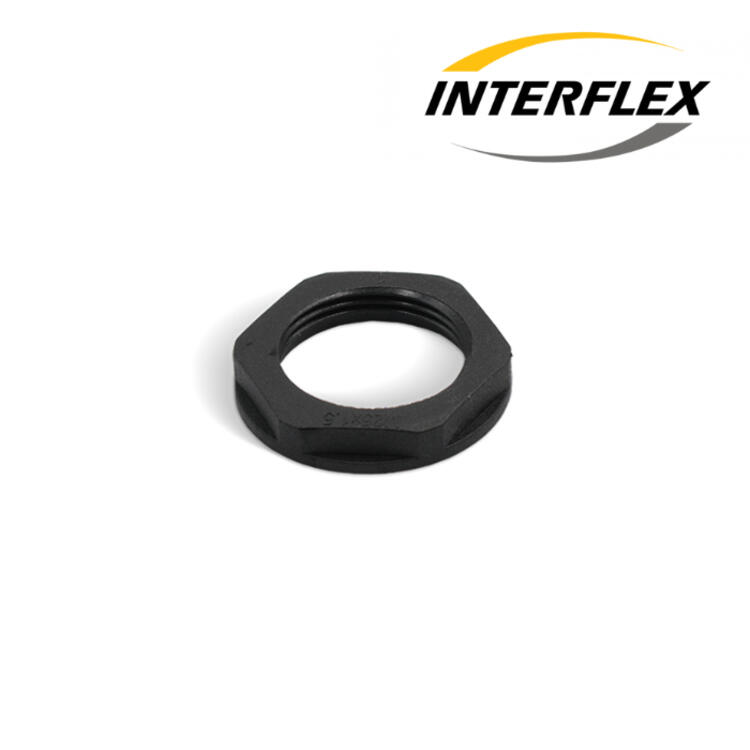

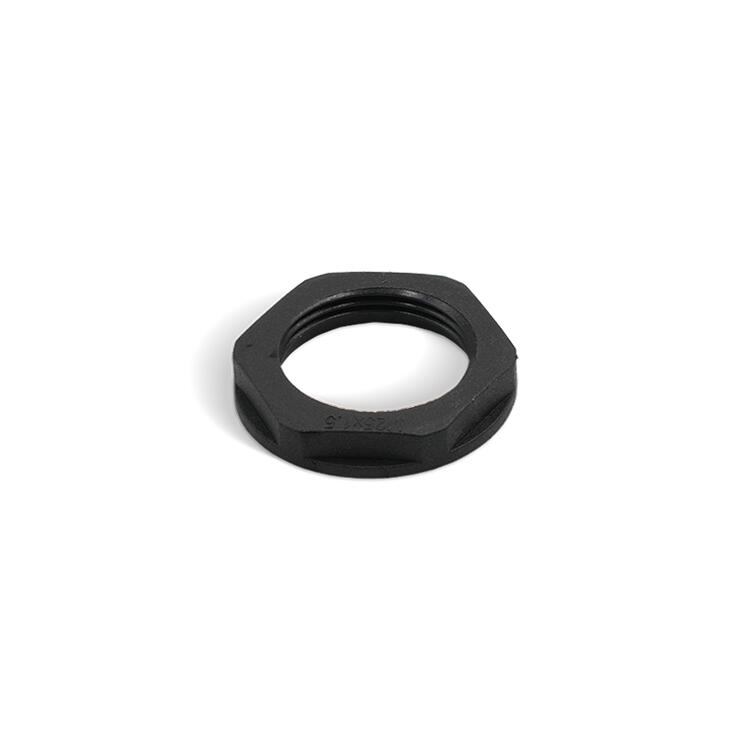

	Polyamide Metric Lock Nut 20Mm Black Art: 262047 Copied
	Polyamide Metric Lock Nut 25Mm Black Art: 262547 Copied
	Conduit Support With Lid Size 10 Black Art: SWL10N Copied
	Conduit Support With Lid Size 12 Black Art: SWL12N Copied
	Conduit Support With Lid Size 17 Black Art: SWL17N Copied
	Conduit Support With Lid Size 29 Black Art: SWL29N Copied
