The HYGIEMAG switch - CMR-F is a magnetic switch made of high tolerance stainless steel, which is ideally suited for applications in the food and pharmaceutical industry. It allows to switch currents, depending on the model, to 1 A or 2 A. The slim switch housing - 20 mm gives the possibility of mounting in applications with a limited space for mounting. The switch is resistant to pressure washing. Mounting screws from the bottom makes the switch ideal for demanding food applications.
Annual usage | 8 cycles per hour/24 hours per day/365days |
---|---|
Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
Cable length | 2 m |
Cable type | PVC 6 or 8 core 6mm OD conductors 0.25mm² |
Central Material | Stainless steel 316 |
Coding | Not coded |
Conductor size | 0.25 |
Contact rating max | 250Vac 1.0A |
Contacts | 2NC |
Integrated LED indication | No |
IP Class | IP69K, IP67 |
Mechanical reliability B10d | 3.3 x 10⁶ operations at 100mA load |

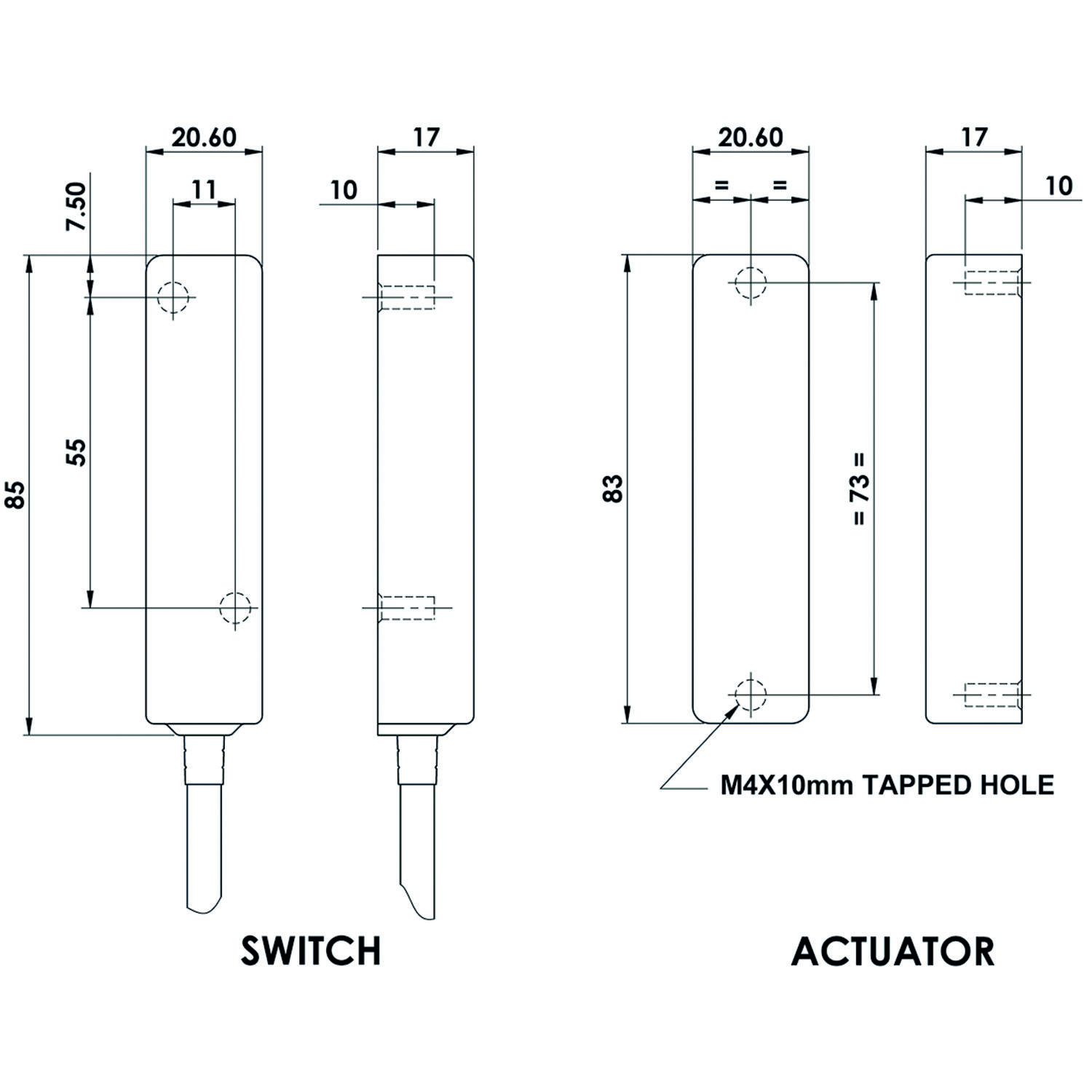

Mounting | 2 x M4 |
---|---|
MTTFd | 470 years |
Operating temperature | -25..105°C |
PFHd | 2.52 x 10⁻⁸ |
PL | e acc. ISO13849-1 |
Recommended mounting gap | 5 |
SIL | 3 acc. EN62061 |
Switching current min | 10Vdc 1mA |
Switching distance | Sao 10mm close, Sar 22mm open |
Switching frequency max | 1.0Hz maximum |
The HYGIEMAG switch - CMR-F is a magnetic switch made of high tolerance stainless steel, which is ideally suited for applications in the food and pharmaceutical industry. It allows to switch currents, depending on the model, to 1 A or 2 A. The slim switch housing - 20 mm gives the possibility of mounting in applications with a limited space for mounting. The switch is resistant to pressure washing. Mounting screws from the bottom makes the switch ideal for demanding food applications.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection…
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
…
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk…
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Cable length | Contact rating max | Contacts | Price | |
---|---|---|---|---|---|---|
![]()
CMR-F 2M '2NC'
Art:
135017
Copied
|
2 m
|
250Vac 1.0A
|
2NC
|
| ||
![]()
CMR-F 5M '2NC'
Art:
135018
Copied
|
5 m
|
250Vac 1.0A
|
2NC
|
| ||
![]()
CMR-F 10M '2NC'
Art:
135019
Copied
|
10 m
|
250Vac 1.0A
|
2NC
|
| ||
![]()
CMR-F QC M12 8way '2NC'
Art:
135020
Copied
|
0.25 m
|
250Vac 1.0A
|
2NC
|
| ||
![]()
CMR-F 2M '2NC 1NO'
Art:
135021
Copied
|
2 m
|
250Vac 1.0A
|
2NC 1NO
|
| ||
![]()
CMR-F 5M '2NC 1NO'
Art:
135022
Copied
|
5 m
|
250Vac 1.0A
|
2NC 1NO
|
| ||
![]()
CMR-F 10M '2NC 1NO'
Art:
135023
Copied
|
10 m
|
250Vac 1.0A
|
2NC 1NO
|
| ||
![]()
CMR-F QC M12 8way '2NC 1NO'
Art:
135024
Copied
|
0.25 m
|
250Vac 1.0A
|
2NC 1NO
|
| ||
![]()
CMR-F Heavy Duty 2M '1NC'
Art:
135025
Copied
|
2 m
|
250Vac 2.0A
|
1NC
|
| ||
![]()
CMR-F Heavy Duty 5M '1NC'
Art:
135026
Copied
|
5 m
|
250Vac 2.0A
|
1NC
|
| ||
![]()
CMR-F Heavy Duty 10M '1NC'
Art:
135027
Copied
|
10 m
|
250Vac 2.0A
|
1NC
|
| ||
![]()
CMR-F Heavy Duty QC M12 8way '1NC'
Art:
135028
Copied
|
0.25 m
|
250Vac 2.0A
|
1NC
|
| ||
![]()
CMR-F Heavy Duty 2M '1NC 1NO'
Art:
135029
Copied
|
2 m
|
250Vac 2.0A
|
1NC 1NO
|
| ||
![]()
CMR-F Heavy Duty 5M '1NC 1NO'
Art:
135030
Copied
|
5 m
|
250Vac 2.0A
|
1NC 1NO
|
| ||
![]()
CMR-F Heavy Duty 10M '1NC 1NO'
Art:
135031
Copied
|
10 m
|
250Vac 2.0A
|
1NC 1NO
|
| ||
![]()
CMR-F Heavy Duty QC M12 8way '1NC 1NO'
Art:
135032
Copied
|
0.25 m
|
250Vac 2.0A
|
1NC 1NO
|
| ||
![]()
CMR-F 2M '3NC'
Art:
135131
Copied
|
2 m
|
250Vac 1.0A
|
3NC
|
| ||
![]()
CMR-F 5M '3NC'
Art:
135132
Copied
|
5 m
|
250Vac 1.0A
|
3NC
|
| ||
![]()
CMR-F 10M '3NC'
Art:
135133
Copied
|
10 m
|
250Vac 1.0A
|
3NC
|
| ||
![]()
CMR-F QC M12 8way '3NC'
Art:
135134
Copied
|
0.25 m
|
250Vac 1.0A
|
3NC
|
|
Select a variant in the list
