The HYGIEMAG - SMR-F switch is a magnetic switch made of stainless steel of small size and high tolerance, which is ideally suited for applications in the food and pharmaceutical industry. It allows the switching of currents up to 1 A. This switch has a standard spacing of fixing holes - 22 mm and is resistant to pressure washing. Mounting screws from the bottom makes the switch ideal for demanding food applications.
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
|---|---|
| Approvals | ISO 14119, EN60947-5-1, EN60204-1, ISO 13849-1, EN62061, UL 508 |
| Cable length | 0.25 m |
| Cable type | PVC 6 core 6mm OD conductors 0.25mm² |
| Central Material | Stainless steel 316 |
| Coding | Not coded |
| Conductor size | 0.25 |
| Contact rating max | 250Vac 1.0A |
| Contacts | 1NC |
| Integrated LED indication | No |
| IP Class | IP67, IP69K |
| Mechanical reliability B10d | 3.3 x 10⁶ operations at 100mA load |

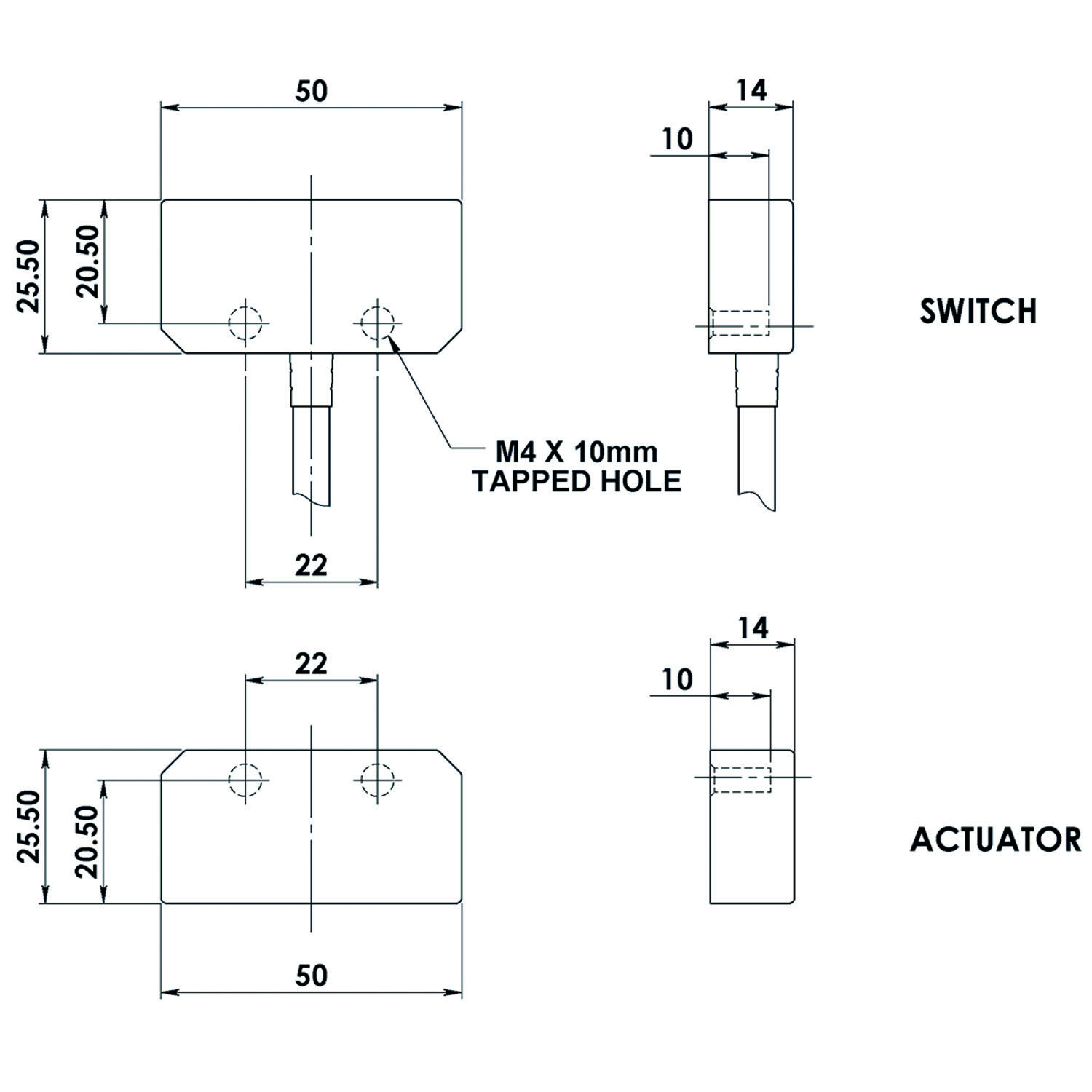

| Mounting | 2 x M4 |
|---|---|
| MTTFd | 470 years |
| Operating temperature | -25..105°C |
| PFHd | 2.52 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| Recommended mounting gap | 5 |
| SIL | 3 acc. EN62061 |
| Switching current min | 10Vdc 1mA |
| Switching distance | Sao 10mm open, Sar 22mm close |
| Switching frequency max | 1.0Hz maximum |
The HYGIEMAG - SMR-F switch is a magnetic switch made of stainless steel of small size and high tolerance, which is ideally suited for applications in the food and pharmaceutical industry. It allows the switching of currents up to 1 A. This switch has a standard spacing of fixing holes - 22 mm and is resistant to pressure washing. Mounting screws from the bottom makes the switch ideal for demanding food applications.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
.png?as=1&iar=0&hash=810B0221860A0A9A4F02213200AE093A)
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Cable length | Contacts | Price | |
|---|---|---|---|---|---|
SMR-F QC M12 8way '1NC'
Art:
132020
Copied
|
0.25 m
|
1NC
|
| ||
|
SMR-F 2M '2NC'
Art:
137009
Copied
|
2 m
|
2NC
|
| ||
|
SMR-F 5M '2NC'
Art:
137010
Copied
|
5 m
|
2NC
|
| ||
|
SMR-F 10M '2NC'
Art:
137011
Copied
|
10 m
|
2NC
|
| ||
|
SMR-F QC M12 8way '2NC'
Art:
137012
Copied
|
0.25 m
|
2NC
|
| ||
|
SMR-F 2M '2NC 1NO'
Art:
137013
Copied
|
2 m
|
2NC 1NO
|
| ||
|
SMR-F 5M '2NC 1NO'
Art:
137014
Copied
|
5 m
|
2NC 1NO
|
| ||
|
SMR-F 10M '2NC 1NO'
Art:
137015
Copied
|
10 m
|
2NC 1NO
|
| ||
|
SMR-F QC M12 8way '2NC 1NO'
Art:
137016
Copied
|
0.25 m
|
2NC 1NO
|
| ||
|
SMR-F 2M '1NC'
Art:
137017
Copied
|
2 m
|
1NC
|
| ||
|
SMR-F 5M '1NC'
Art:
137018
Copied
|
5 m
|
1NC
|
| ||
|
SMR-F 10M '1NC'
Art:
137019
Copied
|
10 m
|
1NC
|
| ||
|
SMR-F QC M12 8way '1NC'
Art:
137020
Copied
|
0.25 m
|
1NC
|
| ||
|
SMR-F 2M '1NC 1NO'
Art:
137021
Copied
|
2 m
|
1NC 1NO
|
| ||
|
SMR-F 5M '1NC 1NO'
Art:
137022
Copied
|
5 m
|
1NC 1NO
|
| ||
|
SMR-F 10M '1NC 1NO'
Art:
137023
Copied
|
10 m
|
1NC 1NO
|
| ||
|
SMR-F QC M12 8way '1NC 1NO'
Art:
137024
Copied
|
0.25 m
|
1NC 1NO
|
| ||
|
SMR-F QC M12 8way '3NC'
Art:
137131
Copied
|
0.25 m
|
3NC
|
|
