Specifications
| Allowable Operating Force Max | 10 |
|---|---|
| Contact Gap | 0.4 |
| Hysteresis Max | 0.15 |
| IP Class | IP40 |
| Operating Force Max | 1.5 |
| Operating Power Total Max | 1.8 |
| Over Movement My | 0.5 |
| Rated current at 250 V AC | 10 |
| Return Movement Force Min | 0.3 |
|---|---|
| Sleep Max | 9.2 |

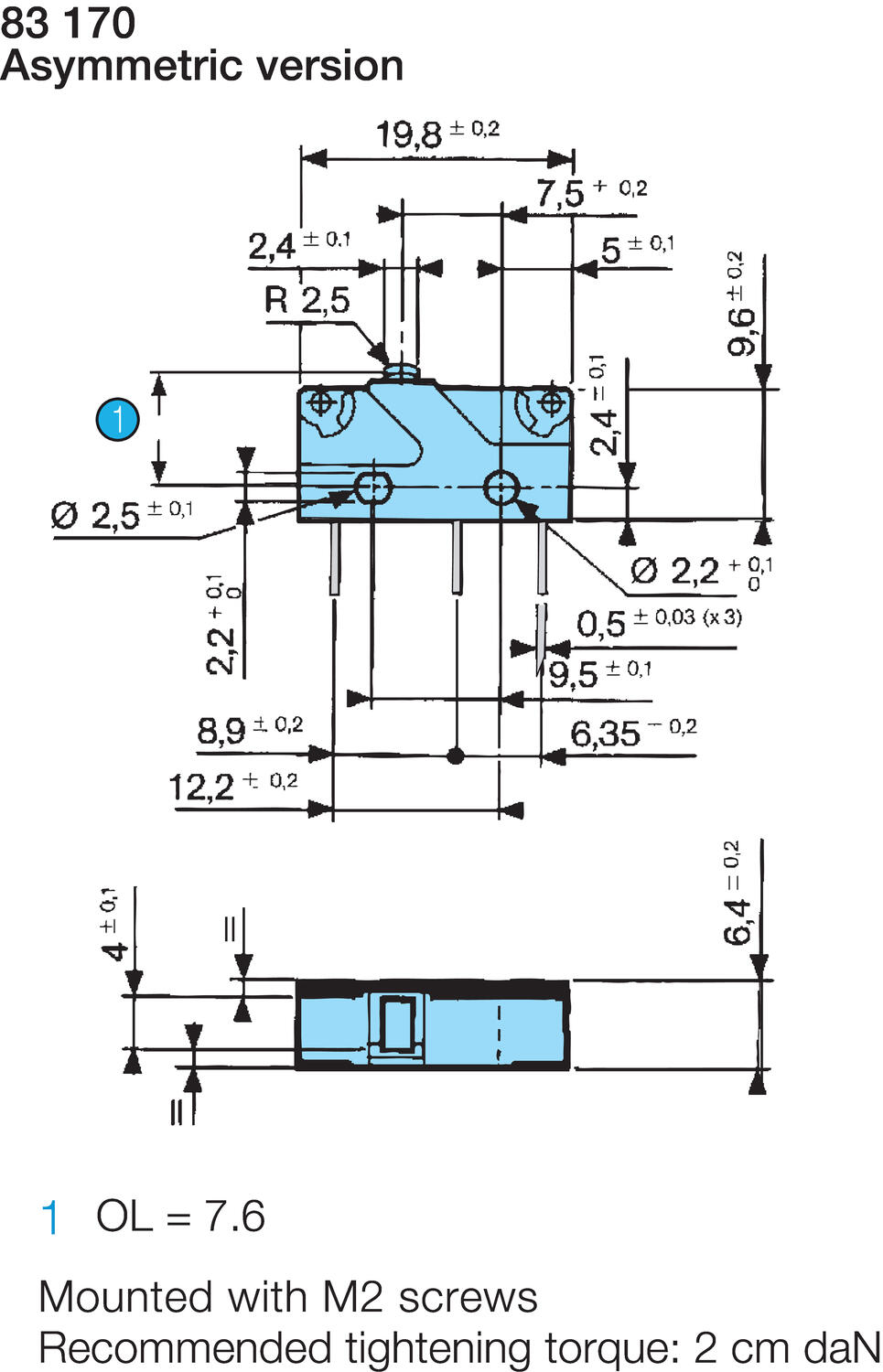

| Switching Point | 8,4 ±0,3 mm |
| Temperature range from | -40 |
| Temperature range to | 125 |
| Thermal current at 250 V AC | 12.5 |
