Selected variant

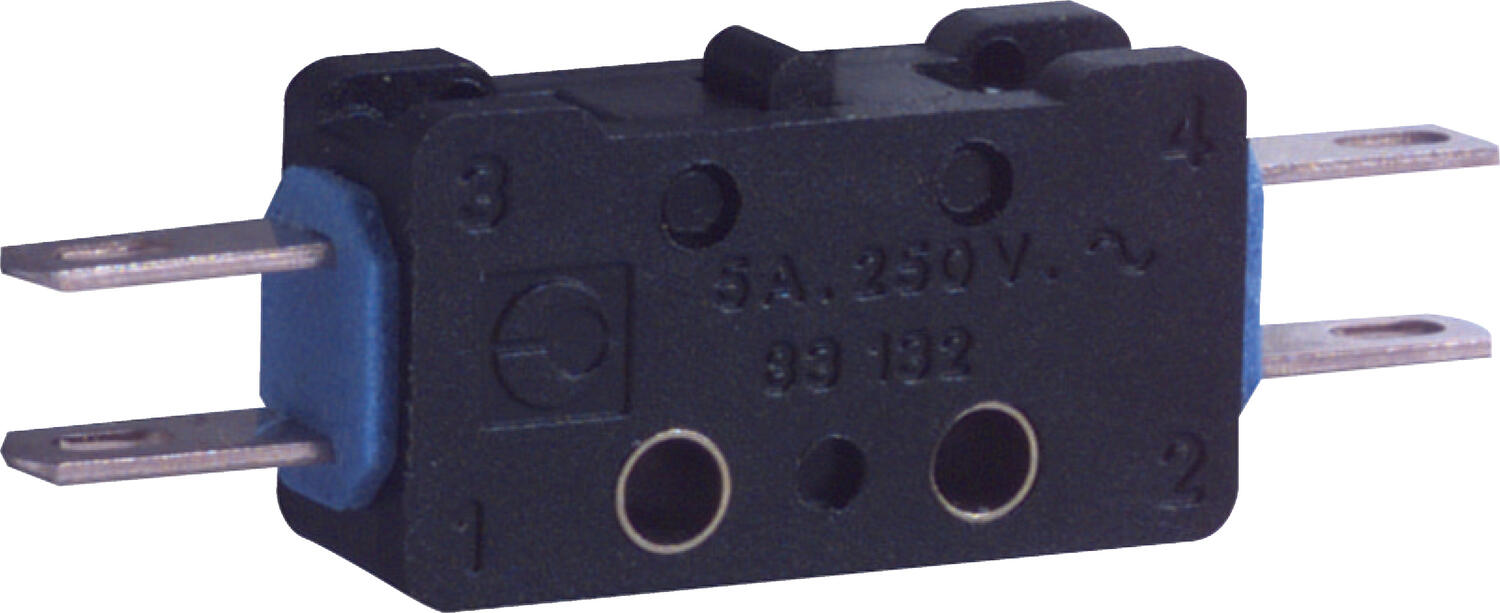

831320 D/BRK W2
Art:
Selected variant
Specifications
| Allowable Operating Force Max | 10 |
|---|---|
| Connection Thread | W2 |
| Contact gap | 0,3 x 2 mm |

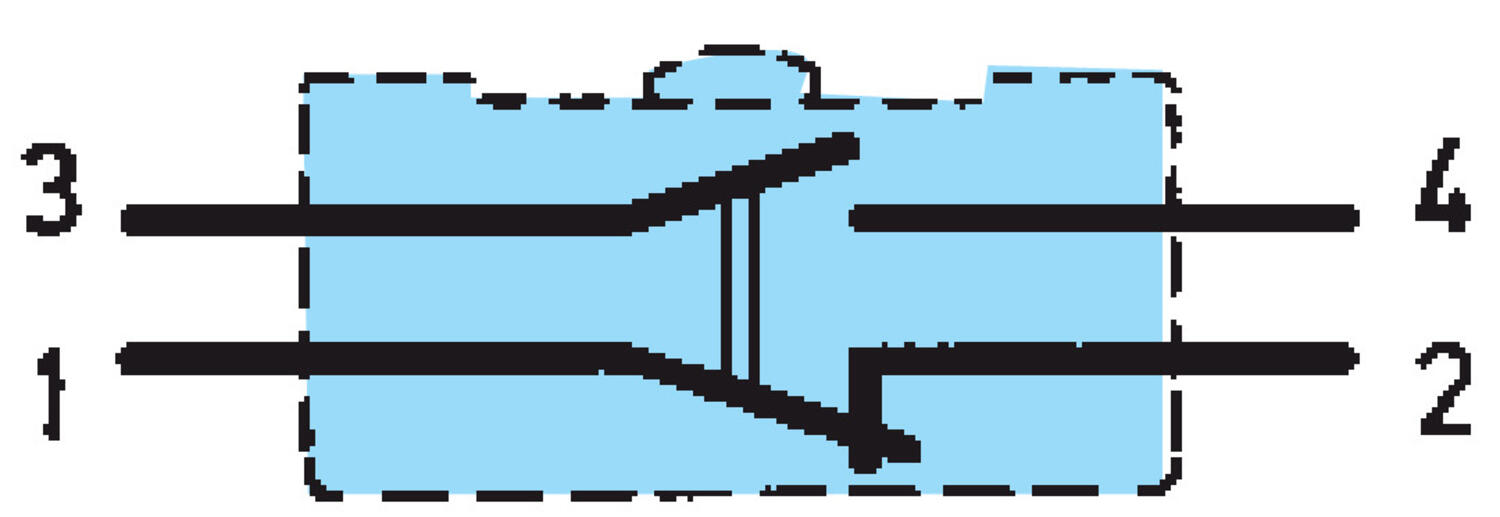

| Contact type | 1 x N/O, 1 x N/C |
| Hysteresis Max | 0.45 |
| IP Class | IP40 |
| Operating Force Max | 1.6 |
| Over Movement My | 0.27 |
| Rated current at 250 V AC | 6 |
|---|---|
| Return Movement Force Min | 0.4 |
| Sleep Max | 8.45 |

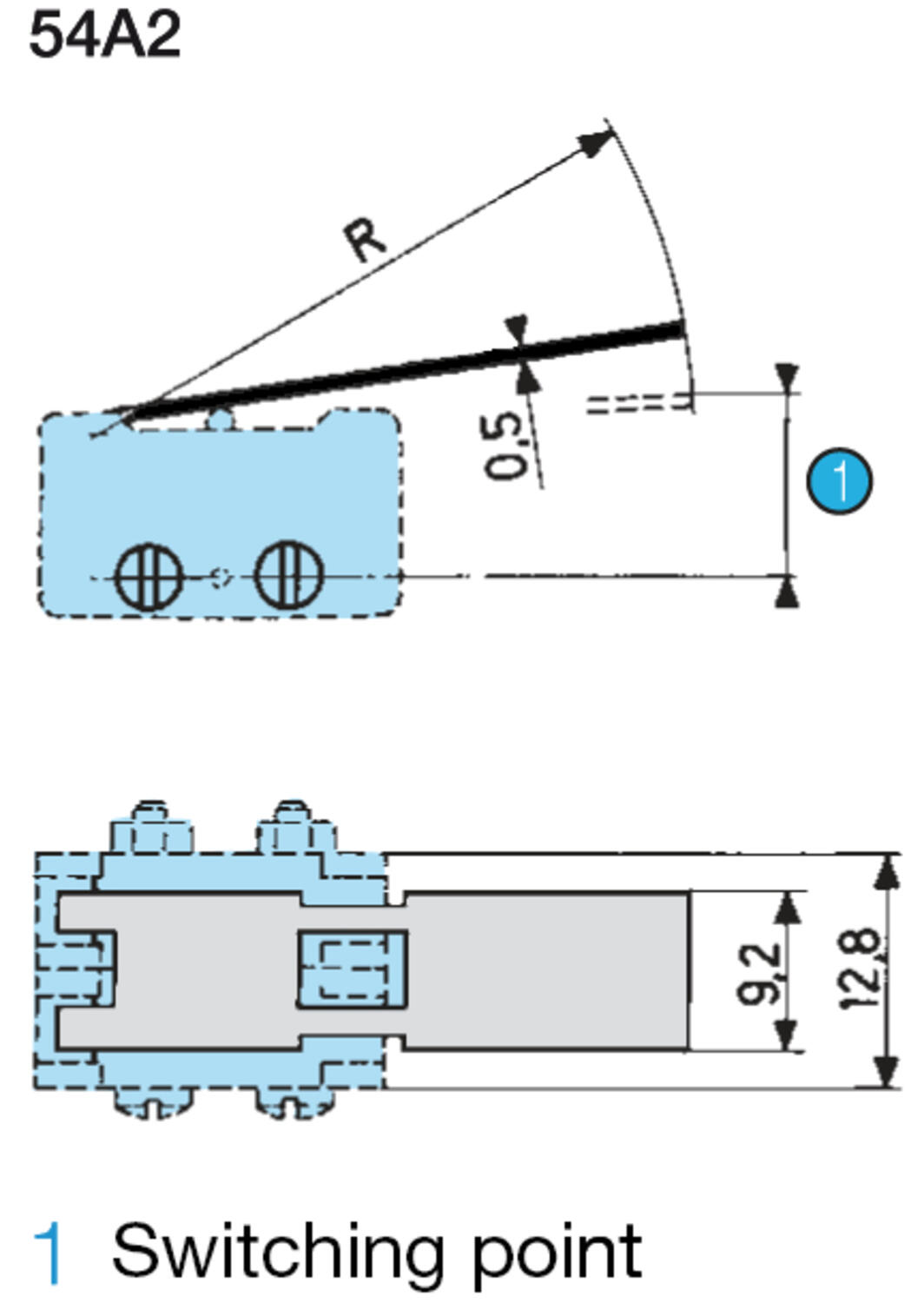

| Switching Point | 7,7±0,2 mm |
| Temperature range from | -40 |
| Temperature range to | 125 |
| Thermal current at 250 V AC | 10 |
