CROUZET SWITCHES

Crouzet Switches - Series 83870 with embedded cable

  • IP66 & IP67
  • Housing made entirely from metal
  • Forced breaking contacts
  • cUL approved

Selected variant

Avaible in several variants
Crouzet_Switches_logo.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals UL 50, UL 508
Cable 0,75 mm²
Cable length 1000
Conventional Thermal Current 10
IP Class IP66, IP67, IP69
Power Min 0.1
Rated current at 250 V AC 3
Temperature range from -25
Temperature range to 70
Voltage AC max 250
Voltage Min 10

Downloads

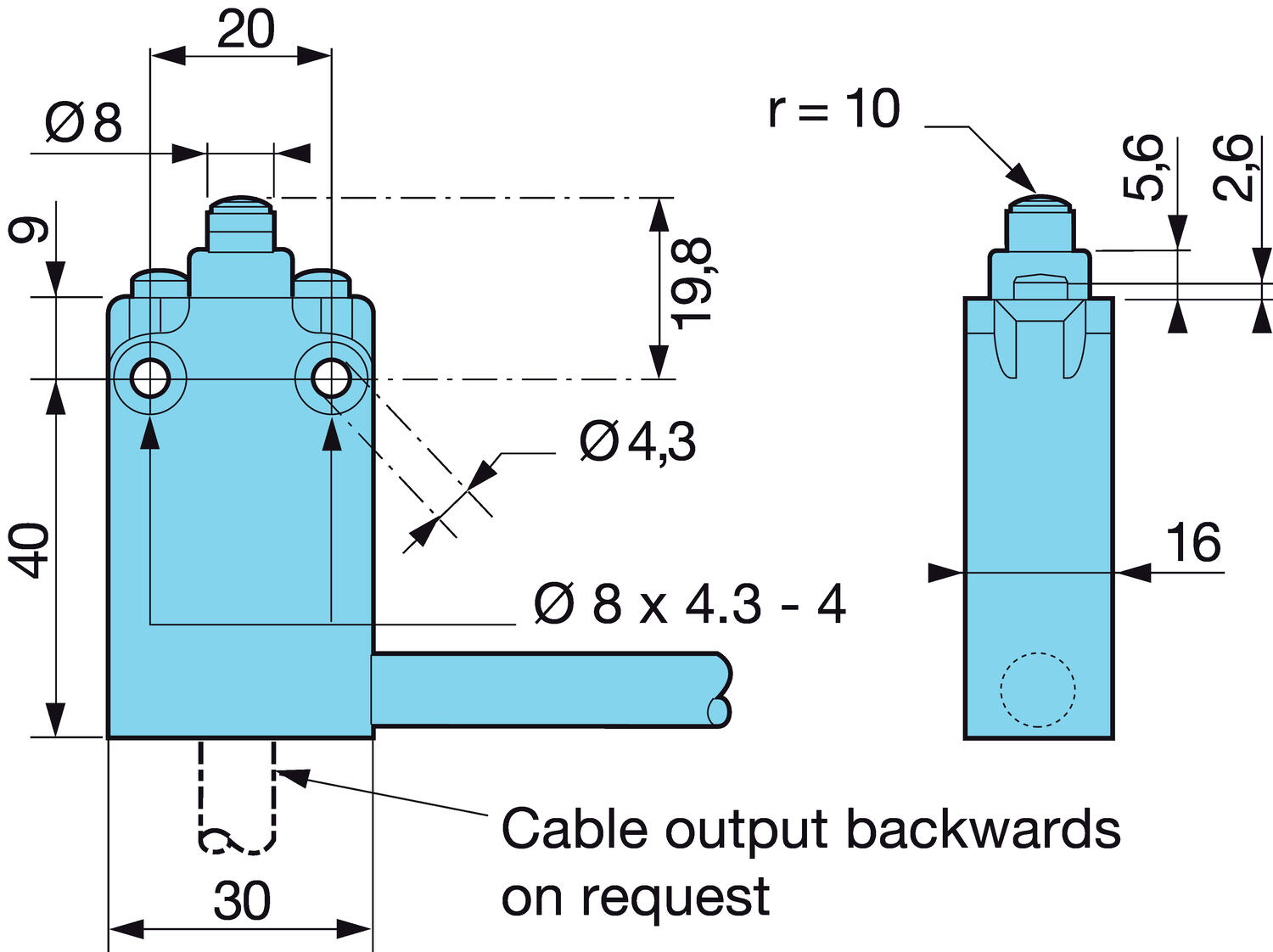

Measurements and connections

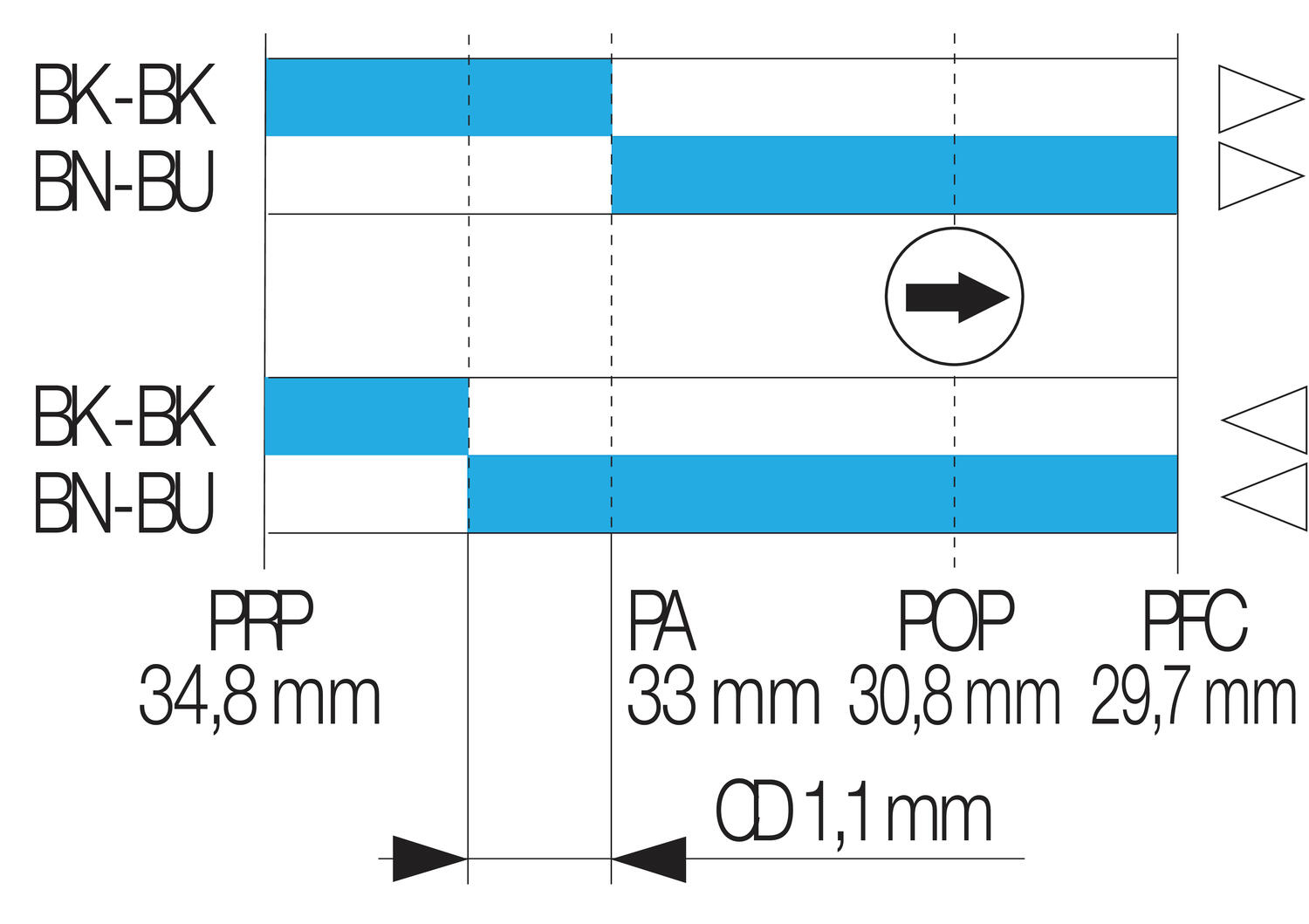

Technical illustrations

Accessories

Related products

My favourites Articles Price

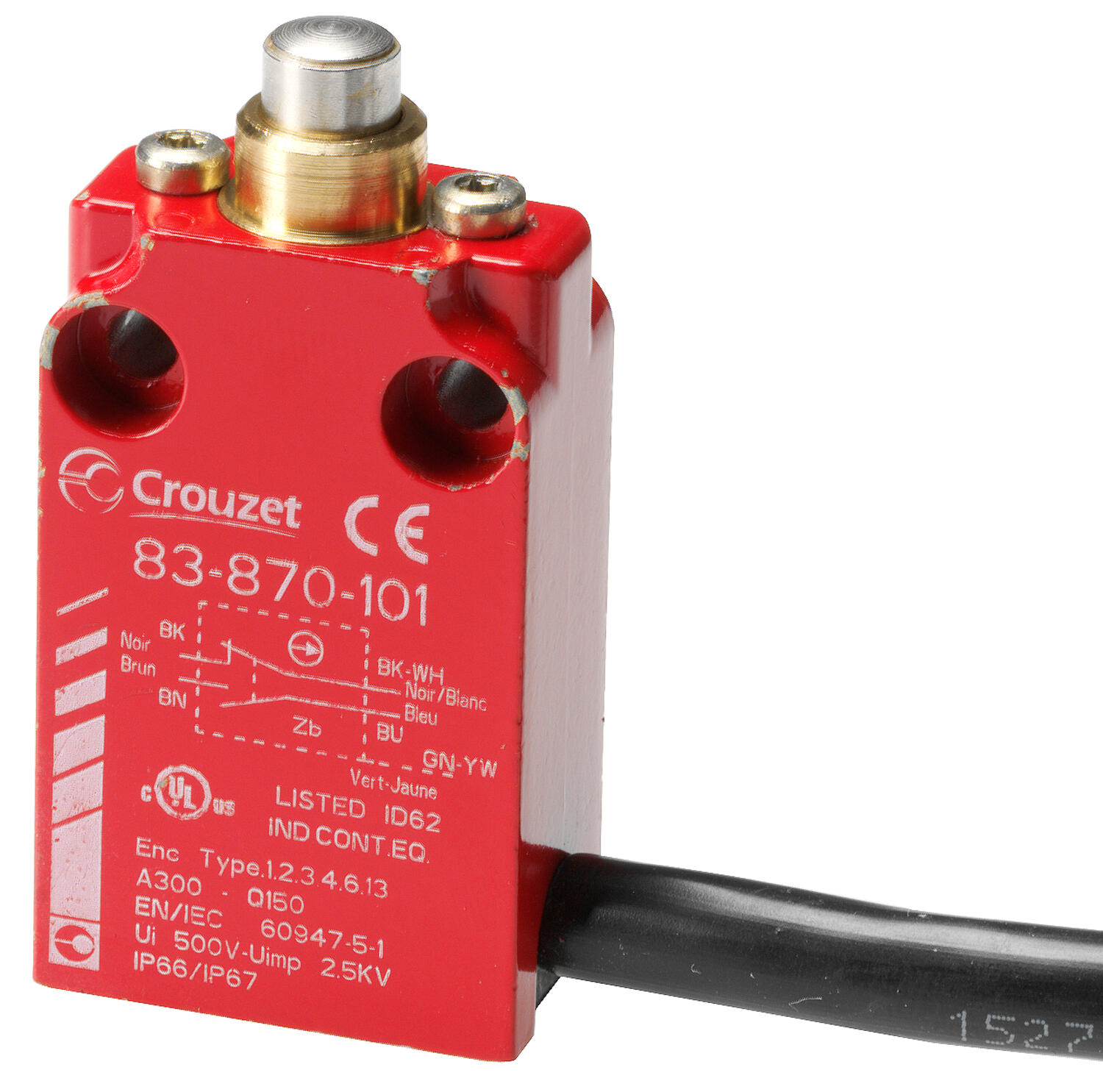

138592_812.tif
LIMIT SWITCH
Art:
83870101 Copied
138579_812.tif
838710 ROLLER PLUNGER 1M CABLE
Art:
83871101 Copied

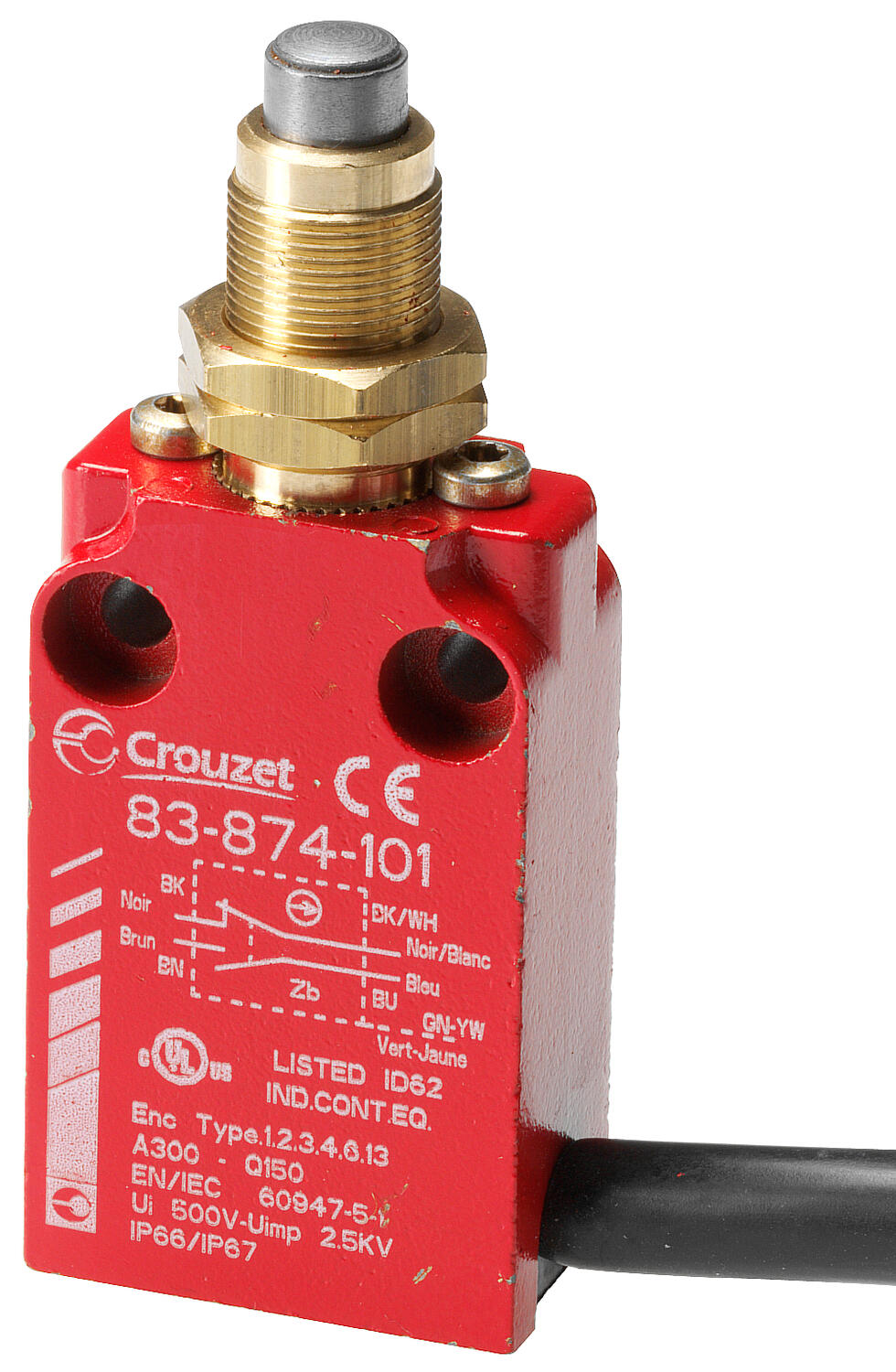

138470_812.tif
METAL PLUNGER THREADED BARREL
Art:
83874101 Copied

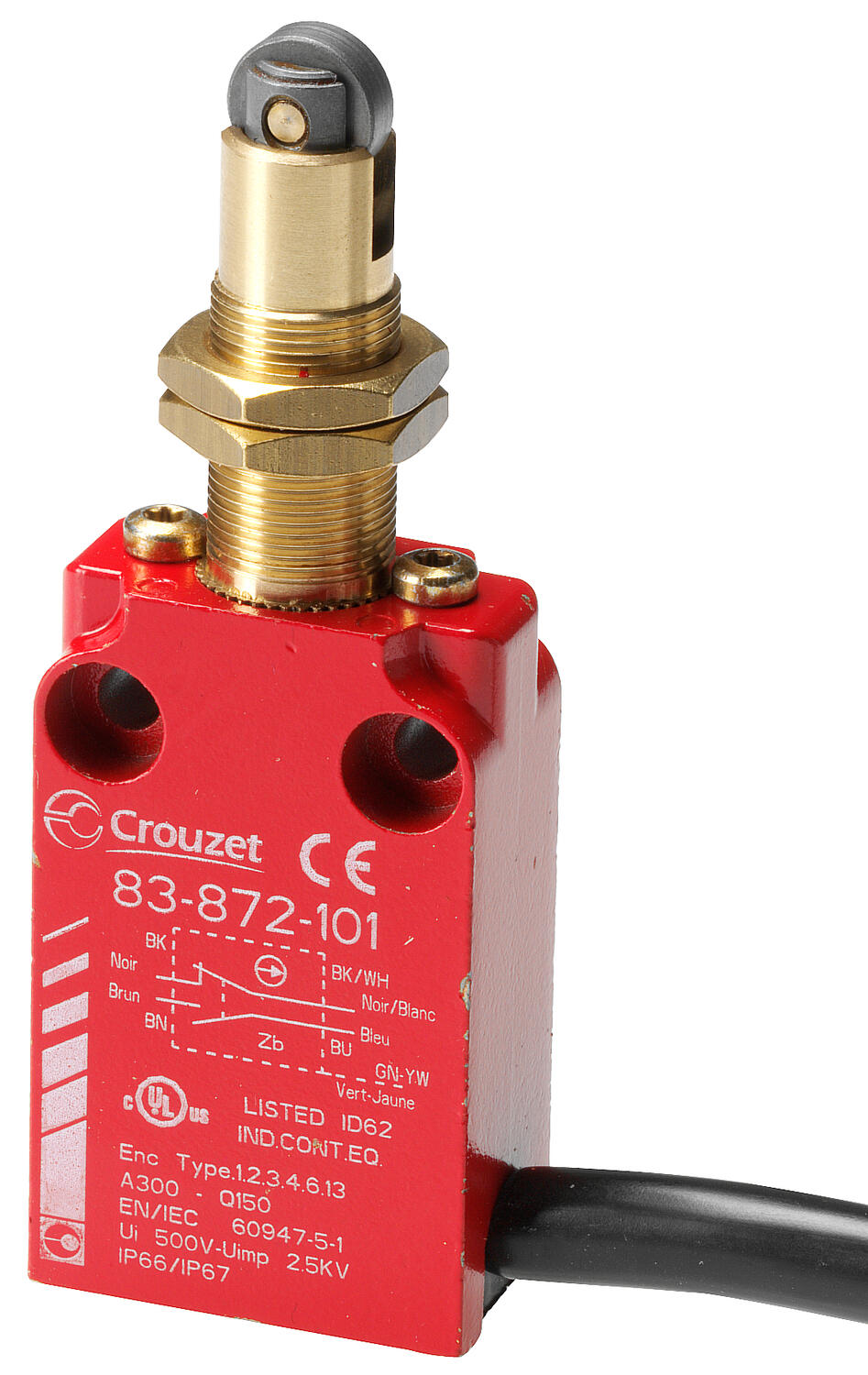

138560_812.tif
ROLLER PLUNGER THRD'D BARREL
Art:
83872101 Copied

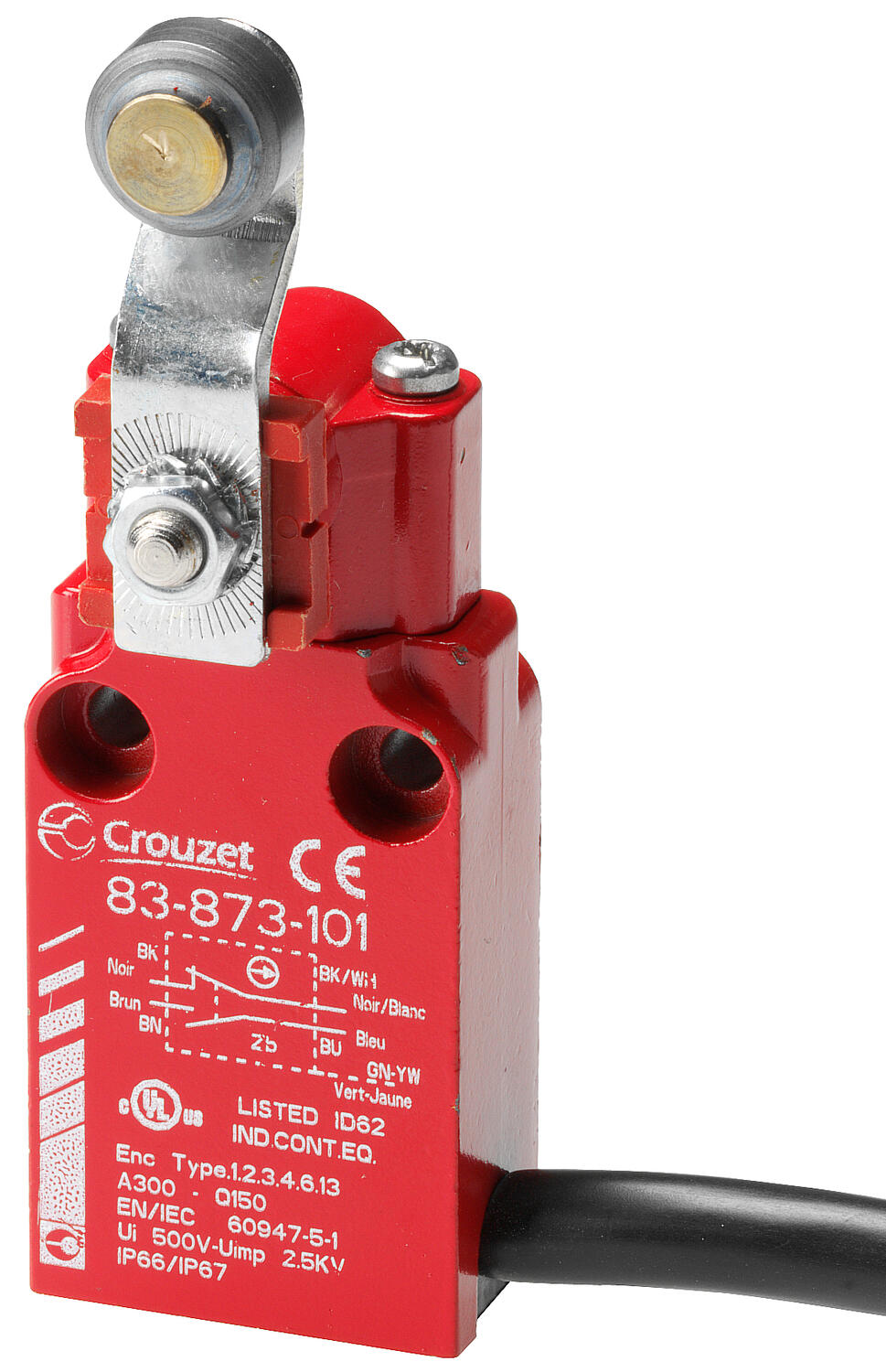

138502_812.tif
SIDE ROTARY ROLLER LEVER 1M
Art:
83873101 Copied

Selected variant

Select a variant in the list
