IDEM
The KLT-SS Series Guard Locking switch is a tongue type safety interlock switch incorporating traditional mechanical anti-tamper tongue technology utilising IDEM Safety Switched patented cam system.
They interlock and hold closed guard doors to protect operators from moving or hazardous machinery. They are particularly suited to where a high degree of anti-tamper technology is required to prevent accidental or deliberate atttempts to by-pass the interlock.

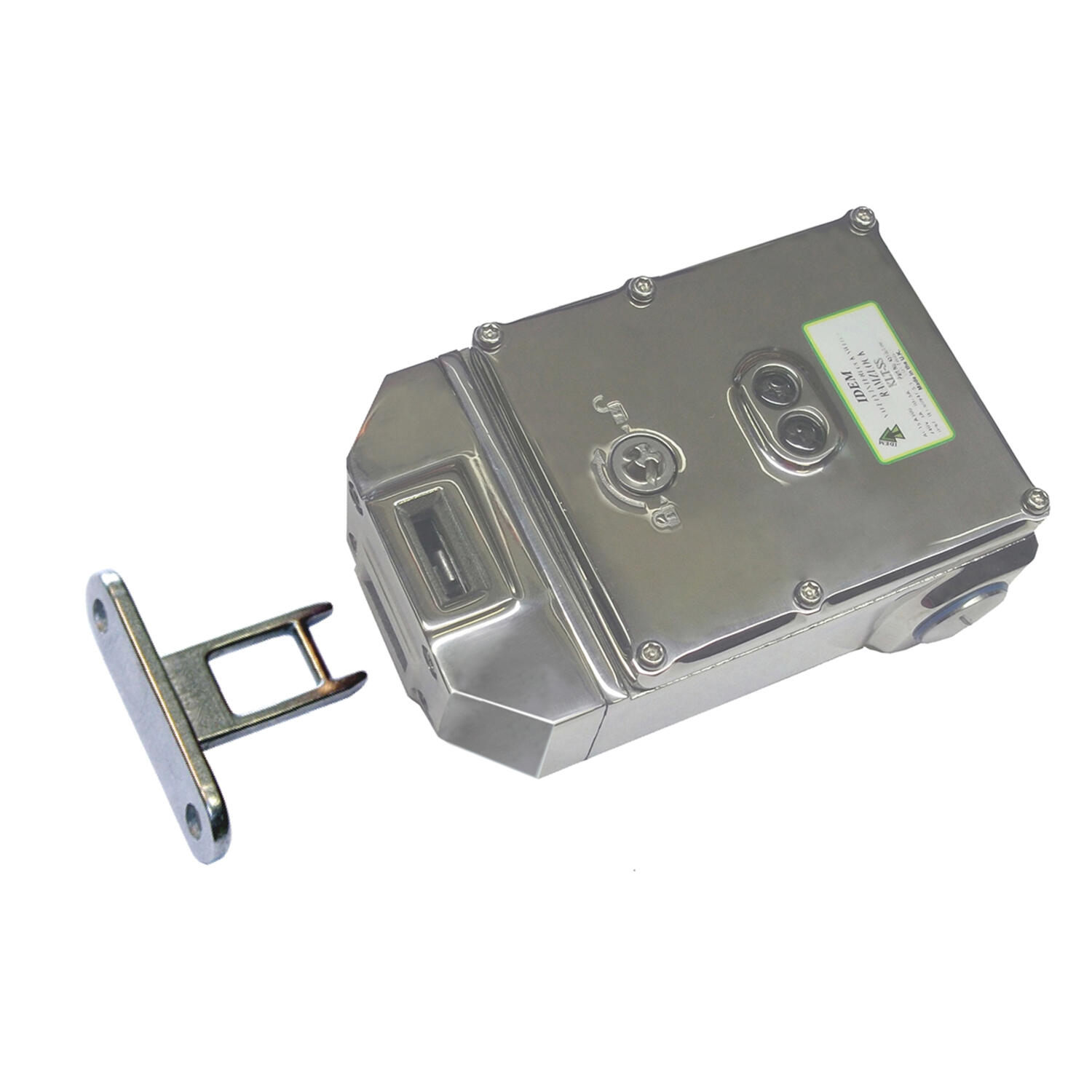

The KLT-SS Solenoid Locking Switch has a mirror polished Stainless Steel 316 body design and have been developed with a maximum holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.

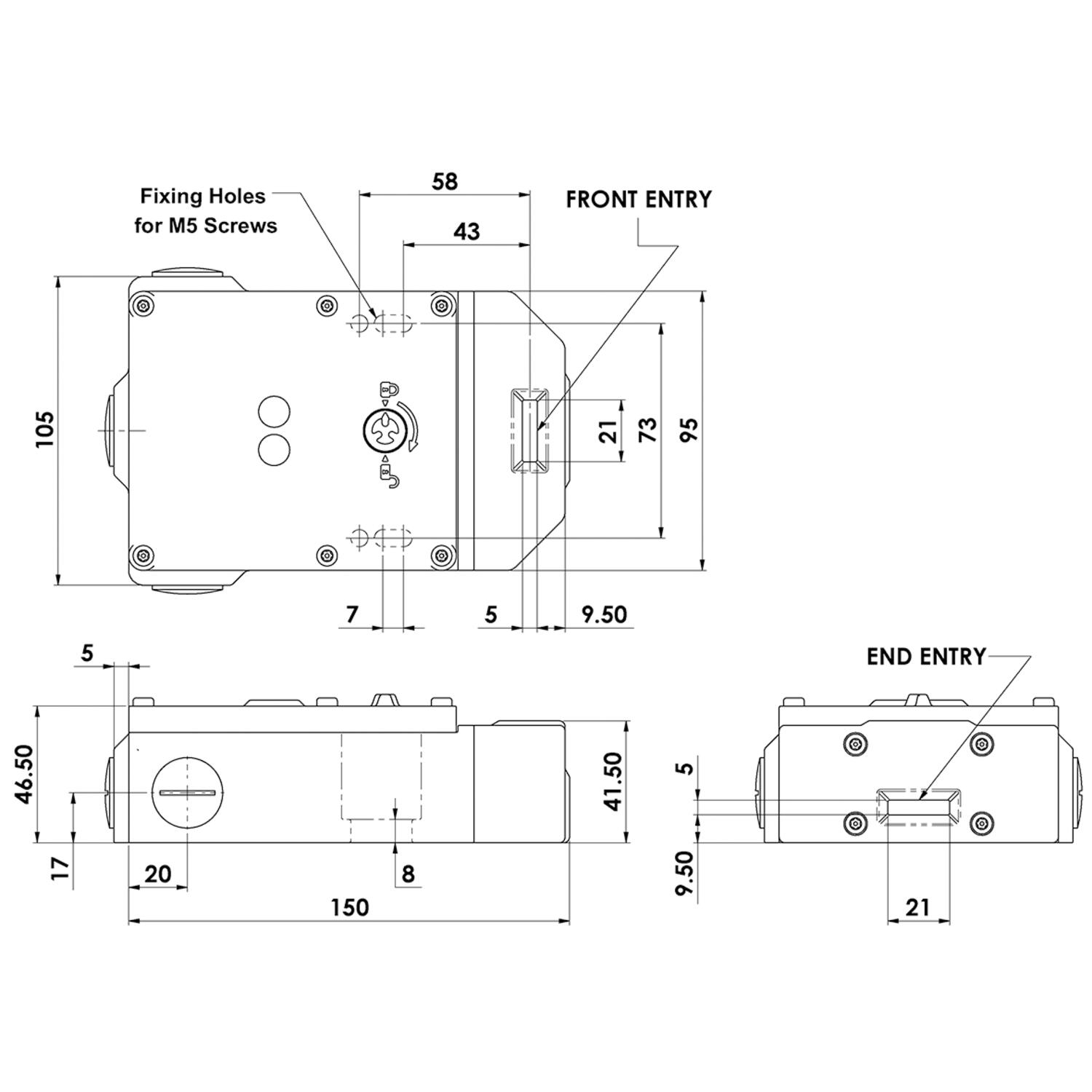

The KLT-SS has a low profile and fixing holes are on an industry standard 73mm centre to enable easy retrofitting to new or existing guards (or where extra anti-tamper is required).

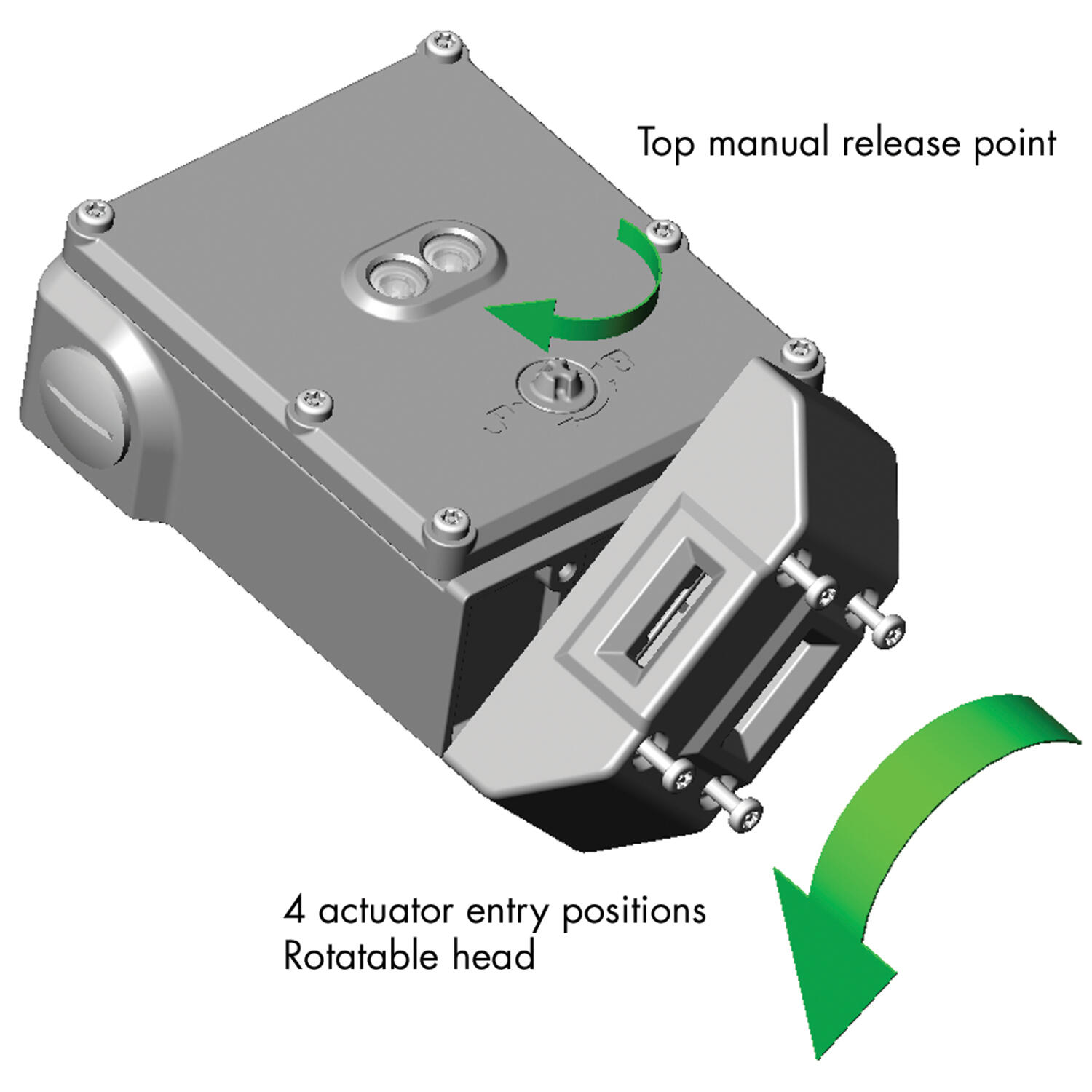

The head has been designed to allow rotation to provide up to 4 actuator entry positions.
Actuator | Not included |
---|---|
Annual usage | 8 cycles per hour/24 hours per day/365 days |
Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
Central Material | Stainless steel 316 |
Conduit entry | M20 |
Contact Type | 4NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (guard locked) (selectable option for LED2 guard locked) |
Contacts | 4NO 2NC |
Head material | Stainless steel 316 |
Holding force (F1Max) | 3000 |
IP Class | IP69K |
LED Display | LED1 red solenoid power on, LED2 green switch locked (if selected) |
Manual Operation | Manual release lid only |
Maximum approach / withdrawal speed | 600 |
Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
Mounting | 2 x M5 |
---|---|
MTTFd | 356 years |
Operating temperature | -25..40°C |
PFHd | 3.44 x 10⁻⁸ |
PL | e acc. ISO13849-1 |
Rated insulation voltage | 600V ac |
SIL | 3 acc. EN62061 |
Solenoid Voltage | 24V ac/dc |
Thermal current (lth) | 5 |
Travel for positive opening | 10 |
Utilisation category | AC15, A300, 3 A |
Withstand voltage | 2500V ac |
The KLT-SS Series Guard Locking switch is a tongue type safety interlock switch incorporating traditional mechanical anti-tamper tongue technology utilising IDEM Safety Switched patented cam system.
They interlock and hold closed guard doors to protect operators from moving or hazardous machinery. They are particularly suited to where a high degree of anti-tamper technology is required to prevent accidental or deliberate atttempts to by-pass the interlock.
The KLT-SS Solenoid Locking Switch has a mirror polished Stainless Steel 316 body design and have been developed with a maximum holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.
The KLT-SS has a low profile and fixing holes are on an industry standard 73mm centre to enable easy retrofitting to new or existing guards (or where extra anti-tamper is required).
The head has been designed to allow rotation to provide up to 4 actuator entry positions.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection…
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
…
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
We’re pleased to announce that, as of January 13th, 2022, Demesne Electrical has been acquired by OEM International, one of Europe’s leading technology trading groups. Headquartered in Sweden, OEM operates across 14 countries with 34 business units. The acquisition includes Demesne Electrical Sales Limited Ireland, and it’s important to note that there will be no changes to our day-to-day operations. This move strengthens our position in the market and…
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Actuator | Conduit entry | Solenoid Voltage | Price | |
---|---|---|---|---|---|---|
![]()
KLT-SS (Mechanical Only) M20 24v
Art:
451001
Copied
|
Not included
|
M20
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) M20 24v - Std Actuator
Art:
451001A
Copied
|
Standard
|
M20
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) M20 24v - Flat Actuator
Art:
451001F
Copied
|
Flat
|
M20
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) M20 24v - HF Actuator
Art:
451001HF
Copied
|
Heavy duty flexible
|
M20
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) M20 24v - HFH Actuator
Art:
451001HFH
Copied
|
Heavy duty s/steel
|
M20
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 24v
Art:
451002
Copied
|
Not included
|
1/2" NPT
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 24v - Std Actuator
Art:
451002A
Copied
|
Standard
|
1/2" NPT
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 24v - Flat Actuator
Art:
451002F
Copied
|
Flat
|
1/2" NPT
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 24v - HF Actuator
Art:
451002HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 24v - HFH Actuator
Art:
451002HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 24v
Art:
451003
Copied
|
Not included
|
M23 12 Pole
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 24v - Std Actuator
Art:
451003A
Copied
|
Standard
|
M23 12 Pole
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 24v - Flat Actuator
Art:
451003F
Copied
|
Flat
|
M23 12 Pole
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 24v - HF Actuator
Art:
451003HF
Copied
|
Heavy duty flexible
|
M23 12 Pole
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 24v - HFH Actuator
Art:
451003HFH
Copied
|
Heavy duty s/steel
|
M23 12 Pole
|
24V ac/dc
|
| ||
![]()
KLT-SS (Mechanical Only) M20 110v
Art:
451004
Copied
|
Not included
|
M20
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 110v - Std Actuator
Art:
451004A
Copied
|
Standard
|
M20
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 110v - Flat Actuator
Art:
451004F
Copied
|
Flat
|
M20
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 110v - HF Actuator
Art:
451004HF
Copied
|
Heavy duty flexible
|
M20
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 110v - HFH Actuator
Art:
451004HFH
Copied
|
Heavy duty s/steel
|
M20
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 110v
Art:
451005
Copied
|
Not included
|
1/2" NPT
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 110v - Std Actuator
Art:
451005A
Copied
|
Standard
|
1/2" NPT
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 110v - Flat Actuator
Art:
451005F
Copied
|
Flat
|
1/2" NPT
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 110v - HF Actuator
Art:
451005HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 110v - HFH Actuator
Art:
451005HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 110v
Art:
451006
Copied
|
Not included
|
M23 12 Pole
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 110v - Std Actuator
Art:
451006A
Copied
|
Standard
|
M23 12 Pole
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 110v - Flat Actuator
Art:
451006F
Copied
|
Flat
|
M23 12 Pole
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 110v - HF Actuator
Art:
451006HF
Copied
|
Heavy duty flexible
|
M23 12 Pole
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 110v - HFH Actuator
Art:
451006HFH
Copied
|
Heavy duty s/steel
|
M23 12 Pole
|
110V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 230v
Art:
451007
Copied
|
Not included
|
M20
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 230v - Std Actuator
Art:
451007A
Copied
|
Standard
|
M20
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 230v - Flat Actuator
Art:
451007F
Copied
|
Flat
|
M20
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 230v - HF Actuator
Art:
451007HF
Copied
|
Heavy duty flexible
|
M20
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) M20 230v - HFH Actuator
Art:
451007HFH
Copied
|
Heavy duty s/steel
|
M20
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 230v
Art:
451008
Copied
|
Not included
|
1/2" NPT
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 230v - Std Actuator
Art:
451008A
Copied
|
Standard
|
1/2" NPT
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 230v - Flat Actuator
Art:
451008F
Copied
|
Flat
|
1/2" NPT
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 230v - HF Actuator
Art:
451008HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) ½”NPT 230v - HFH Actuator
Art:
451008HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 230v
Art:
451009
Copied
|
Not included
|
M23 12 Pole
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 230v - Std Actuator
Art:
451009A
Copied
|
Standard
|
M23 12 Pole
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 230v - Flat Actuator
Art:
451009F
Copied
|
Flat
|
M23 12 Pole
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 230v - HF Actuator
Art:
451009HF
Copied
|
Heavy duty flexible
|
M23 12 Pole
|
230V ac
|
| ||
![]()
KLT-SS (Mechanical Only) QC M23 230v - HFH Actuator
Art:
451009HFH
Copied
|
Heavy duty s/steel
|
M23 12 Pole
|
230V ac
|
|
Select a variant in the list
