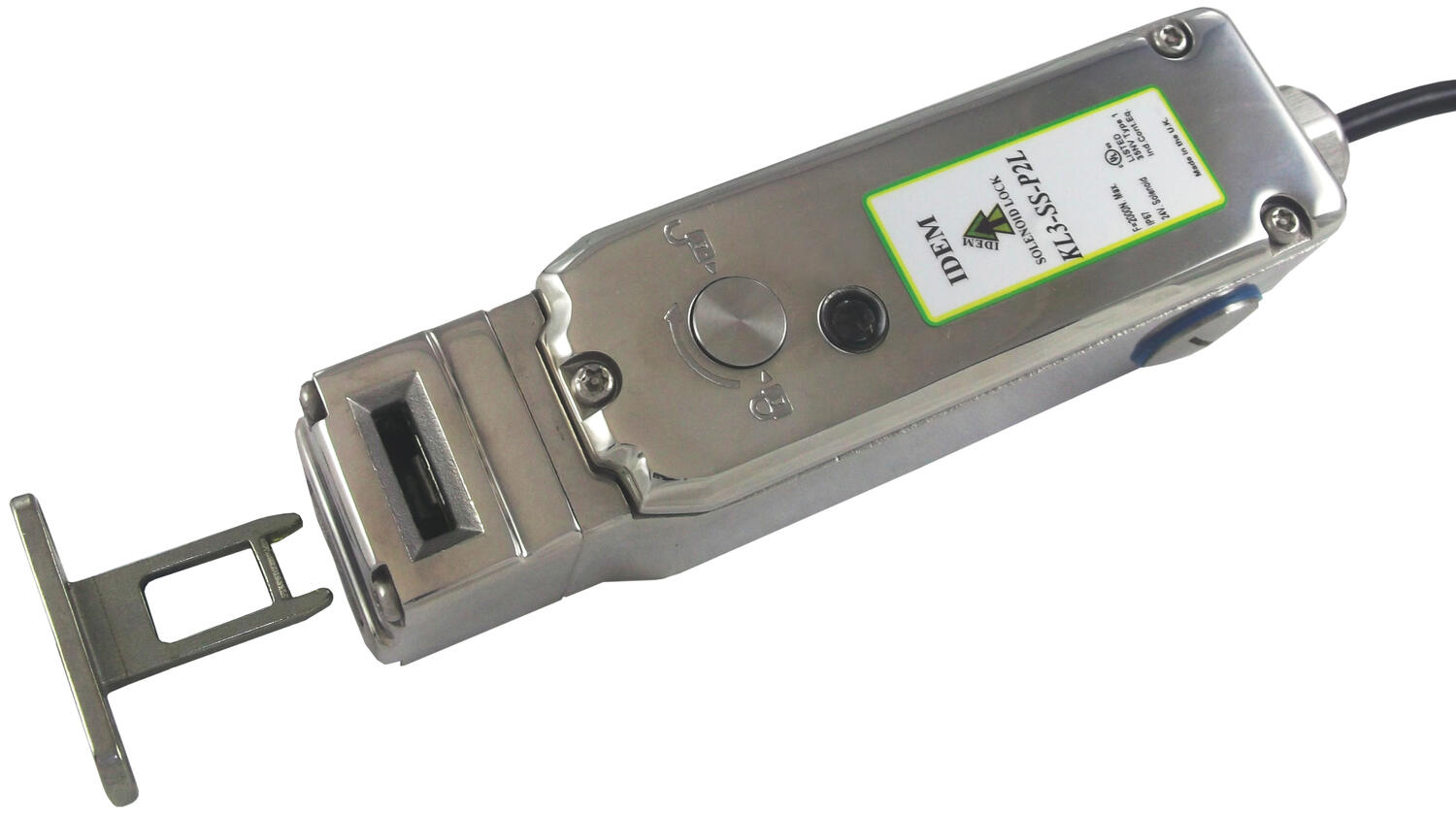

IDEM Stainless steel IP69K guard locking switch KL3-SS-P2L

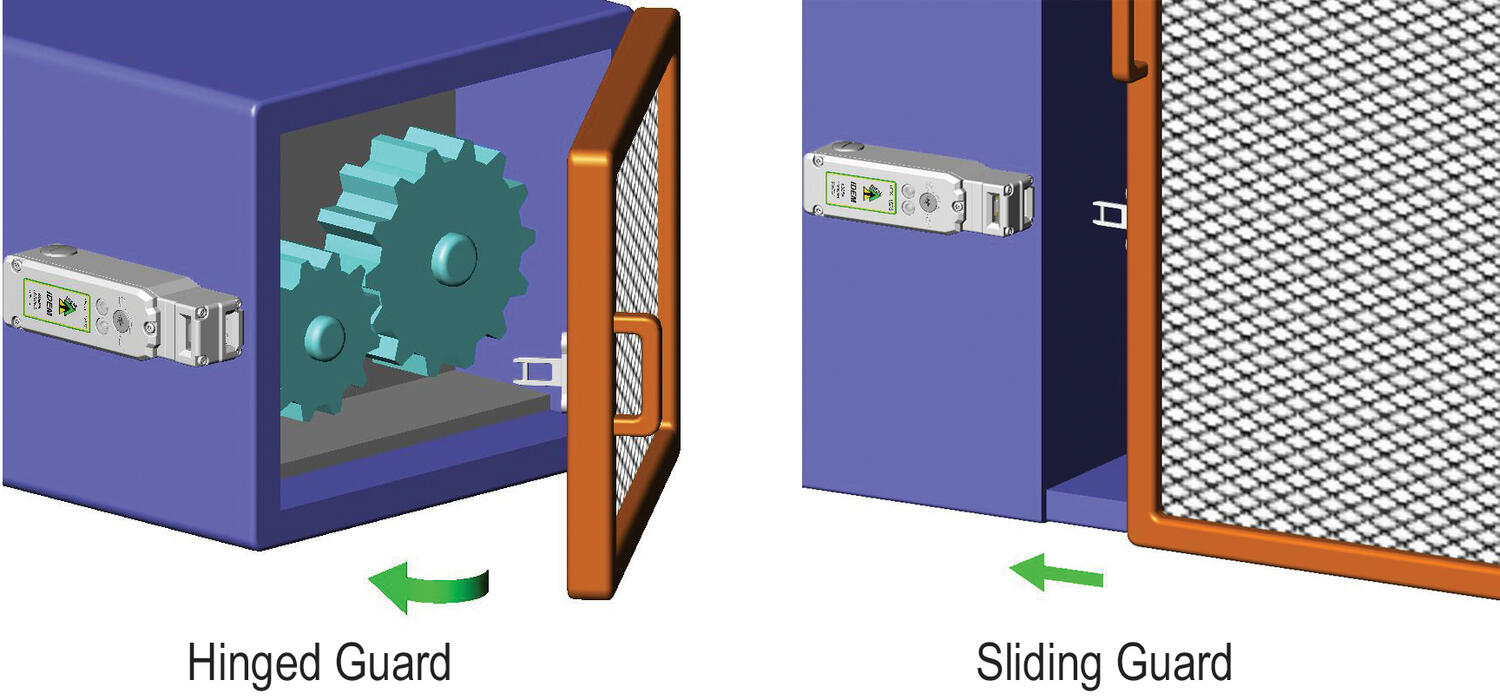

The KL3-SS-P2L Series Guard Locking switches have a slim stainless steel 316 body design and have been developed with a holding force of 2000N to keep large guard doors closed until hazards have been removed.
They are Power to Lock - Spring to Unlock - suitable for applications where immediate unlocking is required at removal or loss of power. They are NOT suitable for machines with a running down time).

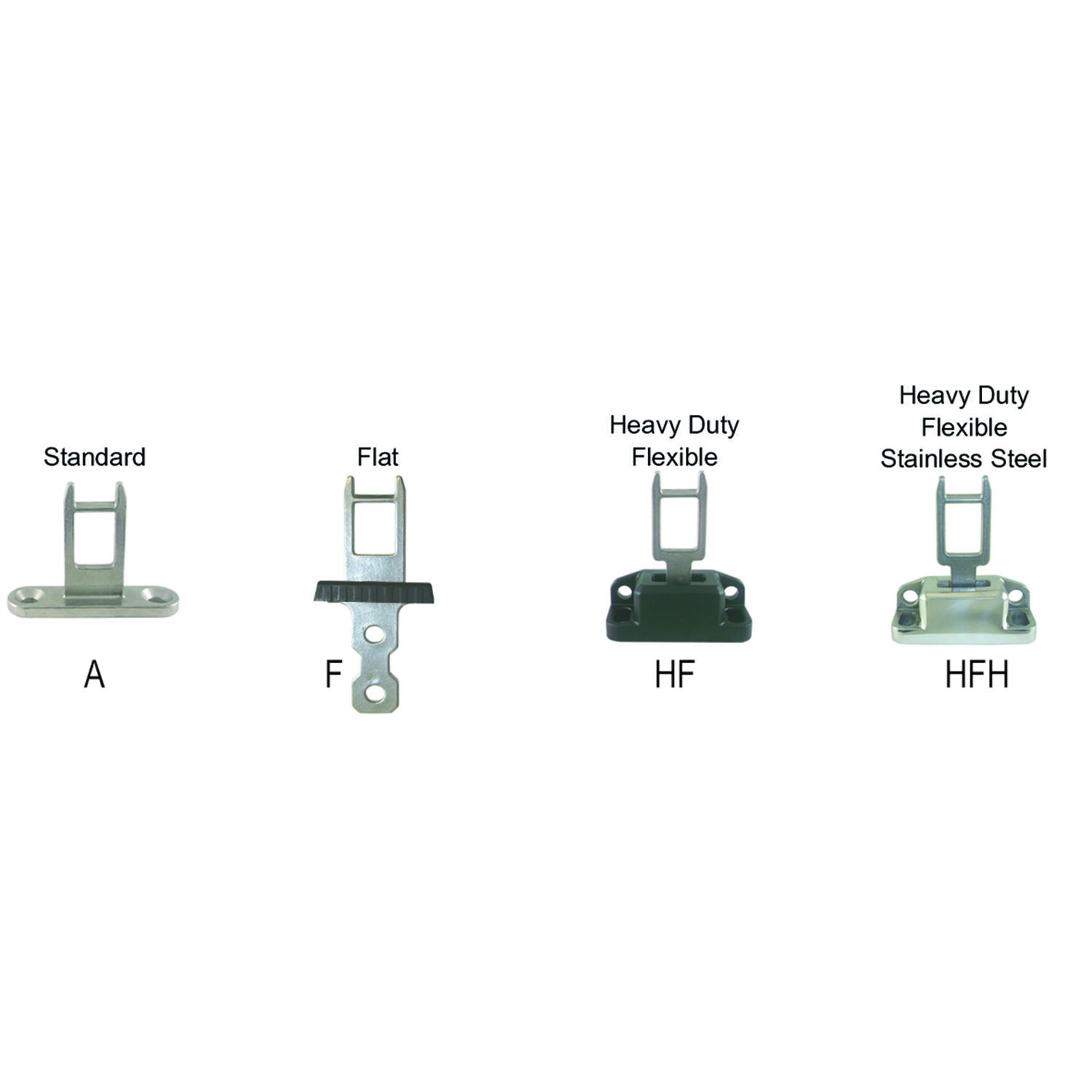

The Stainless Steel 316 housing provides a durable robust hold closed. Flexible actuators are available to aid where some alignment is a problem.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.

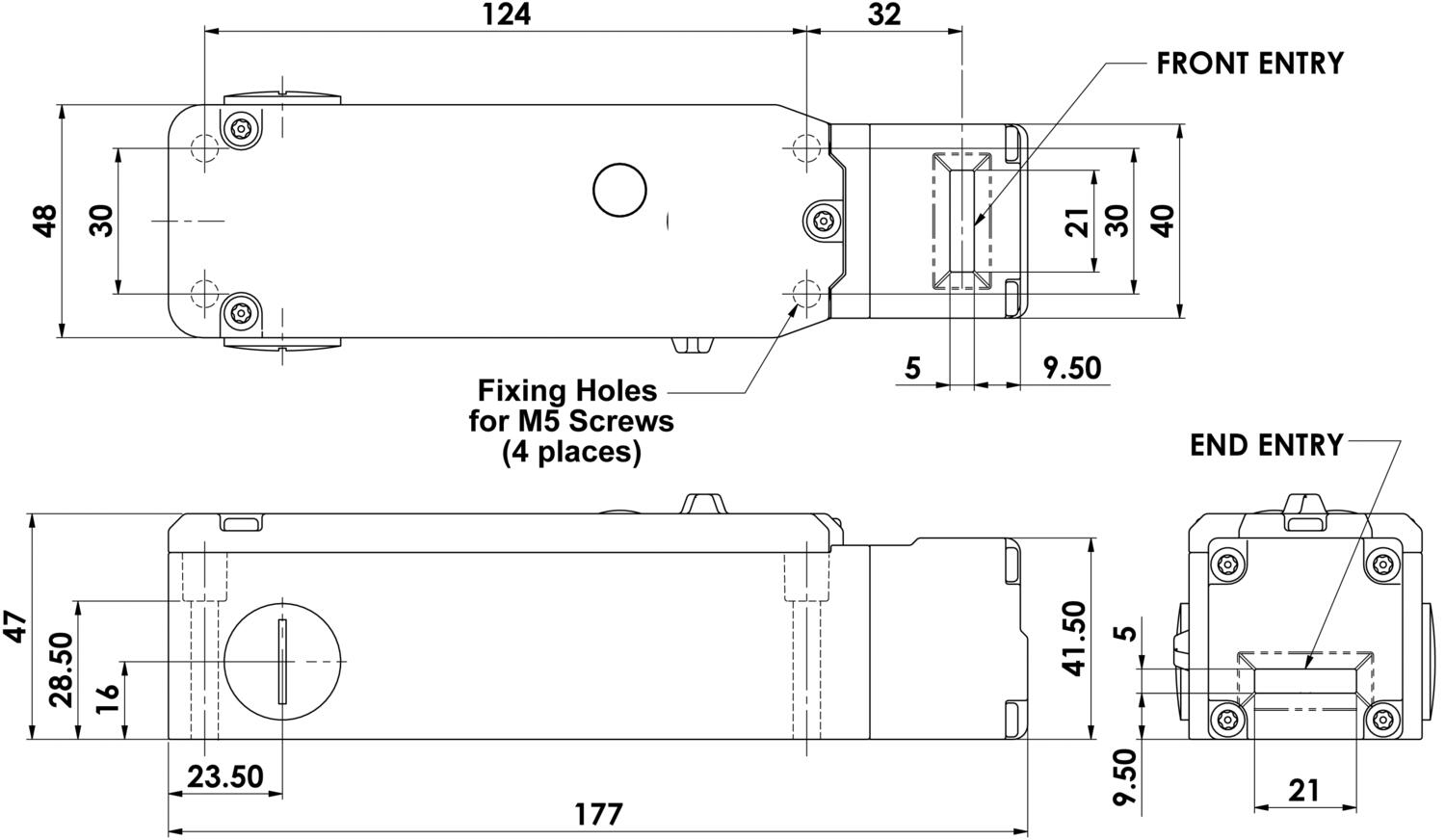

They have a slim profile and are designed to fit on 50mm (2") frame sections or to applications where space is restricted.

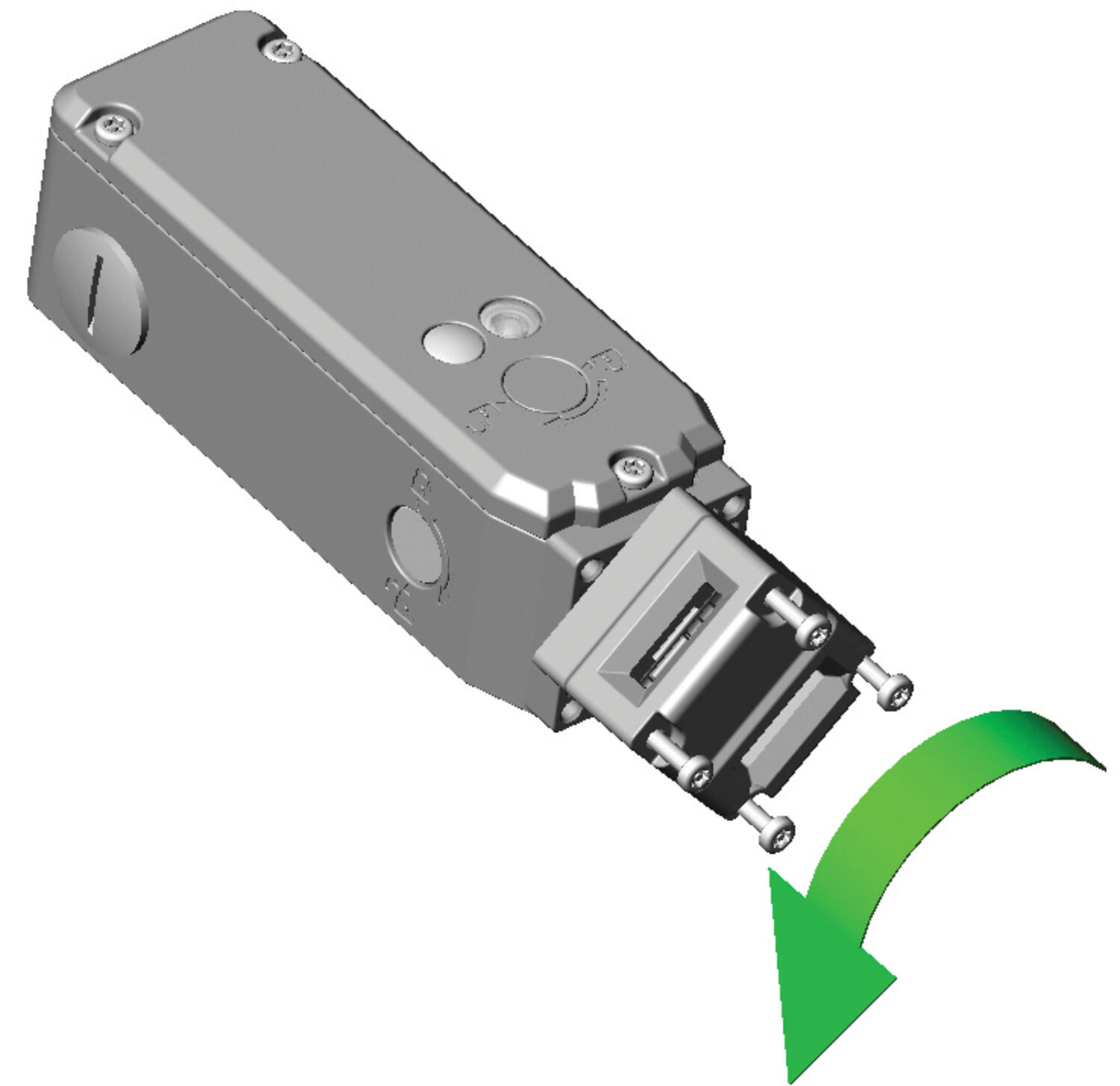

The head will rotate to provide up to 8 actuator entry positions.
- Power to lock; spring to unlock mechanism
- Slim stainless steel body
- Suitable for applications where immediate unlocking is required
- IP69K enclosure protection
- 8 actuator entry positions
Selected variant
Selected variant
Specifications
| Actuator | Not included |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
| Conduit entry | M20 |

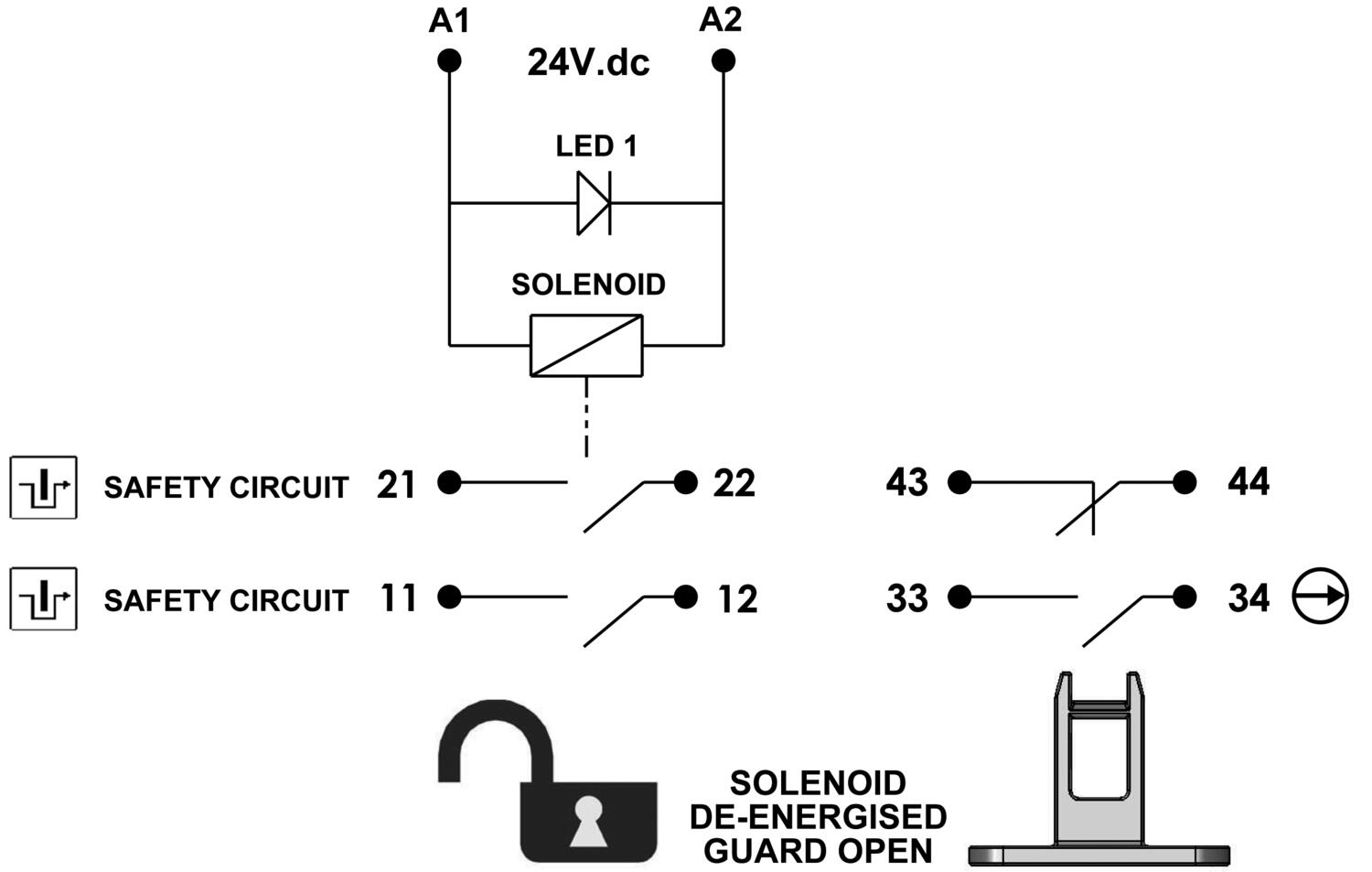

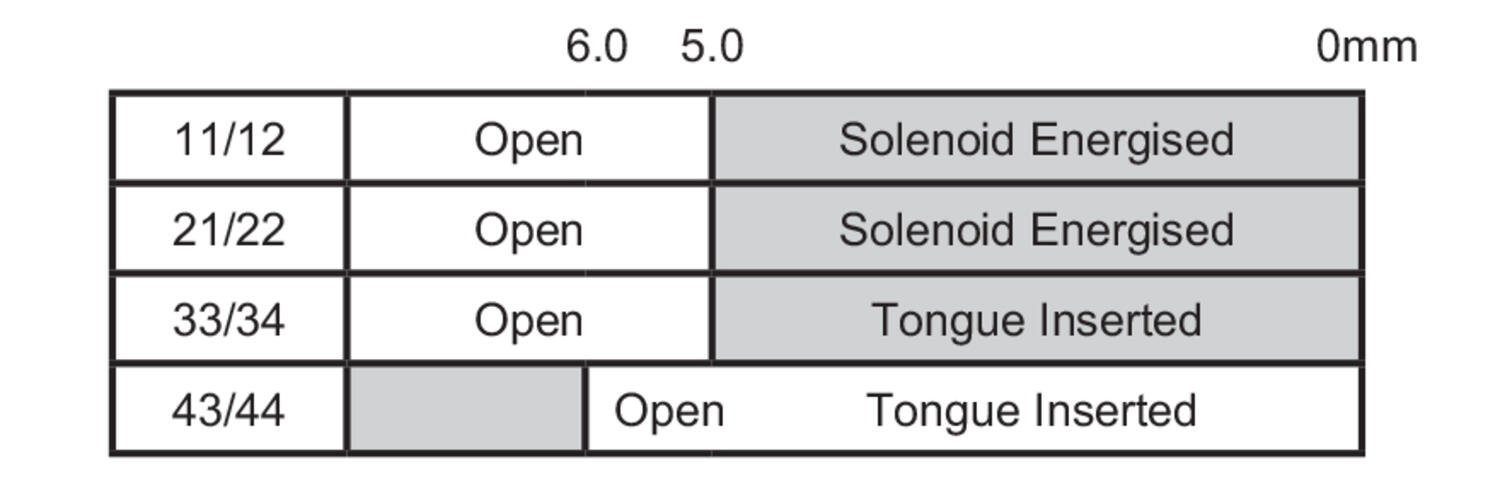

| Contact Type | 2NC safety circuits, 1NC 1NO auxiliary circuits - actuator/door status |
| Contacts | 3NC 1NO |
| Holding force (F1Max) | 3000 |
| IP Class | IP69K |
| Manual Operation | Manual release lid only |
| Maximum approach / withdrawal speed | 600 |
| Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
| Mounting | 4 x M5 |
| MTTFd | 356 years |
|---|---|
| Operating temperature | -25..40°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| Rated insulation voltage | 600V ac |
| SIL | 3 acc. EN62061 |
| Solenoid Voltage | 24V dc |
| Thermal current (lth) | 5 |
| Travel for positive opening | 10 |
| Utilisation category | AC15, A300, 3 A |
| Withstand voltage | 2500V ac |
Product description
The KL3-SS-P2L Series Guard Locking switches have a slim stainless steel 316 body design and have been developed with a holding force of 2000N to keep large guard doors closed until hazards have been removed.
They are Power to Lock - Spring to Unlock - suitable for applications where immediate unlocking is required at removal or loss of power. They are NOT suitable for machines with a running down time).
The Stainless Steel 316 housing provides a durable robust hold closed. Flexible actuators are available to aid where some alignment is a problem.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.
They have a slim profile and are designed to fit on 50mm (2") frame sections or to applications where space is restricted.
The head will rotate to provide up to 8 actuator entry positions.
