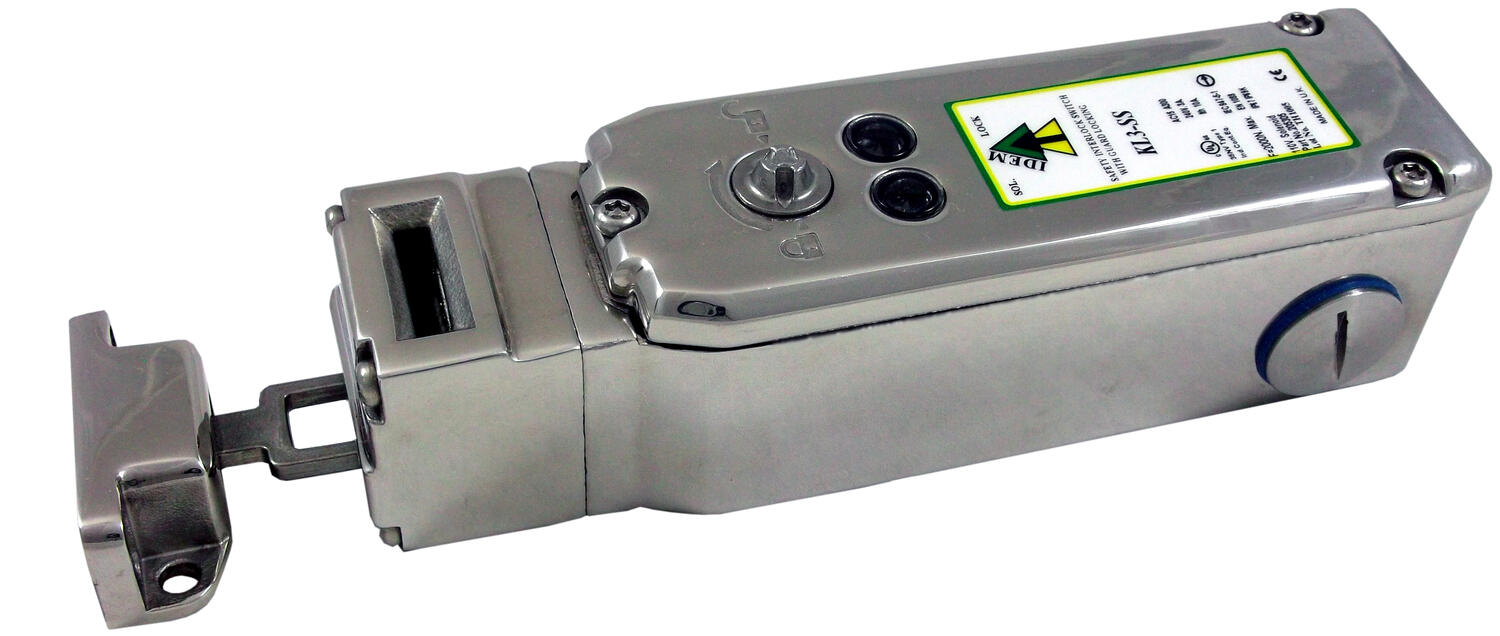

IDEM Stainless steel IP69K guard locking switch KL3-SS

The KL3-SS Series guard locking switches have a rugged Stainless Steel 316 body and have been developed with a holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.



They are designed in accordance with EHEDG guidelines for hygienic design (EHEDG European Hygienic Engineering & Design Group).  The mirror-polished surface to Ra10 is designed to cope with direct food splash and cleaning found in the toughest applications of the Foor Processing industries.



They have IP69K enclosure protection and can be high pressure hosed with detergent at high temperature.



Designed with slim body under 50mm wide the KL3-SS series can be fitted to 50mm (2") frame sections or to applications where space is restricted.

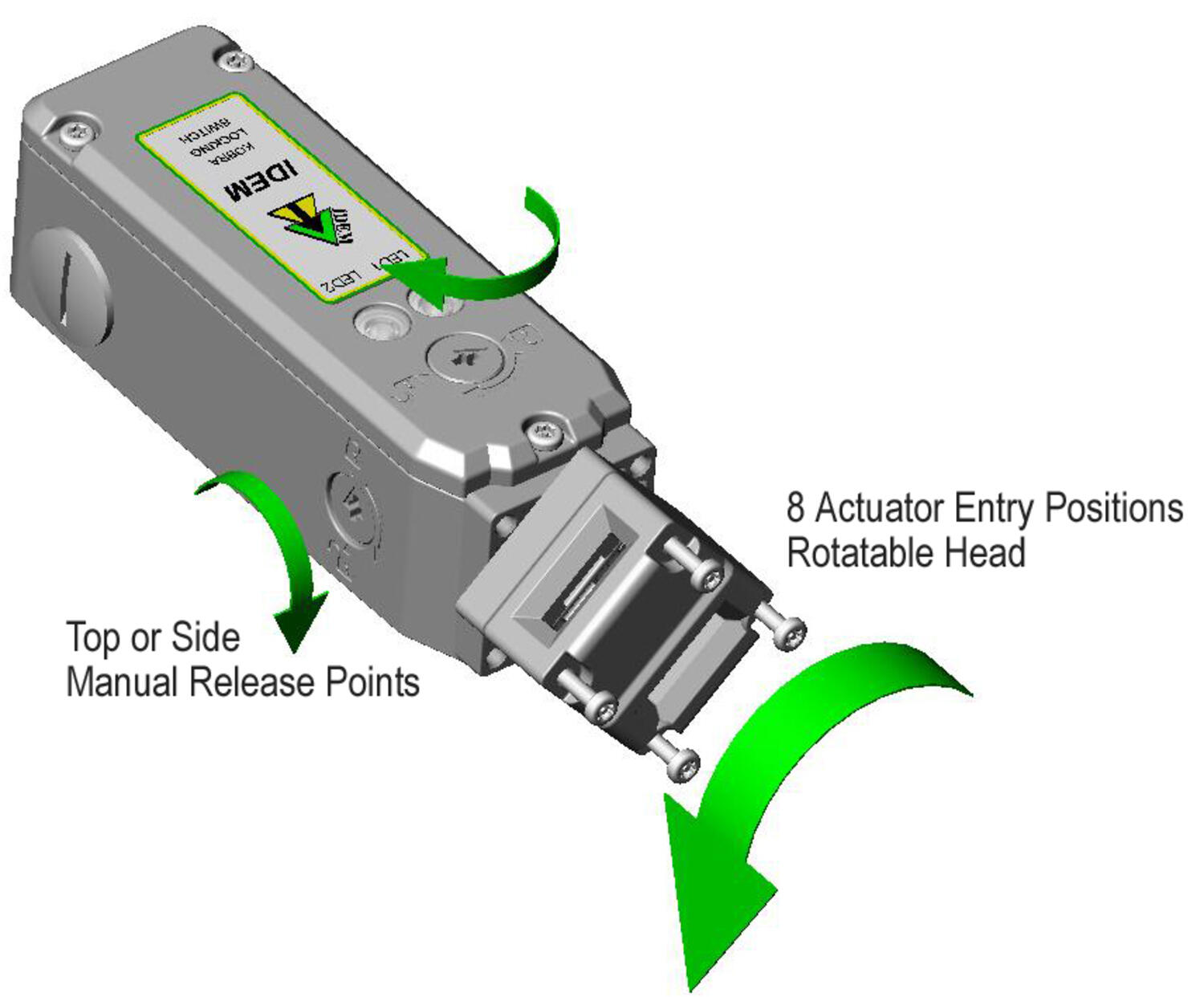

The head will rotate to provide up to 8 actuator entry positions.



2 manual override points are provided (by using anti-tamper key).

  • Solenoid locking
  • Power solenoid to unlock
  • Slim body 48mm wide x 177mm long
  • 2 LEDs for solenoid and lock status
  • Suitable for all industry applications IP69K

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Actuator Standard
Annual usage 8 cylces per hour/24 hours per day/365 days
Approvals ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508
Central Material Stainless steel 316
Conduit entry M20
Contact Type 4NC safety contacts, 1NO auxiliary contact (guard open)
Contacts 4NC 1NO
Head material Stainless steel 316
Holding force (F1Max) 3000
IP Class IP69K, IP67
LED Display LED1 solenoid power, LED2 lock status indication or 1NO auxiliary contact (lock open)
LED supply voltage 24Vdc
Manual Operation Standard manual release lid and side
Maximum approach / withdrawal speed 600
Mechanical reliability B10d 2.5 x 10⁶ operations at 100mA load
Mounting 4 x M5
MTTFd 356 years
Operating temperature -25..50°C
PFHd 3.44 x 10⁻⁸
PL e acc. ISO13849-1
Rated insulation voltage 600V ac
SIL 3 acc. EN62061
Solenoid Voltage 24V ac/dc
Thermal current (lth) 5
Travel for positive opening 10
Utilisation category AC15, A300, 3 A
Withstand voltage 2500V ac

Downloads

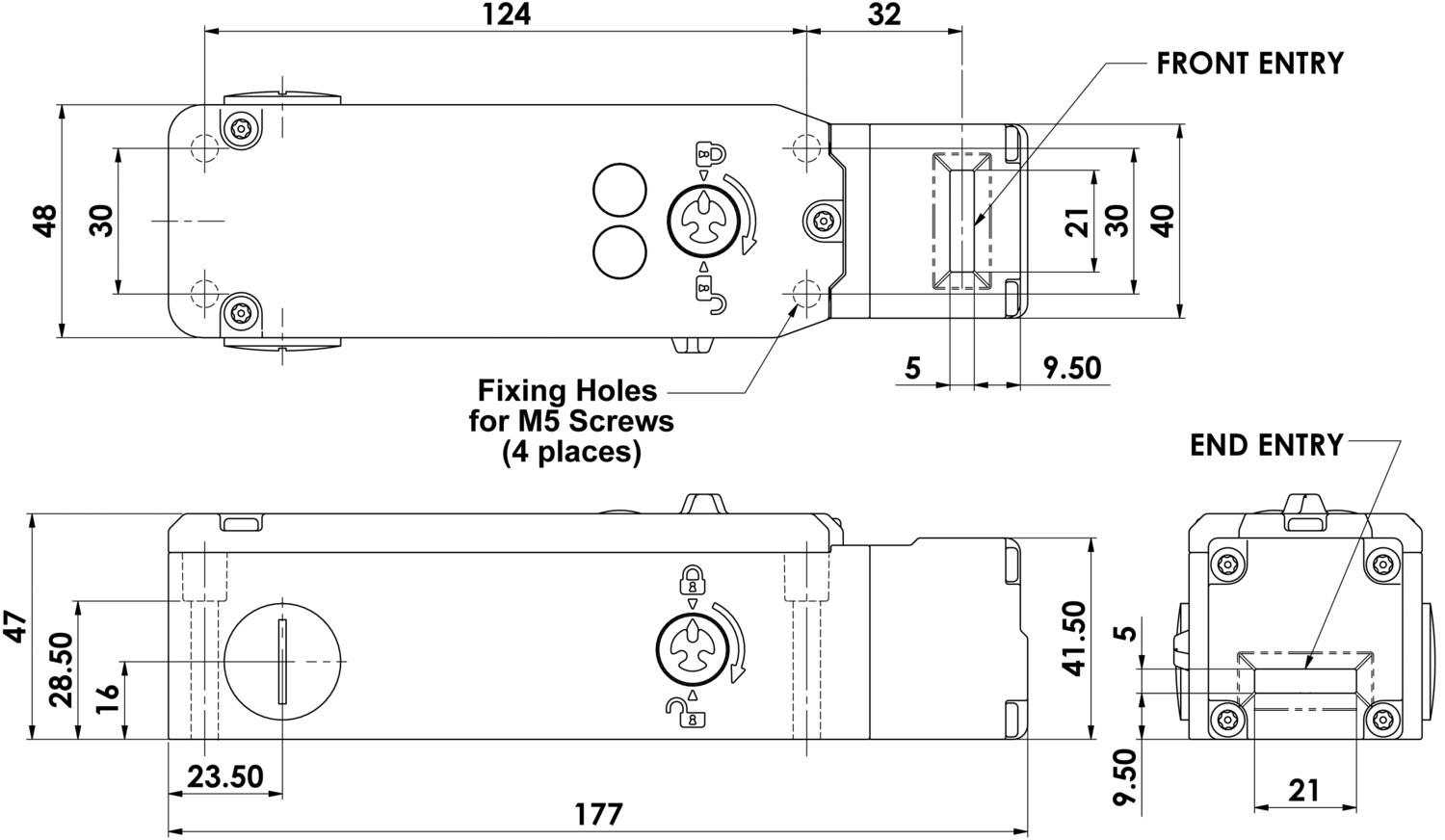

Measurements and connections

Technical illustrations

Product description

The KL3-SS Series guard locking switches have a rugged Stainless Steel 316 body and have been developed with a holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.



They are designed in accordance with EHEDG guidelines for hygienic design (EHEDG European Hygienic Engineering & Design Group).  The mirror-polished surface to Ra10 is designed to cope with direct food splash and cleaning found in the toughest applications of the Foor Processing industries.



They have IP69K enclosure protection and can be high pressure hosed with detergent at high temperature.



Designed with slim body under 50mm wide the KL3-SS series can be fitted to 50mm (2") frame sections or to applications where space is restricted.



The head will rotate to provide up to 8 actuator entry positions.



2 manual override points are provided (by using anti-tamper key).

Accessories

Related products

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

My favourites Articles Actuator Conduit entry Manual Operation Solenoid Voltage Price
KL3-SS nowy.tif
KL3-SS M20 24v (std release) - std actuator
Art:
205001A Copied
Standard
M20
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (std release) - flat actuator
Art:
205001F Copied
Flat
M20
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (std release) - HF actuator
Art:
205001HF Copied
Heavy duty flexible
M20
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (std release) - HFH actuator
Art:
205001HFH Copied
Heavy duty s/steel
M20
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (std release)
Art:
205002 Copied
Not included
1/2" NPT
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (std release) - std actuator
Art:
205002A Copied
Standard
1/2" NPT
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (std release) - flat actuator
Art:
205002F Copied
Flat
1/2" NPT
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (std release) - HF Actuator
Art:
205002HF Copied
Heavy duty flexible
1/2" NPT
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (std release) - HFH Actuator
Art:
205002HFH Copied
Heavy duty s/steel
1/2" NPT
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (std release)
Art:
205003 Copied
Not included
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (std release) - std actuator
Art:
205003A Copied
Standard
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (std release) - flat actuator
Art:
205003F Copied
Flat
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (std release) - HF actuator
Art:
205003HF Copied
Heavy duty flexible
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (std release) - HFH actuator
Art:
205003HFH Copied
Heavy duty s/steel
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 110v (std release)
Art:
205004 Copied
Not included
M20
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (std release) - std actuator
Art:
205004A Copied
Standard
M20
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (std release) - flat actuator
Art:
205004F Copied
Flat
M20
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (std release) - HF actuator
Art:
205004HF Copied
Heavy duty flexible
M20
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (std release) - HFH actuator
Art:
205004HFH Copied
Heavy duty s/steel
M20
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (std release)
Art:
205005 Copied
Not included
1/2" NPT
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (std release) - std actuator
Art:
205005A Copied
Standard
1/2" NPT
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (std release) - flat actuator
Art:
205005F Copied
Flat
1/2" NPT
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (std release) - HF actuator
Art:
205005HF Copied
Heavy duty flexible
1/2" NPT
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (std release) - HFH actuator
Art:
205005HFH Copied
Heavy duty s/steel
1/2" NPT
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (std release)
Art:
205006 Copied
Not included
M23 12 Pole
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (std release) - std actuator
Art:
205006A Copied
Standard
M23 12 Pole
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (std release) - flat actuator
Art:
205006F Copied
Flat
M23 12 Pole
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (std release) - HF actuator
Art:
205006HF Copied
Heavy duty flexible
M23 12 Pole
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (std release) - HFH actuator
Art:
205006HFH Copied
Heavy duty s/steel
M23 12 Pole
Standard manual release lid and side
110V ac
KL3-SS nowy.tif
KL3-SS M20 230v (std release)
Art:
205007 Copied
Not included
M20
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (std release) - std actuator
Art:
205007A Copied
Standard
M20
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (std release) - flat actuator
Art:
205007F Copied
Flat
M20
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (std release) - HF actuator
Art:
205007HF Copied
Heavy duty flexible
M20
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (std release) - HFH actuator
Art:
205007HFH Copied
Heavy duty s/steel
M20
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (std release)
Art:
205008 Copied
Not included
1/2" NPT
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (std release) - std actuator
Art:
205008A Copied
Standard
1/2" NPT
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (std release) - flat actuator
Art:
205008F Copied
Flat
1/2" NPT
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (std release) - HF actuator
Art:
205008HF Copied
Heavy duty flexible
1/2" NPT
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (std release) - HFH actuator
Art:
205008HFH Copied
Heavy duty s/steel
1/2" NPT
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (std release)
Art:
205009 Copied
Not included
M23 12 Pole
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (std release) - std actuator
Art:
205009A Copied
Standard
M23 12 Pole
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (std release) - flat actuator
Art:
205009F Copied
Flat
M23 12 Pole
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (std release) - HF actuator
Art:
205009HF Copied
Heavy duty flexible
M23 12 Pole
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (std release) - HFH actuator
Art:
205009HFH Copied
Heavy duty s/steel
M23 12 Pole
Standard manual release lid and side
230V ac
KL3-SS nowy.tif
KL3-SS M20 24v (no release)
Art:
205301 Copied
Not included
M20
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (no release) - std actuator
Art:
205301A Copied
Standard
M20
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (no release) - flat actuator
Art:
205301F Copied
Flat
M20
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (no release) - HF actuator
Art:
205301HF Copied
Heavy duty flexible
M20
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (no release) - HFH actuator
Art:
205301HFH Copied
Heavy duty s/steel
M20
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (no release)
Art:
205302 Copied
Not included
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (no release) - std actuator
Art:
205302A Copied
Standard
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (no release) - flat actuator
Art:
205302F Copied
Flat
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (no release) - HF Actuator
Art:
205302HF Copied
Heavy duty flexible
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (no release) - HFH Actuator
Art:
205302HFH Copied
Heavy duty s/steel
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (no release)
Art:
205303 Copied
Not included
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (no release) - std actuator
Art:
205303A Copied
Standard
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (no release) - flat actuator
Art:
205303F Copied
Flat
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (no release) - HF actuator
Art:
205303HF Copied
Heavy duty flexible
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (no release) - HFH actuator
Art:
205303HFH Copied
Heavy duty s/steel
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 110v (no release)
Art:
205304 Copied
Not included
M20
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (no release) - std actuator
Art:
205304A Copied
Standard
M20
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (no release) - flat actuator
Art:
205304F Copied
Flat
M20
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (no release) - HF actuator
Art:
205304HF Copied
Heavy duty flexible
M20
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (no release) - HFH actuator
Art:
205304HFH Copied
Heavy duty s/steel
M20
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (no release)
Art:
205305 Copied
Not included
1/2" NPT
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (no release) - std actuator
Art:
205305A Copied
Standard
1/2" NPT
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (no release) - flat actuator
Art:
205305F Copied
Flat
1/2" NPT
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (no release) - HF actuator
Art:
205305HF Copied
Heavy duty flexible
1/2" NPT
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (no release) - HFH actuator
Art:
205305HFH Copied
Heavy duty s/steel
1/2" NPT
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (no release)
Art:
205306 Copied
Not included
M23 12 Pole
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (no release) - std actuator
Art:
205306A Copied
Standard
M23 12 Pole
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (no release) - flat actuator
Art:
205306F Copied
Flat
M23 12 Pole
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (no release) - HF actuator
Art:
205306HF Copied
Heavy duty flexible
M23 12 Pole
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (no release) - HFH actuator
Art:
205306HFH Copied
Heavy duty s/steel
M23 12 Pole
No manual release fitted (blanked)
110V ac
KL3-SS nowy.tif
KL3-SS M20 230v (no release)
Art:
205307 Copied
Not included
M20
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (no release) - std actuator
Art:
205307A Copied
Standard
M20
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (no release) - flat actuator
Art:
205307F Copied
Flat
M20
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (no release) - HF actuator
Art:
205307HF Copied
Heavy duty flexible
M20
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (no release) - HFH actuator
Art:
205307HFH Copied
Heavy duty s/steel
M20
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (no release)
Art:
205308 Copied
Not included
1/2" NPT
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (no release) - std actuator
Art:
205308A Copied
Standard
1/2" NPT
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (no release) - flat actuator
Art:
205308F Copied
Flat
1/2" NPT
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (no release) - HF actuator
Art:
205308HF Copied
Heavy duty flexible
1/2" NPT
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (no release) - HFH actuator
Art:
205308HFH Copied
Heavy duty s/steel
1/2" NPT
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (no release)
Art:
205309 Copied
Not included
M23 12 Pole
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (no release) - std actuator
Art:
205309A Copied
Standard
M23 12 Pole
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (no release) - flat actuator
Art:
205309F Copied
Flat
M23 12 Pole
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (no release) - HF actuator
Art:
205309HF Copied
Heavy duty flexible
M23 12 Pole
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (no release) - HFH actuator
Art:
205309HFH Copied
Heavy duty s/steel
M23 12 Pole
No manual release fitted (blanked)
230V ac
KL3-SS nowy.tif
KL3-SS M20 24v (lid release)
Art:
205401 Copied
Not included
M20
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (lid release) - std actuator
Art:
205401A Copied
Standard
M20
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (lid release) - flat actuator
Art:
205401F Copied
Flat
M20
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (lid release) - HF actuator
Art:
205401HF Copied
Heavy duty flexible
M20
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 24v (lid release) - HFH actuator
Art:
205401HFH Copied
Heavy duty s/steel
M20
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (lid release)
Art:
205402 Copied
Not included
1/2" NPT
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (lid release) - std actuator
Art:
205402A Copied
Standard
1/2" NPT
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (lid release) - flat actuator
Art:
205402F Copied
Flat
1/2" NPT
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (lid release) - HF Actuator
Art:
205402HF Copied
Heavy duty flexible
1/2" NPT
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS ½NPT 24v (lid release) - HFH Actuator
Art:
205402HFH Copied
Heavy duty s/steel
1/2" NPT
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (lid release)
Art:
205403 Copied
Not included
M23 12 Pole
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (lid release) - std actuator
Art:
205403A Copied
Standard
M23 12 Pole
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (lid release) - flat actuator
Art:
205403F Copied
Flat
M23 12 Pole
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (lid release) - HF actuator
Art:
205403HF Copied
Heavy duty flexible
M23 12 Pole
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS QC M23 12way 24v (lid release) - HFH actuator
Art:
205403HFH Copied
Heavy duty s/steel
M23 12 Pole
Manual release lid only
24V ac/dc
KL3-SS nowy.tif
KL3-SS M20 110v (lid release)
Art:
205404 Copied
Not included
M20
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (lid release) - std actuator
Art:
205404A Copied
Standard
M20
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (lid release) - flat actuator
Art:
205404F Copied
Flat
M20
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (lid release) - HF actuator
Art:
205404HF Copied
Heavy duty flexible
M20
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS M20 110v (lid release) - HFH actuator
Art:
205404HFH Copied
Heavy duty s/steel
M20
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (lid release)
Art:
205405 Copied
Not included
1/2" NPT
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (lid release) - std actuator
Art:
205405A Copied
Standard
1/2" NPT
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (lid release) - flat actuator
Art:
205405F Copied
Flat
1/2" NPT
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (lid release) - HF actuator
Art:
205405HF Copied
Heavy duty flexible
1/2" NPT
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS ½NPT 110v (lid release) - HFH actuator
Art:
205405HFH Copied
Heavy duty s/steel
1/2" NPT
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (lid release)
Art:
205406 Copied
Not included
M23 12 Pole
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (lid release) - std actuator
Art:
205406A Copied
Standard
M23 12 Pole
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (lid release) - flat actuator
Art:
205406F Copied
Flat
M23 12 Pole
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (lid release) - HF actuator
Art:
205406HF Copied
Heavy duty flexible
M23 12 Pole
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 110v (lid release) - HFH actuator
Art:
205406HFH Copied
Heavy duty s/steel
M23 12 Pole
Manual release lid only
110V ac
KL3-SS nowy.tif
KL3-SS M20 230v (lid release)
Art:
205407 Copied
Not included
M20
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (lid release) - std actuator
Art:
205407A Copied
Standard
M20
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (lid release) - flat actuator
Art:
205407F Copied
Flat
M20
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (lid release) - HF actuator
Art:
205407HF Copied
Heavy duty flexible
M20
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS M20 230v (lid release) - HFH actuator
Art:
205407HFH Copied
Heavy duty s/steel
M20
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (lid release)
Art:
205408 Copied
Not included
1/2" NPT
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (lid release) - std actuator
Art:
205408A Copied
Standard
1/2" NPT
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (lid release) - flat actuator
Art:
205408F Copied
Flat
1/2" NPT
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (lid release) - HF actuator
Art:
205408HF Copied
Heavy duty flexible
1/2" NPT
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS ½NPT 230v (lid release) - HFH actuator
Art:
205408HFH Copied
Heavy duty s/steel
1/2" NPT
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (lid release)
Art:
205409 Copied
Not included
M23 12 Pole
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (lid release) - std actuator
Art:
205409A Copied
Standard
M23 12 Pole
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (lid release) - flat actuator
Art:
205409F Copied
Flat
M23 12 Pole
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (lid release) - HF actuator
Art:
205409HF Copied
Heavy duty flexible
M23 12 Pole
Manual release lid only
230V ac
KL3-SS nowy.tif
KL3-SS QC M23 12way 230v (lid release) - HFH actuator
Art:
205409HFH Copied
Heavy duty s/steel
M23 12 Pole
Manual release lid only
230V ac

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
