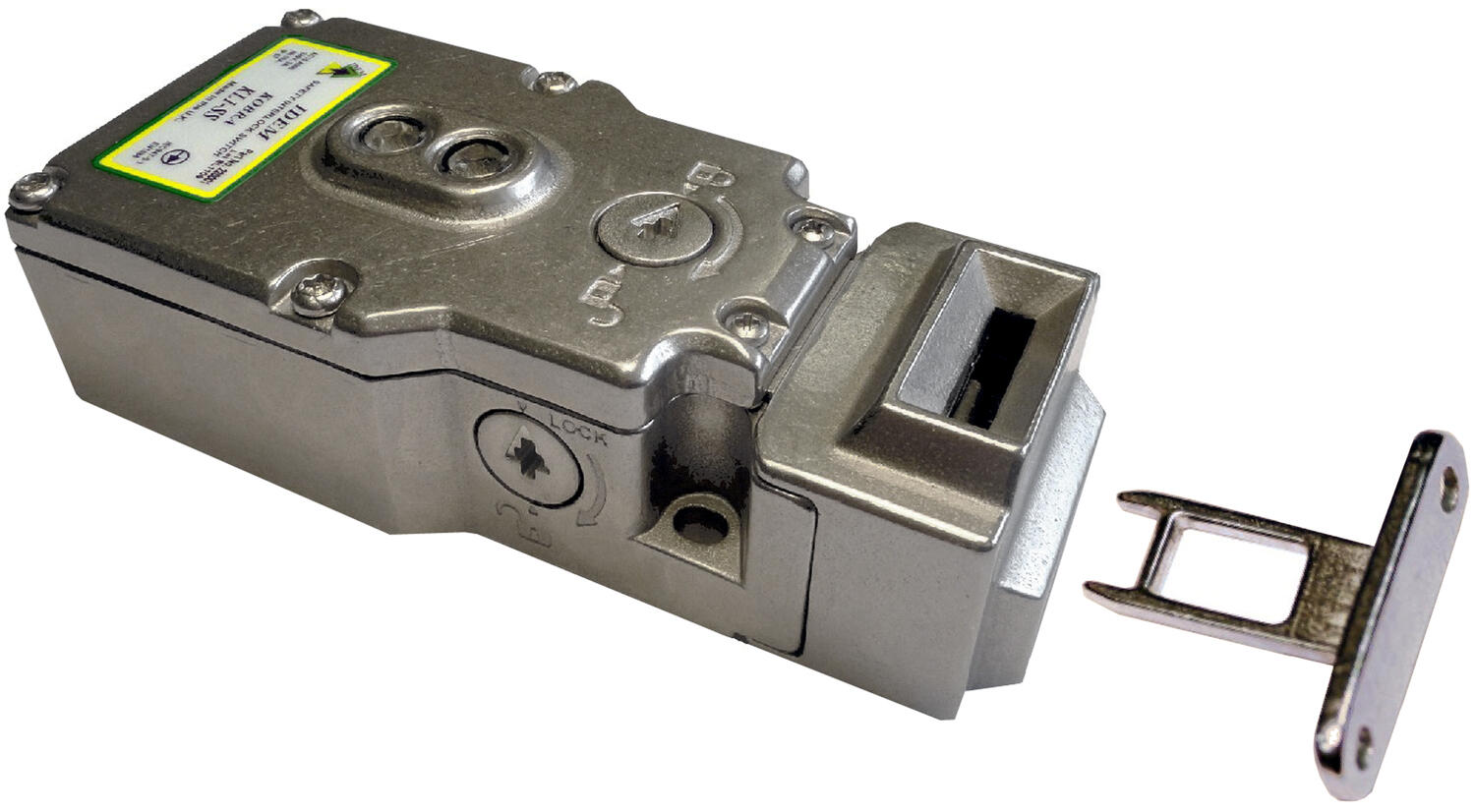

The KL1-SS Series Guard Locking switches have a rugged Stainless Steel 316 body and have been developed with a holding force of 1600N to keep medium to large guard doors closed until hazards have been removed.
They are designed to cope with the rigorous applications of the Food Processing, Packaging, Pharmaceutical and Petro-Chemical industries.
They have IP69K enclosure protection (maintained by a double seal lid gasket and seals) and can be high pressure hosed with detergent at high temperature.

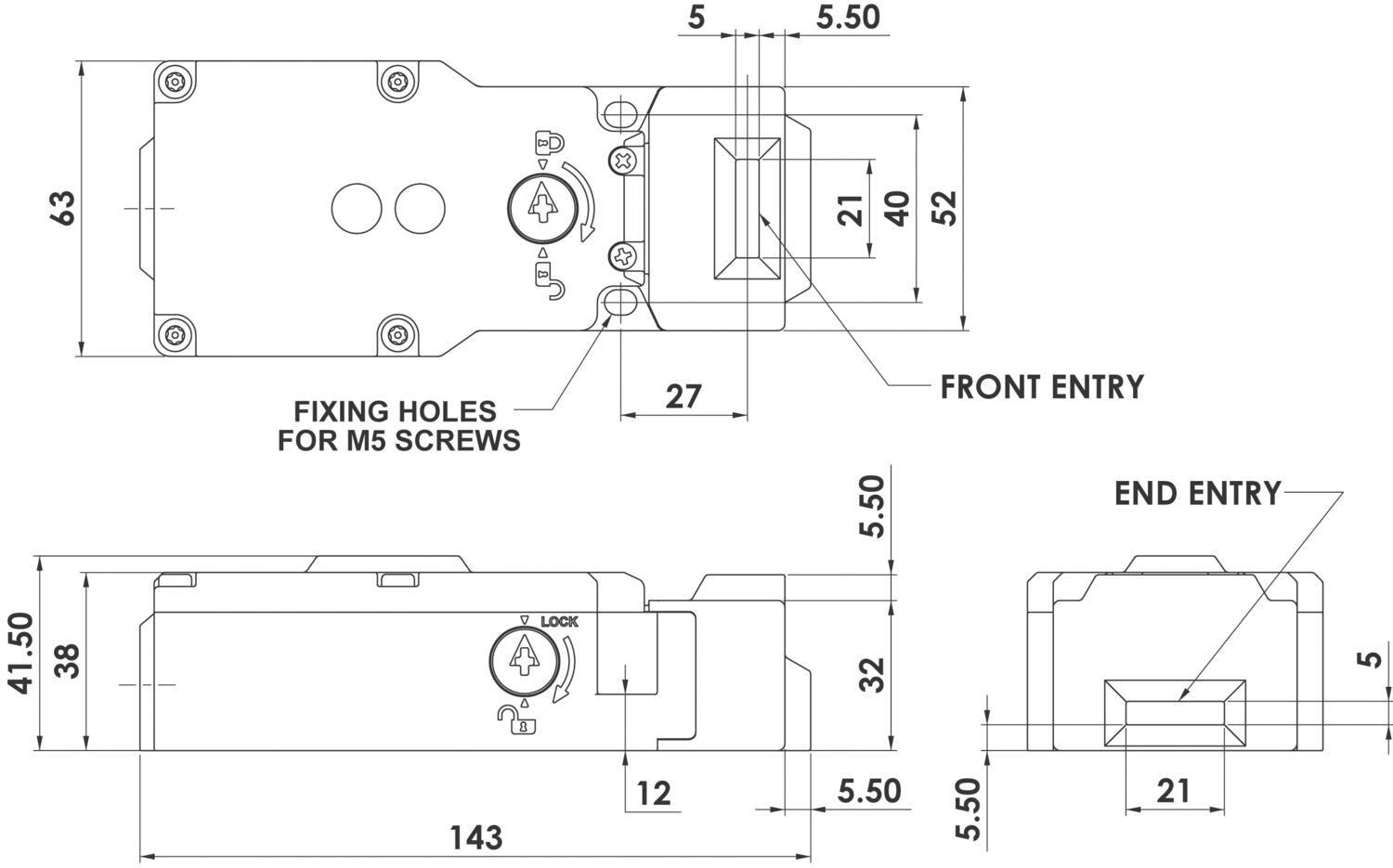

They have a low compact body profile with fixing holes on an industry standard 40mm centre to enable easy fitting to new or existing guards (or where replacement of a non locking tongue switch is required).
The head will rotate to provide up to 4 actuator entry positions.
| Actuator | Not included |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
| Central Material | Stainless steel 316 |
| Conduit entry | M20 |
| Contact Type | 2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open) |
| Contacts | 2NC 2NO |
| Head material | Stainless steel 316 |
| Holding force (F1Max) | 2000 |
| IP Class | IP69K, IP67 |
| LED Display | LED1 solenoid power |
| Manual Operation | Standard manual release lid and side |
| Maximum approach / withdrawal speed | 600 |
| Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
| Mounting | 2 x M5 |
|---|---|
| MTTFd | 356 years |
| Operating temperature | -25..50°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| Rated insulation voltage | 600V ac |
| SIL | 3 acc. EN62061 |
| Solenoid Voltage | 24V ac/dc |
| Thermal current (lth) | 5 |
| Travel for positive opening | 10 |
| Utilisation category | AC15, A300, 3 A |
| Withstand voltage | 2500V ac |
The KL1-SS Series Guard Locking switches have a rugged Stainless Steel 316 body and have been developed with a holding force of 1600N to keep medium to large guard doors closed until hazards have been removed.
They are designed to cope with the rigorous applications of the Food Processing, Packaging, Pharmaceutical and Petro-Chemical industries.
They have IP69K enclosure protection (maintained by a double seal lid gasket and seals) and can be high pressure hosed with detergent at high temperature.
They have a low compact body profile with fixing holes on an industry standard 40mm centre to enable easy fitting to new or existing guards (or where replacement of a non locking tongue switch is required).
The head will rotate to provide up to 4 actuator entry positions.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
The DF Electric 485121 fuse holder delivers reliable protection in a compact, DIN-rail-ready design. Built for panel builders who won’t compromise on safety or performance, it’s the trusted choice for tough environments and tight spaces.
STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.
Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
.png?as=1&iar=0&hash=4B2EE0F7248083DFB8461902B75780CA)
Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Actuator | Conduit entry | Contact Type | Contacts | LED Display | Solenoid Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|
KL1-SS M20 24v LED only
Art:
220001
Copied
|
Not included
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED only - std actuator
Art:
220001A
Copied
|
Standard
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED only - flat actuator
Art:
220001F
Copied
|
Flat
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED only - HF actuator
Art:
220001HF
Copied
|
Heavy duty flexible
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED only - HFH actuator
Art:
220001HFH
Copied
|
Heavy duty s/steel
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED only
Art:
220002
Copied
|
Not included
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED only - std actuator
Art:
220002A
Copied
|
Standard
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED only - flat actuator
Art:
220002F
Copied
|
Flat
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED only - HF actuator
Art:
220002HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED only - HFH actuator
Art:
220002HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS QC M12 8way 24v LED only
Art:
220003
Copied
|
Not included
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS QC M12 8way 24v LED only - std actuator
Art:
220003A
Copied
|
Standard
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS QC M12 8way 24v LED only - flat actuator
Art:
220003F
Copied
|
Flat
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS QC M12 8way 24v LED only - HF actuator
Art:
220003HF
Copied
|
Heavy duty flexible
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS QC M12 8way 24v LED only - HFH actuator
Art:
220003HFH
Copied
|
Heavy duty s/steel
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 110v LED only
Art:
220004
Copied
|
Not included
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED only - std actuator
Art:
220004A
Copied
|
Standard
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED only - flat actuator
Art:
220004F
Copied
|
Flat
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED only - HF actuator
Art:
220004HF
Copied
|
Heavy duty flexible
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED only - HFH actuator
Art:
220004HFH
Copied
|
Heavy duty s/steel
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED only
Art:
220005
Copied
|
Not included
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED only - std actuator
Art:
220005A
Copied
|
Standard
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED only - flat actuator
Art:
220005F
Copied
|
Flat
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED only - HF actuator
Art:
220005HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED only - HFH actuator
Art:
220005HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS QC M12 8way 110v LED only
Art:
220006
Copied
|
Not included
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS QC M12 8way 110v LED only - std actuator
Art:
220006A
Copied
|
Standard
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS QC M12 8way 110v LED only - flat actuator
Art:
220006F
Copied
|
Flat
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS QC M12 8way 110v LED only - HF actuator
Art:
220006HF
Copied
|
Heavy duty flexible
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS QC M12 8way 110v LED only - HFH actuator
Art:
220006HFH
Copied
|
Heavy duty s/steel
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 230v LED only
Art:
220007
Copied
|
Not included
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED only - std actuator
Art:
220007A
Copied
|
Standard
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED only - flat actuator
Art:
220007F
Copied
|
Flat
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED only - HF actuator
Art:
220007HF
Copied
|
Heavy duty flexible
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED only - HFH actuator
Art:
220007HFH
Copied
|
Heavy duty s/steel
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED only
Art:
220008
Copied
|
Not included
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED only - std actuator
Art:
220008A
Copied
|
Standard
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED only - flat actuator
Art:
220008F
Copied
|
Flat
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED only - HF actuator
Art:
220008HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED only - HFH actuator
Art:
220008HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS QC M12 8way 230v LED only
Art:
220009
Copied
|
Not included
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS QC M12 8way 230v LED only - std actuator
Art:
220009A
Copied
|
Standard
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS QC M12 8way 230v LED only - flat actuator
Art:
220009F
Copied
|
Flat
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS QC M12 8way 230v LED only - HF actuator
Art:
220009HF
Copied
|
Heavy duty flexible
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS QC M12 8way 230v LED only - HFH actuator
Art:
220009HFH
Copied
|
Heavy duty s/steel
|
M12 8 Pole
|
2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
|
2NC 2NO
|
LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 24v LED2 (lock status)
Art:
220301
Copied
|
Not included
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED2 (lock status) - std actuator
Art:
220301A
Copied
|
Standard
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED2 (lock status) - flat actuator
Art:
220301F
Copied
|
Flat
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED2 (lock status) - HF actuator
Art:
220301HF
Copied
|
Heavy duty flexible
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 24v LED2 (lock status) - HFH actuator
Art:
220301HFH
Copied
|
Heavy duty s/steel
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED2 (lock status)
Art:
220302
Copied
|
Not included
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED2 (lock status) - std actuator
Art:
220302A
Copied
|
Standard
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED2 (lock status) - flat actuator
Art:
220302F
Copied
|
Flat
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED2 (lock status) - HF actuator
Art:
220302HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS ½NPT 24v LED2 (lock status) - HFH actuator
Art:
220302HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
24V ac/dc
|
| ||
|
KL1-SS M20 110v LED2 (lock status)
Art:
220304
Copied
|
Not included
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED2 (lock status) - std actuator
Art:
220304A
Copied
|
Standard
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED2 (lock status) - flat actuator
Art:
220304F
Copied
|
Flat
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED2 (lock status) - HF actuator
Art:
220304HF
Copied
|
Heavy duty flexible
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 110v LED2 (lock status) - HFH actuator
Art:
220304HFH
Copied
|
Heavy duty s/steel
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED2 (lock status)
Art:
220305
Copied
|
Not included
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED2 (lock status) - std actuator
Art:
220305A
Copied
|
Standard
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED2 (lock status) - flat actuator
Art:
220305F
Copied
|
Flat
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED2 (lock status) - HF actuator
Art:
220305HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS ½NPT 110v LED2 (lock status) - HFH actuator
Art:
220305HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
110V ac
|
| ||
|
KL1-SS M20 230v LED2 (lock status)
Art:
220307
Copied
|
Not included
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED2 (lock status) - std actuator
Art:
220307A
Copied
|
Standard
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED2 (lock status) - flat actuator
Art:
220307F
Copied
|
Flat
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v LED2 (lock status) - HF actuator
Art:
220307HF
Copied
|
Heavy duty flexible
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS M20 230v (lock status) LED2 - HFH actuator
Art:
220307HFH
Copied
|
Heavy duty s/steel
|
M20
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED2 (lock status)
Art:
220308
Copied
|
Not included
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED2 (lock status) - std actuator
Art:
220308A
Copied
|
Standard
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED2 (lock status) - flat actuator
Art:
220308F
Copied
|
Flat
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED2 (lock status) - HF actuator
Art:
220308HF
Copied
|
Heavy duty flexible
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
| ||
|
KL1-SS ½NPT 230v LED2 (lock status) - HFH actuator
Art:
220308HFH
Copied
|
Heavy duty s/steel
|
1/2" NPT
|
2NC safety contacts, 1NO auxiliary contact (guard open)
|
2NC 1NO
|
LED2 lock status: closed and locked, LED1 solenoid power
|
230V ac
|
|
Select a variant in the list
+35314047700
