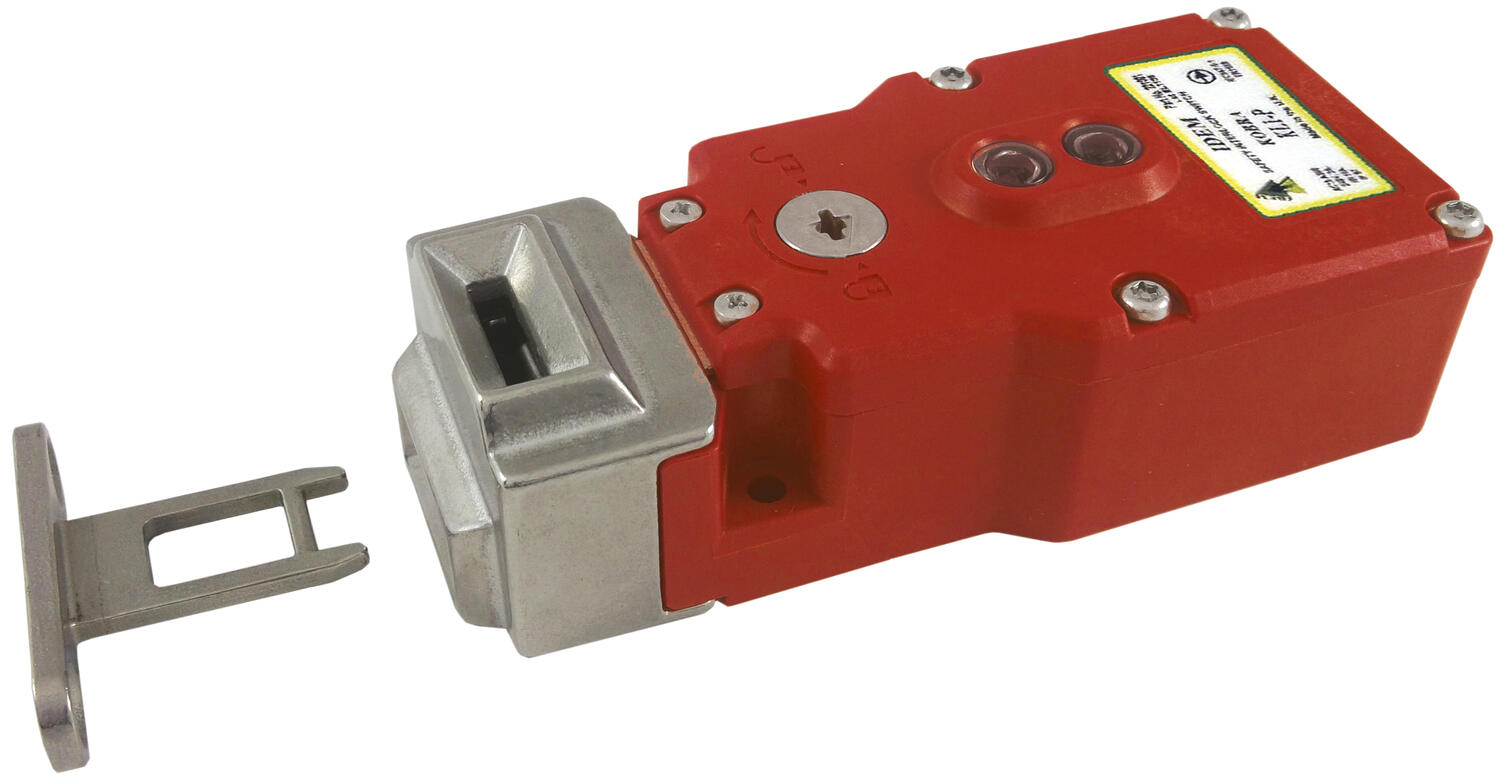

IDEM Locking switch KL1-P 221005 I I Demesne Electrical

Actuator	Not included
Annual usage	8 cycles per hour/24 hours per day/365 days
Approvals	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508
Central Material	Polyester
Conduit entry	1/2" NPT

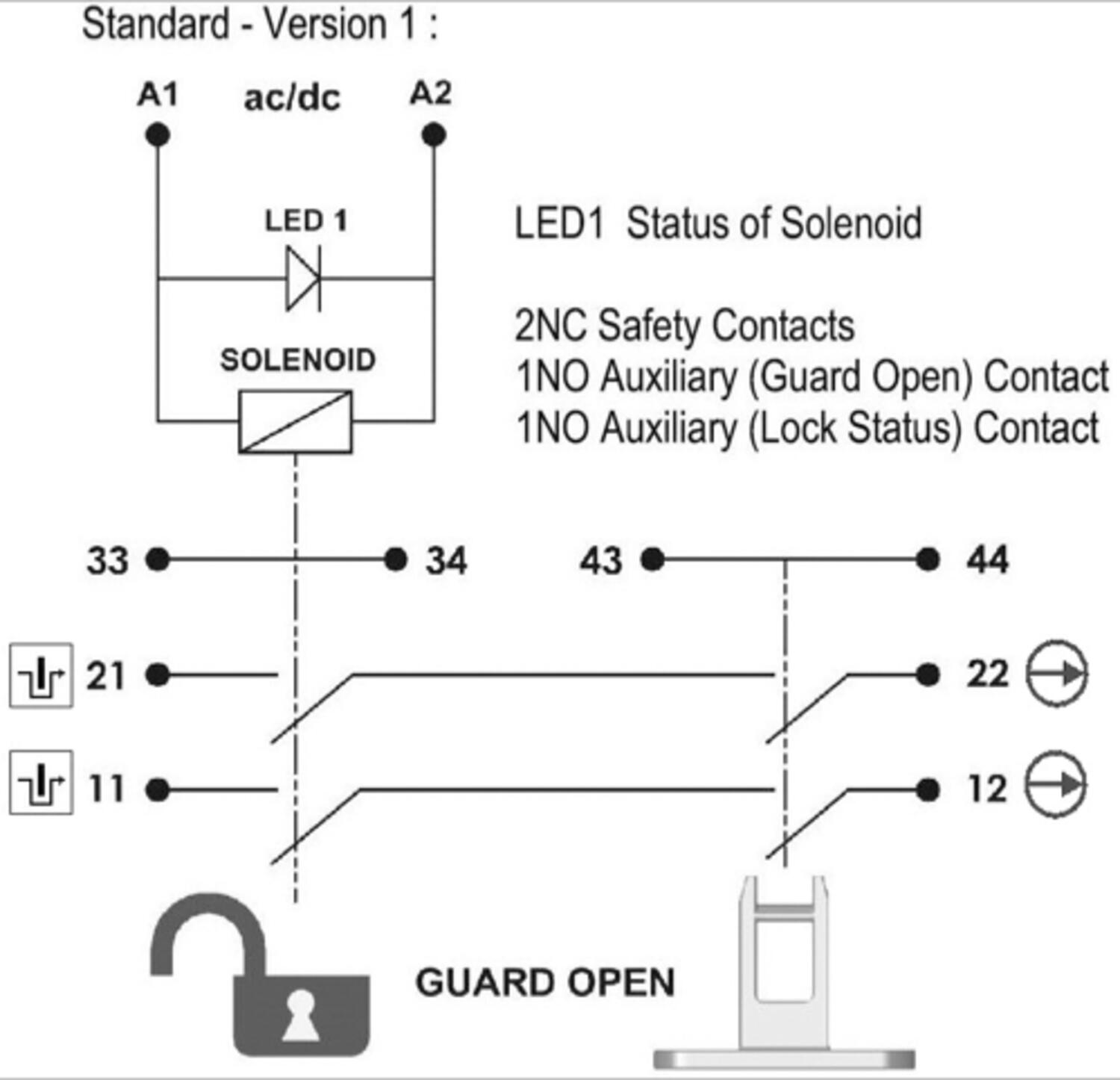

Contact Type	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)
Contacts	2NC 2NO
Head material	Stainless steel 316
Holding force (F1Max)	1400
IP Class	IP67
LED Display	LED1 solenoid power
LED supply voltage	24Vdc
Manual Operation	Standard manual release lid and side
Maximum approach / withdrawal speed	600

Mechanical reliability B10d	2.5 x 10⁶ operations at 100mA load

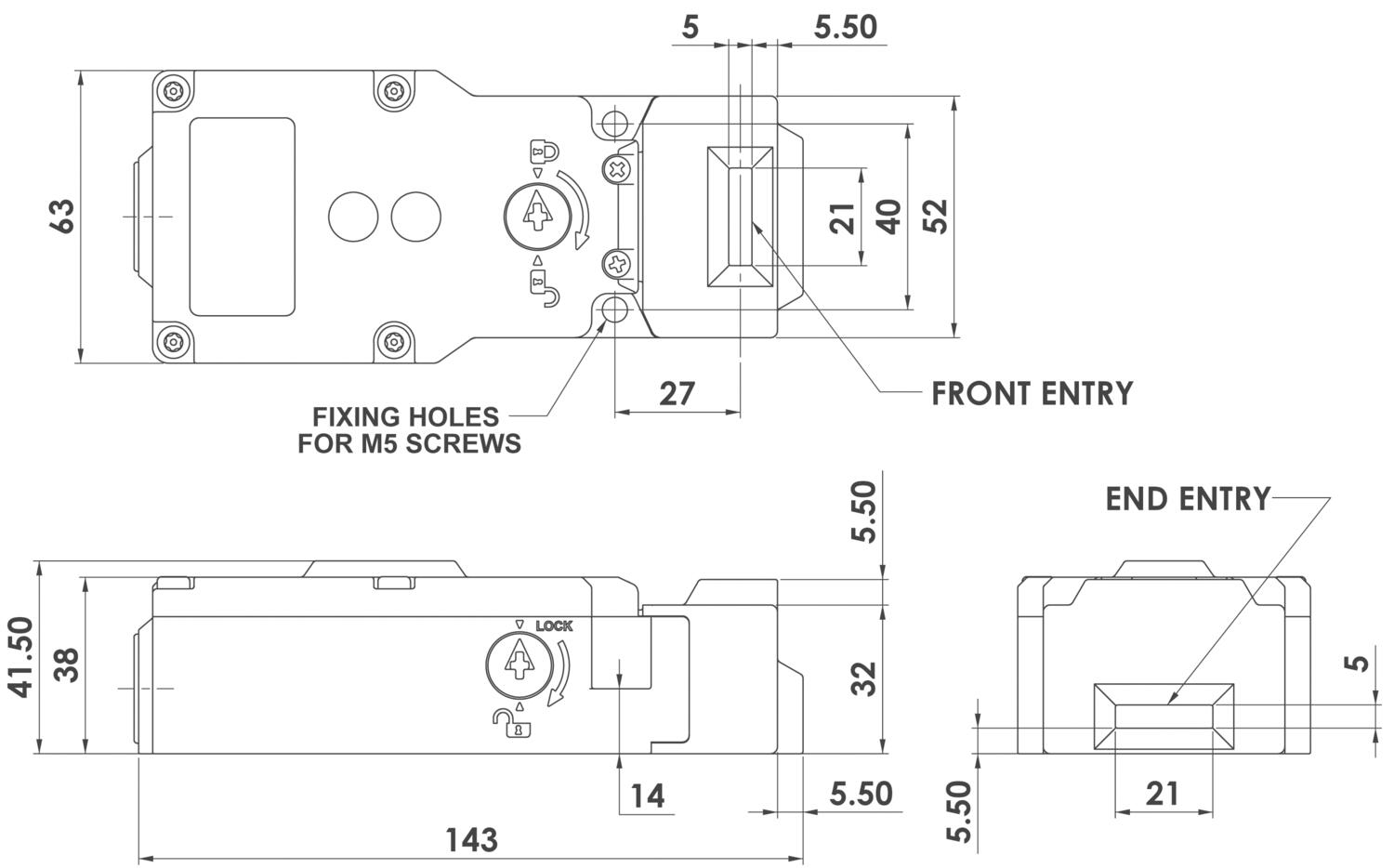

Mounting	2 x M5
MTTFd	356 years
Operating temperature	-25..50°C
PFHd	3.44 x 10⁻⁸
PL	e acc. ISO13849-1
Rated insulation voltage	600V ac
SIL	3 acc. EN62061
Solenoid Voltage	110V ac
Thermal current (lth)	5
Travel for positive opening	10
Utilisation category	AC15, A300, 3 A
Withstand voltage	2500V ac

Articles	Actuator	Annual usage	Approvals	Central Material	Conduit entry	Contact Type	Contacts	Head material	Holding force (F1Max)	IP Class	LED Display	LED supply voltage	Manual Operation	Maximum approach / withdrawal speed	Mechanical reliability B10d	Mounting	MTTFd	Operating temperature	PFHd	PL	Rated insulation voltage	SIL	Solenoid Voltage	Thermal current (lth)	Travel for positive opening	Utilisation category	Withstand voltage
KL1-P ½NPT 110v LED only Art: 221005 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED only - flat actuator Art: 221005F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED only - HF actuator Art: 221005HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED only - HFH actuator Art: 221005HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED only - std actuator Art: 221005A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac

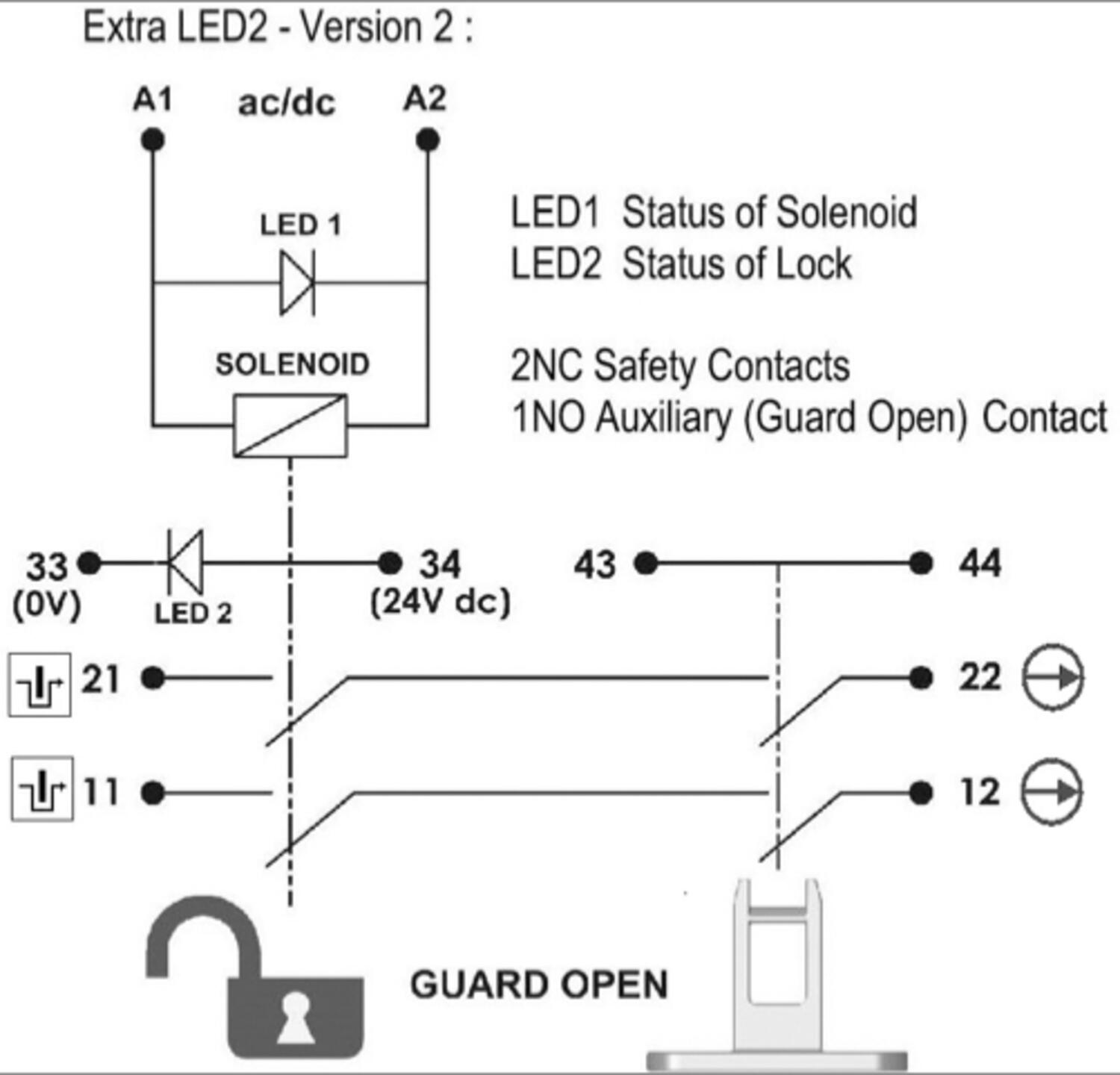

KL1-P ½NPT 110v LED2 (lock status) Art: 221305 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED2 (lock status) - flat actuator Art: 221305F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED2 (lock status) - HF actuator Art: 221305HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED2 (lock status) - HFH actuator Art: 221305HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 110v LED2 (lock status) - std actuator Art: 221305A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED only Art: 221008 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED only - flat actuator Art: 221008F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED only - HF actuator Art: 221008HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED only - HFH actuator Art: 221008HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED only - std actuator Art: 221008A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED2 (lock status) Art: 221308 Copied
KL1-P ½NPT 230v LED2 (lock status) - flat actuator Art: 221308F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED2 (lock status) - HF actuator Art: 221308HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED2 (lock status) - HFH actuator Art: 221308HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 230v LED2 (lock status) - std actuator Art: 221308A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED only Art: 221002 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED only - flat actuator Art: 221002F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED only - HF actuator Art: 221002HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED only - HFH actuator Art: 221002HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED only - std actuator Art: 221002A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED2 (lock status) Art: 221302 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED2 (lock status) - flat actuator Art: 221302F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED2 (lock status) - HF actuator Art: 221302HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED2 (lock status) - HFH actuator Art: 221302HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P ½NPT 24v LED2 (lock status) - std actuator Art: 221302A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	1/2" NPT	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED only Art: 221004 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED only - flat actuator Art: 221004F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED only - HF actuator Art: 221004HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED only - HFH actuator Art: 221004HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED only - std actuator Art: 221004A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED2 (lock status) Art: 221304 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED2 (lock status) - flat actuator Art: 221304F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED2 (lock status) - HF actuator Art: 221304HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED2 (lock status) - HFH actuator Art: 221304HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 110v LED2 (lock status) - std actuator Art: 221304A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED only Art: 221007 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED only - flat actuator Art: 221007F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED only - HF actuator Art: 221007HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED only - HFH actuator Art: 221007HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED only - std actuator Art: 221007A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED2 (lock status) Art: 221307 Copied
KL1-P M20 230v LED2 (lock status) - flat actuator Art: 221307F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED2 (lock status) - HF actuator Art: 221307HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED2 (lock status) - HFH actuator Art: 221307HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 230v LED2 (lock status) - std actuator Art: 221307A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED only Art: 221001 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED only - flat actuator Art: 221001F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED only - HF actuator Art: 221001HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED only - HFH actuator Art: 221001HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED only - std actuator Art: 221001A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED2 (lock status) Art: 221301 Copied
KL1-P M20 24v LED2 (lock status) - flat actuator Art: 221301F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED2 (lock status) - HF actuator Art: 221301HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED2 (lock status) - HFH actuator Art: 221301HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P M20 24v LED2 (lock status) - std actuator Art: 221301A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M20	2NC safety contacts 1NO auxiliary contact (guard open)	2NC 1NO	Stainless steel 316	1400	IP67	LED2 lock status: closed and locked, LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 110v LED only Art: 221006 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 110v LED only - flat actuator Art: 221006F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 110v LED only - HF actuator Art: 221006HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 110v LED only - HFH actuator Art: 221006HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 110v LED only - std actuator Art: 221006A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	110V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 230v LED only Art: 221009 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 230v LED only - flat actuator Art: 221009F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 230v LED only - HFH actuator Art: 221009HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 230v LED only - std actuator Art: 221009A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 24v LED only Art: 221003 Copied	Not included	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 24v LED only - flat actuator Art: 221003F Copied	Flat	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 24v LED only - HF actuator Art: 221003HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 24v LED only - HFH actuator Art: 221003HFH Copied	Heavy duty s/steel	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way 24v LED only - std actuator Art: 221003A Copied	Standard	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	24V ac/dc	5	10	AC15, A300, 3 A	2500V ac
KL1-P QC M12 8way2 230v LED only - HF actuator Art: 221009HF Copied	Heavy duty flexible	8 cycles per hour/24 hours per day/365 days	ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508	Polyester	M12 8 Pole	2NC safety contacts, 1NO auxiliary contact (guard open), 1NO auxiliary contact (lock open)	2NC 2NO	Stainless steel 316	1400	IP67	LED1 solenoid power	24Vdc	Standard manual release lid and side	600	2.5 x 10⁶ operations at 100mA load	2 x M5	356 years	-25..50°C	3.44 x 10⁻⁸	e acc. ISO13849-1	600V ac	3 acc. EN62061	230V ac	5	10	AC15, A300, 3 A	2500V ac
