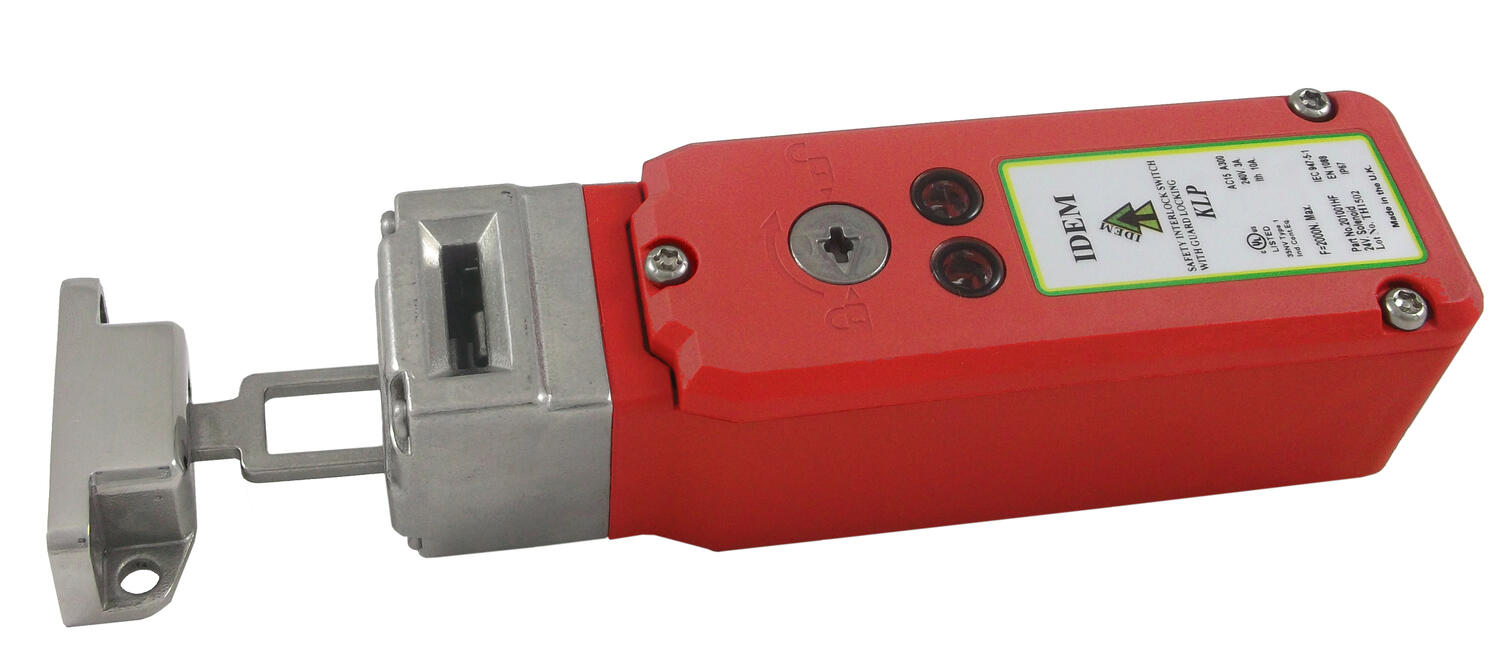

IDEM KLP locking switch

Locking switch with locking SEZYLOCK KLP, made of plastic (polyester), with locking force up to 1800N. The breaker head is made of stainless steel. The switch has 2 LEDs that show the status of the solenoid and the state of the blockage. It also has a rotatable head, which provides 8 key entry positions for easy and flexible mounting. The KLP switch has a standard distance between the fixing holes - 30 mm.

In the event of a voltage drop, the switch can be opened in an emergency without any special keys. The switch is available in the version: voltage release.

  • Electric release

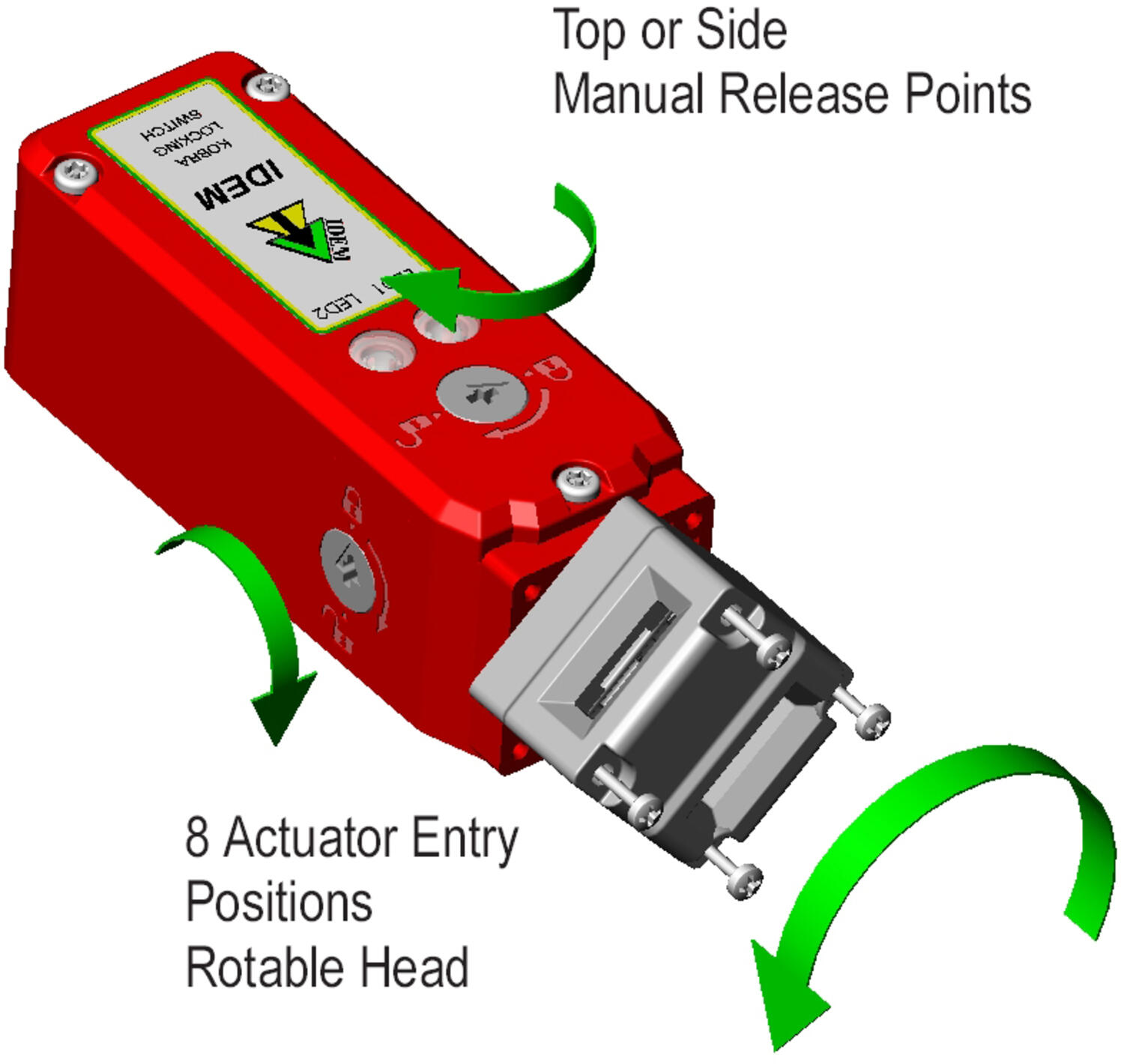

  • 8 key entry positions
  • 2 x LED indicator
  • Locking force up to 1800 N
  • Slim housing 46 mm x 160 mm

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Actuator Not included
Annual usage 8 cycles per hour/24 hours per day/365 days
Approvals ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508
Central Material Polyester
Conduit entry 1/2" NPT
Contact Type 2NC safety circuits: solenoid/lock and actuator/guard wired in series, 1NO auxiliary circuit: for indication of actuator status, 1NO auxiliary circuit: for lock status (selectable with LED2)
Contacts 2NC 2NO
Head material Stainless steel 316
Holding force (F1Max) 2000
IP Class IP67

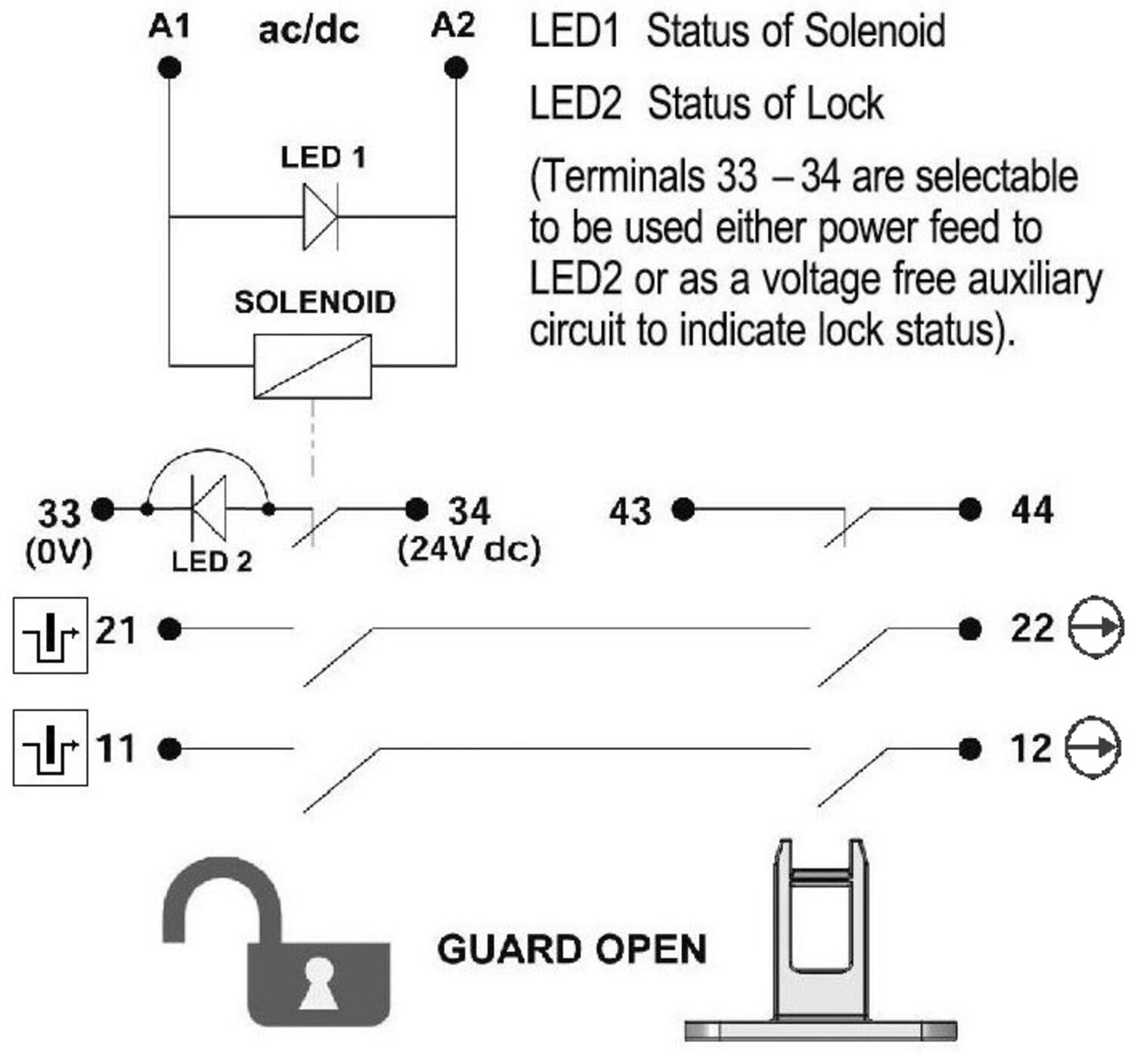

LED Display LED1 status of solenoid, LED2 status of lock
LED supply voltage 24Vdc
Manual Operation Manual release lid only
Maximum approach / withdrawal speed 600
Mechanical reliability B10d 2.5 x 10⁶ operations at 100mA load
Mounting 4 x M5
MTTFd 356 years
Operating temperature -25..50°C
PFHd 3.44 x 10⁻⁸
PL e acc. ISO13849-1
Rated insulation voltage 600V ac
SIL 3 acc. EN62061
Solenoid Voltage 110V ac
Thermal current (lth) 5
Travel for positive opening 10
Utilisation category AC15, A300, 3 A
Withstand voltage 2500V ac

Downloads

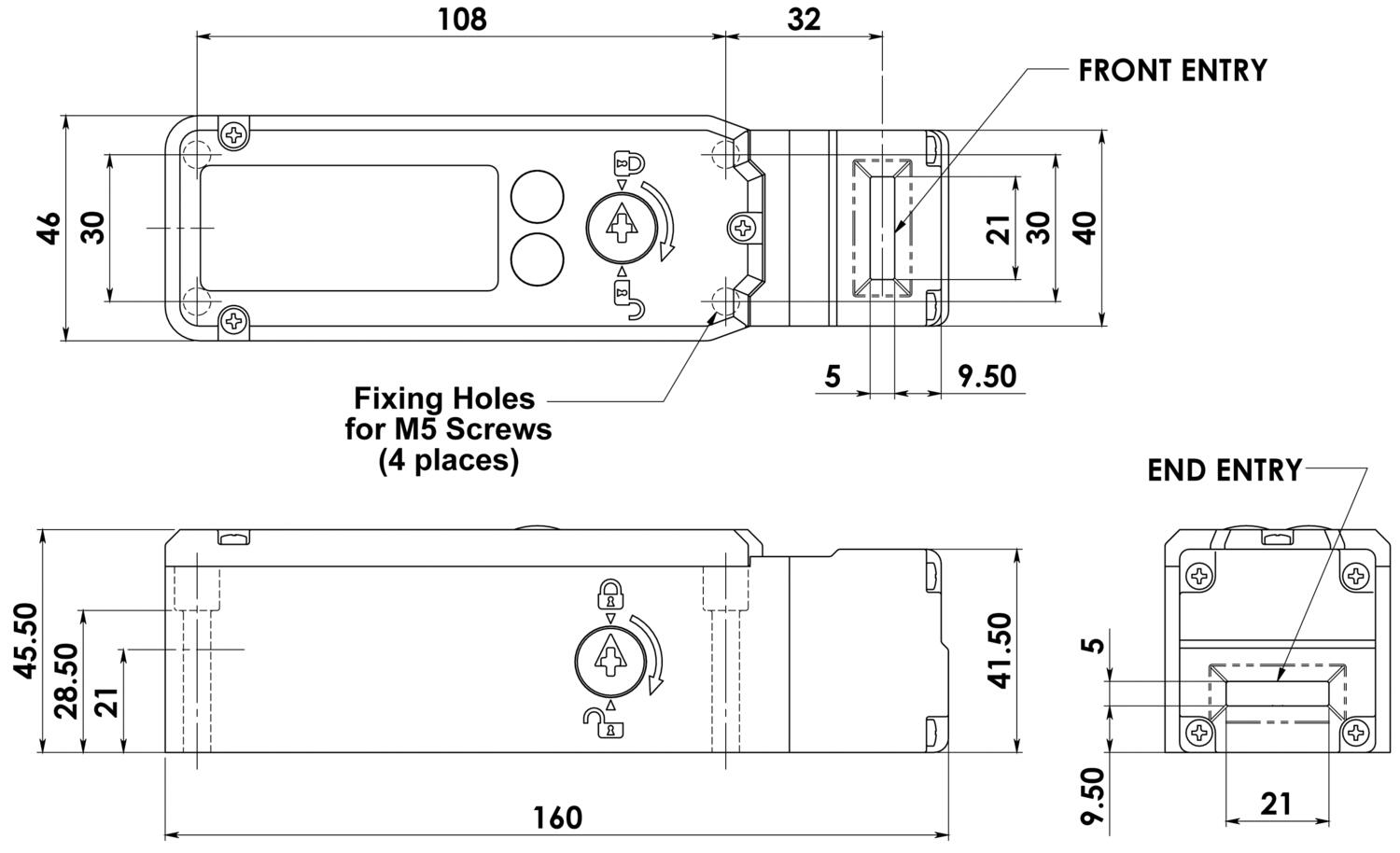

Measurements and connections

Technical illustrations

Product description

Locking switch with locking SEZYLOCK KLP, made of plastic (polyester), with locking force up to 1800N. The breaker head is made of stainless steel. The switch has 2 LEDs that show the status of the solenoid and the state of the blockage. It also has a rotatable head, which provides 8 key entry positions for easy and flexible mounting. The KLP switch has a standard distance between the fixing holes - 30 mm.

In the event of a voltage drop, the switch can be opened in an emergency without any special keys. The switch is available in the version: voltage release.

Accessories

Related products

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

My favourites Articles Actuator Conduit entry Manual Operation Solenoid Voltage Price
KLP nowy.tif
KLP ½NPT 110v (lid release)
Art:
201405 Copied
Not included
1/2" NPT

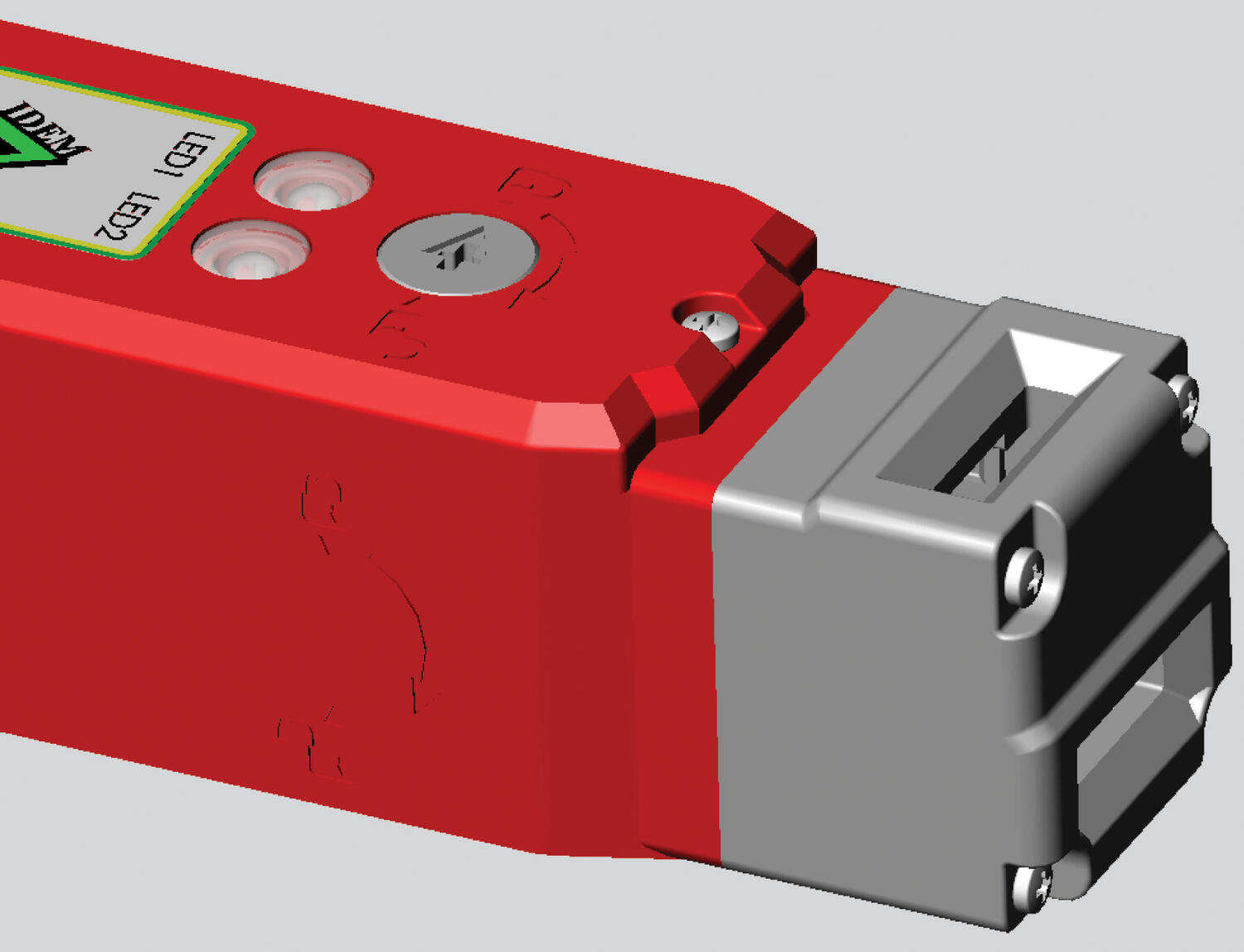

Manual release lid only
110V ac
KLP nowy.tif
KLP ½NPT 110v (lid release) - flat actuator
Art:
201405F Copied
Flat
1/2" NPT
Manual release lid only
110V ac
KLP nowy.tif
KLP ½NPT 110v (lid release) - HF actuator
Art:
201405HF Copied
Heavy duty flexible
1/2" NPT
Manual release lid only
110V ac
KLP nowy.tif
KLP ½NPT 110v (lid release) - HFH actuator
Art:
201405HFH Copied
Heavy duty s/steel
1/2" NPT
Manual release lid only
110V ac
KLP nowy.tif
KLP ½NPT 110v (lid release) - std actuator
Art:
201405A Copied
Standard
1/2" NPT
Manual release lid only
110V ac
KLP nowy.tif
KLP ½NPT 110v (no release)
Art:
201305 Copied
Not included
1/2" NPT

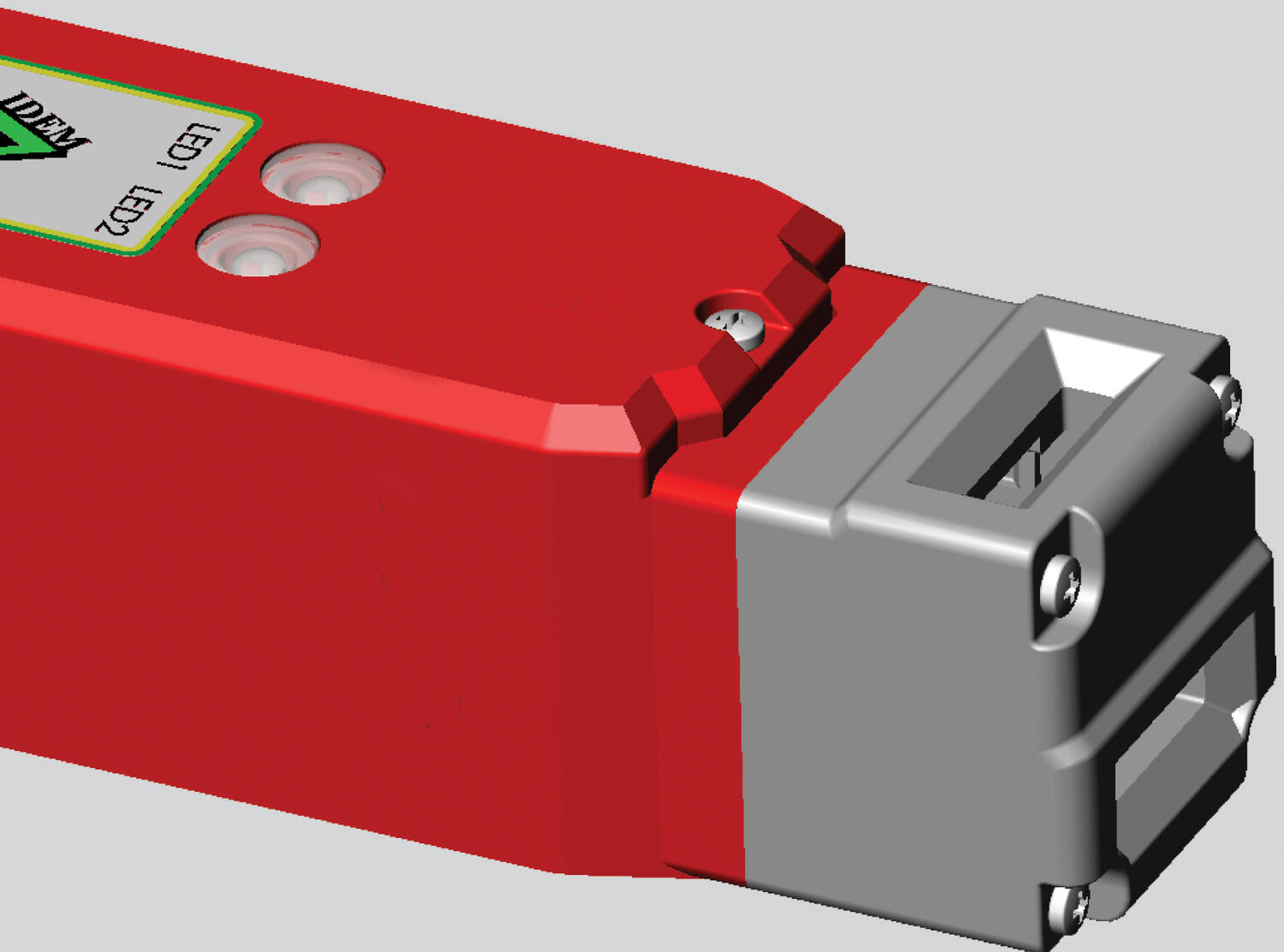

No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP ½NPT 110v (no release) - flat actuator
Art:
201305F Copied
Flat
1/2" NPT
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP ½NPT 110v (no release) - HF actuator
Art:
201305HF Copied
Heavy duty flexible
1/2" NPT
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP ½NPT 110v (no release) - HFH actuator
Art:
201305HFH Copied
Heavy duty s/steel
1/2" NPT
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP ½NPT 110v (no release) - std actuator
Art:
201305A Copied
Standard
1/2" NPT
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP ½NPT 110v (std release)
Art:
201005 Copied
Not included
1/2" NPT

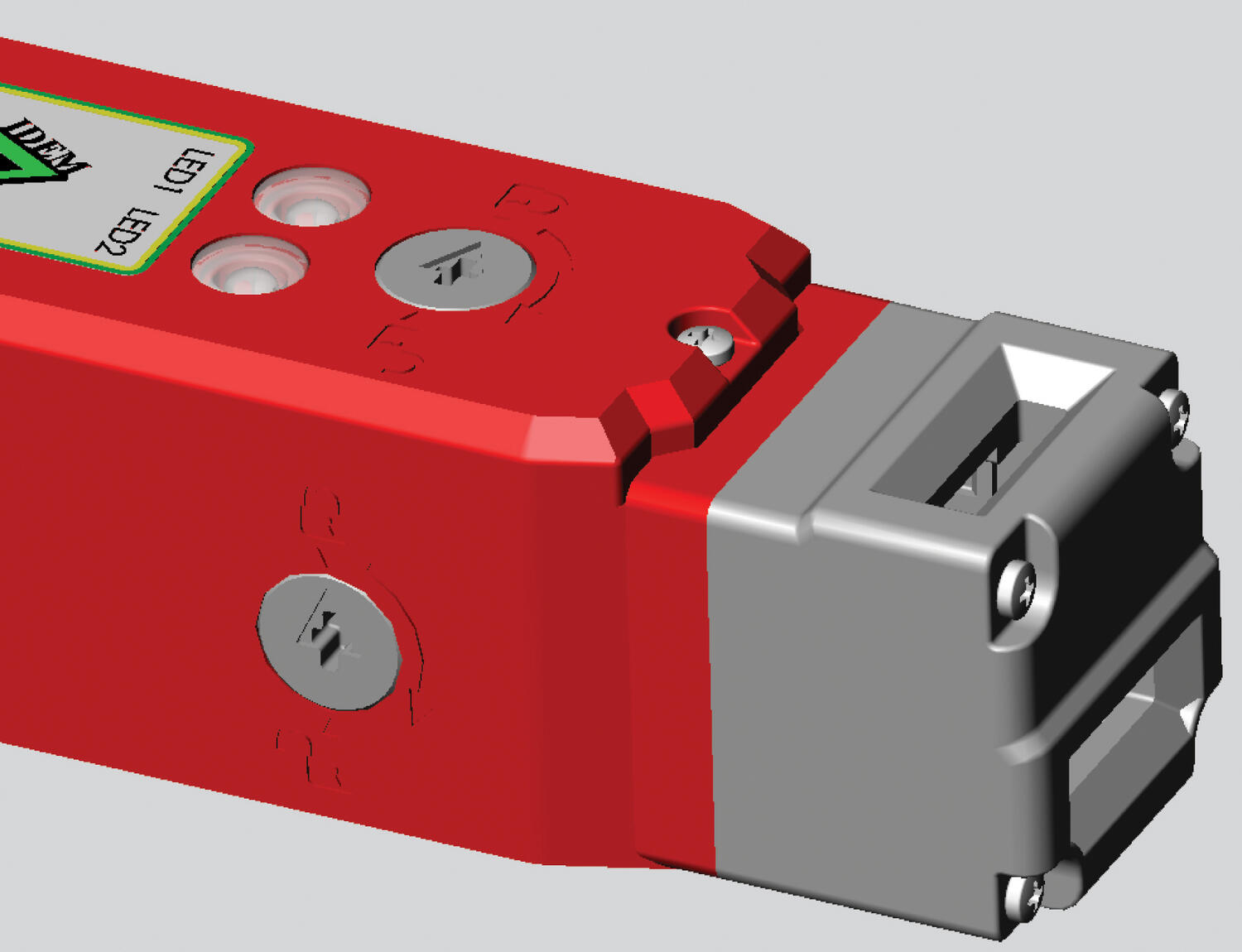

Standard manual release lid and side
110V ac
KLP nowy.tif
KLP ½NPT 110v (std release) - flat actuator
Art:
201005F Copied
Flat
1/2" NPT
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP ½NPT 110v (std release) - HF actuator
Art:
201005HF Copied
Heavy duty flexible
1/2" NPT
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP ½NPT 110v (std release) - HFH actuator
Art:
201005HFH Copied
Heavy duty s/steel
1/2" NPT
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP ½NPT 110v (std release) - std actuator
Art:
201005A Copied
Standard
1/2" NPT
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP ½NPT 230v (lid release)
Art:
201408 Copied
Not included
1/2" NPT
Manual release lid only
230V ac
KLP nowy.tif
KLP ½NPT 230v (lid release) - flat actuator
Art:
201408F Copied
Flat
1/2" NPT
Manual release lid only
230V ac
KLP nowy.tif
KLP ½NPT 230v (lid release) - HF actuator
Art:
201408HF Copied
Heavy duty flexible
1/2" NPT
Manual release lid only
230V ac
KLP nowy.tif
KLP ½NPT 230v (lid release) - HFH actuator
Art:
201408HFH Copied
Heavy duty s/steel
1/2" NPT
Manual release lid only
230V ac
KLP nowy.tif
KLP ½NPT 230v (lid release) - std actuator
Art:
201408A Copied
Standard
1/2" NPT
Manual release lid only
230V ac
KLP nowy.tif
KLP ½NPT 230v (no release)
Art:
201308 Copied
Not included
1/2" NPT
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP ½NPT 230v (no release) - flat actuator
Art:
201308F Copied
Flat
1/2" NPT
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP ½NPT 230v (no release) - HF Actuator
Art:
201308HF Copied
Heavy duty flexible
1/2" NPT
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP ½NPT 230v (no release) - HFH Actuator
Art:
201308HFH Copied
Heavy duty s/steel
1/2" NPT
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP ½NPT 230v (no release) - std actuator
Art:
201308A Copied
Standard
1/2" NPT
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP ½NPT 230v (std release)
Art:
201008 Copied
Not included
1/2" NPT
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP ½NPT 230v (std release) - flat actuator
Art:
201008F Copied
Flat
1/2" NPT
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP ½NPT 230v (std release) - HF actuator
Art:
201008HF Copied
Heavy duty flexible
1/2" NPT
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP ½NPT 230v (std release) - HFH actuator
Art:
201008HFH Copied
Heavy duty s/steel
1/2" NPT
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP ½NPT 230v (std release) - std actuator
Art:
201008A Copied
Standard
1/2" NPT
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP ½NPT 24v (lid release)
Art:
201402 Copied
Not included
1/2" NPT
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (lid release) - flat actuator
Art:
201402F Copied
Flat
1/2" NPT
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (lid release) - HF actuator
Art:
201402HF Copied
Heavy duty flexible
1/2" NPT
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (lid release) - HFH actuator
Art:
201402HFH Copied
Heavy duty s/steel
1/2" NPT
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (lid release) - std actuator
Art:
201402A Copied
Standard
1/2" NPT
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (no release)
Art:
201302 Copied
Not included
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (no release) - flat actuator
Art:
201302F Copied
Flat
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (no release) - HF actuator
Art:
201302HF Copied
Heavy duty flexible
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (no release) - HFH actuator
Art:
201302HFH Copied
Heavy duty s/steel
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (no release) - std actuator
Art:
201302A Copied
Standard
1/2" NPT
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (std release)
Art:
201002 Copied
Not included
1/2" NPT
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (std release) - flat actuator
Art:
201002F Copied
Flat
1/2" NPT
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (std release) - HF actuator
Art:
201002HF Copied
Heavy duty flexible
1/2" NPT
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (std release) - HFH actuator
Art:
201002HFH Copied
Heavy duty s/steel
1/2" NPT
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP ½NPT 24v (std release) - std actuator
Art:
201002A Copied
Standard
1/2" NPT
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP M20 110v (lid release)
Art:
201404 Copied
Not included
M20
Manual release lid only
110V ac
KLP nowy.tif
KLP M20 110v (lid release) - flat actuator
Art:
201404F Copied
Flat
M20
Manual release lid only
110V ac
KLP nowy.tif
KLP M20 110v (lid release) - HF actuator
Art:
201404HF Copied
Heavy duty flexible
M20
Manual release lid only
110V ac
KLP nowy.tif
KLP M20 110v (lid release) - HFH actuator
Art:
201404HFH Copied
Heavy duty s/steel
M20
Manual release lid only
110V ac
KLP nowy.tif
KLP M20 110v (lid release) - std actuator
Art:
201404A Copied
Standard
M20
Manual release lid only
110V ac
KLP nowy.tif
KLP M20 110v (no release)
Art:
201304 Copied
Not included
M20
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP M20 110v (no release) - flat actuator
Art:
201304F Copied
Flat
M20
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP M20 110v (no release) - HF actuator
Art:
201304HF Copied
Heavy duty flexible
M20
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP M20 110v (no release) - HFH actuator
Art:
201304HFH Copied
Heavy duty s/steel
M20
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP M20 110v (no release) - std actuator
Art:
201304A Copied
Standard
M20
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP M20 110v (std release)
Art:
201004 Copied
Not included
M20
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP M20 110v (std release) - flat actuator
Art:
201004F Copied
Flat
M20
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP M20 110v (std release) - HF actuator
Art:
201004HF Copied
Heavy duty flexible
M20
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP M20 110v (std release) - HFH actuator
Art:
201004HFH Copied
Heavy duty s/steel
M20
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP M20 110v (std release) - std actuator
Art:
201004A Copied
Standard
M20
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP M20 230v (lid release)
Art:
201407 Copied
Not included
M20
Manual release lid only
230V ac
KLP nowy.tif
KLP M20 230v (lid release) - flat actuator
Art:
201407F Copied
Flat
M20
Manual release lid only
230V ac
KLP nowy.tif
KLP M20 230v (lid release) - HF actuator
Art:
201407HF Copied
Heavy duty flexible
M20
Manual release lid only
230V ac
KLP nowy.tif
KLP M20 230v (lid release) - HFH actuator
Art:
201407HFH Copied
Heavy duty s/steel
M20
Manual release lid only
230V ac
KLP nowy.tif
KLP M20 230v (lid release) - std actuator
Art:
201407A Copied
Standard
M20
Manual release lid only
230V ac
KLP nowy.tif
KLP M20 230v (no release)
Art:
201307 Copied
Not included
M20
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP M20 230v (no release) - flat actuator
Art:
201307F Copied
Flat
M20
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP M20 230v (no release) - HF Actuator
Art:
201307HF Copied
Heavy duty flexible
M20
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP M20 230v (no release) - HFH Actuator
Art:
201307HFH Copied
Heavy duty s/steel
M20
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP M20 230v (no release) - std actuator
Art:
201307A Copied
Standard
M20
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP M20 230v (std release)
Art:
201007 Copied
Not included
M20
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP M20 230v (std release) - flat actuator
Art:
201007F Copied
Flat
M20
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP M20 230v (std release) - HF actuator
Art:
201007HF Copied
Heavy duty flexible
M20
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP M20 230v (std release) - HFH actuator
Art:
201007HFH Copied
Heavy duty s/steel
M20
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP M20 230v (std release) - std actuator
Art:
201007A Copied
Standard
M20
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP M20 24v (lid release)
Art:
201401 Copied
Not included
M20
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP M20 24v (lid release) - flat actuator
Art:
201401F Copied
Flat
M20
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP M20 24v (lid release) - HF actuator
Art:
201401HF Copied
Heavy duty flexible
M20
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP M20 24v (lid release) - HFH actuator
Art:
201401HFH Copied
Heavy duty s/steel
M20
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP M20 24v (lid release) - std actuator
Art:
201401A Copied
Standard
M20
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP M20 24v (no release)
Art:
201301 Copied
Not included
M20
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP M20 24v (no release) - flat actuator
Art:
201301F Copied
Flat
M20
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP M20 24v (no release) - HF actuator
Art:
201301HF Copied
Heavy duty flexible
M20
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP M20 24v (no release) - HFH actuator
Art:
201301HFH Copied
Heavy duty s/steel
M20
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP M20 24v (no release) - std actuator
Art:
201301A Copied
Standard
M20
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP M20 24v (std release)
Art:
201001 Copied
Not included
M20
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP M20 24v (std release) - flat actuator
Art:
201001F Copied
Flat
M20
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP M20 24v (std release) - HF actuator
Art:
201001HF Copied
Heavy duty flexible
M20
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP M20 24v (std release) - HFH actuator
Art:
201001HFH Copied
Heavy duty s/steel
M20
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP M20 24v (std release) - std actuator
Art:
201001A Copied
Standard
M20
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 110v (lid release)
Art:
201406 Copied
Not included
M23 12 Pole
Manual release lid only
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (lid release) - flat actuator
Art:
201406F Copied
Flat
M23 12 Pole
Manual release lid only
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (lid release) - HF actuator
Art:
201406HF Copied
Heavy duty flexible
M23 12 Pole
Manual release lid only
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (lid release) - HFH actuator
Art:
201406HFH Copied
Heavy duty s/steel
M23 12 Pole
Manual release lid only
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (lid release) - std actuator
Art:
201406A Copied
Standard
M23 12 Pole
Manual release lid only
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (no release)
Art:
201306 Copied
Not included
M23 12 Pole
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (no release) - flat actuator
Art:
201306F Copied
Flat
M23 12 Pole
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (no release) - HF actuator
Art:
201306HF Copied
Heavy duty flexible
M23 12 Pole
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (no release) - HFH actuator
Art:
201306HFH Copied
Heavy duty s/steel
M23 12 Pole
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (no release) - std actuator
Art:
201306A Copied
Standard
M23 12 Pole
No manual release fitted (blanked)
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (std release)
Art:
201006 Copied
Not included
M23 12 Pole
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (std release) - flat actuator
Art:
201006F Copied
Flat
M23 12 Pole
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (std release) - HF actuator
Art:
201006HF Copied
Heavy duty flexible
M23 12 Pole
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (std release) - HFH actuator
Art:
201006HFH Copied
Heavy duty s/steel
M23 12 Pole
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP QC M23 12way 110v (std release) - std actuator
Art:
201006A Copied
Standard
M23 12 Pole
Standard manual release lid and side
110V ac
KLP nowy.tif
KLP QC M23 12way 230v (lid release)
Art:
201409 Copied
Not included
M23 12 Pole
Manual release lid only
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (lid release) - flat actuator
Art:
201409F Copied
Flat
M23 12 Pole
Manual release lid only
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (lid release) - HF actuator
Art:
201409HF Copied
Heavy duty flexible
M23 12 Pole
Manual release lid only
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (lid release) - HFH actuator
Art:
201409HFH Copied
Heavy duty s/steel
M23 12 Pole
Manual release lid only
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (lid release) - std actuator
Art:
201409A Copied
Standard
M23 12 Pole
Manual release lid only
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (no release)
Art:
201309 Copied
Not included
M23 12 Pole
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (no release) - flat actuator
Art:
201309F Copied
Flat
M23 12 Pole
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (no release) - HF Actuator
Art:
201309HF Copied
Heavy duty flexible
M23 12 Pole
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (no release) - HFH Actuator
Art:
201309HFH Copied
Heavy duty s/steel
M23 12 Pole
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (no release) - std actuator
Art:
201309A Copied
Standard
M23 12 Pole
No manual release fitted (blanked)
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (std release)
Art:
201009 Copied
Not included
M23 12 Pole
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (std release) - flat actuator
Art:
201009F Copied
Flat
M23 12 Pole
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (std release) - HF actuator
Art:
201009HF Copied
Heavy duty flexible
M23 12 Pole
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (std release) - HFH actuator
Art:
201009HFH Copied
Heavy duty s/steel
M23 12 Pole
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP QC M23 12way 230v (std release) - std actuator
Art:
201009A Copied
Standard
M23 12 Pole
Standard manual release lid and side
230V ac
KLP nowy.tif
KLP QC M23 12way 24v (lid release)
Art:
201403 Copied
Not included
M23 12 Pole
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (lid release) - flat actuator
Art:
201403F Copied
Flat
M23 12 Pole
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (lid release) - HF actuator
Art:
201403HF Copied
Heavy duty flexible
M23 12 Pole
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (lid release) - HFH actuator
Art:
201403HFH Copied
Heavy duty s/steel
M23 12 Pole
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (lid release) - std actuator
Art:
201403A Copied
Standard
M23 12 Pole
Manual release lid only
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (no release)
Art:
201303 Copied
Not included
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (no release) - flat actuator
Art:
201303F Copied
Flat
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (no release) - HF actuator
Art:
201303HF Copied
Heavy duty flexible
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (no release) - HFH actuator
Art:
201303HFH Copied
Heavy duty s/steel
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (no release) - std actuator
Art:
201303A Copied
Standard
M23 12 Pole
No manual release fitted (blanked)
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (std release)
Art:
201003 Copied
Not included
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (std release) - flat actuator
Art:
201003F Copied
Flat
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (std release) - HF actuator
Art:
201003HF Copied
Heavy duty flexible
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (std release) - HFH actuator
Art:
201003HFH Copied
Heavy duty s/steel
M23 12 Pole
Standard manual release lid and side
24V ac/dc
KLP nowy.tif
KLP QC M23 12way 24v (std release) - std actuator
Art:
201003A Copied
Standard
M23 12 Pole
Standard manual release lid and side
24V ac/dc

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
