IDEM KLM-P2L locking switch

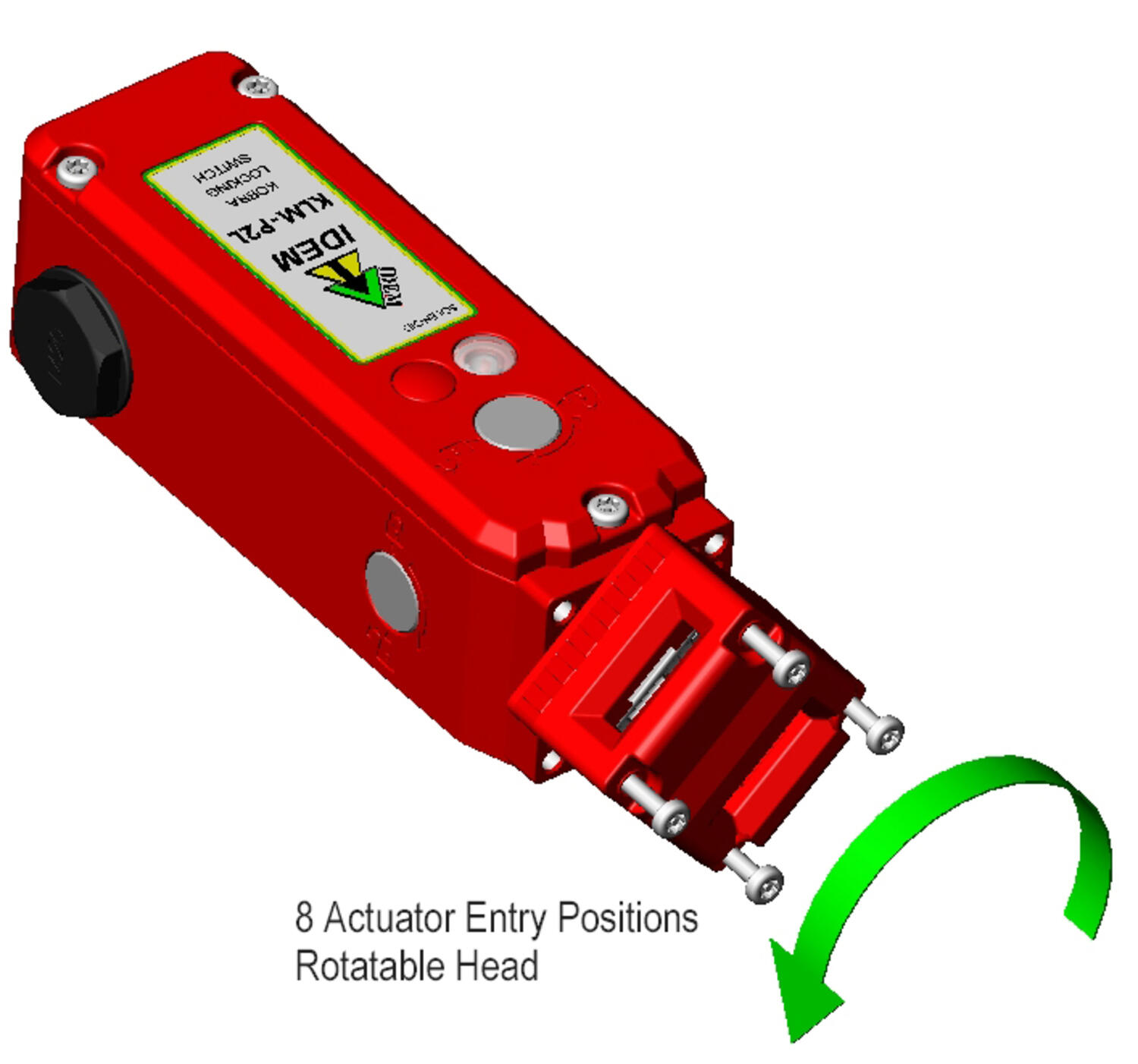

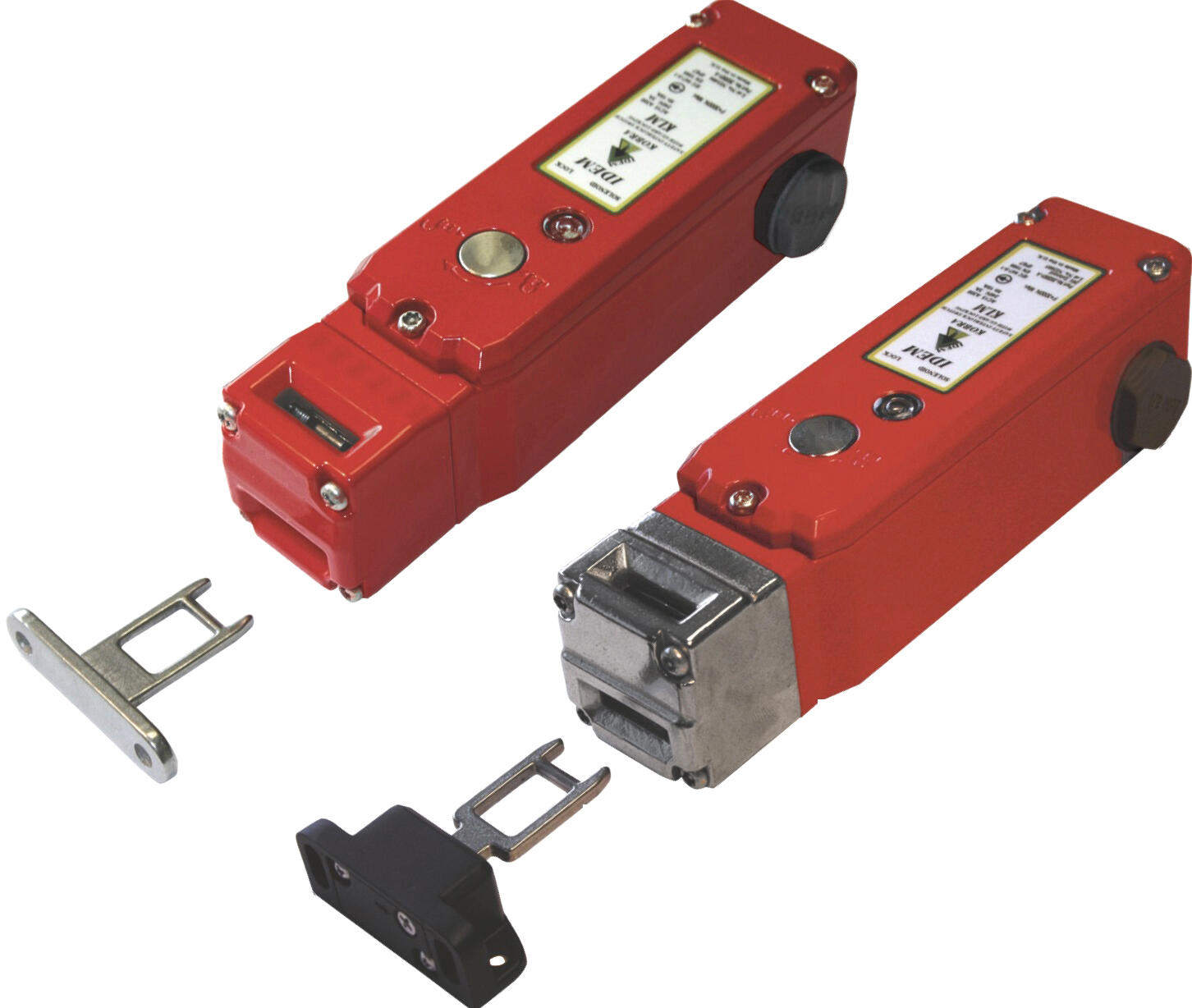

Locking switch with locking system SAMOCK-KLM-P2L, made of cast metal, with locking force up to 2000N. The switch is completely metal and, as an option, is also available with a head made of stainless steel. The switch has 1 LED, which shows the status of the solenoid. It also has a rotatable head, which provides 8 key entry positions for easy and flexible mounting.

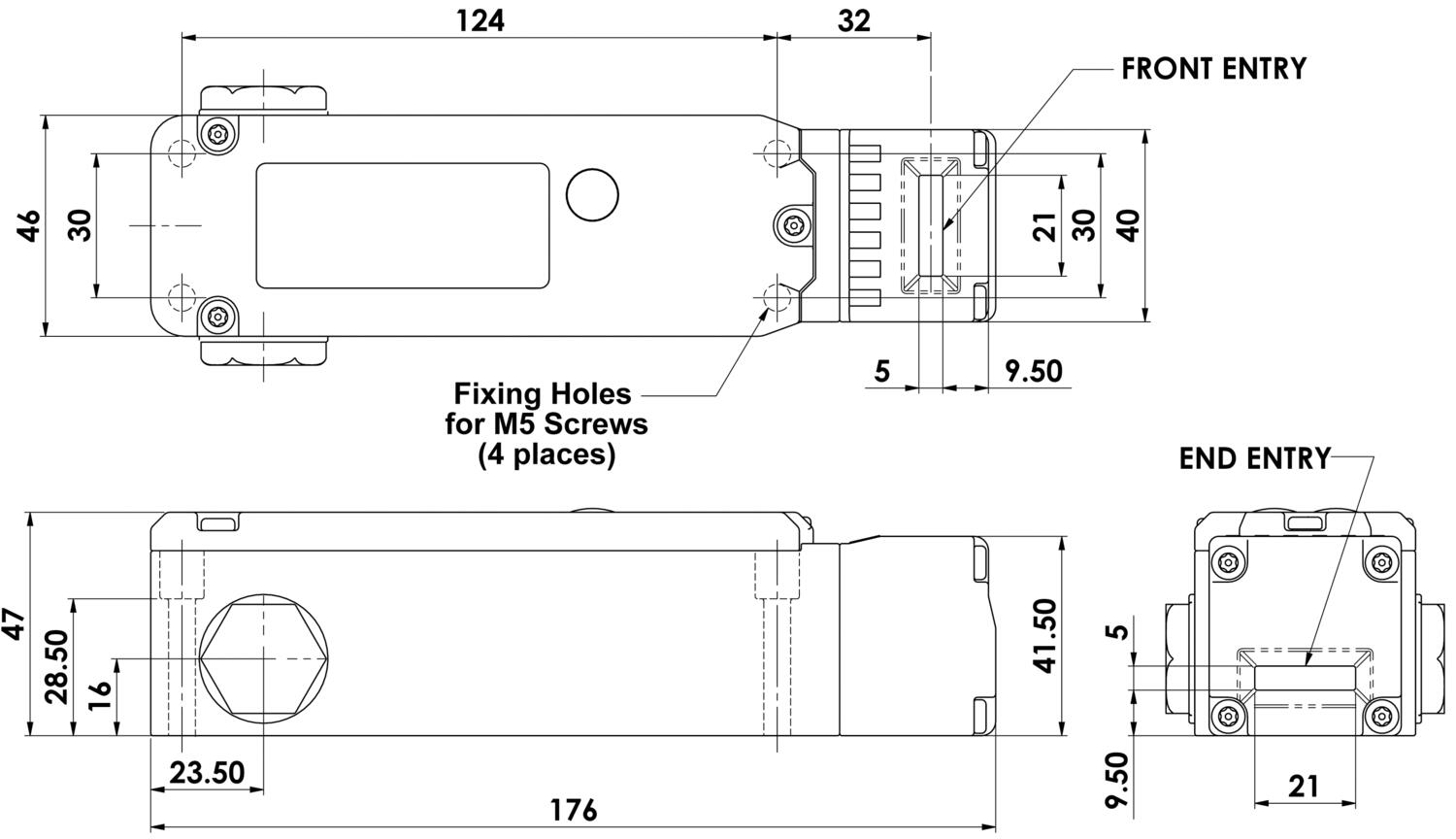

The KLM-P2L breaker has a standard distance between the fixing holes - 30 mm.
The switch is available in the version: voltage locking.
- Electric locking
- 8 key entry positions
- LED indicator
- Locking force up to 2000 N
- Completely metal
Selected variant
Selected variant
Specifications
| Actuator | Not included |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
| Central Material | Die cast metal |
| Conduit entry | M20 |
| Contact Type | 2NC safety circuits, 1NC 1NO auxiliary circuits - actuator/door status |
| Contacts | 3NC 1NO |
| Head material | Die cast metal |
| Holding force (F1Max) | 3000 |
| IP Class | IP67 |
| LED Display | LED status of solenoid power |
| Maximum approach / withdrawal speed | 600 |
| Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
| Mounting | 4 x M5 |
|---|---|
| MTTFd | 356 years |
| Operating temperature | -25..40°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| Rated insulation voltage | 600V ac |
| SIL | 3 acc. EN62061 |
| Solenoid Voltage | 24V dc |
| Thermal current (lth) | 5 |
| Travel for positive opening | 10 |
| Utilisation category | AC15, A300, 3 A |
| Withstand voltage | 2500V ac |
Product description
Locking switch with locking system SAMOCK-KLM-P2L, made of cast metal, with locking force up to 2000N. The switch is completely metal and, as an option, is also available with a head made of stainless steel. The switch has 1 LED, which shows the status of the solenoid. It also has a rotatable head, which provides 8 key entry positions for easy and flexible mounting.
The KLM-P2L breaker has a standard distance between the fixing holes - 30 mm.
The switch is available in the version: voltage locking.
