IDEM - Stainless steel IP69K guard locking switch KLT-SS-RFID
IDEM's KLT-SS-RFID Series Guard locking switches are tongue type safety switches incorporating traditional mechanical anti-tamper tongue technology (featuring IDEM's patented cam system) but also incorporating uniquely coded RFID non contact coded sensor technology in one device.
They interlock and hold closed guard doors to protect operators from moving or hazardous machinery. They are suited to where a high anti-tamper technology is required to prevent accidental or deliverate attempts to by-pass they interlock.
Both technologies must be satisfied to enable the machine to be started.
They have a mirror polished Stainless Steel 316 body design and have been developed with a maximum holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.

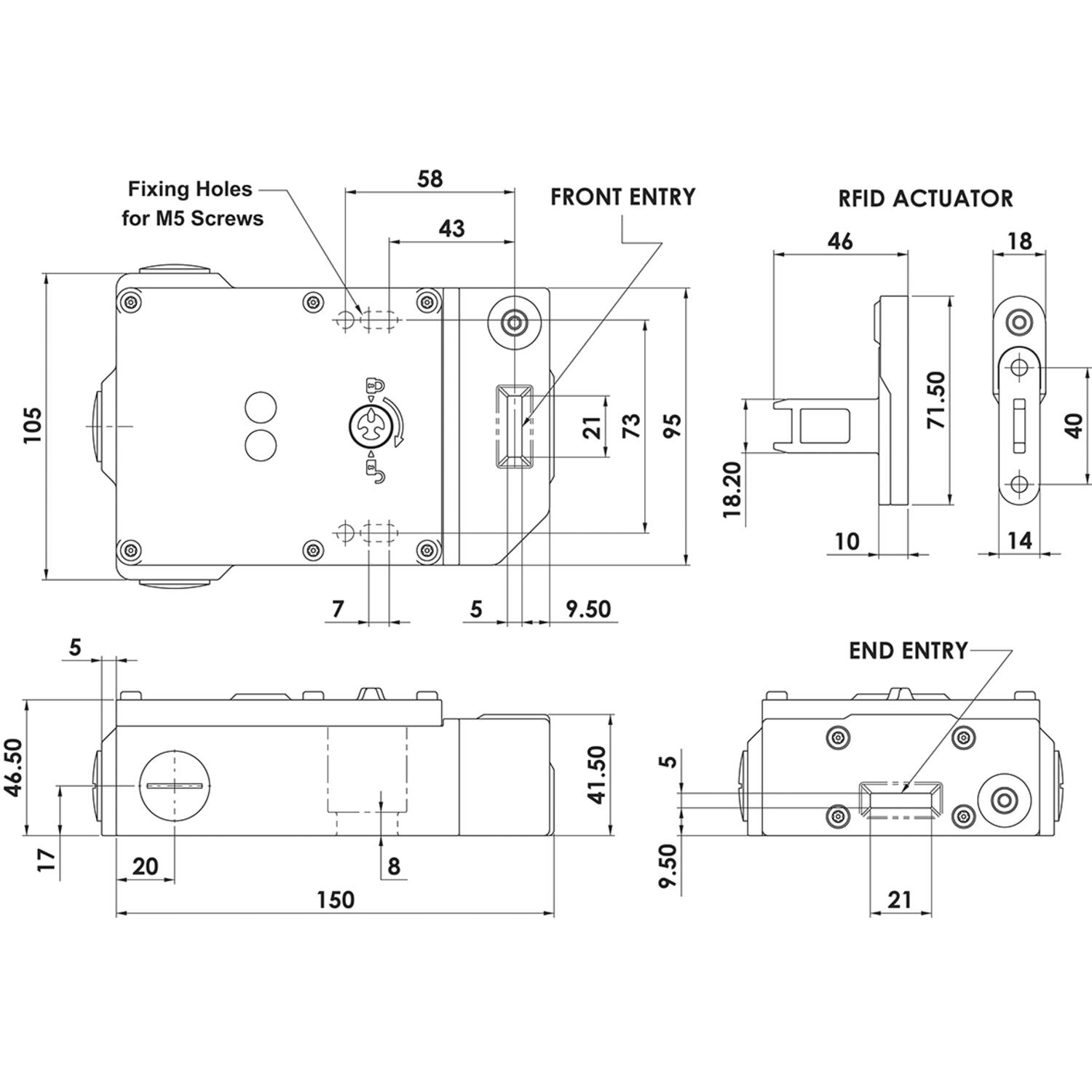

They have a low profile and fixing holes are on an industry standard 73mm centre to enable easy retrofitting to new or existing guards (or where extra anti-tamper is required).
- Anti-tamper tongue technology
- Mirror polished Ra10 Stainless Steel 316
- Will fit on 73mm fixing centres
- IP69K
- LED diagnostics for Solenoid, lock/faults
Selected variant
Selected variant
Specifications
| Actuator | Uniquely coded actuator |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
| Central Material | Stainless steel 316 |
| Conduit entry | M20 |
| Contact Type | 4NC safety contacts, 1NO auxiliary PNP signal (guard open), 1NO auxiliary PNP signal (guard locked) |
| Contacts | 4NC 2NO |
| Head material | Stainless steel 316 |
| Holding force (F1Max) | 3000 |
| Integrated LED indication | Yes |
| IP Class | IP69K |
| LED Display | LED1 red solenoid power on, LED2 green switch locked, LED2 yellow diagnostic fault |
| Manual Operation | Manual release lid only |
| Maximum approach / withdrawal speed | 600 |
| Mechanical reliability B10d | 2.5 x 10⁶ operations at 100mA load |
|---|---|
| Mounting | 2 x M5 |
| MTTFd | 356 years |
| Operating temperature | -25°C ... +40°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | upp till Ple |
| Rated insulation voltage | 600V ac |
| SIL | upp till SIL3 |
| Solenoid Voltage | 24V dc |
| Thermal current (lth) | 5 |
| Travel for positive opening | 10 |
| Weight | 2110 |
| Withstand voltage | 2500V ac |
Product description
IDEM's KLT-SS-RFID Series Guard locking switches are tongue type safety switches incorporating traditional mechanical anti-tamper tongue technology (featuring IDEM's patented cam system) but also incorporating uniquely coded RFID non contact coded sensor technology in one device.
They interlock and hold closed guard doors to protect operators from moving or hazardous machinery. They are suited to where a high anti-tamper technology is required to prevent accidental or deliverate attempts to by-pass they interlock.
Both technologies must be satisfied to enable the machine to be started.
They have a mirror polished Stainless Steel 316 body design and have been developed with a maximum holding force of 2000N to keep medium to large guard doors closed until hazards have been removed.
IP69K enclosure protection is maintained by a double seal lid gasket design and metal fixings.
They have a low profile and fixing holes are on an industry standard 73mm centre to enable easy retrofitting to new or existing guards (or where extra anti-tamper is required).
