KÜBLER

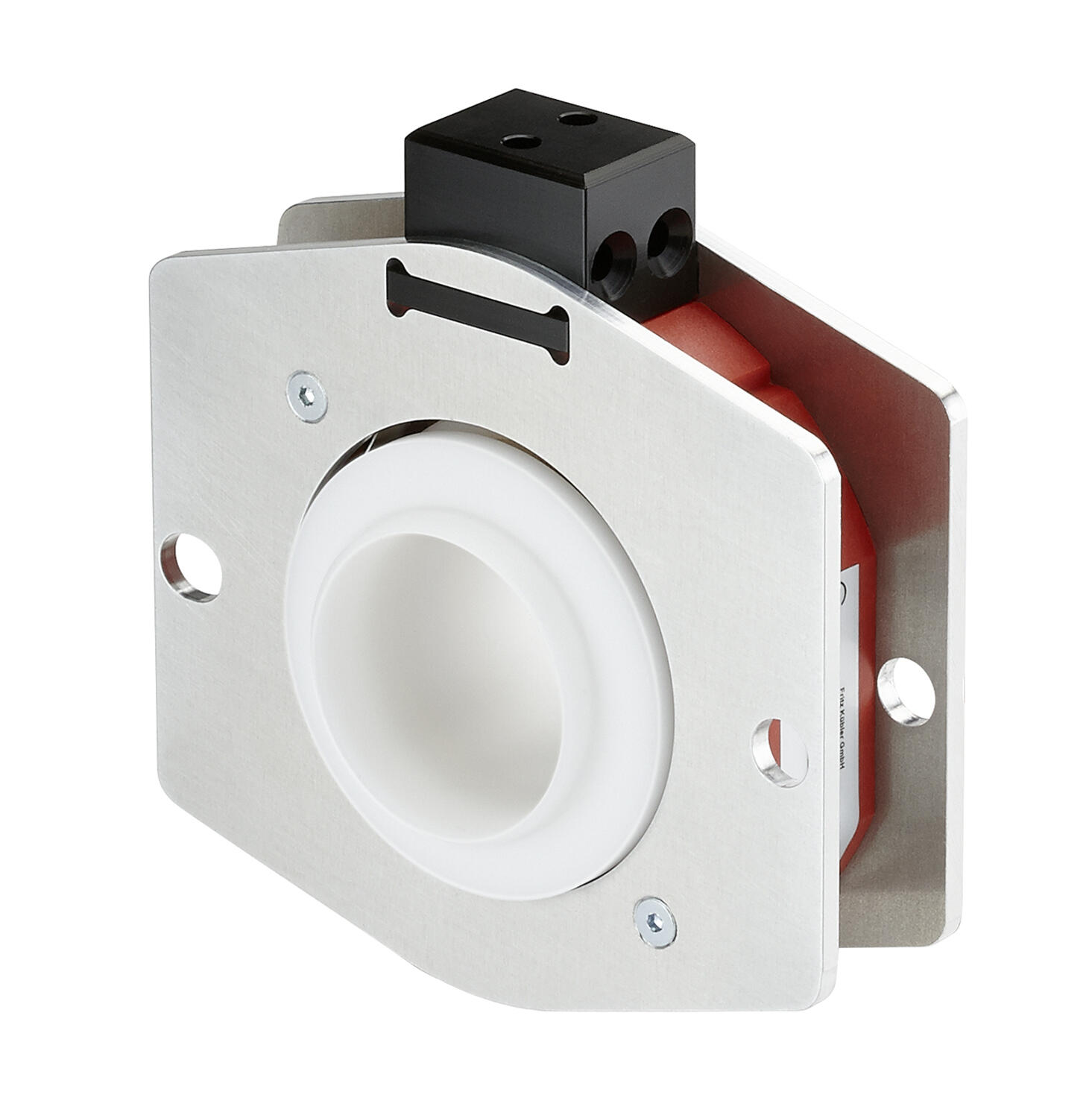

Kubler Slip ring SR085B
SR085B is a cost-effective slip ring without bearings. Its flexible Modular System provides a wide range of customer-specific applications. SR085B is used to transfer data or power from a stationary to a rotating platform.
SR085B application area: Revolving doors, rotating tables, rotating stands, packaging, machines etc.
- Compact modular system
- Speed max. 200 rpm
- Lifespan 500 million revolutions
- two-chamber system
Selected variant
Slip ring 20mm, 4 channels, 16A 240V
Art:
Selected variant
Specifications
| Contact Resistance Channel | 1 |
|---|---|
| Dielectric Strength | 1 |
| Hollow Shaft Diameter Max | 34 |
| IP Class | IP40 |
| Life span | 100000000 |
| Speed OF Rotation | 200 |
| Temperature range from | 0 |
| Temperature range to | 75 |
Downloads
Product description
SR085B is a cost-effective slip ring without bearings. Its flexible Modular System provides a wide range of customer-specific applications. SR085B is used to transfer data or power from a stationary to a rotating platform.
SR085B application area: Revolving doors, rotating tables, rotating stands, packaging, machines etc.
