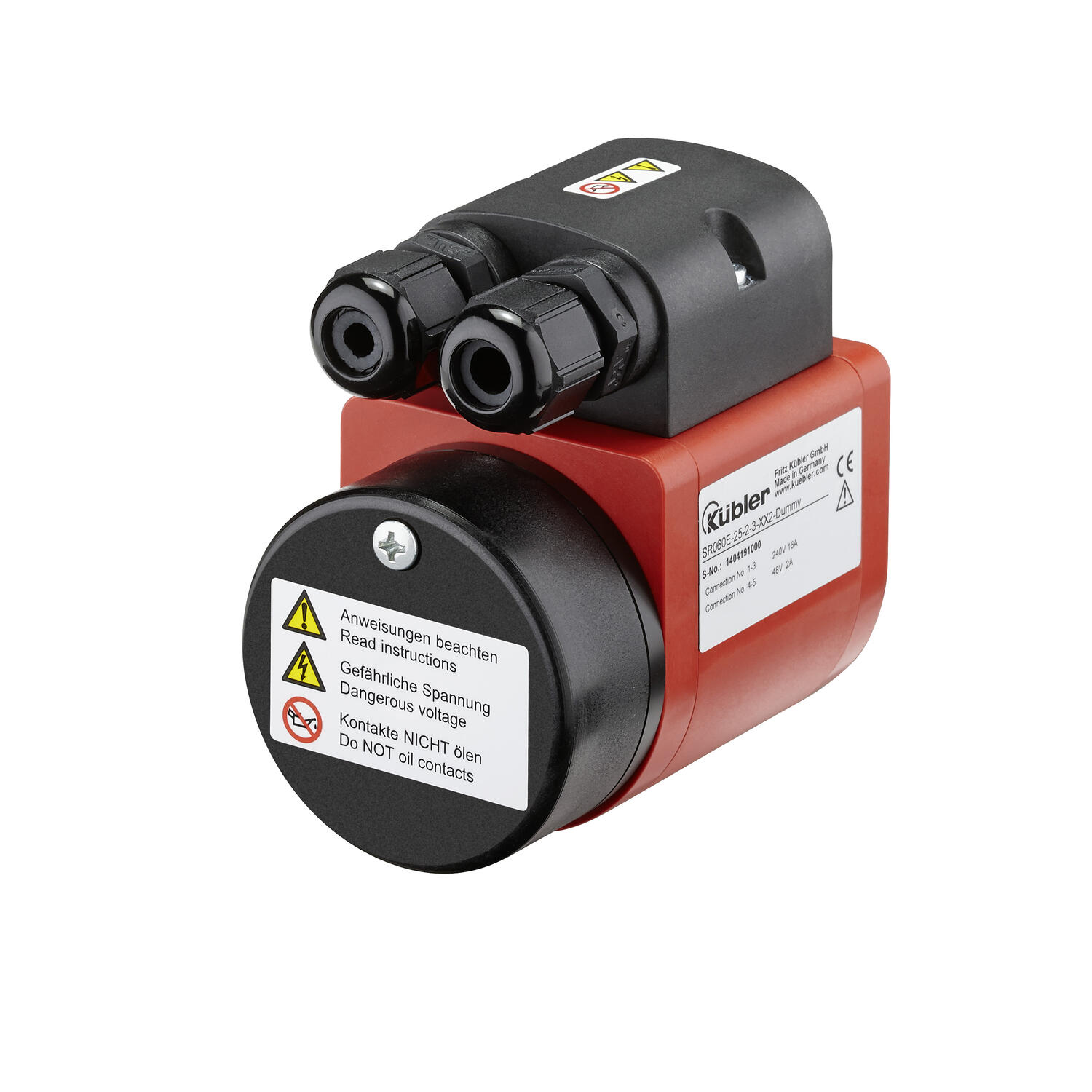

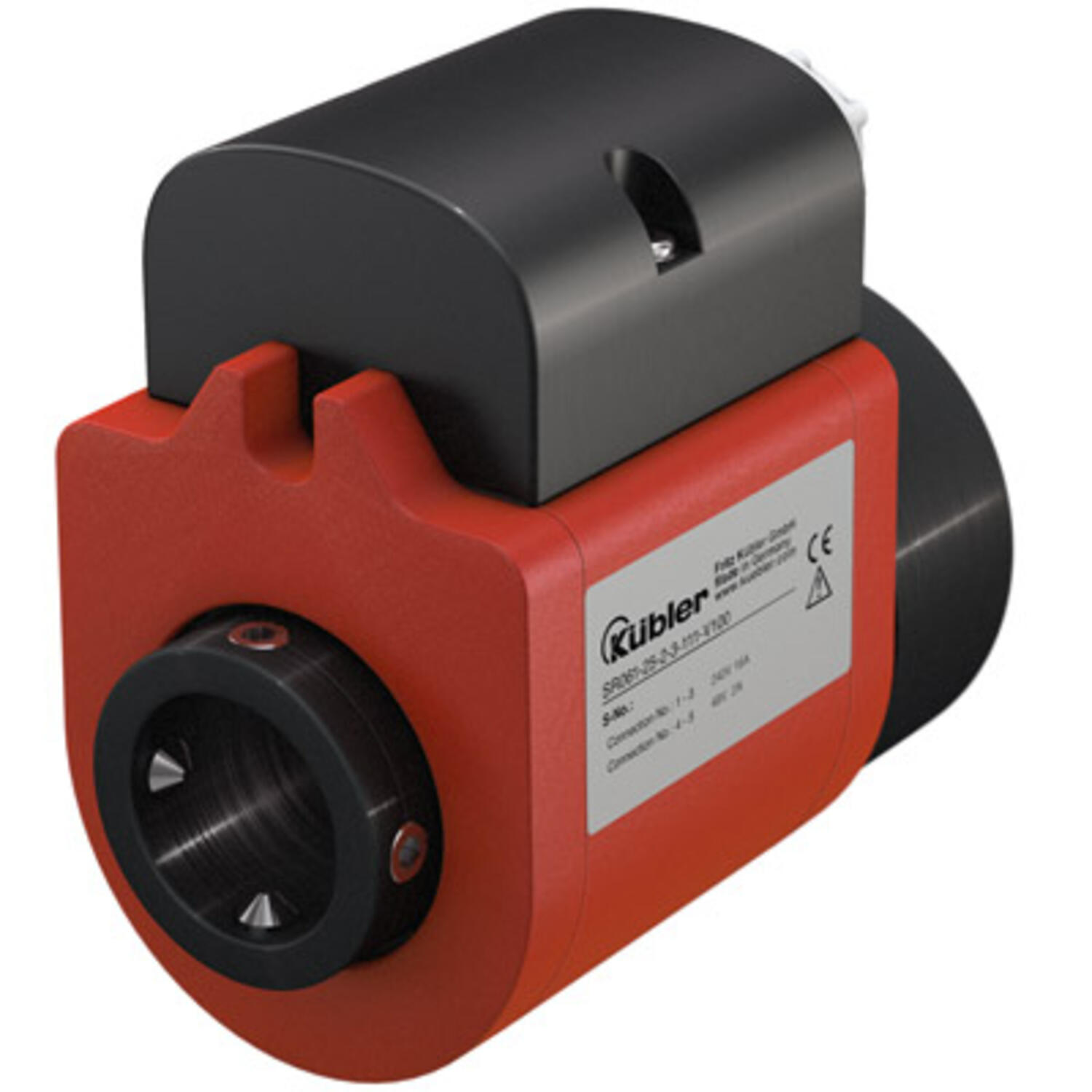

Kubler Slip ring SR060E
SR060E is a compact slip ring for up to 3 power and 2 data transmissions from a stationary to a rotating platform. The power and data transmission takes place securely via trailer contacts.
New innovative contact materials have a long service life and extremely little maintenance during operation. The round shape with smooth surfaces and a high level of protection allow easy cleaning.

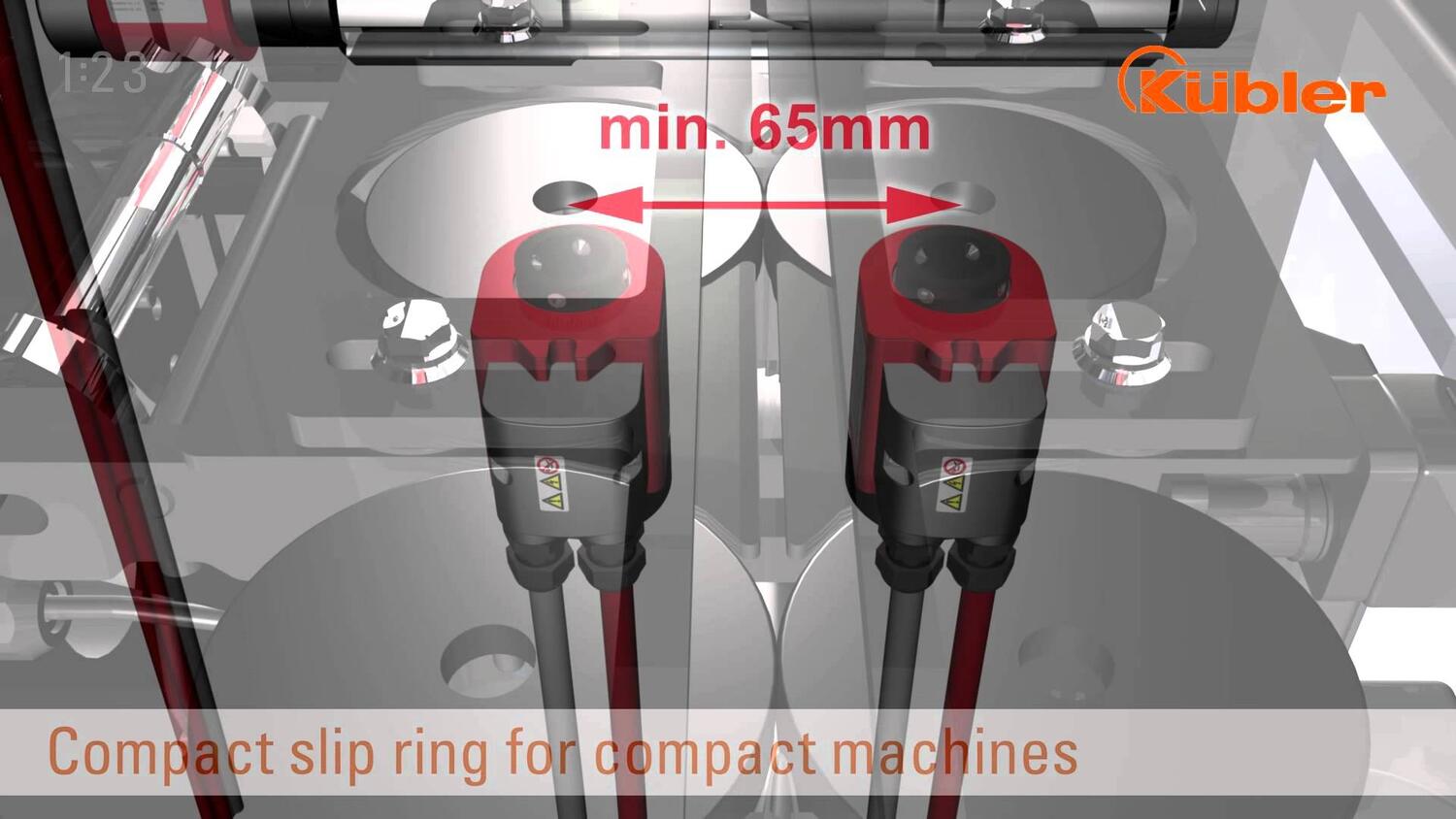

Examples of applications: packaging machines, textile machines, robots and handling equipment, rotating tables, etc.
- Standard slipring
- Life span 50 million revolutions
- Easily accessible contacts
- IP64
Selected variant
Selected variant
Specifications
| Contact Resistance Channel | 1 |
|---|---|
| Contact Resistance Data Channel | 0.1 |
| Dielectric Strength | 1000 |
| Hollow Shaft Diameter Max | 25 |
| Insulation Resistance | 10³ Ohm(500VDC) |
| IP Class | IP64 |
| Life span | 500000000 |
| Power Load Max | 16 |
|---|---|
| Signal load | 2 |
| Speed max | 500 |
| Temperature range from | 0 |
| Temperature range to | 75 |
| Voltage Input max | 240 |
Product description
SR060E is a compact slip ring for up to 3 power and 2 data transmissions from a stationary to a rotating platform. The power and data transmission takes place securely via trailer contacts.
New innovative contact materials have a long service life and extremely little maintenance during operation. The round shape with smooth surfaces and a high level of protection allow easy cleaning.
Examples of applications: packaging machines, textile machines, robots and handling equipment, rotating tables, etc.
