DUELCO
Duelco - NST-2004 Safety Relay
One of the most common relays in our safety relay range. Suitable for most applications including switches, light curtains and non contact switches. Transistor output for PLC monitoring.
- Safety Category 4 (PLe)
- 3 NO safety outputs
- 1 transistor output or 1 NC contact
- Status/fault indication via LEDs
- Short circuit monitoring
Selected variant
Selected variant
Specifications
| Approvals | CE |
|---|---|
| IP Class Connection | IP20 |
| IP Class Housing | IP40 |
| Lifespan Mechanical | > 10 million |
| PL | e (EN ISO 13849-1) |

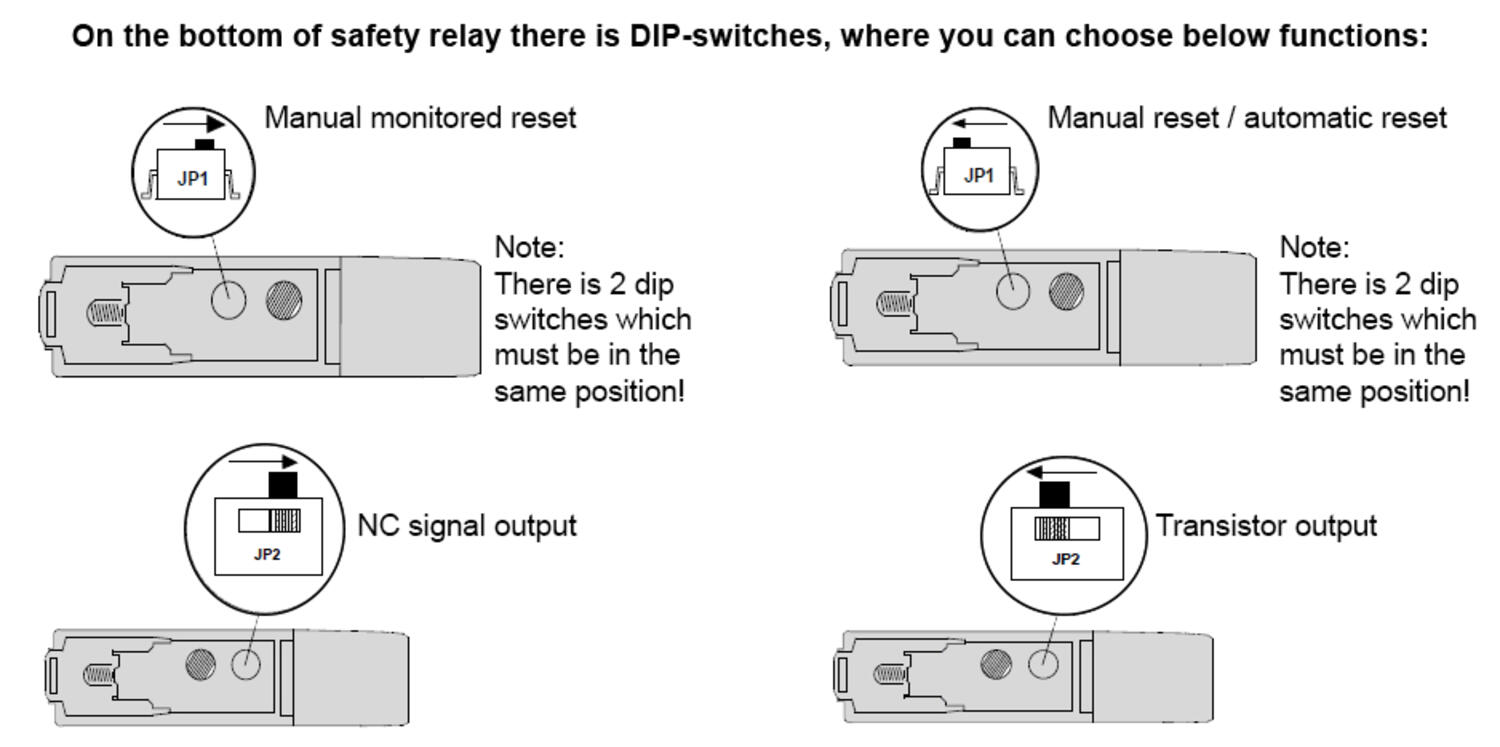

| Reset type | Automatic/manual, Manual monitored |
| Safety category | 4 |
| Safety outputs NO | 3 |
| Signal output NC | 1 |
|---|---|
| Supply voltage | 24 V DC |
| Temperature range from | -25 |
| Temperature range to | 60 |
| Tolerance | ±10% |
| Width | 22.5 |
Product description
One of the most common relays in our safety relay range. Suitable for most applications including switches, light curtains and non contact switches. Transistor output for PLC monitoring.
