ASO SAFETY SOLUTIONS

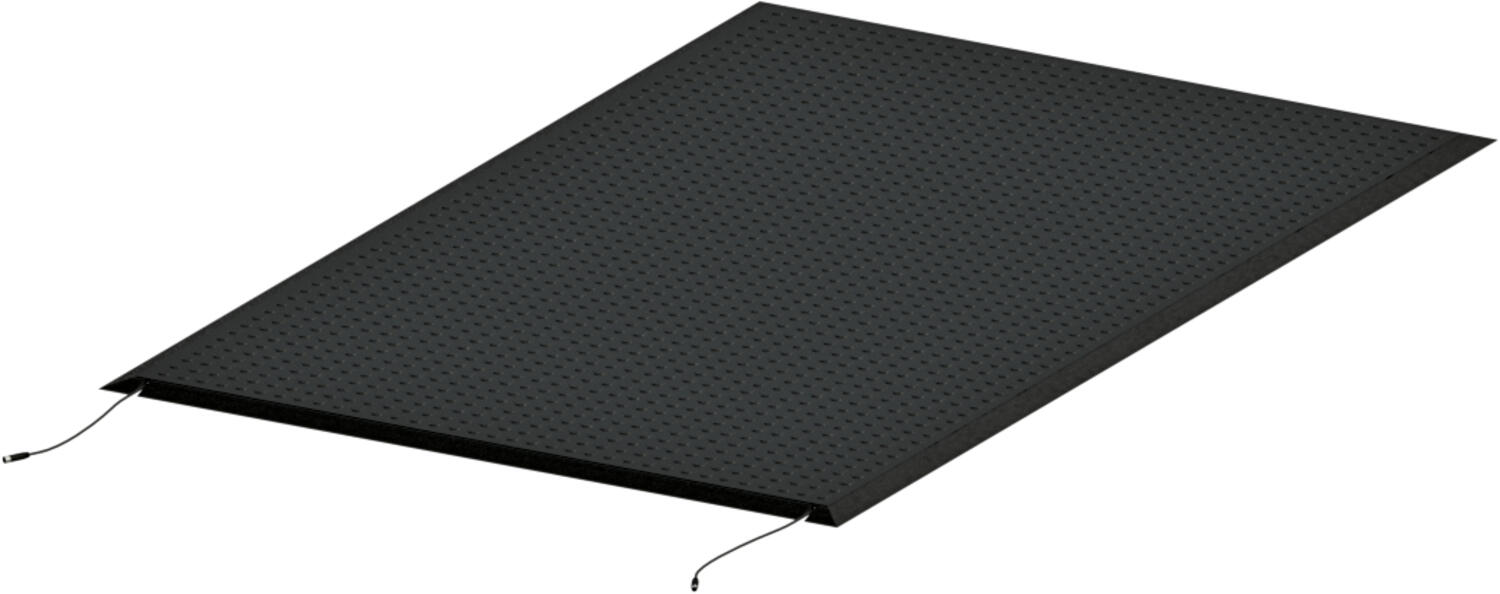

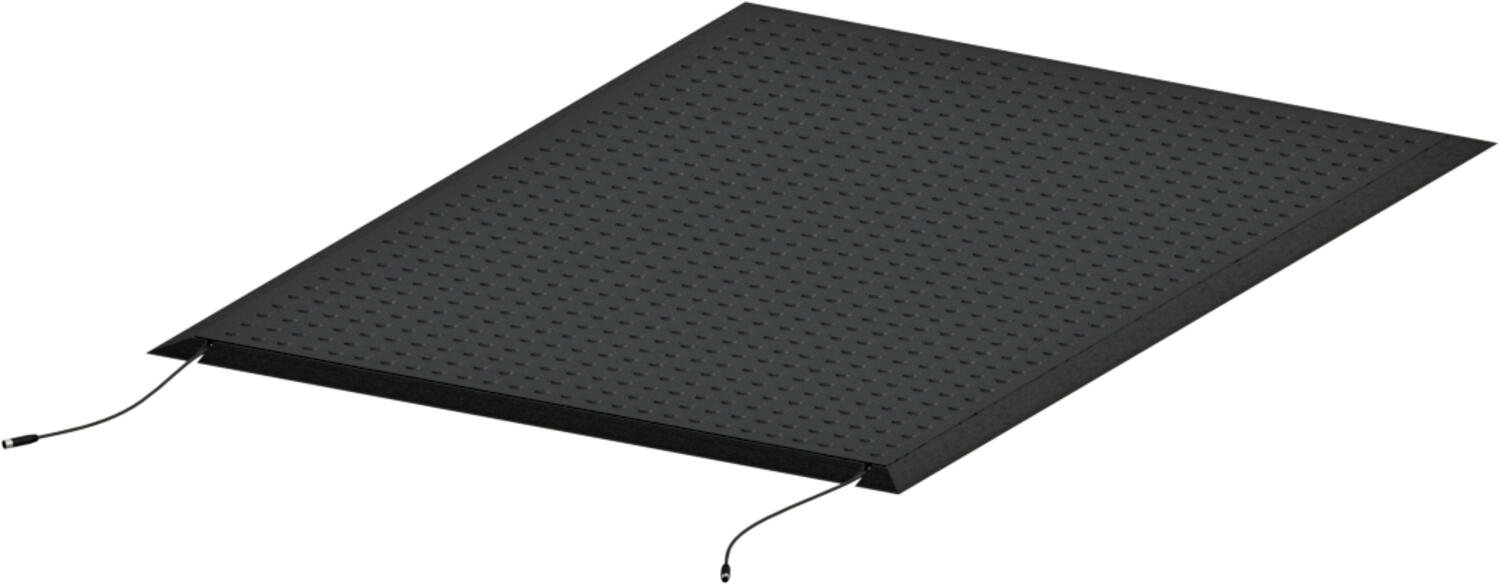

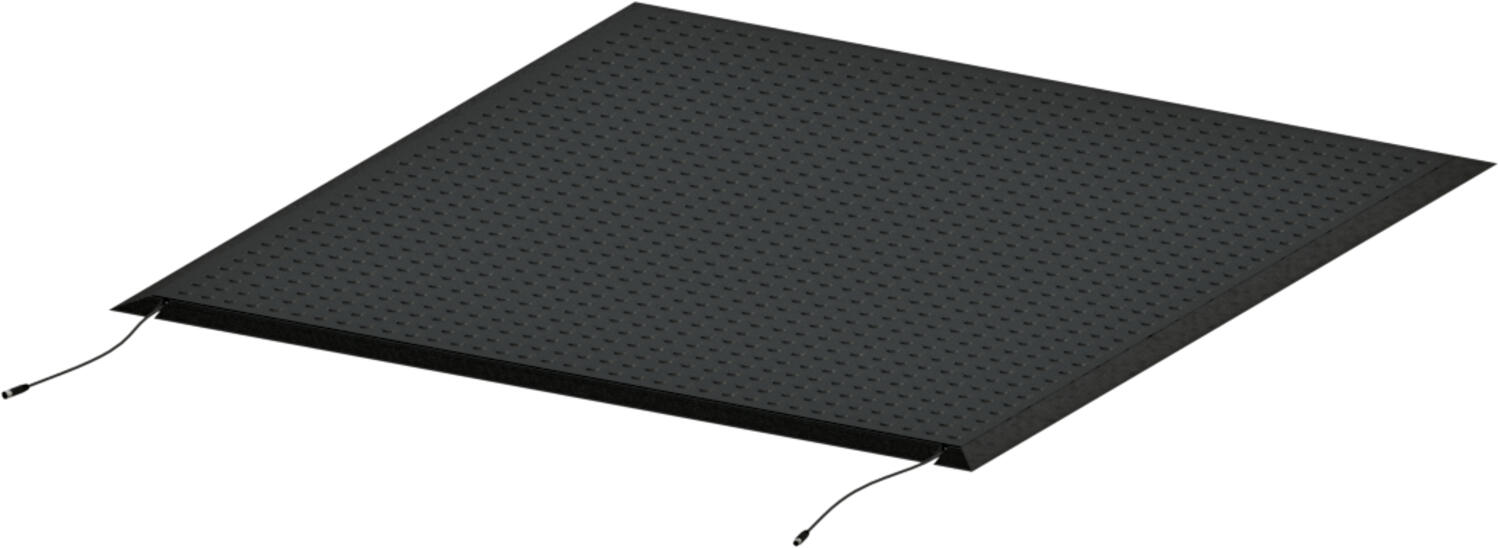

ASO Safety Mats
ASO's SENTIR safety mats are used to protect dangerous areas in industry and production. Stepping on the mat triggers an immediate "stop" to prevent people from getting too close to, say, a machine and injuring themselves.
A single composite unit in polyurethane guarantees impermeability to oils, water and dirt. The surface is also designed with patterns to minimize the risk of slipping. Surfaces in aluminum or high-quality steel can be used in areas where high mechanical demands are placed on the safety mat.
Customized solutions are a great opportunity and it is possible to get the safety mat in different shapes and colors, with different breaking zones, with or without led lighting, built-in ramp and much more. Get in touch with us and we will come up with a solution just for you!
- Resistant to chemicals and dust
- IP65
- Can handle up to 2000 N
- Long life, up to 6 million activations
- Customisable as required
Selected variant
Selected variant
Specifications
| Activation weight min | ca 150 N |
|---|---|
| Current max | 0.1 |
| IP Class | IP65 |
| Response Time | 25 |
| Supply Voltage | 24 |
| Temperature range from | -10 |
| Temperature range to | 55 |
| Weight | 16.6 |
Product description
ASO's SENTIR safety mats are used to protect dangerous areas in industry and production. Stepping on the mat triggers an immediate "stop" to prevent people from getting too close to, say, a machine and injuring themselves.
A single composite unit in polyurethane guarantees impermeability to oils, water and dirt. The surface is also designed with patterns to minimize the risk of slipping. Surfaces in aluminum or high-quality steel can be used in areas where high mechanical demands are placed on the safety mat.
Customized solutions are a great opportunity and it is possible to get the safety mat in different shapes and colors, with different breaking zones, with or without led lighting, built-in ramp and much more. Get in touch with us and we will come up with a solution just for you!
