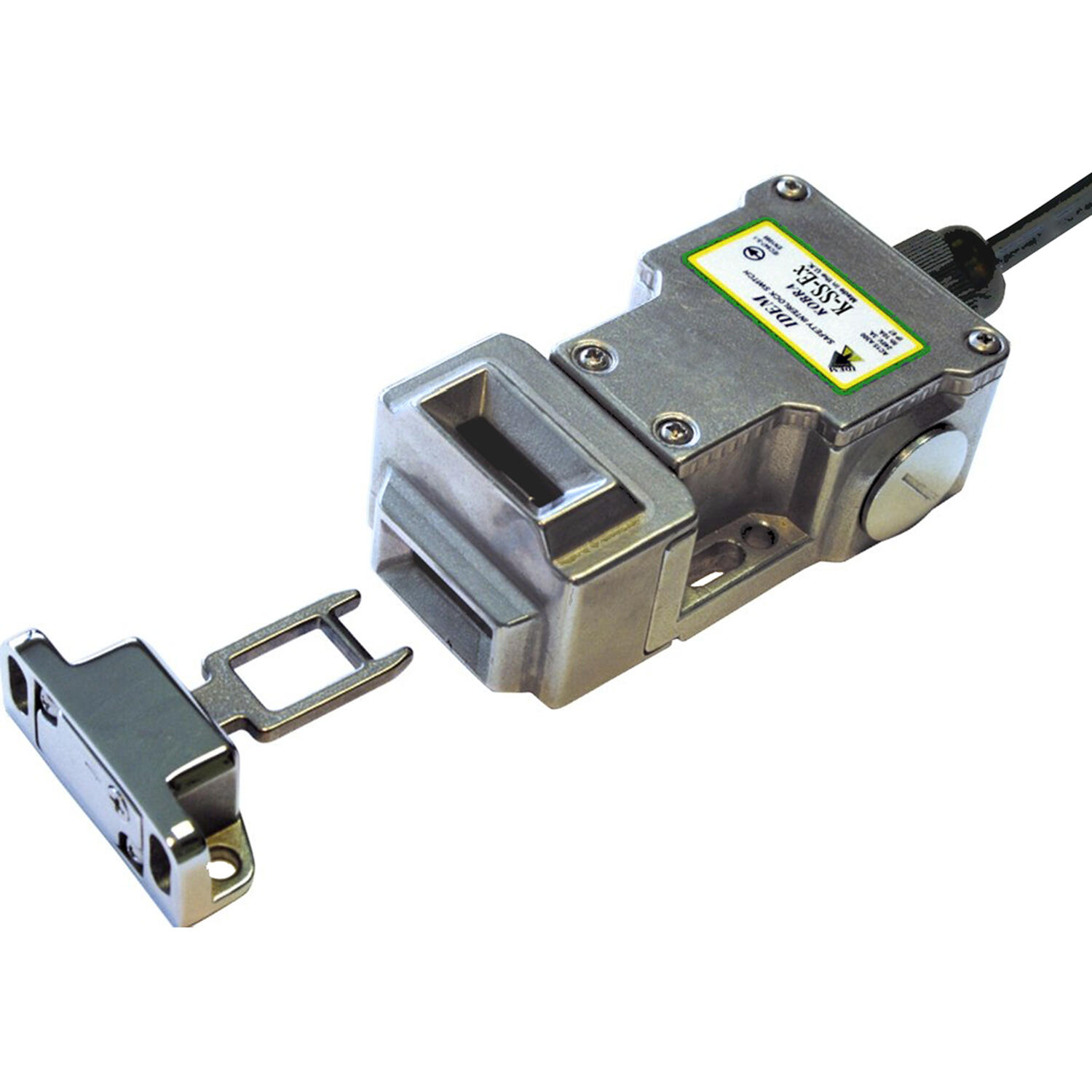

IDEM Stainless steel IP69K safety interlock switch K-SS
IDEM’s HYGIECAM Series of Interlock Switches have a rugged Stainless Steel 316 body and have
been designed to cope with the rigorous applications of the Food Processing, Pharmaceutical,
Packaging and Petro-Chemical Industries.
They have IP69K enclosure protection (maintained by a double seal lid gasket and seals) and can be
high pressure hosed with detergent at high pressure and high temperature.

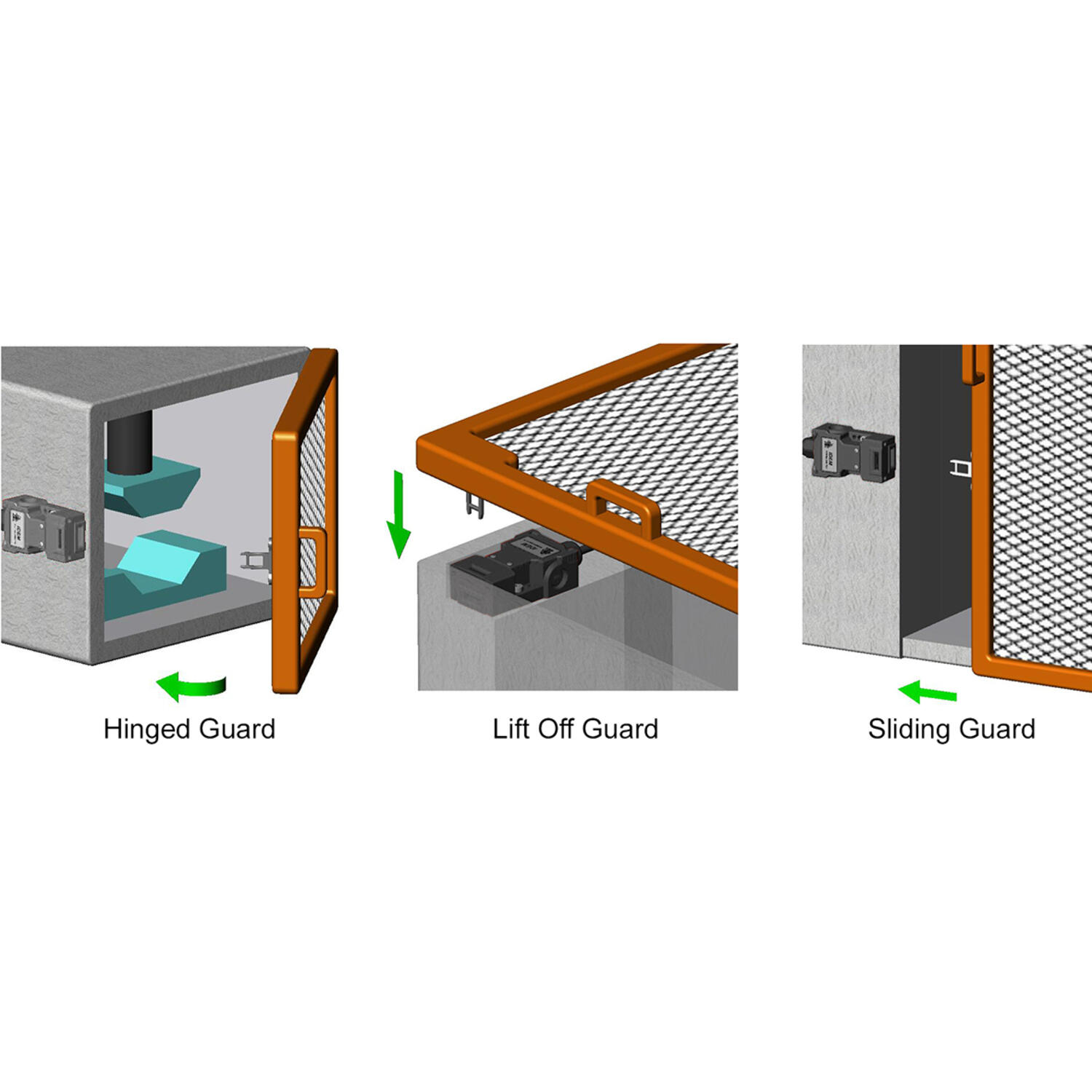

Designed to fit to the leading edge of sliding, hinged or lift off machine guards. They provide a forced
disconnect of the safety contacts at the withdrawal of the actuator and have an anti-tamper mechanism.
The head can be rotated to give 4 actuator entry positions. For extra durability, Flexible Actuators are
available.
Contact blocks are replaceable with optional explosion proof versions.
They are sealed to IP69K and survive most caustic wash down solutions.
The head can be rotated to give 4 actuator entry positions.

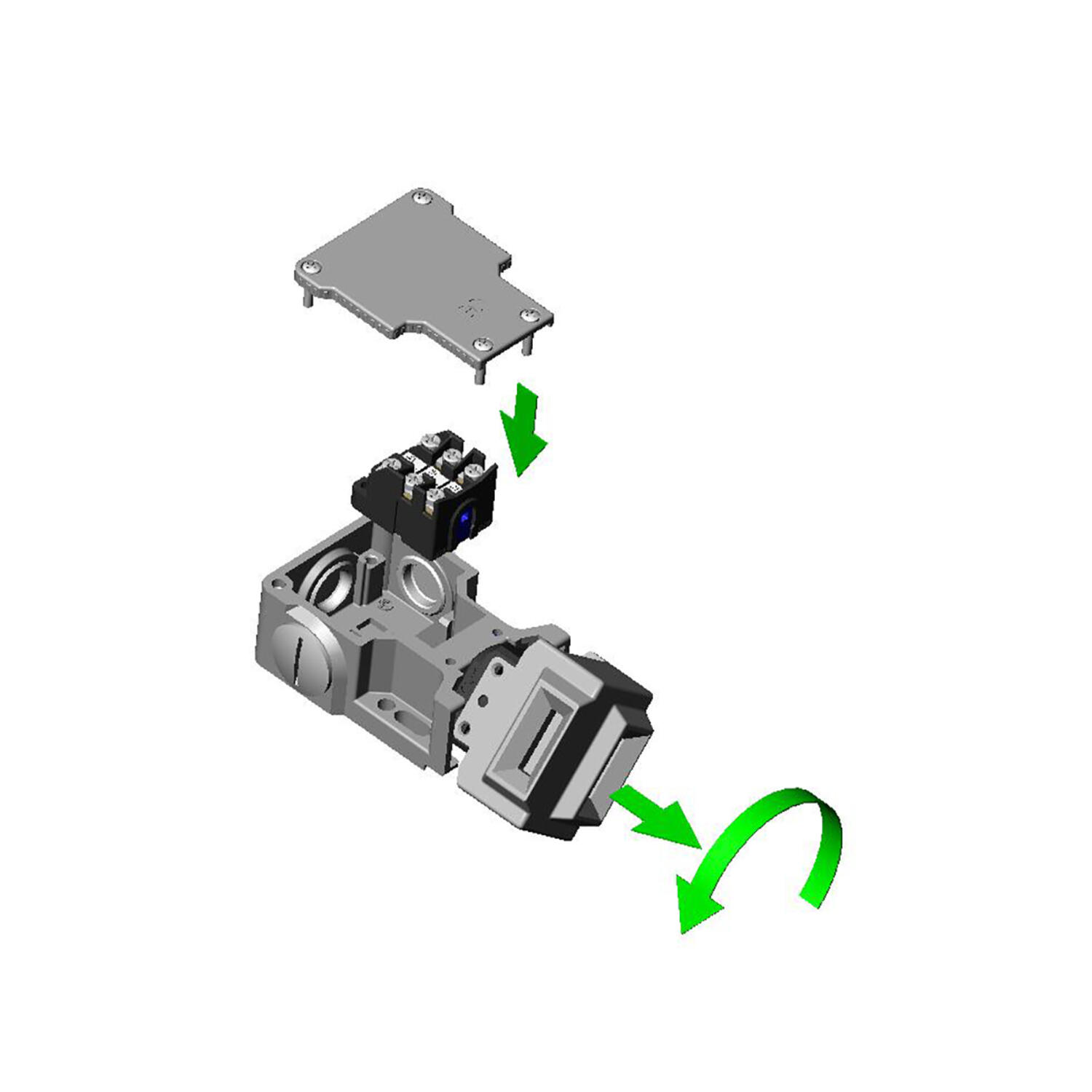

Designed with a removable lid to fit replaceable contact blocks.
For extra durability flexible actuators are available.
- Universal fitting - established footprint

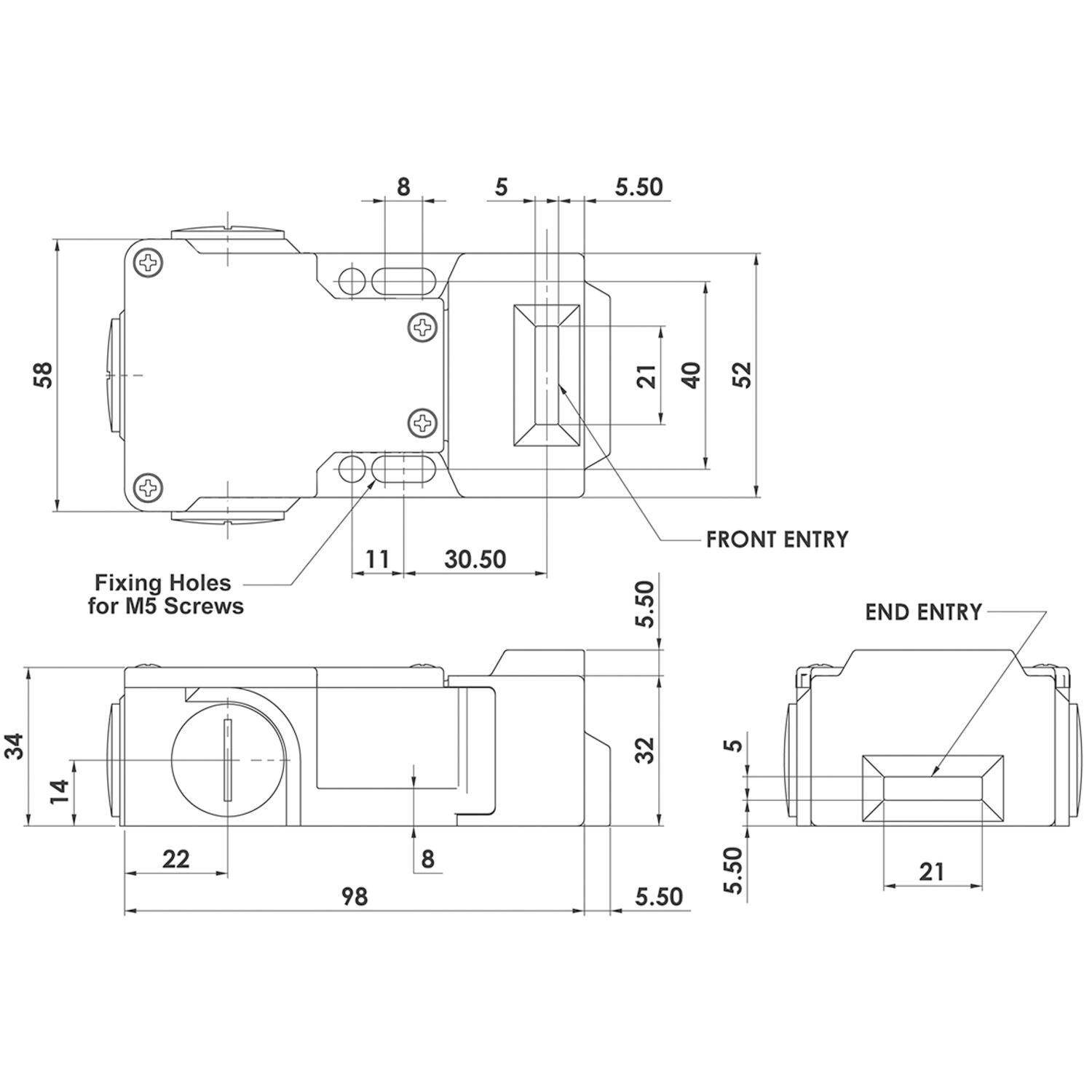

- 52mm wide x 99mm long
- Replaceable contact blocks
- Head rotates to give 4 actuator entry points
- Suitable for most general applications
Selected variant
Selected variant
Specifications
| Actuator | Not included |
|---|---|
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
| Approvals | ISO 14119, EN60947-5-1, EN60204-1, ISO 13849-1, EN62061, UL 508 |
| Atex approved | No |
| Conduit entry | M20 |

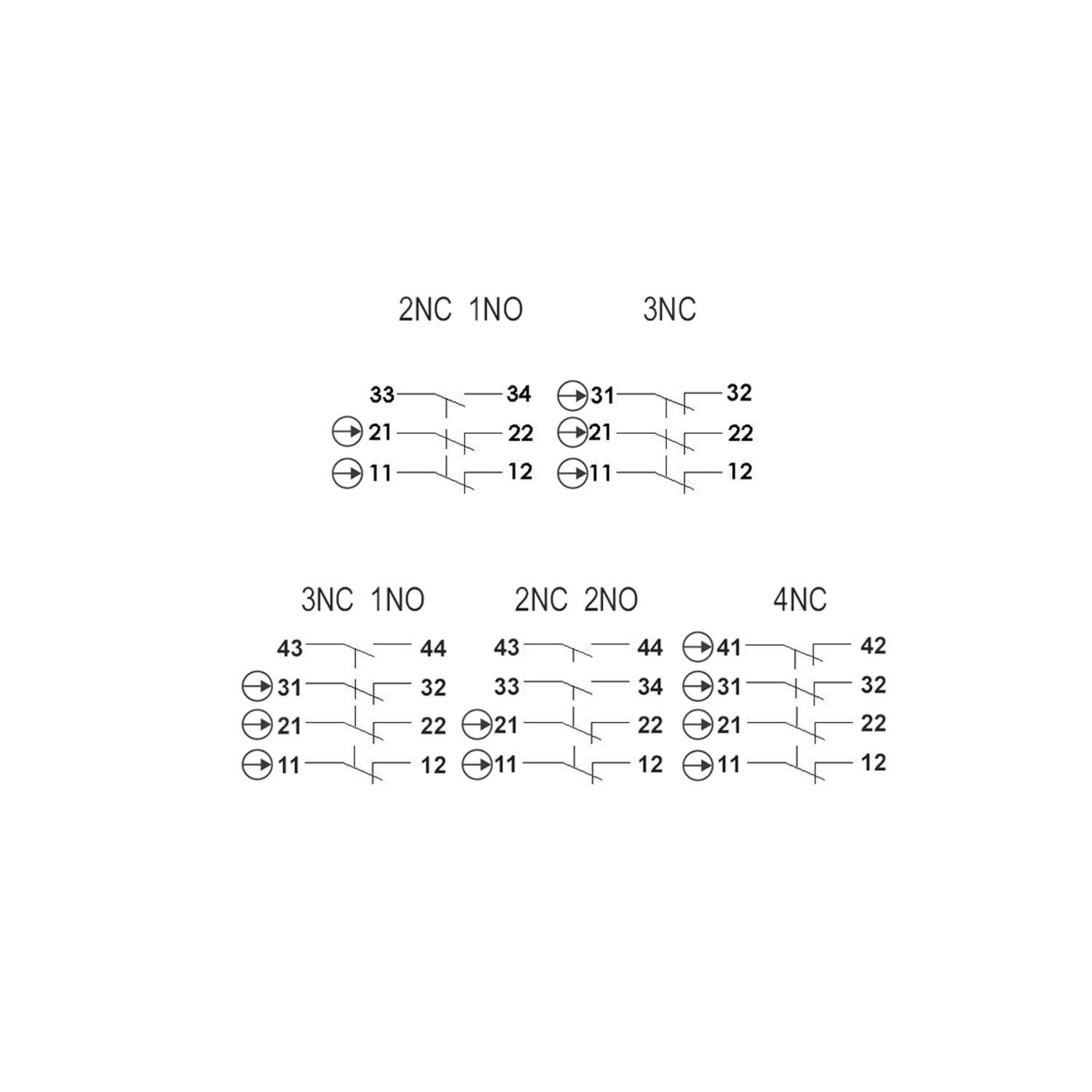

| Contacts | 2NC 1NO |
| IP Class | IP67, IP69K |
| Maximum approach / withdrawal speed | 600 |
| Mechanical reliability B10d | 2.5x10⁶ operations at 100mA load |
| Mounting | 4 x M5 |
| MTTFd | 356 years |
|---|---|
| Operating temperature | -25..80°C |
| PFHd | 3.44 x 10⁻⁸ |
| PL | e acc. ISO13849-1 |
| Rated insulation voltage | 500V ac |
| SIL | 3 acc. EN62061 |
| Thermal current (lth) | 5 |
| Travel for positive opening | 8 |
| Withstand voltage | 2500V ac |
Product description
IDEM’s HYGIECAM Series of Interlock Switches have a rugged Stainless Steel 316 body and have
been designed to cope with the rigorous applications of the Food Processing, Pharmaceutical,
Packaging and Petro-Chemical Industries.
They have IP69K enclosure protection (maintained by a double seal lid gasket and seals) and can be
high pressure hosed with detergent at high pressure and high temperature.
Designed to fit to the leading edge of sliding, hinged or lift off machine guards. They provide a forced
disconnect of the safety contacts at the withdrawal of the actuator and have an anti-tamper mechanism.
The head can be rotated to give 4 actuator entry positions. For extra durability, Flexible Actuators are
available.
Contact blocks are replaceable with optional explosion proof versions.
They are sealed to IP69K and survive most caustic wash down solutions.
The head can be rotated to give 4 actuator entry positions.
Designed with a removable lid to fit replaceable contact blocks.
For extra durability flexible actuators are available.
