IDEM

IDEM - Tongue interlock safety switches – KP

KP

Features

IDEM KP Interlock switches are designed to provide position interlock detection for moving guards

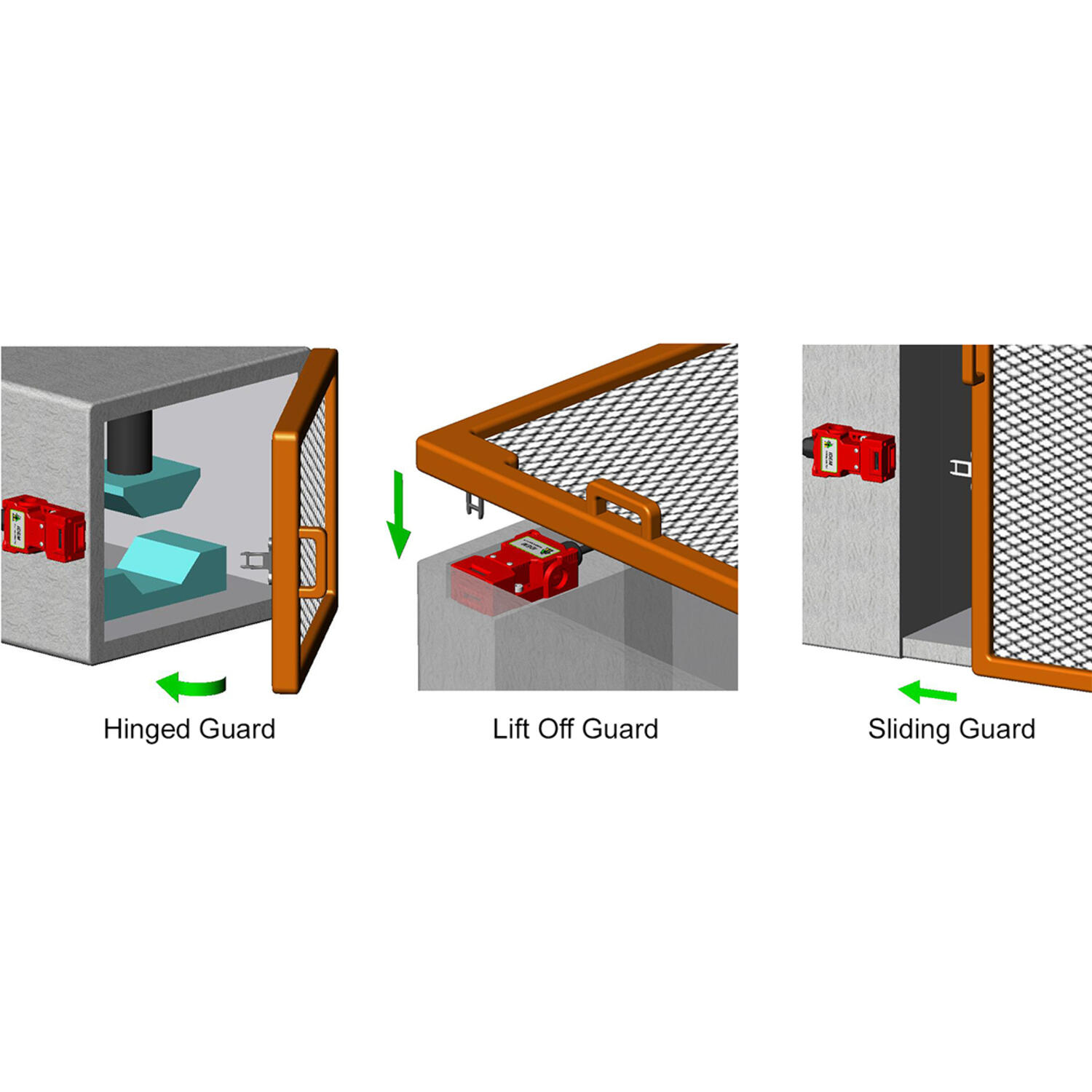

They are designed to fit to the leading edge of sliding, hinged or lift off machine guards

They provide a forced disconnect of the safety contacts at the withdrawal of the actuator and have an anti-tamper not easily defeatable mechanism

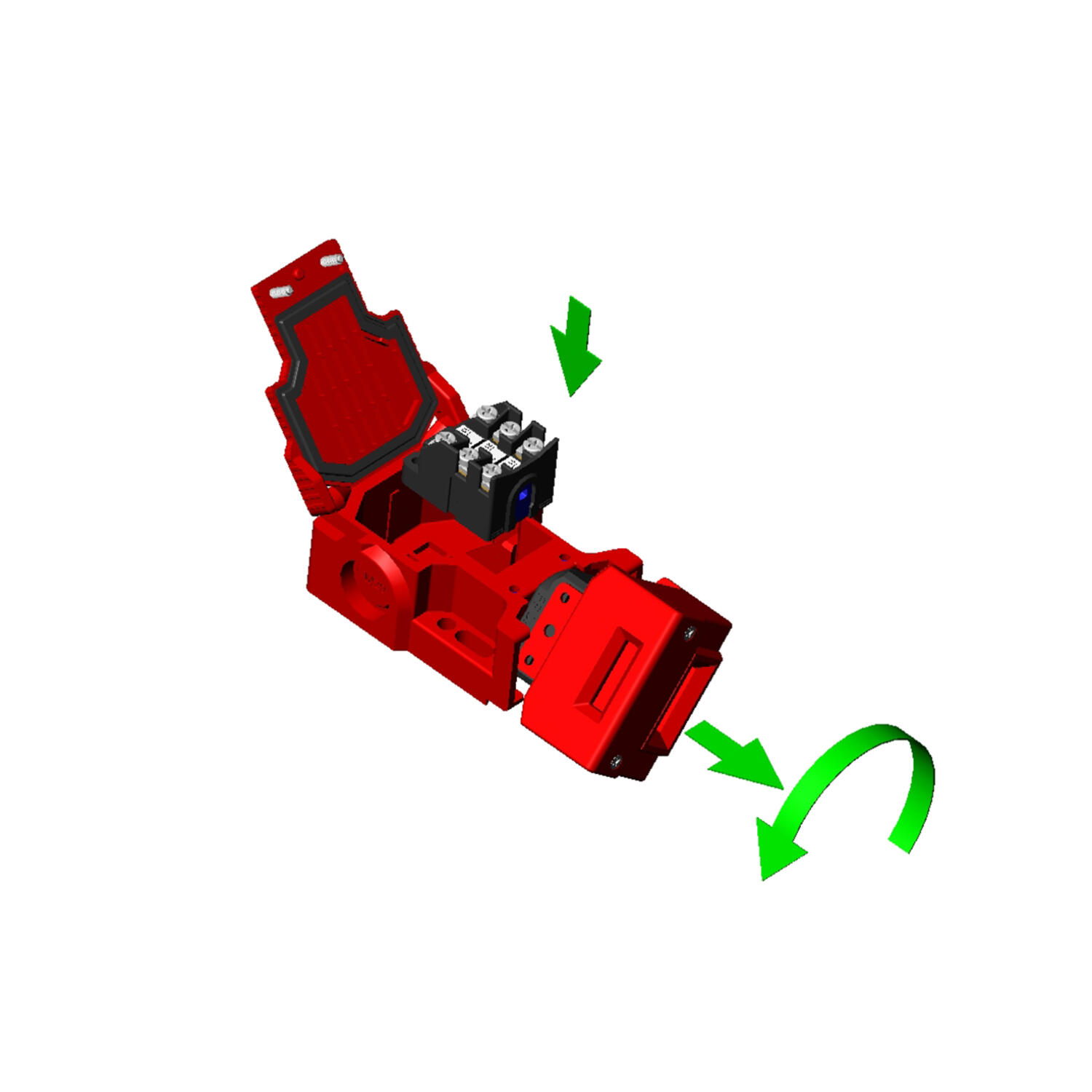

The head can be rotated to give 4 actuator entry positions. For extra durability, Flexible Actuators and Stainless Steel head versions are available

Kobra Plastic.tif

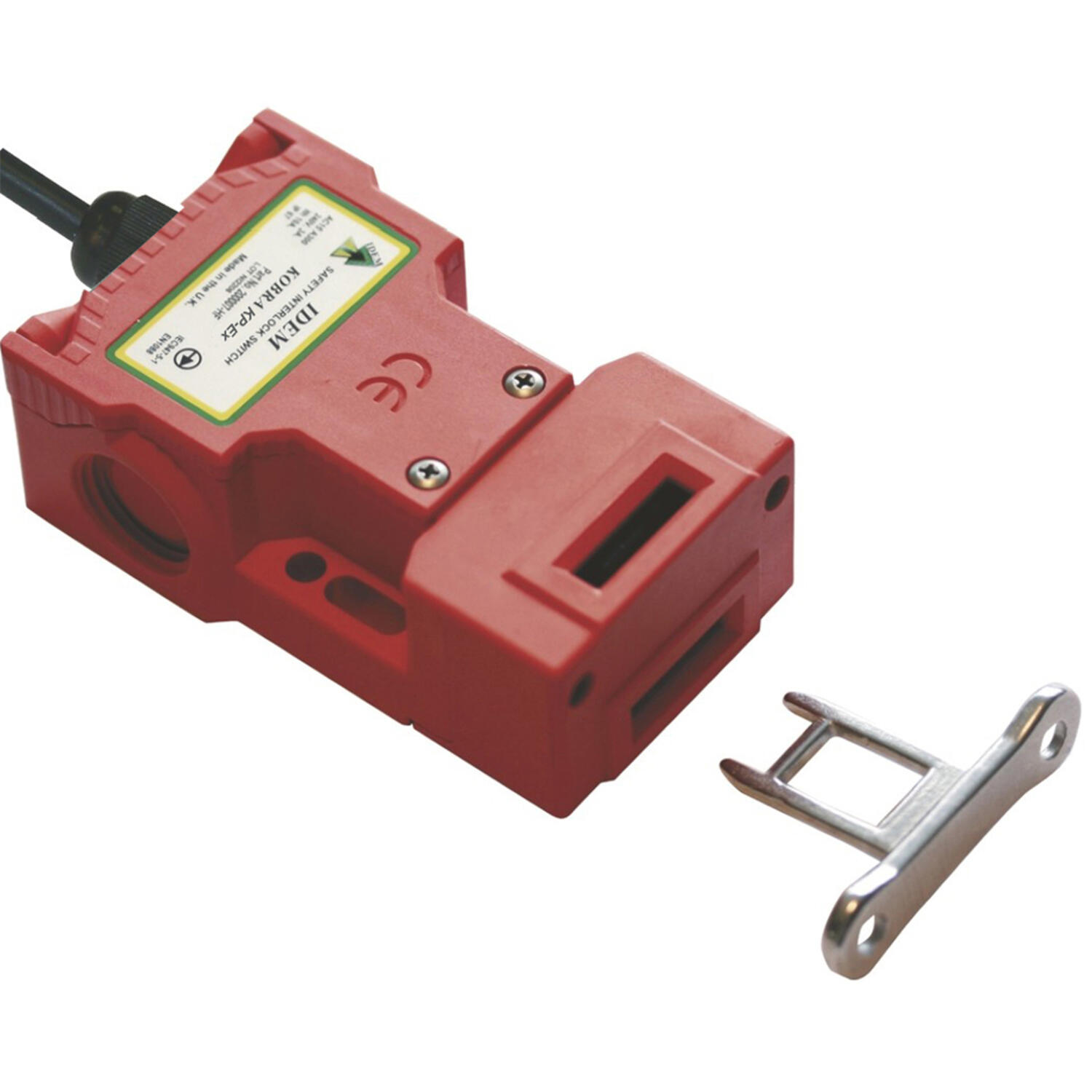

Contact blocks are replaceable with optional explosion proof versions. They are sealed to IP67 and survive most wash down solutions due to the high specification materials



Functional specifications

  • Positive Break Contacts to EN60947-5-1
  • High Functional Safety to ISO13849-1

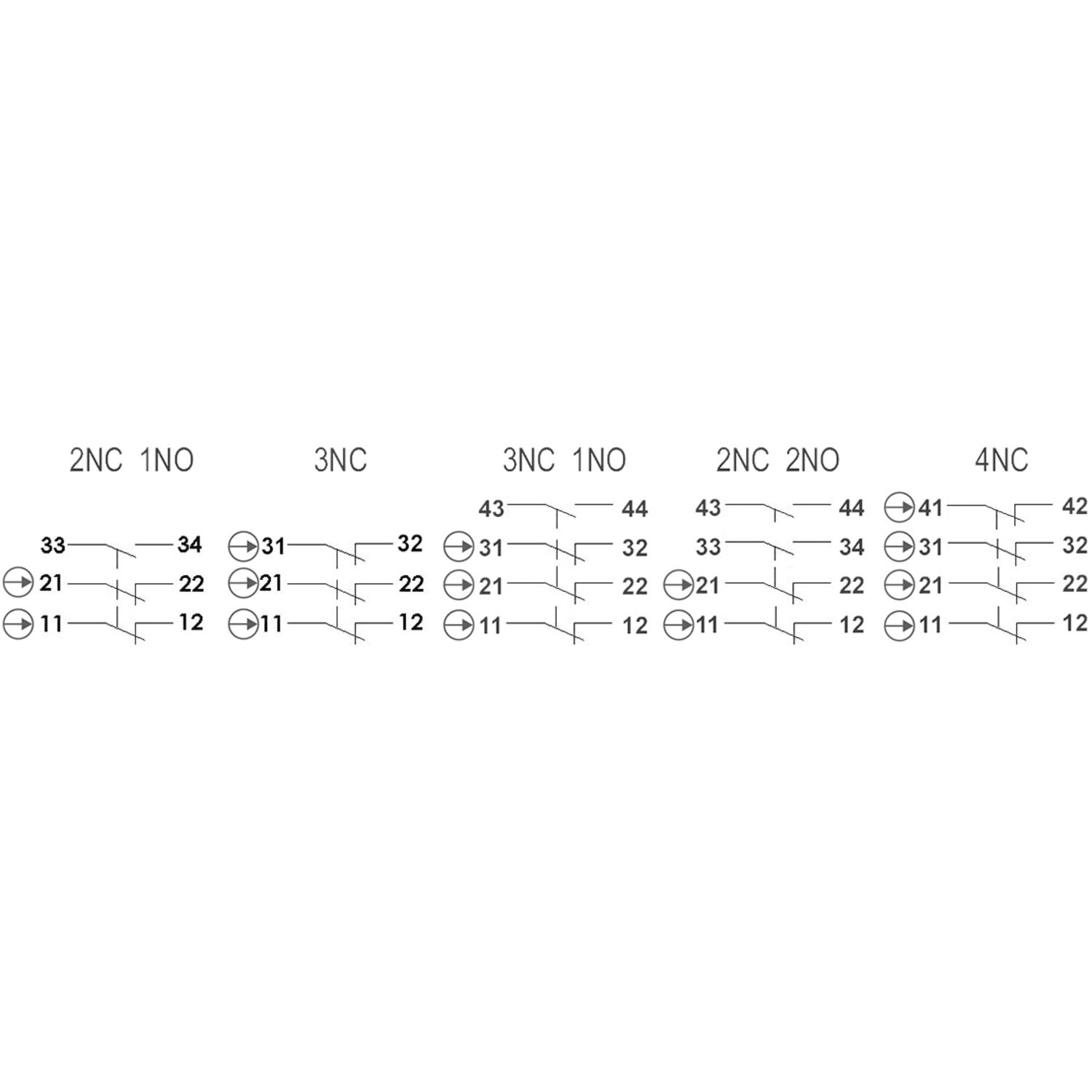

  • 3 pole, 4 pole or Explosion Proof Contact Blocks
  • Stainless Steel Head version available

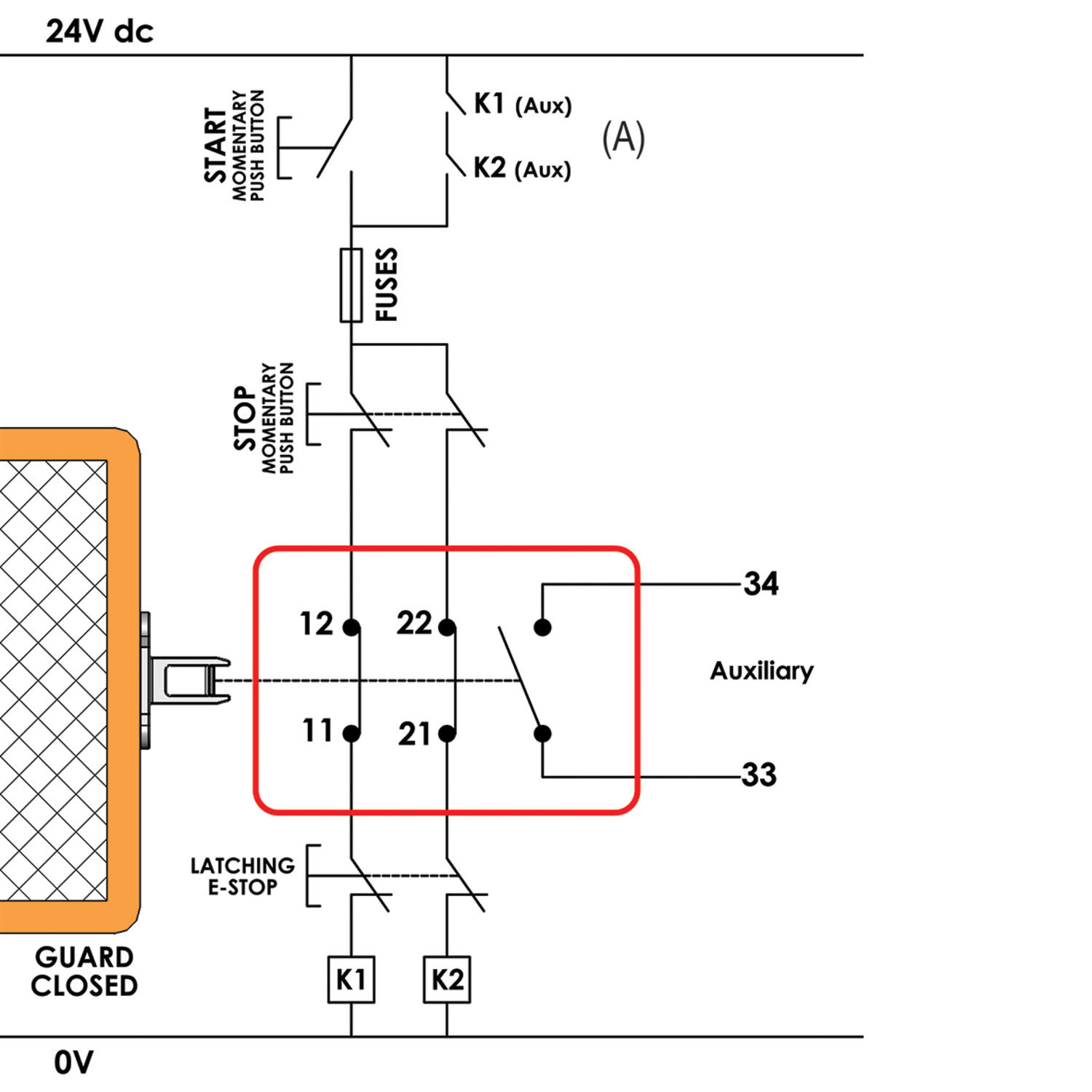

  • Connects to most Safety Relays to give up to PLe Cat.4

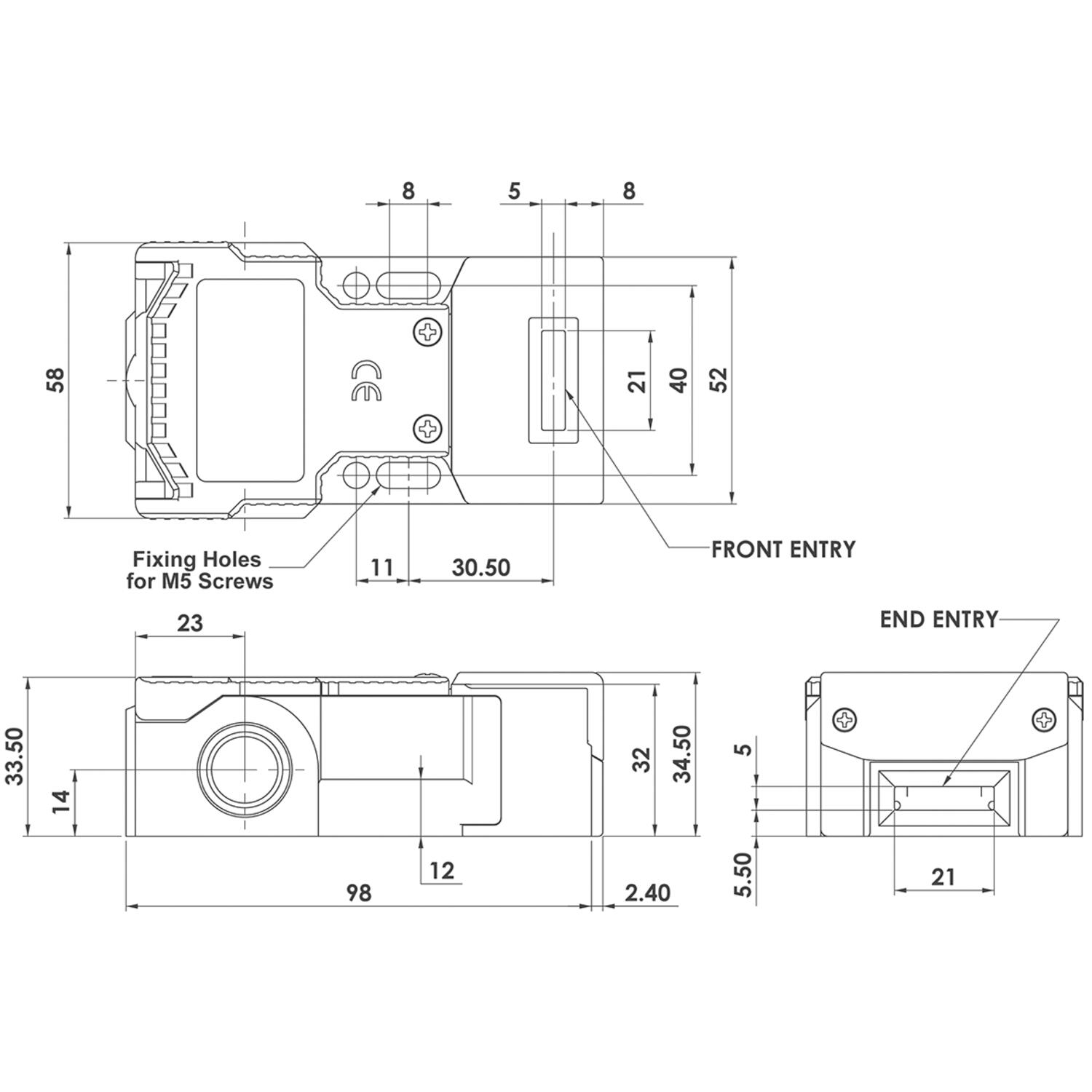

  • Industry Standard Fitting: 52mm wide    98mm long     40mm fixing
  • 4 Actuator entry positions with a rotatable head
  • 3 pole or 4 pole contact blocks
  • 3 conduit entries
  • 52mm x 98mm 40mm fixing
  • IP67 ingress protection rating

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Actuator Not included
Annual usage 8 cycles per day/24 hours per day/365 days
Approvals ISO 14119, EN60947-5-1, EN60204-1, ISO 13849-1, EN62061, UL 508
Atex approved No
Conduit entry M20
Contacts 2NC 1NO
IP Class IP67
Maximum approach / withdrawal speed 600
Mechanical reliability B10d 2.5 x 10⁶ operations at 100mA load
Mounting 2 x M5
MTTFd 356 years
Operating temperature -25..80°C
PFHd 3.44 x 10⁻⁸
PL e acc. ISO13849-1
Rated insulation voltage 500V ac
SIL 3 acc. EN62061
Thermal current (lth) 5
Withstand voltage 2500V ac

Downloads

Measurements and connections

Technical illustrations

Product description

Features

IDEM KP Interlock switches are designed to provide position interlock detection for moving guards

They are designed to fit to the leading edge of sliding, hinged or lift off machine guards

They provide a forced disconnect of the safety contacts at the withdrawal of the actuator and have an anti-tamper not easily defeatable mechanism

The head can be rotated to give 4 actuator entry positions. For extra durability, Flexible Actuators and Stainless Steel head versions are available

Kobra Plastic.tif

Contact blocks are replaceable with optional explosion proof versions. They are sealed to IP67 and survive most wash down solutions due to the high specification materials



Functional specifications

  • Positive Break Contacts to EN60947-5-1
  • High Functional Safety to ISO13849-1
  • 3 pole, 4 pole or Explosion Proof Contact Blocks
  • Stainless Steel Head version available
  • Connects to most Safety Relays to give up to PLe Cat.4
  • Industry Standard Fitting: 52mm wide    98mm long     40mm fixing

Accessories

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

My favourites Articles Actuator Conduit entry Contacts Price
KP1.tif
KP M20 '2NC 1NO'
Art:
200001 Copied
Not included
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - std actuator
Art:
200001A Copied
Standard
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - std actuator 40N
Art:
200001A-40N Copied
Standard
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - std actuator
Art:
200001A-GC Copied
Standard
M20
2NC 1NO

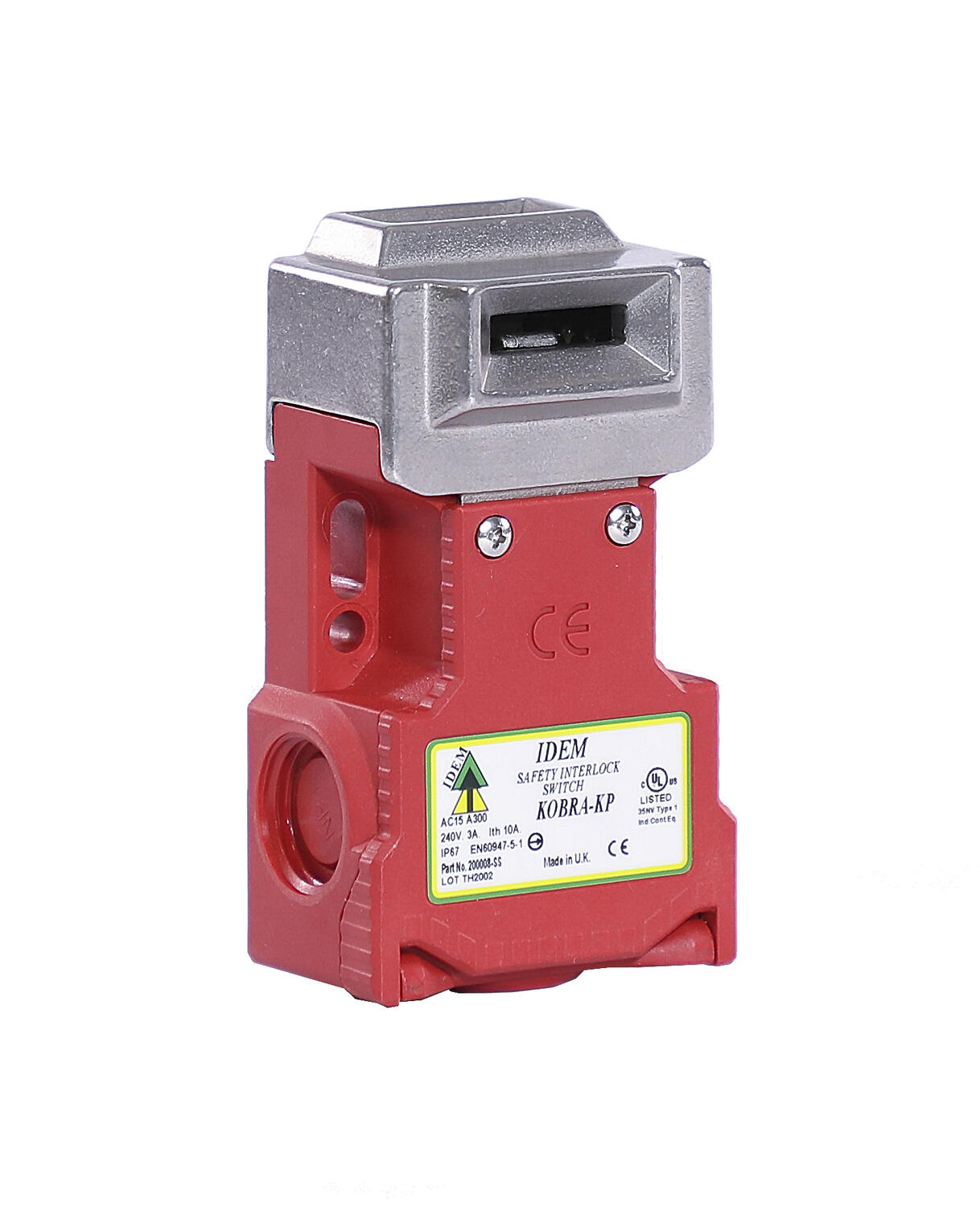

KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - std actuator
Art:
200001A-SS Copied
Standard
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - std actuator 40N
Art:
200001A-SS-40N Copied
Standard
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - flat actuator
Art:
200001F Copied
Flat
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - flat actuator
Art:
200001F-SS Copied
Flat
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - HF Actuator
Art:
200001HF Copied
Heavy duty flexible
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - HF Actuator
Art:
200001HF-40N Copied
Heavy duty flexible
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - HFH actuator
Art:
200001HFH Copied
Heavy duty s/steel
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - HFH actuator
Art:
200001HFH-SS Copied
Heavy duty s/steel
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - HF actuator
Art:
200001HF-SS Copied
Heavy duty flexible
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - HF actuator 40N
Art:
200001HF-SS-40N Copied
Heavy duty flexible
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - PF Actuator
Art:
200001PF Copied
Plastic flexible
M20
2NC 1NO
KP1.tif
KP M20 '2NC 1NO' - PF Actuator
Art:
200001PF-40N Copied
Plastic flexible
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head - PF actuator
Art:
200001PF-SS Copied
Plastic flexible
M20
2NC 1NO
KP (SS Head)1.tif
KP M20 '2NC 1NO' SS Head
Art:
200001-SS Copied
M20
2NC 1NO
KP1.tif
KP ½NPT '2NC 1NO'
Art:
200002 Copied
Not included
1/2" NPT
2NC 1NO
KP1.tif
KP ½NPT '2NC 1NO' -std actuator
Art:
200002A Copied
Standard
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP ½NPT '2NC 1NO' SS head - std actuator
Art:
200002A-SS Copied
Standard
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP 1/2"NPT 2NC 1NO Gold Contacts SS Head - STD Actuator
Art:
200002A-SS-GC Copied
Standard
1/2" NPT
2NC 1NO
KP1.tif
KP ½NPT '2NC 1NO' - flat actuator
Art:
200002F Copied
Flat
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP ½NPT '2NC 1NO' SS head - flat actuator
Art:
200002F-SS Copied
Flat
1/2" NPT
2NC 1NO
KP1.tif
KP ½NPT '2NC 1NO' - HF actuator
Art:
200002HF Copied
Heavy duty flexible
1/2" NPT
2NC 1NO
KP1.tif
KP ½NPT '2NC 1NO' - HFH actuator
Art:
200002HFH Copied
Heavy duty s/steel
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP ½NPT '2NC 1NO' SS head - HFH actuator
Art:
200002HFH-SS Copied
Heavy duty s/steel
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP ½NPT '2NC 1NO' SS head - HF actuator
Art:
200002HF-SS Copied
Heavy duty flexible
1/2" NPT
2NC 1NO
KP1.tif
KP ½NPT '2NC 1NO' - PF actuator
Art:
200002PF Copied
Plastic flexible
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP ½NPT '2NC 1NO' SS head - PF actuator
Art:
200002PF-SS Copied
Plastic flexible
1/2" NPT
2NC 1NO
KP (SS Head)1.tif
KP ½NPT '2NC 1NO' SS head
Art:
200002-SS Copied
1/2" NPT
2NC 1NO
KP1.tif
KP QC ½UNF 6way '2NC 1NO'
Art:
200003 Copied
Not included
1/2"UNF 6 Pole
2NC 1NO
KP1.tif
KP QC ½UNF 6way '2NC 1NO' - std actuator
Art:
200003A Copied
Standard
1/2"UNF 6 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC ½UNF 6way '2NC 1NO' SS head - std actuator
Art:
200003A-SS Copied
Standard
1/2"UNF 6 Pole
2NC 1NO
KP1.tif
KP QC ½UNF 6way '2NC 1NO' - flat actuator
Art:
200003F Copied
Flat
1/2"UNF 6 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC ½UNF 6way '2NC 1NO' SS head - flat actuator
Art:
200003F-SS Copied
Flat
1/2"UNF 6 Pole
2NC 1NO
KP1.tif
KP QC ½UNF 6way '2NC 1NO' - HF actuator
Art:
200003HF Copied
Heavy duty flexible
1/2"UNF 6 Pole
2NC 1NO
KP1.tif
KP QC ½UNF 6way '2NC 1NO' - HFH actuator
Art:
200003HFH Copied
Heavy duty s/steel
1/2"UNF 6 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC ½UNF 6way '2NC 1NO' SS head - HFH actuator
Art:
200003HFH-SS Copied
Heavy duty s/steel
1/2"UNF 6 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC ½UNF 6way '2NC 1NO' SS head - HF actuator
Art:
200003HF-SS Copied
Heavy duty flexible
1/2"UNF 6 Pole
2NC 1NO
KP1.tif
KP QC ½UNF 6way '2NC 1NO' - PF actuator
Art:
200003PF Copied
Plastic flexible
1/2"UNF 6 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC ½UNF 6way '2NC 1NO' SS head - PF actuator
Art:
200003PF-SS Copied
Plastic flexible
1/2"UNF 6 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC ½UNF 6way '2NC 1NO' SS head
Art:
200003-SS Copied
1/2"UNF 6 Pole
2NC 1NO
KP1.tif
KP M20 '3NC'
Art:
200004 Copied
Not included
M20
3NC
KP1.tif
KP M20 '3NC' - std actuator
Art:
200004A Copied
Standard
M20
3NC
KP (SS Head)1.tif
KP M20 '3NC' SS head - std actuator
Art:
200004A-SS Copied
Standard
M20
3NC
KP1.tif
KP M20 '3NC' - flat actuator
Art:
200004F Copied
Flat
M20
3NC
KP (SS Head)1.tif
KP M20 '3NC' SS head - flat actuator
Art:
200004F-SS Copied
Flat
M20
3NC
KP1.tif
KP M20 '3NC' - HF actuator
Art:
200004HF Copied
Heavy duty flexible
M20
3NC
KP1.tif
KP M20 '3NC' - HFH actuator
Art:
200004HFH Copied
Heavy duty s/steel
M20
3NC
KP (SS Head)1.tif
KP M20 '3NC' SS head - HFH actuator
Art:
200004HFH-SS Copied
Heavy duty s/steel
M20
3NC
KP (SS Head)1.tif
KP M20 '3NC' SS head - HF actuator
Art:
200004HF-SS Copied
Heavy duty flexible
M20
3NC
KP1.tif
KP M20 '3NC' - PF actuator
Art:
200004PF Copied
Plastic flexible
M20
3NC
KP (SS Head)1.tif
KP M20 '3NC' SS head - PF actuator
Art:
200004PF-SS Copied
Plastic flexible
M20
3NC
KP (SS Head)1.tif
KP M20 '3NC' SS head
Art:
200004-SS Copied
M20
3NC
KP1.tif
KP ½NPT '3NC'
Art:
200005 Copied
Not included
1/2" NPT
3NC
KP1.tif
KP ½NPT '3NC' - std actuator
Art:
200005A Copied
Standard
1/2" NPT
3NC
KP (SS Head)1.tif
KP ½NPT '3NC' SS head - std actuator
Art:
200005A-SS Copied
Standard
1/2" NPT
3NC
KP1.tif
KP ½NPT '3NC' - flat actuator
Art:
200005F Copied
Flat
1/2" NPT
3NC
KP (SS Head)1.tif
KP ½NPT '3NC' SS head - flat actuator
Art:
200005F-SS Copied
Flat
1/2" NPT
3NC
KP1.tif
KP ½NPT '3NC' - HF actuator
Art:
200005HF Copied
Heavy duty flexible
1/2" NPT
3NC
KP1.tif
KP ½NPT '3NC' - HFH actuator
Art:
200005HFH Copied
Heavy duty s/steel
1/2" NPT
3NC
KP (SS Head)1.tif
KP ½NPT '3NC' SS head - HFH actuator
Art:
200005HFH-SS Copied
Heavy duty s/steel
1/2" NPT
3NC
KP (SS Head)1.tif
KP ½NPT '3NC' SS head - HF actuator
Art:
200005HF-SS Copied
Heavy duty flexible
1/2" NPT
3NC
KP1.tif
KP ½NPT '3NC' - PF Actuator
Art:
200005PF Copied
Plastic flexible
1/2" NPT
3NC
KP (SS Head)1.tif
KP ½NPT '3NC' SS head - PF actuator
Art:
200005PF-SS Copied
Plastic flexible
1/2" NPT
3NC
KP (SS Head)1.tif
KP ½NPT '3NC' SS head
Art:
200005-SS Copied
1/2" NPT
3NC
KP1.tif
KP QC ½UNF 6way '3NC'
Art:
200006 Copied
Not included
1/2"UNF 6 Pole
3NC
KP1.tif
KP QC ½UNF 6way '3NC' - std actuator
Art:
200006A Copied
Standard
1/2"UNF 6 Pole
3NC
KP (SS Head)1.tif
KP QC ½UNF 6way '3NC' SS head - std actuator
Art:
200006A-SS Copied
Standard
1/2"UNF 6 Pole
3NC
KP1.tif
KP QC ½UNF 6way '3NC' - flat actuator
Art:
200006F Copied
Flat
1/2"UNF 6 Pole
3NC
KP (SS Head)1.tif
KP QC ½UNF 6way '3NC' SS head - flat actuator
Art:
200006F-SS Copied
Flat
1/2"UNF 6 Pole
3NC
KP1.tif
KP QC ½UNF 6way '3NC' - HF actuator
Art:
200006HF Copied
Heavy duty flexible
1/2"UNF 6 Pole
3NC
KP1.tif
KP QC ½UNF 6way '3NC' - HFH actuator
Art:
200006HFH Copied
Heavy duty s/steel
1/2"UNF 6 Pole
3NC
KP (SS Head)1.tif
KP QC ½UNF 6way '3NC' SS head - HFH actuator
Art:
200006HFH-SS Copied
Heavy duty s/steel
1/2"UNF 6 Pole
3NC
KP (SS Head)1.tif
KP QC ½UNF 6way '3NC' SS head - HF actuator
Art:
200006HF-SS Copied
Heavy duty flexible
1/2"UNF 6 Pole
3NC
KP1.tif
KP QC ½UNF 6way '3NC' - PF actuator
Art:
200006PF Copied
Plastic flexible
1/2"UNF 6 Pole
3NC
KP (SS Head)1.tif
KP QC ½UNF 6way '3NC' SS head - PF actuator
Art:
200006PF-SS Copied
Plastic flexible
1/2"UNF 6 Pole
3NC
KP (SS Head)1.tif
KP QC ½UNF 6way '3NC' SS head
Art:
200006-SS Copied
1/2"UNF 6 Pole
3NC
KP1.tif
KP M20 '3NC 1NO'
Art:
200007 Copied
Not included
M20
3NC 1NO
KP1.tif
KP M20 '3NC 1NO' - std actuator
Art:
200007A Copied
Standard
M20
3NC 1NO
KP (SS Head)1.tif
KP M20 '3NC 1NO' SS head - std actuator
Art:
200007A-SS Copied
Standard
M20
3NC 1NO
KP1.tif
KP M20 '3NC 1NO' - flat actuator
Art:
200007F Copied
Flat
M20
3NC 1NO
KP (SS Head)1.tif
KP M20 '3NC 1NO' SS head - flat actuator
Art:
200007F-SS Copied
Flat
M20
3NC 1NO
KP1.tif
KP M20 '3NC 1NO' - std actuator
Art:
200007HF Copied
Standard
M20
3NC 1NO
KP1.tif
KP M20 '3NC 1NO' - HFH actuator
Art:
200007HFH Copied
Heavy duty s/steel
M20
3NC 1NO
KP (SS Head)1.tif
KP M20 '3NC 1NO' SS head - HFH actuator
Art:
200007HFH-SS Copied
Heavy duty s/steel
M20
3NC 1NO
KP (SS Head)1.tif
KP M20 '3NC 1NO' SS head - HF actuator
Art:
200007HF-SS Copied
Heavy duty flexible
M20
3NC 1NO
KP1.tif
KP M20 '3NC 1NO' - PF actuator
Art:
200007PF Copied
Plastic flexible
M20
3NC 1NO
KP (SS Head)1.tif
KP M20 '3NC 1NO' SS head - PF actuator
Art:
200007PF-SS Copied
Plastic flexible
M20
3NC 1NO
KP (SS Head)1.tif
KP M20 '3NC 1NO' SS head
Art:
200007-SS Copied
M20
3NC 1NO
KP1.tif
KP ½NPT '3NC 1NO'
Art:
200008 Copied
Not included
1/2" NPT
3NC 1NO
KP1.tif
KP ½NPT '3NC 1NO' - std actuator
Art:
200008A Copied
Standard
1/2" NPT
3NC 1NO
KP (SS Head)1.tif
KP ½NPT '3NC 1NO' SS head - std actuator
Art:
200008A-SS Copied
Standard
1/2" NPT
3NC 1NO
KP1.tif
KP ½NPT '3NC 1NO' - flat actuator
Art:
200008F Copied
Flat
1/2" NPT
3NC 1NO
KP (SS Head)1.tif
KP ½NPT '3NC 1NO' SS head - flat actuator
Art:
200008F-SS Copied
Flat
1/2" NPT
3NC 1NO
KP1.tif
KP ½NPT '3NC 1NO' - HF actuator
Art:
200008HF Copied
Heavy duty flexible
1/2" NPT
3NC 1NO
KP1.tif
KP ½NPT '3NC 1NO' - HFH actuator
Art:
200008HFH Copied
Heavy duty s/steel
1/2" NPT
3NC 1NO
KP (SS Head)1.tif
KP ½NPT '3NC 1NO' SS head - HFH actuator
Art:
200008HFH-SS Copied
Heavy duty s/steel
1/2" NPT
3NC 1NO
KP (SS Head)1.tif
KP ½NPT '3NC 1NO' SS head - HF actuator
Art:
200008HF-SS Copied
Heavy duty flexible
1/2" NPT
3NC 1NO
KP1.tif
KP ½NPT '3NC 1NO' - PF actuator
Art:
200008PF Copied
Plastic flexible
1/2" NPT
3NC 1NO
KP (SS Head)1.tif
KP ½NPT '3NC 1NO' SS head - PF actuator
Art:
200008PF-SS Copied
Plastic flexible
1/2" NPT
3NC 1NO
KP (SS Head)1.tif
KP ½NPT '3NC 1NO' SS head
Art:
200008-SS Copied
1/2" NPT
3NC 1NO
KP1.tif
KP M20 '2NC 2NO'
Art:
200010 Copied
Not included
M20
2NC 2NO
KP1.tif
KP M20 '2NC 2NO' - std actuator
Art:
200010A Copied
Standard
M20
2NC 2NO
KP (SS Head)1.tif
KP M20 '2NC 2NO' SS head - std actuator
Art:
200010A-SS Copied
Standard
M20
2NC 2NO
KP1.tif
KP M20 '2NC 2NO' - flat actuator
Art:
200010F Copied
Flat
M20
2NC 2NO
KP (SS Head)1.tif
KP M20 '2NC 2NO' SS head - flat actuator
Art:
200010F-SS Copied
Flat
M20
2NC 2NO
KP1.tif
KP M20 '2NC 2NO' - HF actuator
Art:
200010HF Copied
Heavy duty flexible
M20
2NC 2NO
KP1.tif
KP M20 '2NC 2NO' - HFH actuator
Art:
200010HFH Copied
Heavy duty s/steel
M20
2NC 2NO
KP (SS Head)1.tif
KP M20 '2NC 2NO' SS head - HFH actuator
Art:
200010HFH-SS Copied
Heavy duty s/steel
M20
2NC 2NO
KP (SS Head)1.tif
KP M20 '2NC 2NO' SS head - HF actuator
Art:
200010HF-SS Copied
Heavy duty flexible
M20
2NC 2NO
KP1.tif
KP M20 '2NC 2NO' - PF actuator
Art:
200010PF Copied
Plastic flexible
M20
2NC 2NO
KP (SS Head)1.tif
KP M20 '2NC 2NO' SS head - PF actuator
Art:
200010PF-SS Copied
Plastic flexible
M20
2NC 2NO
KP (SS Head)1.tif
KP M20 '2NC 2NO' SS head
Art:
200010-SS Copied
M20
2NC 2NO
KP1.tif
KP ½NPT '2NC 2NO'
Art:
200011 Copied
Not included
1/2" NPT
2NC 2NO
KP1.tif
KP ½NPT '2NC 2NO' - std actuator
Art:
200011A Copied
Standard
1/2" NPT
2NC 2NO
KP (SS Head)1.tif
KP ½NPT '2NC 2NO' SS head - std actuator
Art:
200011A-SS Copied
Standard
1/2" NPT
2NC 2NO
KP1.tif
KP ½NPT '2NC 2NO' - flat actuator
Art:
200011F Copied
Flat
1/2" NPT
2NC 2NO
KP (SS Head)1.tif
KP ½NPT '2NC 2NO' SS head - flat actuator
Art:
200011F-SS Copied
Flat
1/2" NPT
2NC 2NO
KP1.tif
KP ½NPT '2NC 2NO' - HF Actuator
Art:
200011HF Copied
Heavy duty flexible
1/2" NPT
2NC 2NO
KP1.tif
KP ½NPT '2NC 2NO' - HFH Actuator
Art:
200011HFH Copied
Heavy duty s/steel
1/2" NPT
2NC 2NO
KP (SS Head)1.tif
KP ½NPT '2NC 2NO' SS head - HFH actuator
Art:
200011HFH-SS Copied
Heavy duty s/steel
1/2" NPT
2NC 2NO
KP (SS Head)1.tif
KP ½NPT '2NC 2NO' SS head - HF actuator
Art:
200011HF-SS Copied
Heavy duty flexible
1/2" NPT
2NC 2NO
KP1.tif
KP ½NPT '2NC 2NO' - PF Actuator
Art:
200011PF Copied
Plastic flexible
1/2" NPT
2NC 2NO
KP (SS Head)1.tif
KP ½NPT '2NC 2NO' SS head - PF actuator
Art:
200011PF-SS Copied
Plastic flexible
1/2" NPT
2NC 2NO
KP (SS Head)1.tif
KP ½NPT '2NC 2NO' SS head
Art:
200011-SS Copied
1/2" NPT
2NC 2NO
KP1.tif
KP M20 '4NC'
Art:
200013 Copied
Not included
M20
4NC
KP1.tif
KP M20 '4NC' - std actuator
Art:
200013A Copied
Standard
M20
4NC
KP (SS Head)1.tif
KP M20 '4NC' SS head - std actuator
Art:
200013A-SS Copied
Standard
M20
4NC
KP1.tif
KP M20 '4NC' - flat actuator
Art:
200013F Copied
Flat
M20
4NC
KP (SS Head)1.tif
KP M20 '4NC' SS head - flat actuator
Art:
200013F-SS Copied
Flat
M20
4NC
KP1.tif
KP M20 '4NC' - HF Actuator
Art:
200013HF Copied
Heavy duty flexible
M20
4NC
KP1.tif
KP M20 '4NC' - HFH actuator
Art:
200013HFH Copied
Heavy duty s/steel
M20
4NC
KP (SS Head)1.tif
KP M20 '4NC' SS head - HFH actuator
Art:
200013HFH-SS Copied
Heavy duty s/steel
M20
4NC
KP (SS Head)1.tif
KP M20 '4NC' SS head - PF actuator
Art:
200013HF-SS Copied
Plastic flexible
M20
4NC
KP1.tif
KP M20 '4NC' - PF Actuator
Art:
200013PF Copied
Plastic flexible
M20
4NC
KP (SS Head)1.tif
KP M20 '4NC' SS head - PF actuator
Art:
200013PF-SS Copied
Plastic flexible
M20
4NC
KP (SS Head)1.tif
KP M20 '4NC' SS head
Art:
200013-SS Copied
M20
4NC
KP1.tif
KP ½NPT '4NC'
Art:
200014 Copied
Not included
1/2" NPT
4NC
KP1.tif
KP ½NPT '4NC' - std actuator
Art:
200014A Copied
Standard
1/2" NPT
4NC
KP (SS Head)1.tif
KP ½NPT '4NC' SS head - std actuator
Art:
200014A-SS Copied
Standard
1/2" NPT
4NC
KP1.tif
KP ½NPT '4NC' - flat actuator
Art:
200014F Copied
Flat
1/2" NPT
4NC
KP (SS Head)1.tif
KP ½NPT '4NC' SS head - flat actuator
Art:
200014F-SS Copied
Flat
1/2" NPT
4NC
KP1.tif
KP ½NPT '4NC' - HF Actuator
Art:
200014HF Copied
Heavy duty flexible
1/2" NPT
4NC
KP1.tif
KP ½NPT '4NC' - HFH actuator
Art:
200014HFH Copied
Heavy duty s/steel
1/2" NPT
4NC
KP (SS Head)1.tif
KP ½NPT '4NC' SS head - HFH actuator
Art:
200014HFH-SS Copied
Heavy duty s/steel
1/2" NPT
4NC
KP (SS Head)1.tif
KP ½NPT '4NC' SS head - HF actuator
Art:
200014HF-SS Copied
Heavy duty flexible
1/2" NPT
4NC
KP1.tif
KP ½NPT '4NC' - PF Actuator
Art:
200014PF Copied
Plastic flexible
1/2" NPT
4NC
KP (SS Head)1.tif
KP ½NPT '4NC' SS head - PF actuator
Art:
200014PF-SS Copied
Plastic flexible
1/2" NPT
4NC
KP (SS Head)1.tif
KP ½NPT '4NC' SS head
Art:
200014-SS Copied
1/2" NPT
4NC
KP1.tif
KP QC M12 8way '2NC 1NO'
Art:
200021 Copied
Not included
M12 8 Pole
2NC 1NO
KP1.tif
KP QC M12 8way '2NC 1NO' - std actuator
Art:
200021A Copied
Standard
M12 8 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 1NO' SS head - std actuator
Art:
200021A-SS Copied
Standard
M12 8 Pole
2NC 1NO
KP1.tif
KP QC M12 8way '2NC 1NO' - flat actuator
Art:
200021F Copied
Flat
M12 8 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 1NO' SS head - flat actuator
Art:
200021F-SS Copied
Flat
M12 8 Pole
2NC 1NO
KP1.tif
KP QC M12 8way '2NC 1NO' - HF actuator
Art:
200021HF Copied
Heavy duty flexible
M12 8 Pole
2NC 1NO
KP1.tif
KP QC M12 8way '2NC 1NO' - HFH actuator
Art:
200021HFH Copied
Heavy duty s/steel
M12 8 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 1NO' SS head - HFH actuator
Art:
200021HFH-SS Copied
Heavy duty s/steel
M12 8 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 1NO' SS head - HF actuator
Art:
200021HF-SS Copied
Heavy duty flexible
M12 8 Pole
2NC 1NO
KP1.tif
KP QC M12 8way '2NC 1NO' - PF actuator
Art:
200021PF Copied
Plastic flexible
M12 8 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 1NO' SS head - PF actuator
Art:
200021PF-SS Copied
Plastic flexible
M12 8 Pole
2NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 1NO' SS head
Art:
200021-SS Copied
M12 8 Pole
2NC 1NO
KP1.tif
KP QC M12 8way '3NC'
Art:
200022 Copied
Not included
M12 8 Pole
3NC
KP1.tif
KP QC M12 8way '3NC' - std actuator
Art:
200022A Copied
Standard
M12 8 Pole
3NC
KP (SS Head)1.tif
KP QC M12 8way '3NC' SS head - std actuator
Art:
200022A-SS Copied
Standard
M12 8 Pole
3NC
KP1.tif
KP QC M12 8way '3NC' - flat actuator
Art:
200022F Copied
Flat
M12 8 Pole
3NC
KP (SS Head)1.tif
KP QC M12 8way '3NC' SS head - flat actuator
Art:
200022F-SS Copied
Flat
M12 8 Pole
3NC
KP1.tif
KP QC M12 8way '3NC' - HF actuator
Art:
200022HF Copied
Heavy duty flexible
M12 8 Pole
3NC
KP1.tif
KP QC M12 8way '3NC' - HFH actuator
Art:
200022HFH Copied
Heavy duty s/steel
M12 8 Pole
3NC
KP (SS Head)1.tif
KP QC M12 8way '3NC' SS head - HFH actuator
Art:
200022HFH-SS Copied
Heavy duty s/steel
M12 8 Pole
3NC
KP (SS Head)1.tif
KP QC M12 8way '3NC' SS head - HF actuator
Art:
200022HF-SS Copied
Heavy duty flexible
M12 8 Pole
3NC
KP1.tif
KP QC M12 8way '3NC' - PF actuator
Art:
200022PF Copied
Plastic flexible
M12 8 Pole
3NC
KP (SS Head)1.tif
KP QC M12 8way '3NC' SS head - PF actuator
Art:
200022PF-SS Copied
Plastic flexible
M12 8 Pole
3NC
KP (SS Head)1.tif
KP QC M12 8way '3NC' SS head
Art:
200022-SS Copied
M12 8 Pole
3NC
KP1.tif
KP QC M12 8way '3NC 1NO'
Art:
200023 Copied
Not included
M12 8 Pole
3NC 1NO
KP1.tif
KP QC M12 8way '3NC 1NO' - std actuator
Art:
200023A Copied
Standard
M12 8 Pole
3NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '3NC 1NO' SS head - std actuator
Art:
200023A-SS Copied
Standard
M12 8 Pole
3NC 1NO
KP1.tif
KP QC M12 8way '3NC 1NO' - flat actuator
Art:
200023F Copied
Flat
M12 8 Pole
3NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '3NC 1NO' SS head - flat actuator
Art:
200023F-SS Copied
Flat
M12 8 Pole
3NC 1NO
KP1.tif
KP QC M12 8way '3NC 1NO' - HF actuator
Art:
200023HF Copied
Heavy duty flexible
M12 8 Pole
3NC 1NO
KP1.tif
KP QC M12 8way '3NC 1NO' - HFH actuator
Art:
200023HFH Copied
Heavy duty s/steel
M12 8 Pole
3NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '3NC 1NO' SS head - HFH actuator
Art:
200023HFH-SS Copied
Heavy duty s/steel
M12 8 Pole
3NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '3NC 1NO' SS head - HF actuator
Art:
200023HF-SS Copied
Heavy duty flexible
M12 8 Pole
3NC 1NO
KP1.tif
KP QC M12 8way '3NC 1NO' - PF actuator
Art:
200023PF Copied
Plastic flexible
M12 8 Pole
3NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '3NC 1NO' SS head - PF actuator
Art:
200023PF-SS Copied
Plastic flexible
M12 8 Pole
3NC 1NO
KP (SS Head)1.tif
KP QC M12 8way '3NC 1NO' SS head
Art:
200023-SS Copied
M12 8 Pole
3NC 1NO
KP1.tif
KP QC M12 8way '2NC 2NO'
Art:
200024 Copied
Not included
M12 8 Pole
2NC 2NO
KP1.tif
KP QC M12 8way '2NC 2NO' - std actuator
Art:
200024A Copied
Standard
M12 8 Pole
2NC 2NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 2NO' SS head - std actuator
Art:
200024A-SS Copied
Standard
M12 8 Pole
2NC 2NO
KP1.tif
KP QC M12 8way '2NC 2NO' - flat actuator
Art:
200024F Copied
Flat
M12 8 Pole
2NC 2NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 2NO' SS head - flat actuator
Art:
200024F-SS Copied
Flat
M12 8 Pole
2NC 2NO
KP1.tif
KP QC M12 8way '2NC 2NO' - HF actuator
Art:
200024HF Copied
Heavy duty flexible
M12 8 Pole
2NC 2NO
KP1.tif
KP QC M12 8way '2NC 2NO' - HFH actuator
Art:
200024HFH Copied
Heavy duty s/steel
M12 8 Pole
2NC 2NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 2NO' SS head - HFH actuator
Art:
200024HFH-SS Copied
Heavy duty s/steel
M12 8 Pole
2NC 2NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 2NO' SS head - HF actuator
Art:
200024HF-SS Copied
Heavy duty flexible
M12 8 Pole
2NC 2NO
KP1.tif
KP QC M12 8way '2NC 2NO' - PF actuator
Art:
200024PF Copied
Plastic flexible
M12 8 Pole
2NC 2NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 2NO' SS head - PF actuator
Art:
200024PF-SS Copied
Plastic flexible
M12 8 Pole
2NC 2NO
KP (SS Head)1.tif
KP QC M12 8way '2NC 2NO' SS head
Art:
200024-SS Copied
M12 8 Pole
2NC 2NO
KP1.tif
KP QC M12 8way '4NC'
Art:
200025 Copied
Not included
M12 8 Pole
4NC
KP1.tif
KP QC M12 8way '4NC' - std actuator
Art:
200025A Copied
Standard
M12 8 Pole
4NC
KP (SS Head)1.tif
KP QC M12 8way '4NC' SS head - std actuator
Art:
200025A-SS Copied
Standard
M12 8 Pole
4NC
KP1.tif
KP QC M12 8way '4NC' - flat actuator
Art:
200025F Copied
Flat
M12 8 Pole
4NC
KP (SS Head)1.tif
KP QC M12 8way '4NC' SS head - flat actuator
Art:
200025F-SS Copied
Flat
M12 8 Pole
4NC
KP1.tif
KP QC M12 8way '4NC' - HF Actuator
Art:
200025HF Copied
Heavy duty flexible
M12 8 Pole
4NC
KP1.tif
KP QC M12 8way '4NC' - HFH actuator
Art:
200025HFH Copied
Heavy duty s/steel
M12 8 Pole
4NC
KP (SS Head)1.tif
KP QC M12 8way '4NC' SS head - HFH actuator
Art:
200025HFH-SS Copied
Heavy duty s/steel
M12 8 Pole
4NC
KP (SS Head)1.tif
KP QC M12 8way '4NC' SS head - HF actuator
Art:
200025HF-SS Copied
Heavy duty flexible
M12 8 Pole
4NC
KP1.tif
KP QC M12 8way '4NC' - PF Actuator
Art:
200025PF Copied
Plastic flexible
M12 8 Pole
4NC
KP (SS Head)1.tif
KP QC M12 8way '4NC' SS head - PF actuator
Art:
200025PF-SS Copied
Plastic flexible
M12 8 Pole
4NC
KP (SS Head)1.tif
KP QC M12 8way '4NC' SS head
Art:
200025-SS Copied
M12 8 Pole
4NC

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
