Gelbau - Control unit 452.4/462.4
Compact control unit with only 22.5 mm enclosure for the monitoring of sensing strips in dangerous applications. It is also suitable for use on motorised gates which, in line with the standard, must have relays conforming to safety category 3. A low current is transmitted from the control unit connectors (Z1 and Z2) through the sensing strip, and a closed circuit is formed via a resistor (8.2 kΩ). The control units outputs cut the power if anyone/anything presses the sensing strip and also following a short-circuit or open circuit.
Technical data
Supply voltage | 24 V AC/DC, 230 V AC | |
Tolerance | -15 % to +10 % | |
Consumption (operation) | 3 W | |
Relay outputs: | Safe | 2 NO (single) |
Signal | 1 CO | |
Max. contact voltage | 250 V AC/24 V DC | |
Max. contact current | 4 A AC/2 A DC | |
Fuse outputs | 4 A | |
Disconnection time | 15 ms | |
Max. length of sensing strip | 100 m | |
Max. cable length to the sensing strip | 50 m (min. 0.5 m²) | |
Status indication | 4xLED | |
Ingress protection class: | Terminal block | IP20 |
Enclosure | IP40 | |
Ambient temperature | -20 °C to +55 °C | |
Installation | DIN rail | |
Mechanical service life | 3x107 | |
Safety category | 3 in accordance with EN954-1 | |
Standard | EN1760-2, ZH1/494 | |
Conforming to | MD, LVD, EMC | |
Approvals |
| |
Technical characteristics
Depending on safety requirements |
| |
• Force guided contacts |
| |
• Internal/external redundancy |
| |
|
| |
User benefits | Status indication | |
• Safety category 3 in accordance with EN954-1 |
| |
• 2 NO and 1 CO output |
| Strip activated |
• Contact load 4 A |
| Fault in the safety circuit |
• LED status indication |
| Output activated |
• Monitoring of external contactors |
| Output activated |

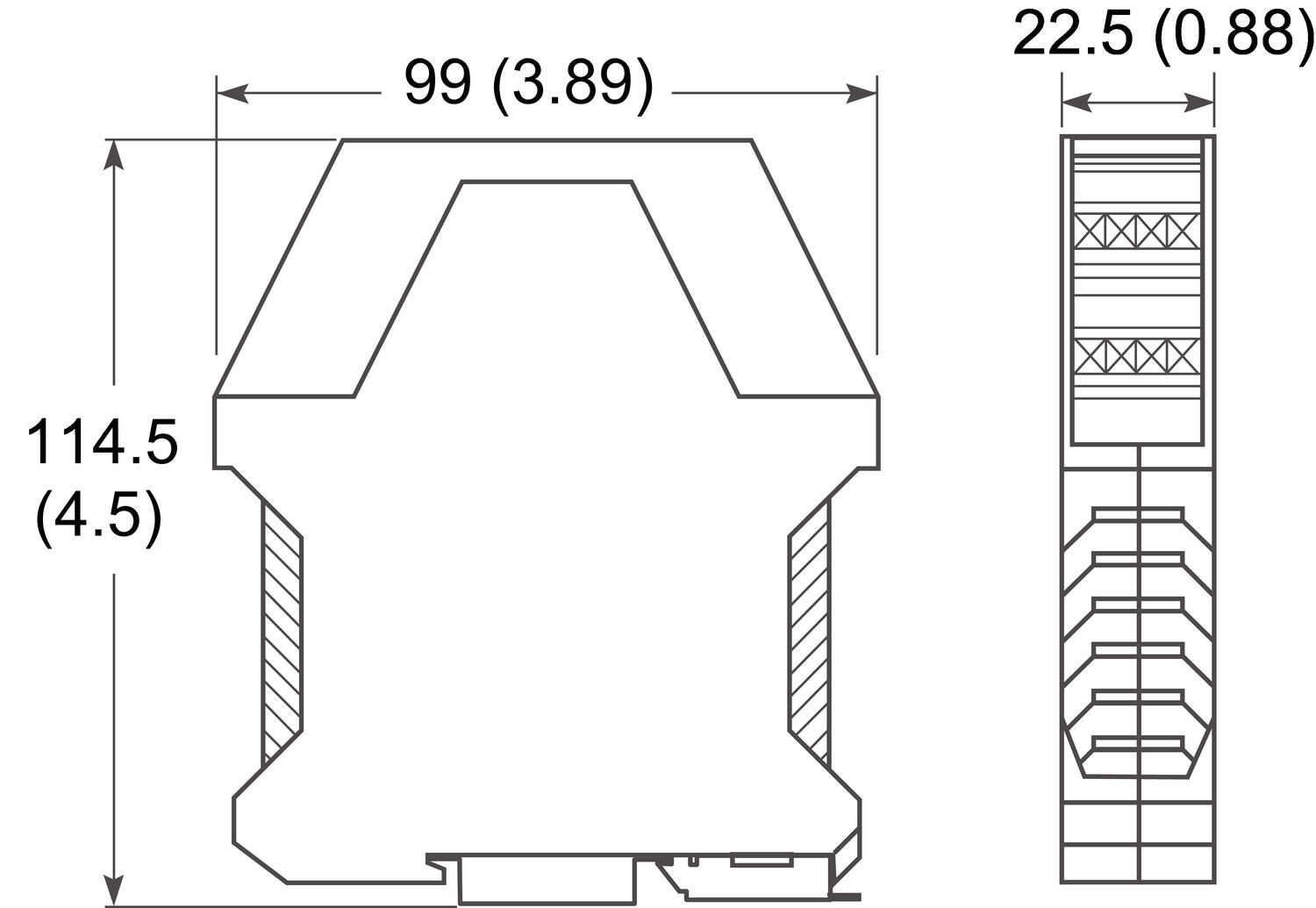

Dimensions
(mm)

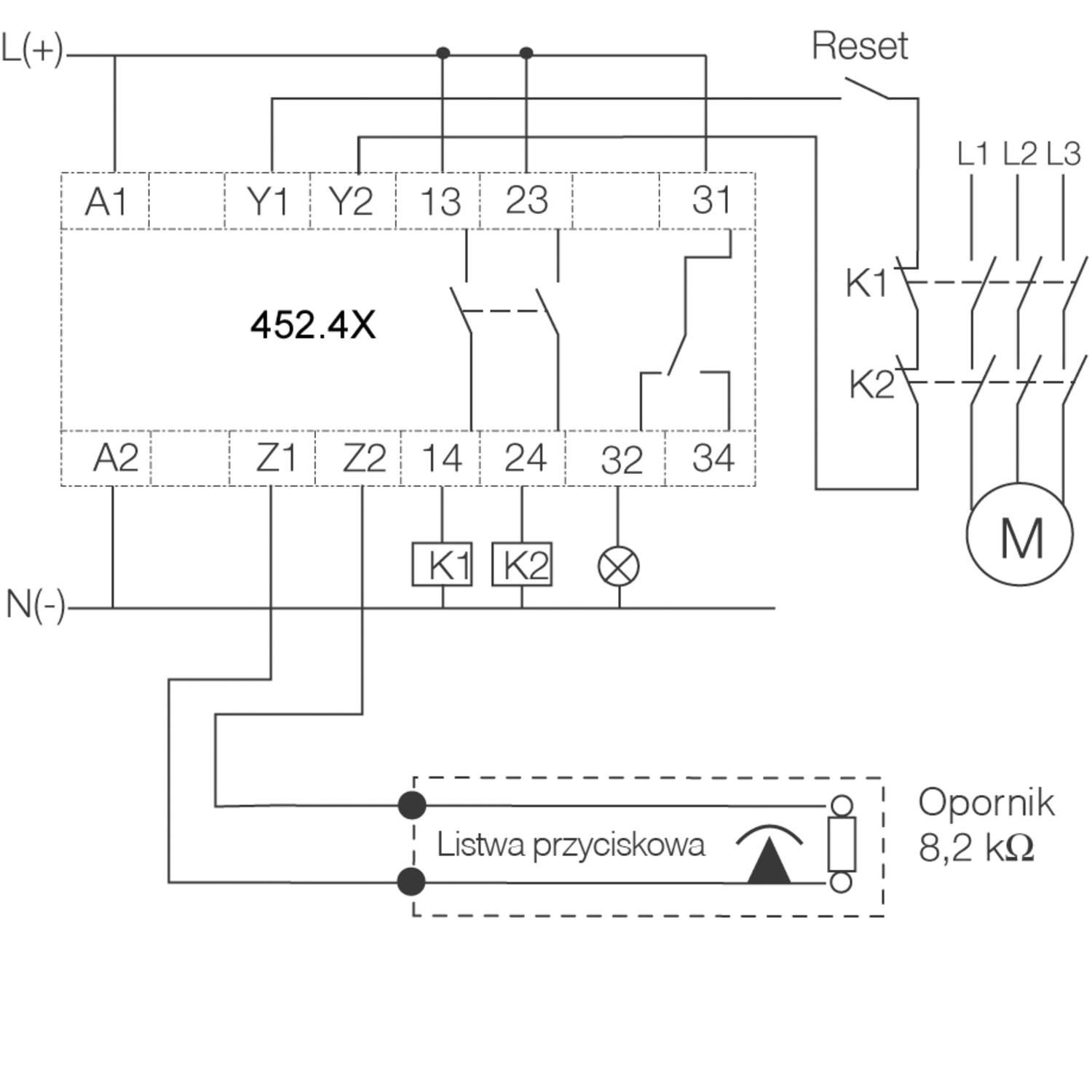

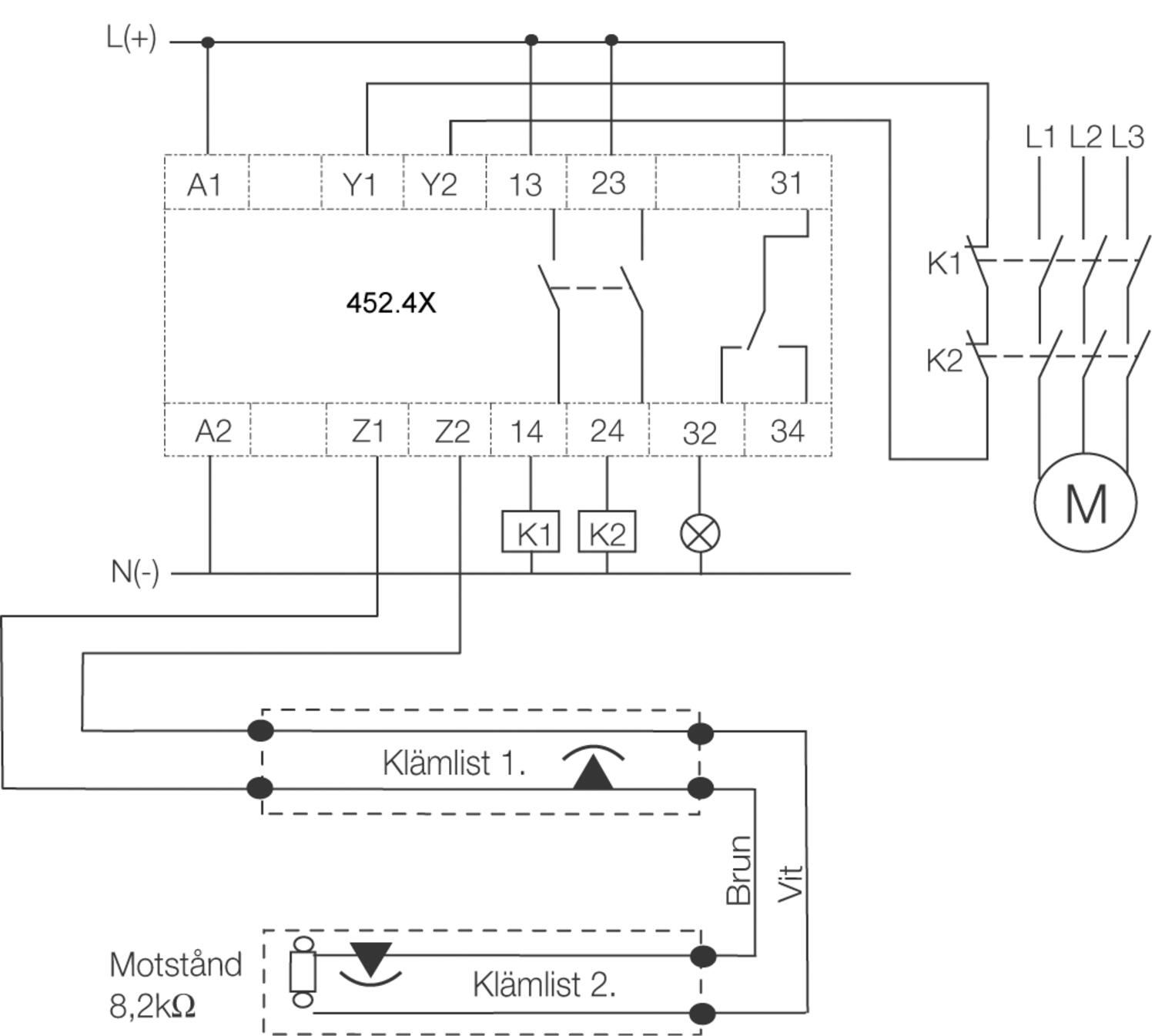

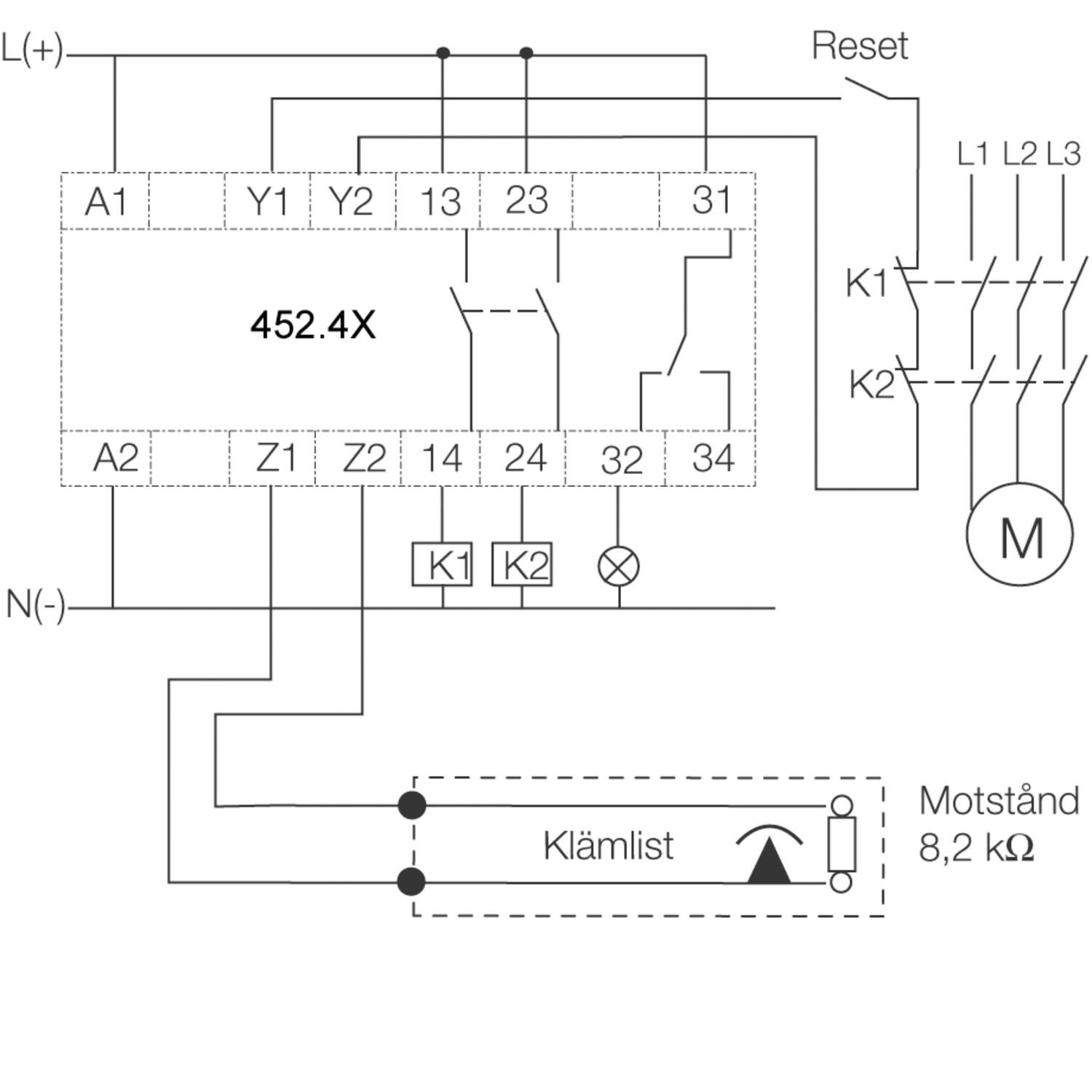

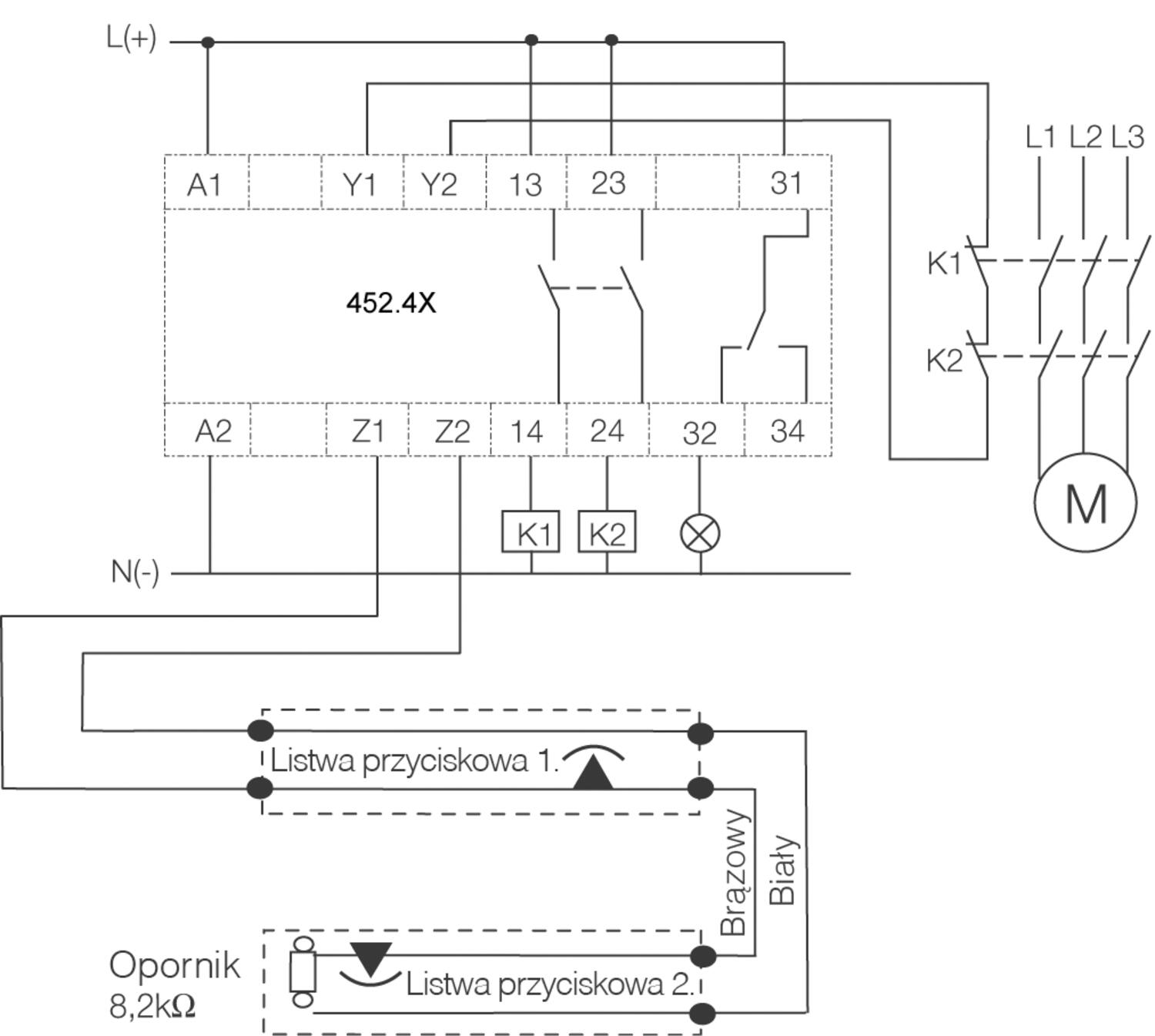

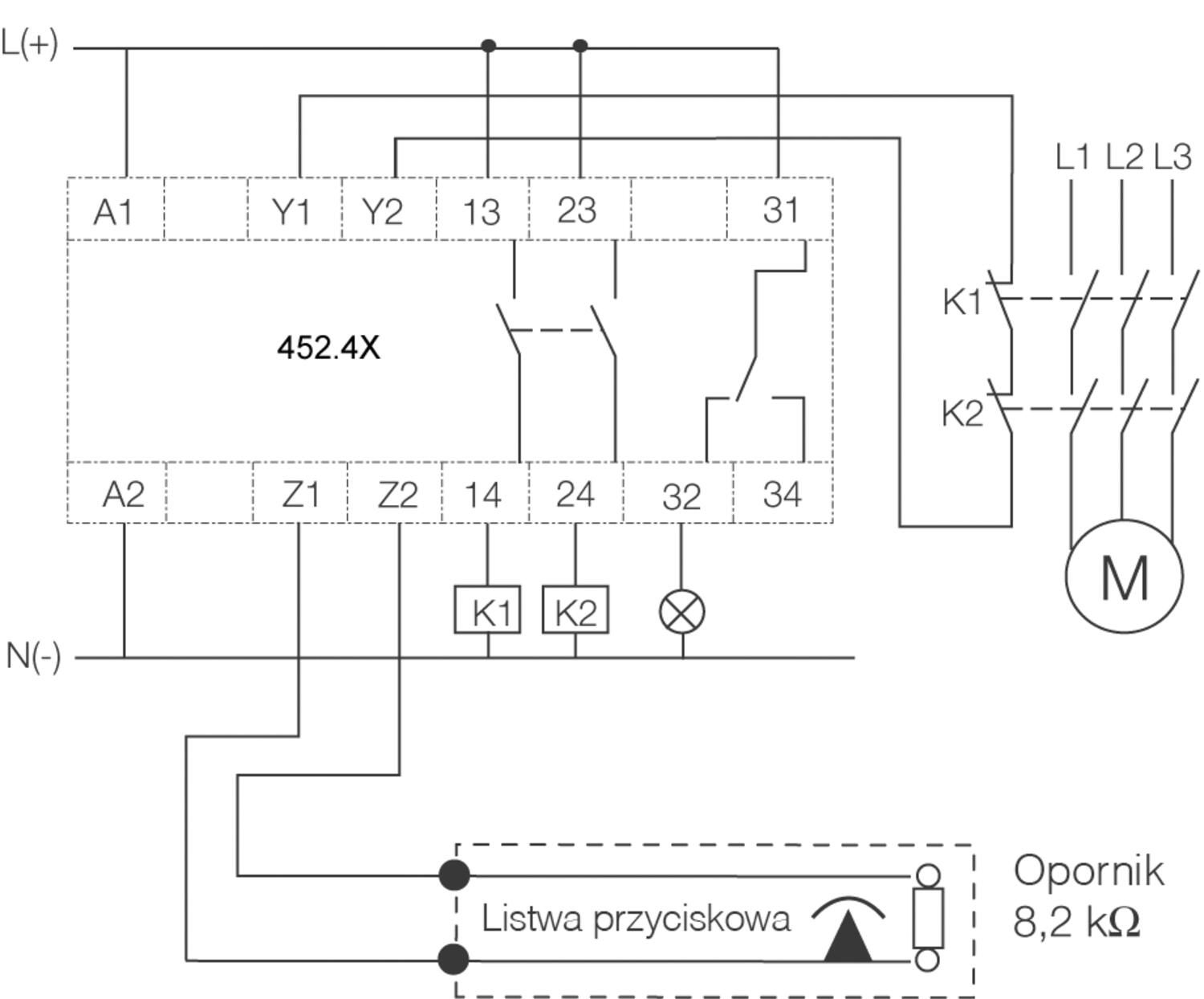

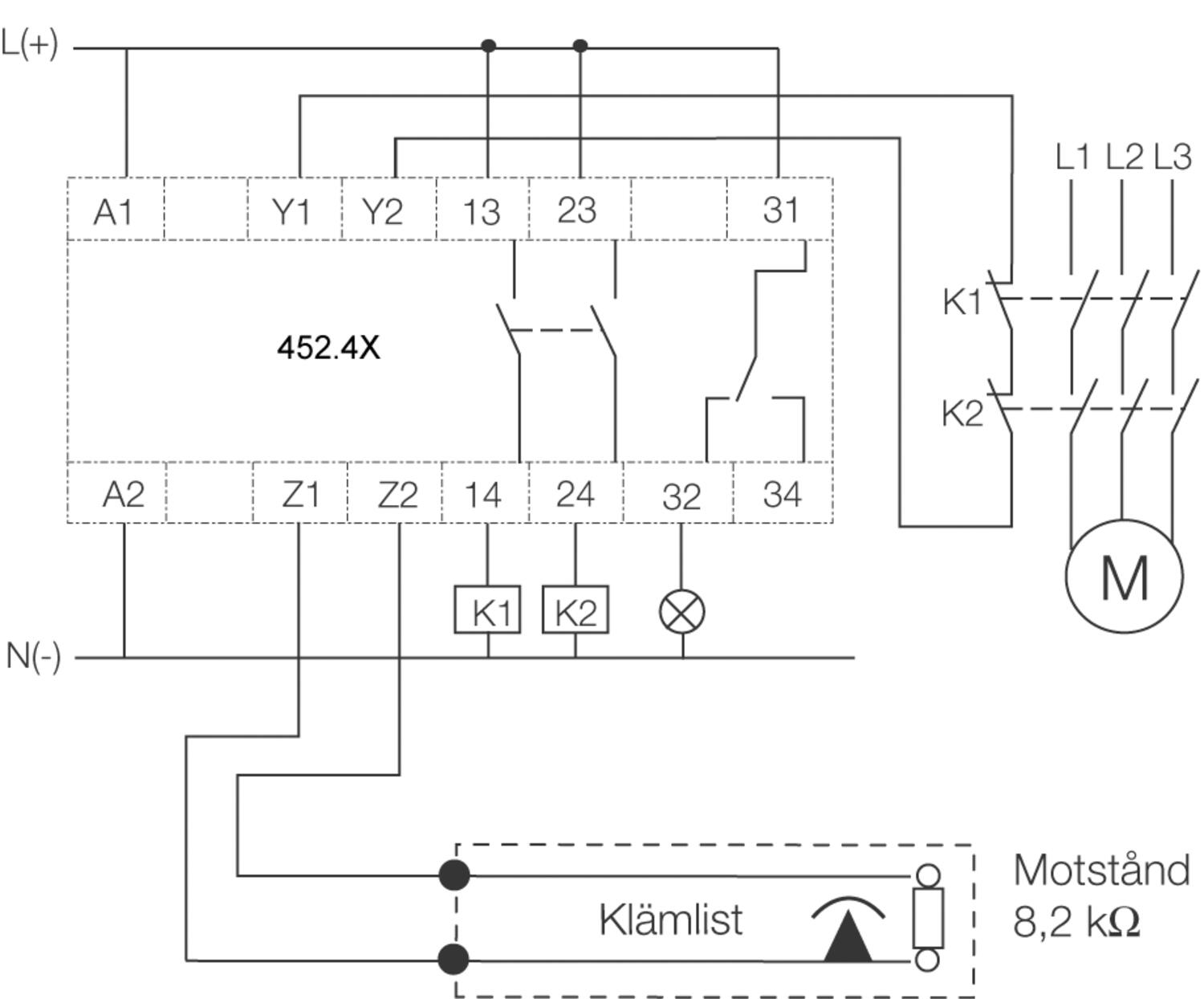

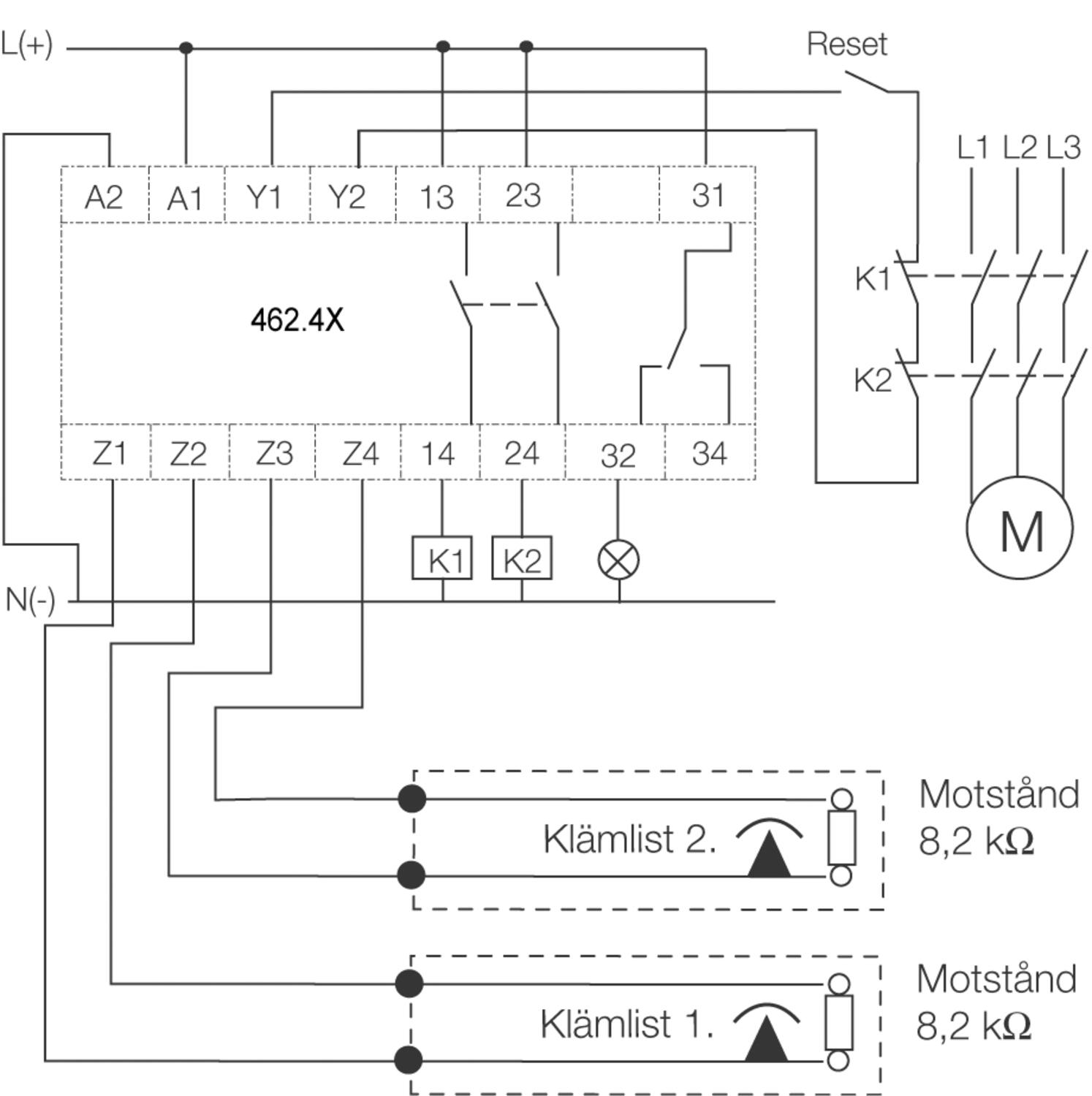

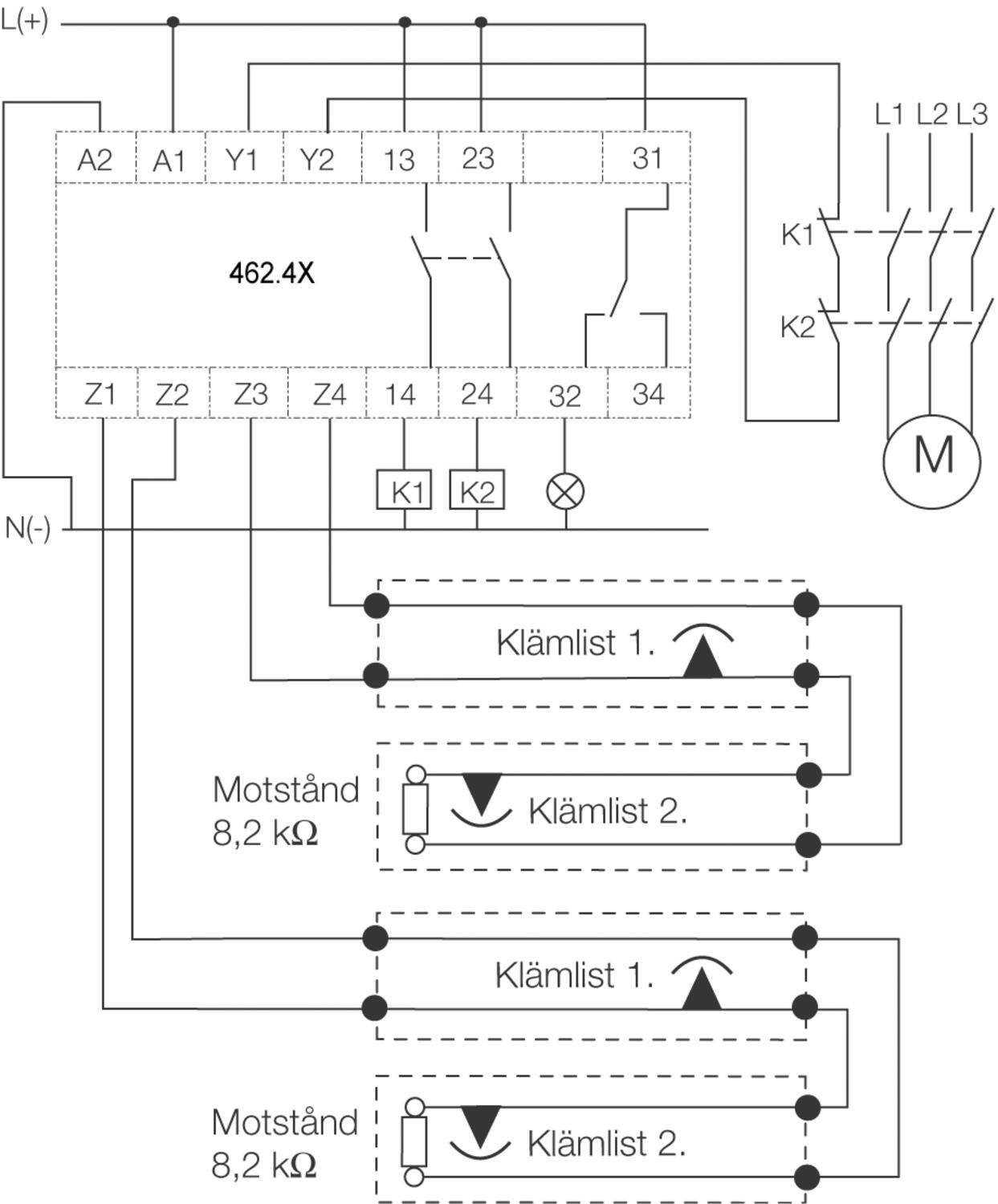

Connection
452.4 (One input) | 462.4 (Two inputs) |
1. One sensing strip. | 4. Two sensing strips. |
|
|
2. One sensing strip. | 5. Two sensing strips. |
|
|
3. Two sensing strips. | 6. Several sensing strips. |
Order number
Order no. | Description |
3004.5246 | Control unit 452.4, 2 NO+1 CO, one input, cat. 3, 24 V DC, 22.5 mm |
3004.5240 | Control unit 452.4, 2 NO+1 CO, one input, cat. 3, 230 V AC, 22.5 mm |
3004.6246 | Control unit 462.4, 2 NO+1 CO, 2 inputs, cat. 3, 24 V DC, 22.5 mm |
3004.6240 | Control unit 452.4, 2 NO+1 CO, 2 inputs, cat. 3, 230 V AC, 22.5 mm |
3004.5242 | Control unit 452.4, 2 NO+1 CO, 1 input, variable voltage |
3004.6242 | Control unit 462.4, 2 NO+1 CO, 2 inputs, variable voltage |
- 2 NO+1 CO output
- Safety category 3 in accordance with EN954-1
- Automatic or manual reset
- Available with variable supply voltage
Selected variant
Selected variant
Specifications
| Approvals | CE, TÜV NORD |
|---|---|
| Cable length to clip list max | 50 m (min. 0,5 m2) |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 4 A AC/DC |
| Contact Voltage Max | 250 V AC/24 V DC |
| Disconnection | 15 |
| Fuse output | 4 |
| IP Class Connection | IP20 |
| IP Class House | IP40 |
| Mounting | DIN rail |
| PL | e enl. SS-EN ISO 13849-1:2008 |
|---|---|
| Power Consumption | 3 |
| Supply voltage | 24 V DC |
| Temperature ambient from | -20 |
| Temperature ambient to | 55 |
| Terminal Strip Length Max | 100 m |
| Tolerance max | 10 |
| Tolerance min | -15 |
Downloads
Product description
Compact control unit with only 22.5 mm enclosure for the monitoring of sensing strips in dangerous applications. It is also suitable for use on motorised gates which, in line with the standard, must have relays conforming to safety category 3. A low current is transmitted from the control unit connectors (Z1 and Z2) through the sensing strip, and a closed circuit is formed via a resistor (8.2 kΩ). The control units outputs cut the power if anyone/anything presses the sensing strip and also following a short-circuit or open circuit.
Technical data
Supply voltage | 24 V AC/DC, 230 V AC | |
Tolerance | -15 % to +10 % | |
Consumption (operation) | 3 W | |
Relay outputs: | Safe | 2 NO (single) |
Signal | 1 CO | |
Max. contact voltage | 250 V AC/24 V DC | |
Max. contact current | 4 A AC/2 A DC | |
Fuse outputs | 4 A | |
Disconnection time | 15 ms | |
Max. length of sensing strip | 100 m | |
Max. cable length to the sensing strip | 50 m (min. 0.5 m²) | |
Status indication | 4xLED | |
Ingress protection class: | Terminal block | IP20 |
Enclosure | IP40 | |
Ambient temperature | -20 °C to +55 °C | |
Installation | DIN rail | |
Mechanical service life | 3x107 | |
Safety category | 3 in accordance with EN954-1 | |
Standard | EN1760-2, ZH1/494 | |
Conforming to | MD, LVD, EMC | |
Approvals |
| |
Technical characteristics
Depending on safety requirements |
| |
• Force guided contacts |
| |
• Internal/external redundancy |
| |
|
| |
User benefits | Status indication | |
• Safety category 3 in accordance with EN954-1 |
| |
• 2 NO and 1 CO output |
| Strip activated |
• Contact load 4 A |
| Fault in the safety circuit |
• LED status indication |
| Output activated |
• Monitoring of external contactors |
| Output activated |
Dimensions
(mm)
Connection
452.4 (One input) | 462.4 (Two inputs) |
1. One sensing strip. | 4. Two sensing strips. |
|
|
2. One sensing strip. | 5. Two sensing strips. |
|
|
3. Two sensing strips. | 6. Several sensing strips. |
Order number
Order no. | Description |
3004.5246 | Control unit 452.4, 2 NO+1 CO, one input, cat. 3, 24 V DC, 22.5 mm |
3004.5240 | Control unit 452.4, 2 NO+1 CO, one input, cat. 3, 230 V AC, 22.5 mm |
3004.6246 | Control unit 462.4, 2 NO+1 CO, 2 inputs, cat. 3, 24 V DC, 22.5 mm |
3004.6240 | Control unit 452.4, 2 NO+1 CO, 2 inputs, cat. 3, 230 V AC, 22.5 mm |
3004.5242 | Control unit 452.4, 2 NO+1 CO, 1 input, variable voltage |
3004.6242 | Control unit 462.4, 2 NO+1 CO, 2 inputs, variable voltage |
