IDEM

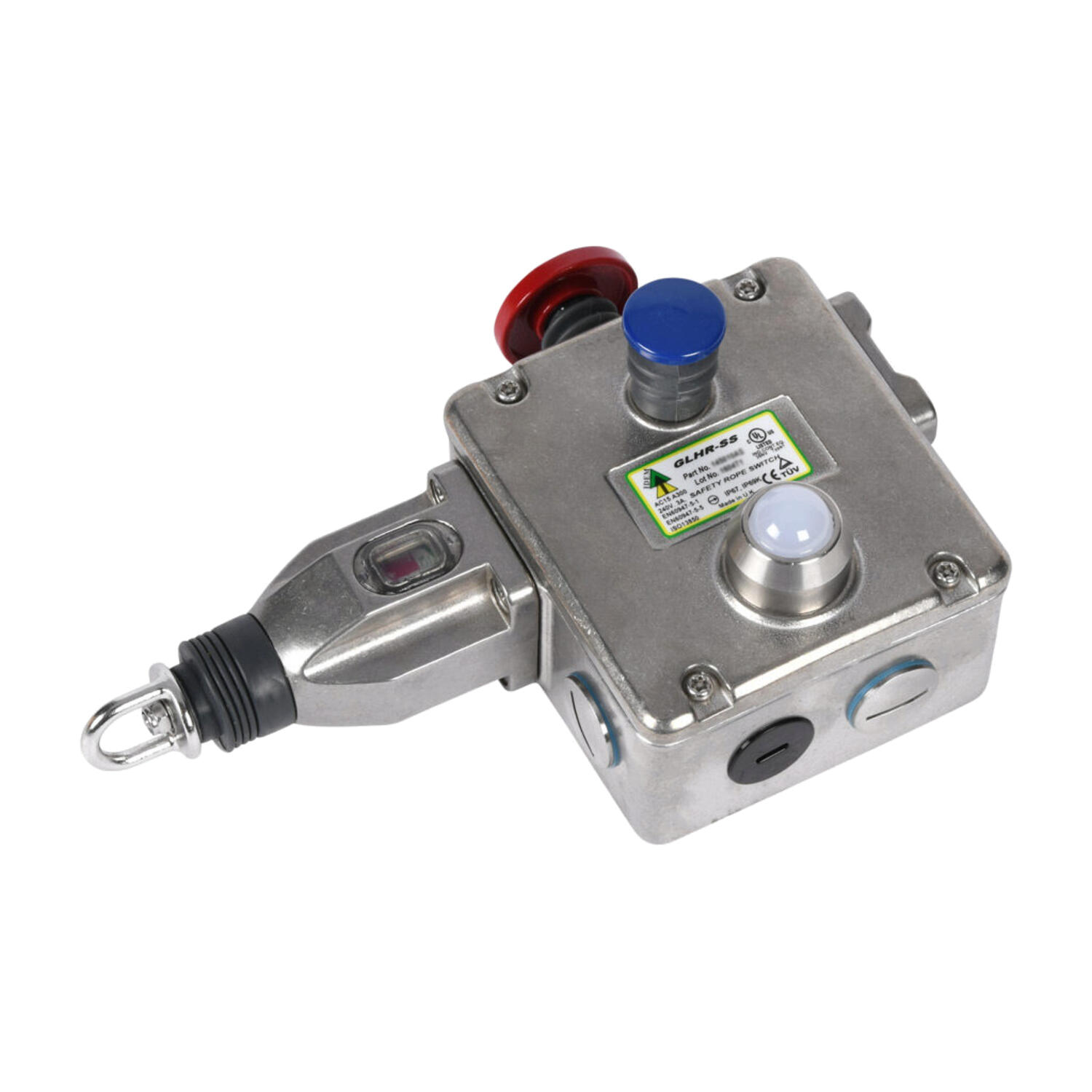

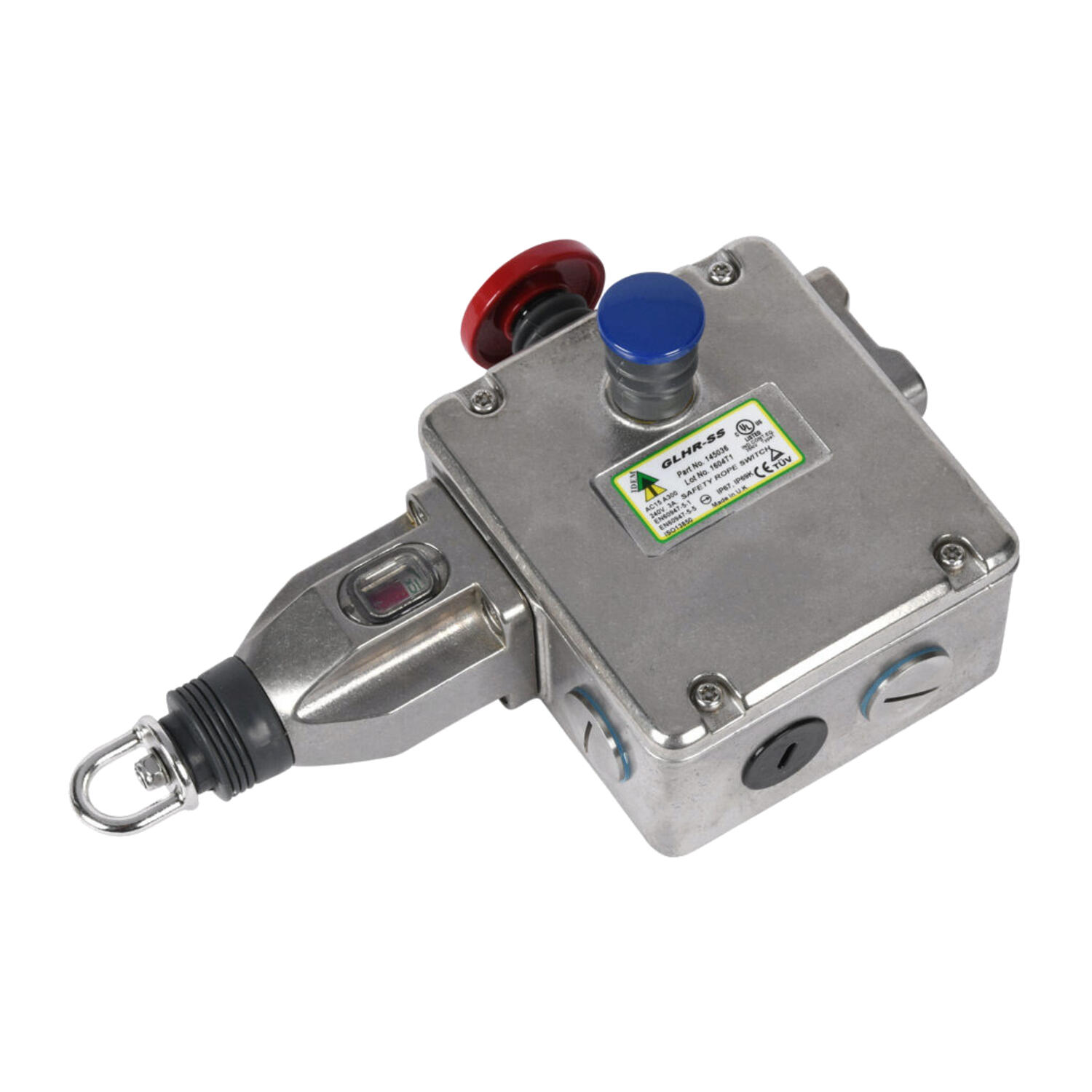

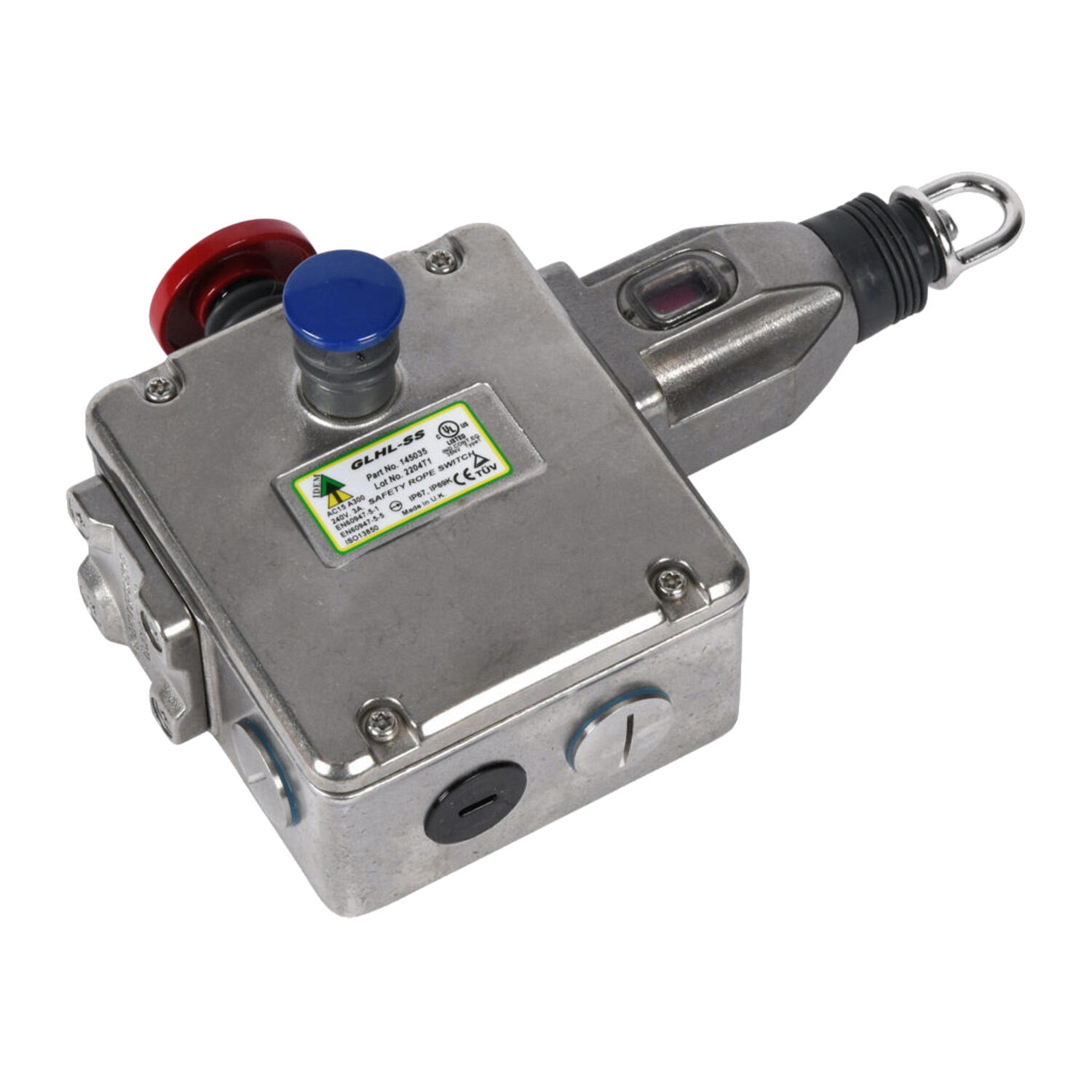

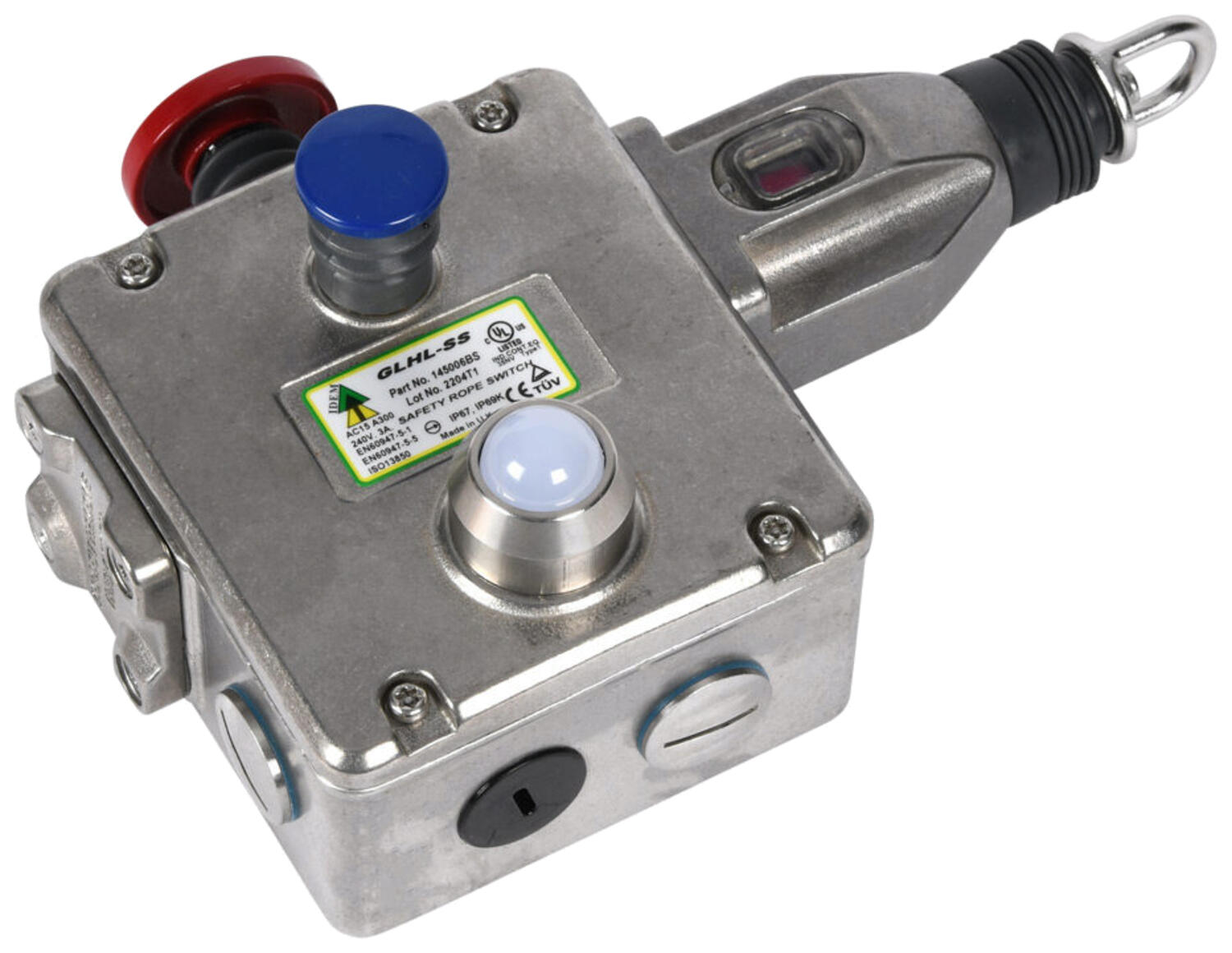

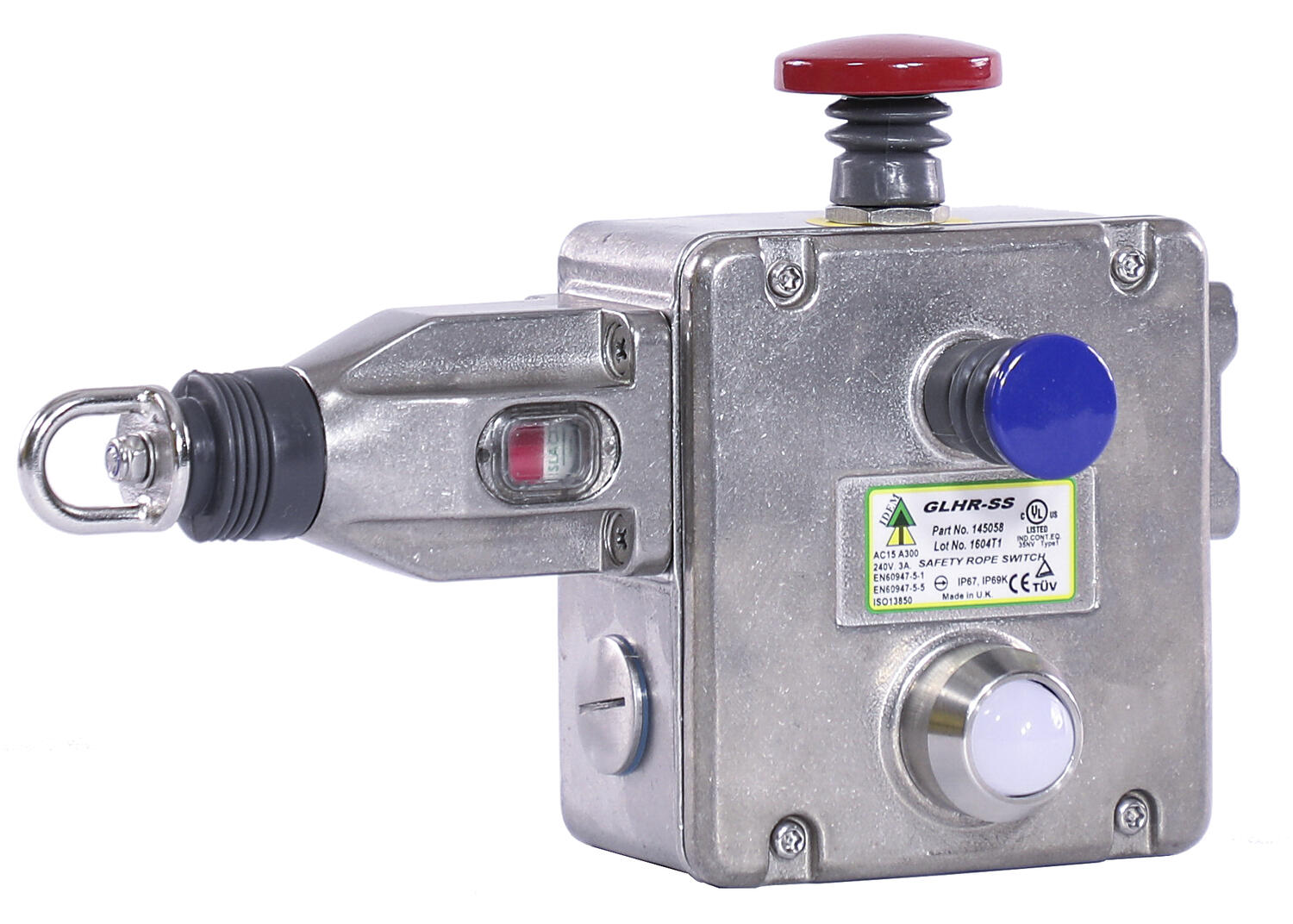

The GLHR/L-SS is a robust heavy duty safety rope pull switch and is designed to protect long conveyor lengths up to 125m (2 switches) or up to 100m using a single switch.
The stainless steel 316 housings are designed specifically to withstand the tough environments found in the food and pharmaceutical industries.
They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by using integral bellows and gaskets.
They can be used to complement the GLHD-SS (dual head) versions at each end of the rope.
Annual usage | 8 cycles per hour/24 hours per day/365 days |
---|---|
Approvals | EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, CE, cULus, TÜV, UL 508 |
Central Material | Stainless steel 316 |
Conduit entry | 4 x M20 |
Contact Type | EN60947-5-1 double break type Zb, Snap action up to 4NC (positive break) 2NO (auxiliary) |
Contacts | 4NC 2NO |
Fittings | E-stop and LED |
Integrated emergency stop button | Yes |
Integrated LED indication | Yes |
IP Class | IP69K, IP67 |
LED Display | Steady green/Flashing red |
LED supply voltage | 24Vdc |
Materials Contacts | Silver |
Mechanical reliability B10d | 1.5 x 10⁶ operations at 100mA load |

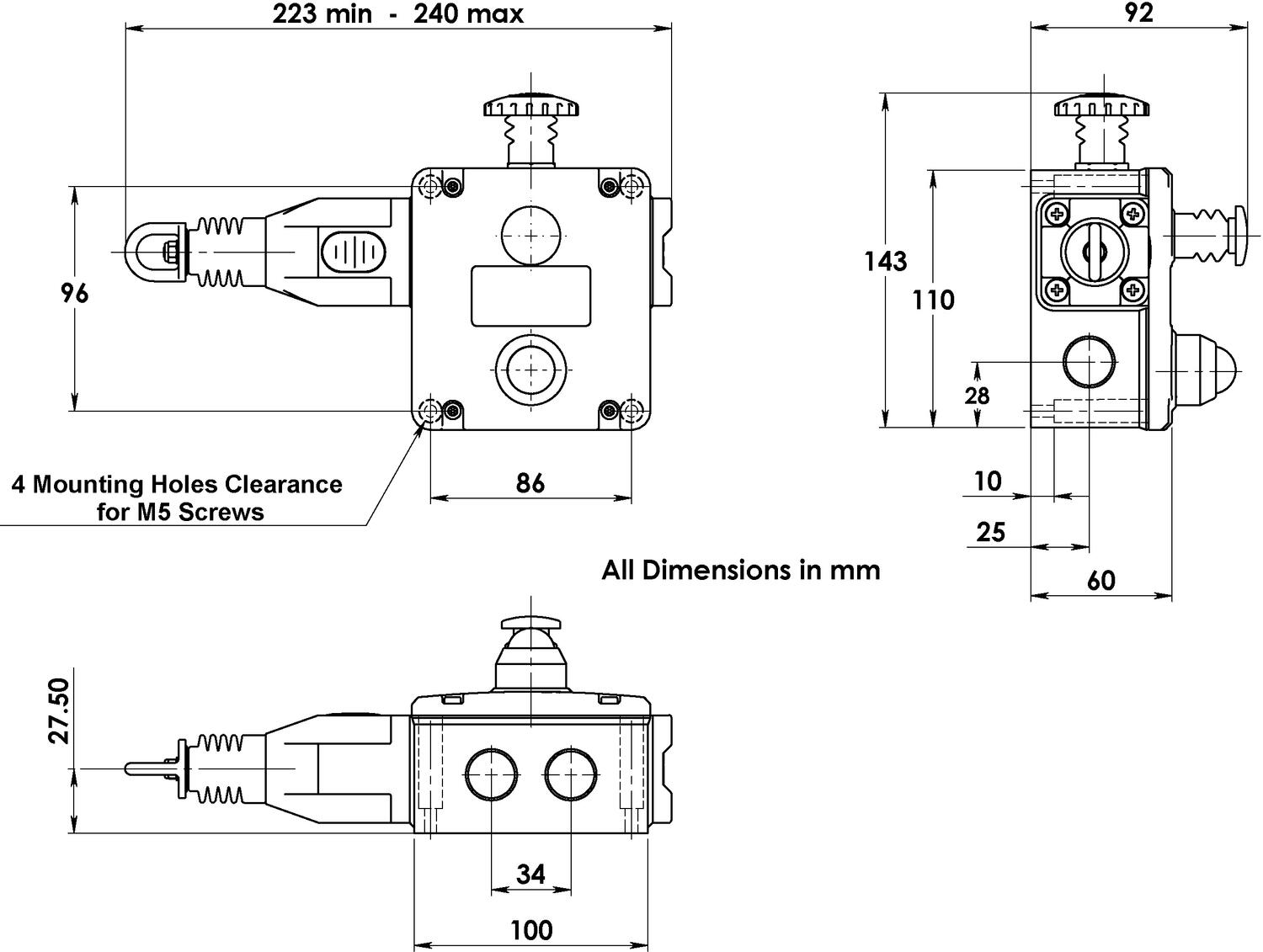

Mounting | 4 x M5 |
MTTFd | 214 years |
---|---|
Operating temperature | -25°C +80°C |
PFHd | <1.0 x 10⁻⁷ |
PL | up to PLe acc. ISO13849-1 |

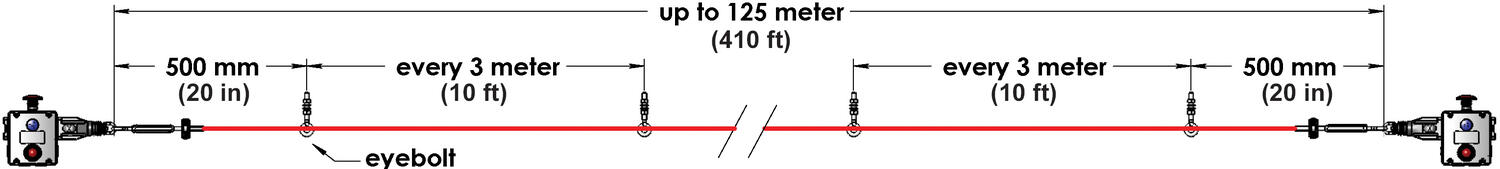

Rope span | 125m |
Rope tension device | IDEM tensioner/gripper (quick fixing) |
Rope type | 4.00mm outside diameter. Steel inner - PVC sheath |
Short circuit overload protection | Fuse externally 10A(ff) |
SIL | up to SIL 3 acc. EN62061 |
Tension force (typical mid setting) | 130 |
Termination | Clamp up to 2.5mm² conductors |
Thermal current (lth) | 10 |
Typical operating force (rope pulled) | <125N <300mm deflection |
Weight | 2475 |
The GLHR/L-SS is a robust heavy duty safety rope pull switch and is designed to protect long conveyor lengths up to 125m (2 switches) or up to 100m using a single switch.
The stainless steel 316 housings are designed specifically to withstand the tough environments found in the food and pharmaceutical industries.
They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by using integral bellows and gaskets.
They can be used to complement the GLHD-SS (dual head) versions at each end of the rope.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
The DF Electric 485121 fuse holder delivers reliable protection in a compact, DIN-rail-ready design. Built for panel builders who won’t compromise on safety or performance, it’s the trusted choice for tough environments and tight spaces.
STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.
Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Conduit entry | Fittings | Integrated emergency stop button | Integrated LED indication | LED Display | LED supply voltage | Price | |
---|---|---|---|---|---|---|---|---|---|
![]()
GLHL-SS M20 '4NC 2NO' E Stop & LED 24V
Art:
145005A
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E Stop & LED 24V
Art:
145005A-FZ
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E Stop & Steady LED 24V
Art:
145005-AS
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Steady red
|
24Vdc
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E Stop & LED 110V
Art:
145005B
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E Stop & LED 110v/120v
Art:
145005B-FZ
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E Stop & LED 230V
Art:
145005C
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E Stop & LED 230V
Art:
145005C-FZ
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E Stop & LED 24V
Art:
145006A
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E Stop & LED 24V
Art:
145006A-FZ
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E Stop & LED 110V
Art:
145006B
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E Stop & LED 110v/120v
Art:
145006B-FZ
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E Stop & LED 230V
Art:
145006C
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E Stop & LED 230V
Art:
145006C-FZ
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E stop
Art:
145035
Copied
|
4 x 1/2" NPT
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' E stop
Art:
145035-FZ
Copied
|
4 x 1/2" NPT
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHL-SS M20 '4NC 2NO'
Art:
145037
Copied
|
4 x M20
|
|
No
|
No
|
|
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' -(-40° version)
Art:
145037-FZ
Copied
|
4 x M20
|
|
No
|
No
|
|
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E stop
Art:
145051
Copied
|
4 x M20
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' E stop
Art:
145051-FZ
Copied
|
4 x M20
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED 24V
Art:
145053A
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED 24V
Art:
145053A-FZ
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED Steady Red/Green 24V
Art:
145053-AS
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Steady red
|
24Vdc
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED 110V
Art:
145053B
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED 110v/120v
Art:
145053B-FZ
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED 230V
Art:
145053C
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS M20 '4NC 2NO' LED 230V
Art:
145053C-FZ
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' LED 24V
Art:
145055A
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' LED 24V
Art:
145055A-FZ
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' LED 110V
Art:
145055B
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' LED 110v/120v
Art:
145055B-FZ
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' LED 230V
Art:
145055C
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO' LED 230V
Art:
145055C-FZ
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHL-SS ½NPT '4NC 2NO'
Art:
145057
Copied
|
4 x 1/2" NPT
|
|
No
|
No
|
|
|
| ||
![]()
GLHL-SS 1/2NPT '4NC 2NO' - (-40° version)
Art:
145057-FZ
Copied
|
4 x 1/2" NPT
|
|
No
|
No
|
|
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & LED 24V
Art:
145009A
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & LED 24V
Art:
145009A-FZ
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & Steady LED 24V
Art:
145009-AS
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Steady red
|
24Vdc
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & LED 110V
Art:
145009B
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & LED 110v/120v
Art:
145009B-FZ
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & LED 230V
Art:
145009C
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E Stop & LED 230V
Art:
145009C-FZ
Copied
|
4 x M20
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E Stop & LED 24V
Art:
145010A
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E Stop & LED 24V
Art:
145010A-FZ
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E Stop & LED 110V
Art:
145010B
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E Stop & LED 110v/120v
Art:
145010B-FZ
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E Stop & LED 230V
Art:
145010C
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E Stop & LED 230V
Art:
145010C-FZ
Copied
|
4 x 1/2" NPT
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E stop
Art:
145036
Copied
|
4 x 1/2" NPT
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' E stop
Art:
145036-FZ
Copied
|
4 x 1/2" NPT
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHR-SS M20 '4NC 2NO'
Art:
145038
Copied
|
4 x M20
|
|
No
|
No
|
|
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' (-40° version)
Art:
145038-FZ
Copied
|
4 x M20
|
|
No
|
No
|
|
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E stop
Art:
145052
Copied
|
4 x M20
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' E stop
Art:
145052-FZ
Copied
|
4 x M20
|
E-stop
|
Yes
|
No
|
|
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' LED 24V
Art:
145054A
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' LED 24V
Art:
145054A-FZ
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' LED 110V
Art:
145054B
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' LED 110v/120v
Art:
145054B-FZ
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' LED 230V
Art:
145054C
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS M20 '4NC 2NO' LED 230V
Art:
145054C-FZ
Copied
|
4 x M20
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' LED 24V
Art:
145056A
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' LED 24V
Art:
145056A-FZ
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' LED 110V
Art:
145056B
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' LED 110v/120v
Art:
145056B-FZ
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' LED 230V
Art:
145056C
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO' LED 230V
Art:
145056C-FZ
Copied
|
4 x 1/2" NPT
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
| ||
![]()
GLHR-SS ½NPT '4NC 2NO'
Art:
145058
Copied
|
4 x 1/2" NPT
|
|
No
|
No
|
|
|
| ||
![]()
GLHR-SS 1/2NPT '4NC 2NO' - (-40° version)
Art:
145058-FZ
Copied
|
4 x 1/2" NPT
|
|
No
|
No
|
|
|
|
Select a variant in the list
