IDEM
The GLS is a General/Standard Duty robust die-cast Safety Rope Pull Switch designed to protect conveyor lengths where protection is required up to 80m using two switches or up to 60m using a single switch.
They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the application.
They can be supplied with a mushroom type Emergency Stop button which can be fitted to the side of the switch to offer an extra traditional Emergency Stop function close to the switch, or can be fitted later after installation without any extra wiring.
A bi-colour LED is also available to show switch status from a distance and they have a choice of 3 pole, 4 pole or Explosion Proof contact blocks to ensure flexibility with all modern control applications.
Rugged internal sealing bellows means the GLS can be high pressure hosed and choice of materials makes them suitable for internal or external use.
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
|---|---|
| Approvals | EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, UL 508 |
| Central Material | Die cast metal |
| Conduit entry | 3 x M20 |
| Contact Type | EN60947-5-1 double break type Zb. Snap action up to 4NC (positive break) 2NO (auxiliary) |
| Contacts | 2NC 1NO |
| Integrated emergency stop button | No |
| Integrated LED indication | No |
| IP Class | IP67 |
| Materials Contacts | Silver |
| Mechanical reliability B10d | 1.5 x 10⁶ operations at 100mA load |
| Mounting | 4 x M5 |
| MTTFd | 214 years |
| Operating temperature | -25°C +80°C |
|---|---|
| PFHd | <1.0 x 10⁻⁷ |

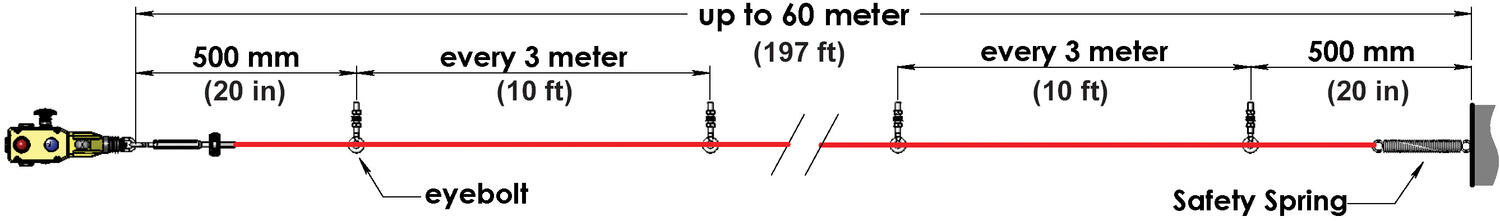

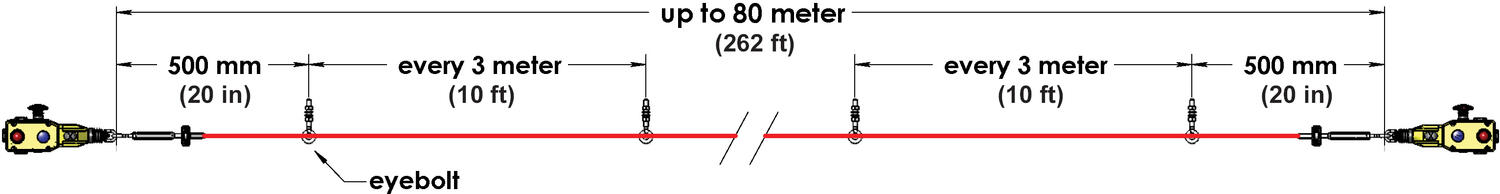

| Rope span | Up to 80m (2 switches) 60m (1 switch) |
| Rope tension device | IDEM tensioner/gripper (quick fixing) |
| Rope type | 4.00mm outside diameter. Steel inner - PVC sheath |
| Short circuit overload protection | Fuse externally 10A(FF) |
| Tension force (typical mid setting) | 130 |
| Termination | Clamp up to 2.5mm² conductors |
| Thermal current (lth) | 10 |
| Typical operating force (rope pulled) | <125N <300mm deflection |
| Weight | 735 |
The GLS is a General/Standard Duty robust die-cast Safety Rope Pull Switch designed to protect conveyor lengths where protection is required up to 80m using two switches or up to 60m using a single switch.
They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the application.
They can be supplied with a mushroom type Emergency Stop button which can be fitted to the side of the switch to offer an extra traditional Emergency Stop function close to the switch, or can be fitted later after installation without any extra wiring.
A bi-colour LED is also available to show switch status from a distance and they have a choice of 3 pole, 4 pole or Explosion Proof contact blocks to ensure flexibility with all modern control applications.
Rugged internal sealing bellows means the GLS can be high pressure hosed and choice of materials makes them suitable for internal or external use.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
The DF Electric 485121 fuse holder delivers reliable protection in a compact, DIN-rail-ready design. Built for panel builders who won’t compromise on safety or performance, it’s the trusted choice for tough environments and tight spaces.
STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.
Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
.png?as=1&iar=0&hash=4B2EE0F7248083DFB8461902B75780CA)
Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Conduit entry | Contacts | Fittings | Integrated emergency stop button | Integrated LED indication | LED Display | LED supply voltage | Operating temperature | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
GLS M20 '2NC 1NO'
Art:
142001
Copied
|
3 x M20
|
2NC 1NO
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' (-40° version)
Art:
142001-FZ
Copied
|
3 x M20
|
2NC 1NO
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO'
Art:
142002
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' (-40° version)
Art:
142002-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' LED 24V
Art:
142005-A
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' LED 24V (-40° version)
Art:
142005A-FZ
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' Steady LED 24V
Art:
142005-AS
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Steady red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' LED 110V
Art:
142005-B
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' LED 110v/120v (-40° version)
Art:
142005B-FZ
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' LED 230V
Art:
142005-C
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' LED 230V (-40° version)
Art:
142005C-FZ
Copied
|
3 x M20
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT 2NC 1NO' LED 24V
Art:
142006-A
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT 2NC 1NO' LED 24V (-40° version)
Art:
142006A-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT 2NC 1NO' LED 110V
Art:
142006-B
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT 2NC 1NO' LED 110v/120v (-40° version)
Art:
142006B-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT 2NC 1NO' LED 230V
Art:
142006-C
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT 2NC 1NO' LED 230V (-40° version)
Art:
142006C-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||

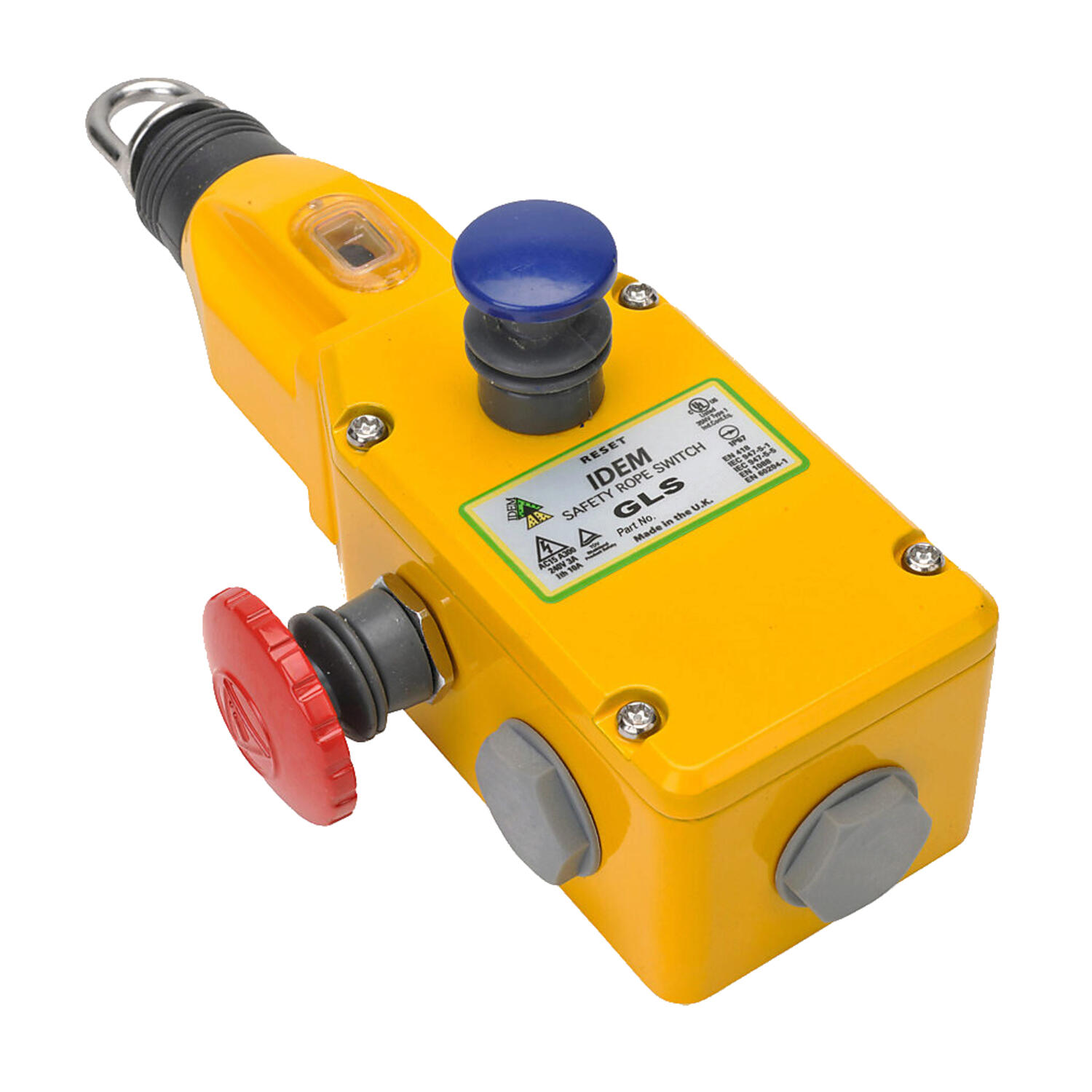

GLS M20 '2NC 1NO' E Stop
Art:
142009
Copied
|
3 x M20
|
2NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 2NC 1NO EStop - Special low temp version
Art:
142009FZ
Copied
|
3 x M20
|
2NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E Stop
Art:
142010
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E Stop (-40° version)
Art:
142010-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||

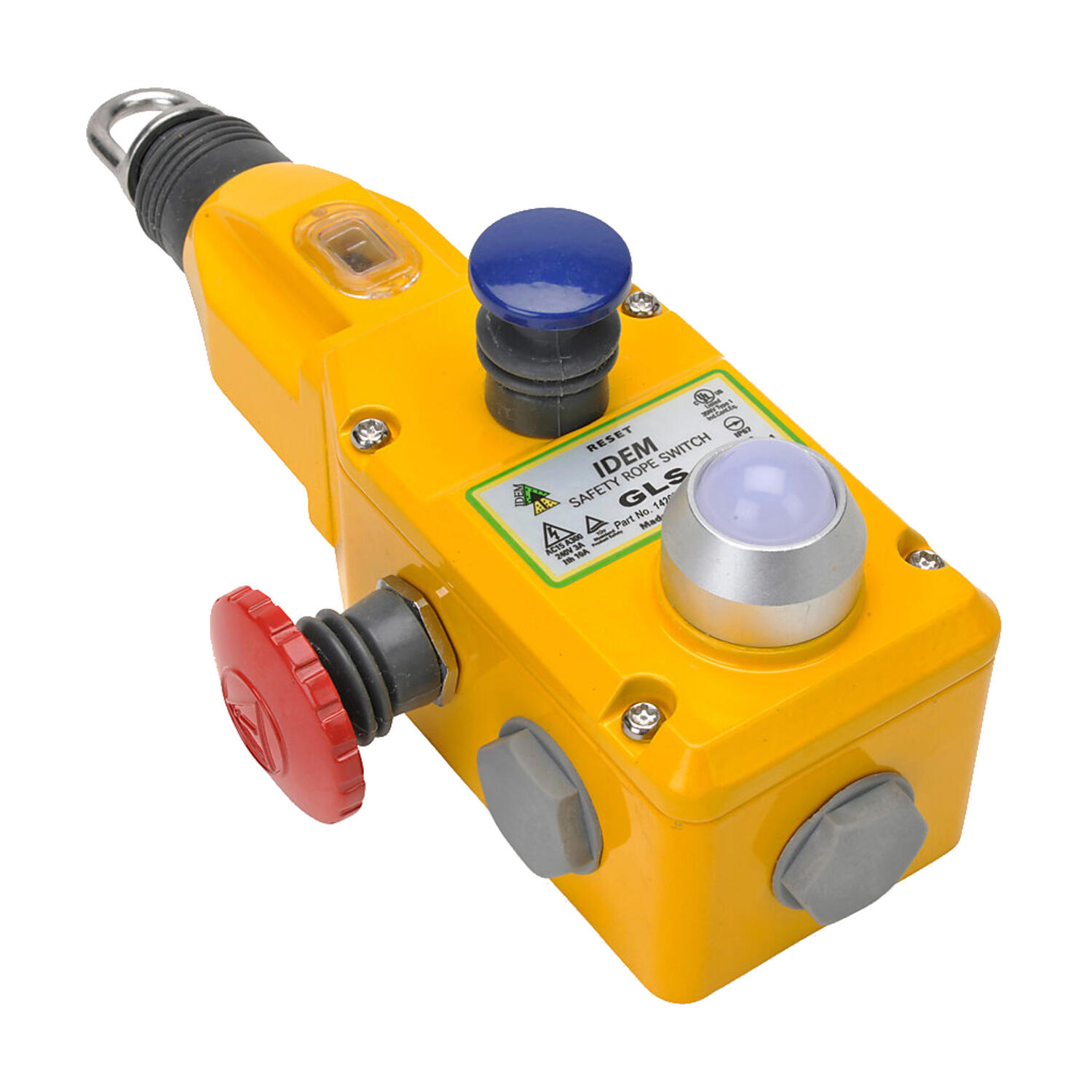

GLS M20 '2NC 1NO' E-Stop & LED 24V
Art:
142017A
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' E-Stop & LED 24V (-40° version)
Art:
142017A-FZ
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' E-Stop & Steady LED 24V
Art:
142017-AS
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Steady red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' E-Stop & LED 110V
Art:
142017B
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' E-Stop & LED 110v/120v (-40° version)
Art:
142017B-FZ
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' E-Stop & LED 230V
Art:
142017C
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 1NO' E-Stop & LED 230V (-40° version)
Art:
142017C-FZ
Copied
|
3 x M20
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E-Stop & LED 24V
Art:
142018A
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E-Stop & LED 24V (-40° version)
Art:
142018A-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E-Stop & LED 110V
Art:
142018B
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E-Stop & LED 110v/120v (-40° version)
Art:
142018B-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E-Stop & LED 230V
Art:
142018C
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 1NO' E-Stop & LED 230V (-40° version)
Art:
142018C-FZ
Copied
|
3 x 1/2" NPT
|
2NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO'
Art:
142050
Copied
|
3 x M20
|
3NC 1NO
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' (-40° version)
Art:
142050-FZ
Copied
|
3 x M20
|
3NC 1NO
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO'
Art:
142051
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' (-40° version)
Art:
142051-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO'
Art:
142052
Copied
|
3 x M20
|
2NC 2NO
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' (-40° version)
Art:
142052-FZ
Copied
|
3 x M20
|
2NC 2NO
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO'
Art:
142053
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' (-40° version)
Art:
142053-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC'
Art:
142054
Copied
|
3 x M20
|
4NC
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' (-40° version)
Art:
142054-FZ
Copied
|
3 x M20
|
4NC
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC'
Art:
142055
Copied
|
3 x 1/2" NPT
|
4NC
|
|
No
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' (-40° version)
Art:
142055-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
|
No
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' LED 24V
Art:
142056A
Copied
|
3 x M20
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' LED 24V (-40° version)
Art:
142056A-FZ
Copied
|
3 x M20
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' LED 110V
Art:
142056B
Copied
|
3 x M20
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' LED 110v/120v (-40° version)
Art:
142056B-FZ
Copied
|
3 x M20
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' LED 230V
Art:
142056C
Copied
|
3 x M20
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' LED 230V (-40° version)
Art:
142056C-FZ
Copied
|
3 x M20
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' LED 24V
Art:
142057A
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' LED 24V (-40° version)
Art:
142057A-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' LED 110V
Art:
142057B
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' LED 110v/120v (-40° version)
Art:
142057B-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' LED 230V
Art:
142057C
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' LED 230V (-40° version)
Art:
142057C-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' LED 24V
Art:
142058A
Copied
|
3 x M20
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' LED 24V (-40° version)
Art:
142058A-FZ
Copied
|
3 x M20
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' LED 110V
Art:
142058B
Copied
|
3 x M20
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' LED 110v/120v (-40° version)
Art:
142058B-FZ
Copied
|
3 x M20
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' LED 230V
Art:
142058C
Copied
|
3 x M20
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' LED 230V (-40° version)
Art:
142058C-FZ
Copied
|
3 x M20
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' LED 24V
Art:
142059A
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' LED 24V (-40° version)
Art:
142059A-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' LED 110V
Art:
142059B
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' LED 110v/120v (-40° version)
Art:
142059B-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' LED 230V
Art:
142059C
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' LED 230V (-40° version)
Art:
142059C-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' LED 24V
Art:
142060A
Copied
|
3 x M20
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' LED 24V (-40° version)
Art:
142060A-FZ
Copied
|
3 x M20
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' LED 110V
Art:
142060B
Copied
|
3 x M20
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' LED 110v/120v (-40° version)
Art:
142060B-FZ
Copied
|
3 x M20
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' LED 230V
Art:
142060C
Copied
|
3 x M20
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' LED 230V (-40° version)
Art:
142060C-FZ
Copied
|
3 x M20
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' LED 24V
Art:
142061A
Copied
|
3 x 1/2" NPT
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' LED 24V (-40° version)
Art:
142061A-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' LED 110V
Art:
142061B
Copied
|
3 x 1/2" NPT
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' LED 110v/120v (-40° version)
Art:
142061B-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' LED 230V
Art:
142061C
Copied
|
3 x 1/2" NPT
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' LED 230V (-40° version)
Art:
142061C-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
LED
|
No
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop
Art:
142062
Copied
|
3 x M20
|
3NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop (-40° version)
Art:
142062-FZ
Copied
|
3 x M20
|
3NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop
Art:
142063
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop (-40° version)
Art:
142063-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop
Art:
142064
Copied
|
3 x M20
|
2NC 2NO
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop (-40° version)
Art:
142064-FZ
Copied
|
3 x M20
|
2NC 2NO
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop
Art:
142065
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop (-40° version)
Art:
142065-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop
Art:
142066
Copied
|
3 x M20
|
4NC
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop (-40° version)
Art:
142066-FZ
Copied
|
3 x M20
|
4NC
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop
Art:
142067
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop
|
Yes
|
No
|
|
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop (-40° version)
Art:
142067-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop
|
Yes
|
No
|
|
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop & LED 24V
Art:
142074A
Copied
|
3 x M20
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop & LED 24V (-40° version)
Art:
142074A-FZ
Copied
|
3 x M20
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop & LED 110V
Art:
142074B
Copied
|
3 x M20
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop & LED 110v/120v (-40° version)
Art:
142074B-FZ
Copied
|
3 x M20
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop & LED 230V
Art:
142074C
Copied
|
3 x M20
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '3NC 1NO' E Stop & LED 230V (-40° version)
Art:
142074C-FZ
Copied
|
3 x M20
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop & LED 24V
Art:
142075A
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop & LED 24V (-40° version)
Art:
142075A-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½"NPT '3NC 1NO' E Stop & Steady LED 24V
Art:
142075-AS
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Steady red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop & LED 110V
Art:
142075B
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop & LED 110v/120v (-40° version)
Art:
142075B-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½"NPT '3NC 1NO' E Stop & Steady LED 110V
Art:
142075-BS
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Steady red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop & LED 230V
Art:
142075C
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '3NC 1NO' E Stop & LED 230V (-40° version)
Art:
142075C-FZ
Copied
|
3 x 1/2" NPT
|
3NC 1NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & LED 24V
Art:
142076A
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & LED 24V (-40° version)
Art:
142076A-FZ
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & Steady LED 24V
Art:
142076-AS
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Steady red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & LED 110V
Art:
142076B
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & LED 110v/120v (-40° version)
Art:
142076B-FZ
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & LED 230V
Art:
142076C
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '2NC 2NO' E Stop & LED 230V (-40° version)
Art:
142076C-FZ
Copied
|
3 x M20
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop & LED 24V
Art:
142077A
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop & LED 24V (-40° version)
Art:
142077A-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop & LED 110V
Art:
142077B
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop & LED 110v/120v (-40° version)
Art:
142077B-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop & LED 230V
Art:
142077C
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '2NC 2NO' E Stop & LED 230V (-40° version)
Art:
142077C-FZ
Copied
|
3 x 1/2" NPT
|
2NC 2NO
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop & LED 24V
Art:
142078A
Copied
|
3 x M20
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop & LED 24V (-40° version)
Art:
142078A-FZ
Copied
|
3 x M20
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop & LED 110V
Art:
142078B
Copied
|
3 x M20
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop & LED 110v/120v (-40° version)
Art:
142078B-FZ
Copied
|
3 x M20
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop & LED 230V
Art:
142078C
Copied
|
3 x M20
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS M20 '4NC' E Stop & LED 230V (-40° version)
Art:
142078C-FZ
Copied
|
3 x M20
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop & LED 24V
Art:
142079A
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop & LED 24V (-40° version)
Art:
142079A-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
24Vdc
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop & LED 110V
Art:
142079B
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop & LED 110v/120v (-40° version)
Art:
142079B-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
110Vac
|
-40°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop & LED 230V
Art:
142079C
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-25°C +80°C
|
| ||
|
GLS ½NPT '4NC' E Stop & LED 230V (-40° version)
Art:
142079C-FZ
Copied
|
3 x 1/2" NPT
|
4NC
|
E-stop and LED
|
Yes
|
Yes
|
Steady green/Flashing red
|
230Vac
|
-40°C +80°C
|
|
Select a variant in the list
+35314047700
