IDEM GLM wire switch

The GLM wire switches in the aluminum alloy housing have been created as a high-quality system for securing short conveyors, with a range of up to 30 m per one switch. Using the two switches, the range increases to 50 m.

The 2-color LED, signaling the operation of the switch, is visible from a large distance. The GLM wire switch has 5 different contact configurations.

  • Up to 30 m on one switch
  • 5 different contact configurations
  • 2 - color LED
  • Integrated emergency button

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Annual usage 8 cycles per hour/24 hours per day/365 days
Approvals EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, UL 508, CE, cULus, TÜV
Central Material Die cast metal
Conduit entry 3 x M20
Contact Type EN60947-5-1 double break type Zb. Snap action up to 4NC (positive break) 2NO (auxiliary)
Contacts 2NC 1NO
Integrated emergency stop button No
Integrated LED indication No
IP Class IP67
Mechanical reliability B10d 1.5 x 10⁶ operations at 100mA load
Mounting 4 x M5
MTTFd 214 years
Operating temperature -25°C +80°C
PFHd <1.0 x 10⁻⁷

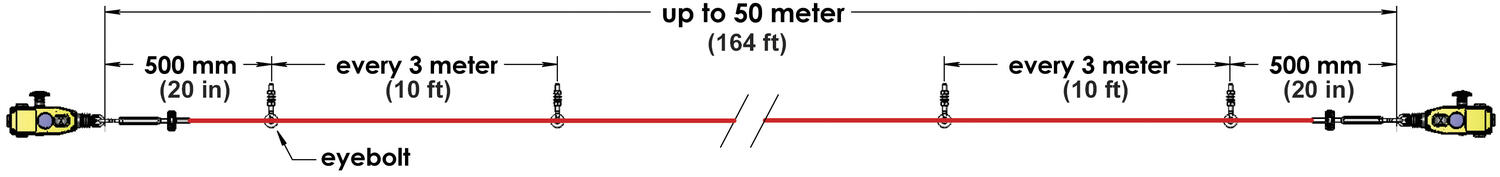

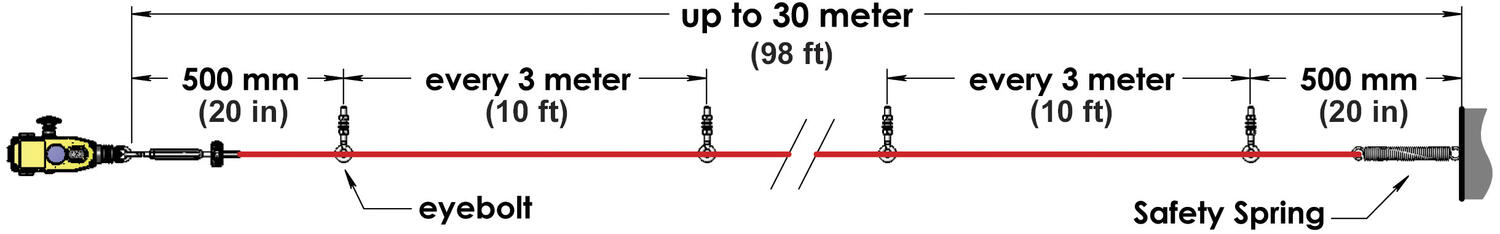

Rope span Up to 50m (2 switches) 30m (1 switch)
Rope tension device IDEM tensioner/gripper (quick fixing)
Rope type 4.00mm outside diameter. Steel inner - PVC sheath
Short circuit overload protection Fuse externally 10A(FF)
Tension force (typical mid setting) 130
Termination Clamp up to 2.5mm² conductors
Thermal current (lth) 10
Typical operating force (rope pulled) <125N <300mm deflection
Weight 640

Downloads

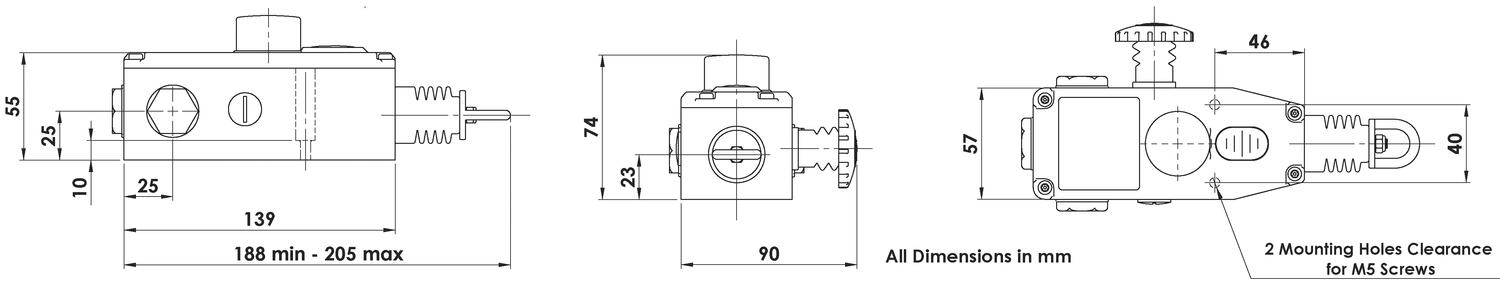

Measurements and connections

Technical illustrations

Product description

The GLM wire switches in the aluminum alloy housing have been created as a high-quality system for securing short conveyors, with a range of up to 30 m per one switch. Using the two switches, the range increases to 50 m.

The 2-color LED, signaling the operation of the switch, is visible from a large distance. The GLM wire switch has 5 different contact configurations.

Accessories

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

DF electrci 485121
Blog

Reliable Protection, Compact Form – Fuse Holders Built to Perform

The DF Electric 485121 fuse holder delivers reliable protection in a compact, DIN-rail-ready design. Built for panel builders who won’t compromise on safety or performance, it’s the trusted choice for tough environments and tight spaces.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

telehaase
Blog

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

puls
Blog

Power Supply Efficiency Testing – What Irish Electrical Engineers Need to Know

Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.

My favourites Articles Conduit entry Contacts Fittings Integrated emergency stop button Integrated LED indication LED Display LED supply voltage Price

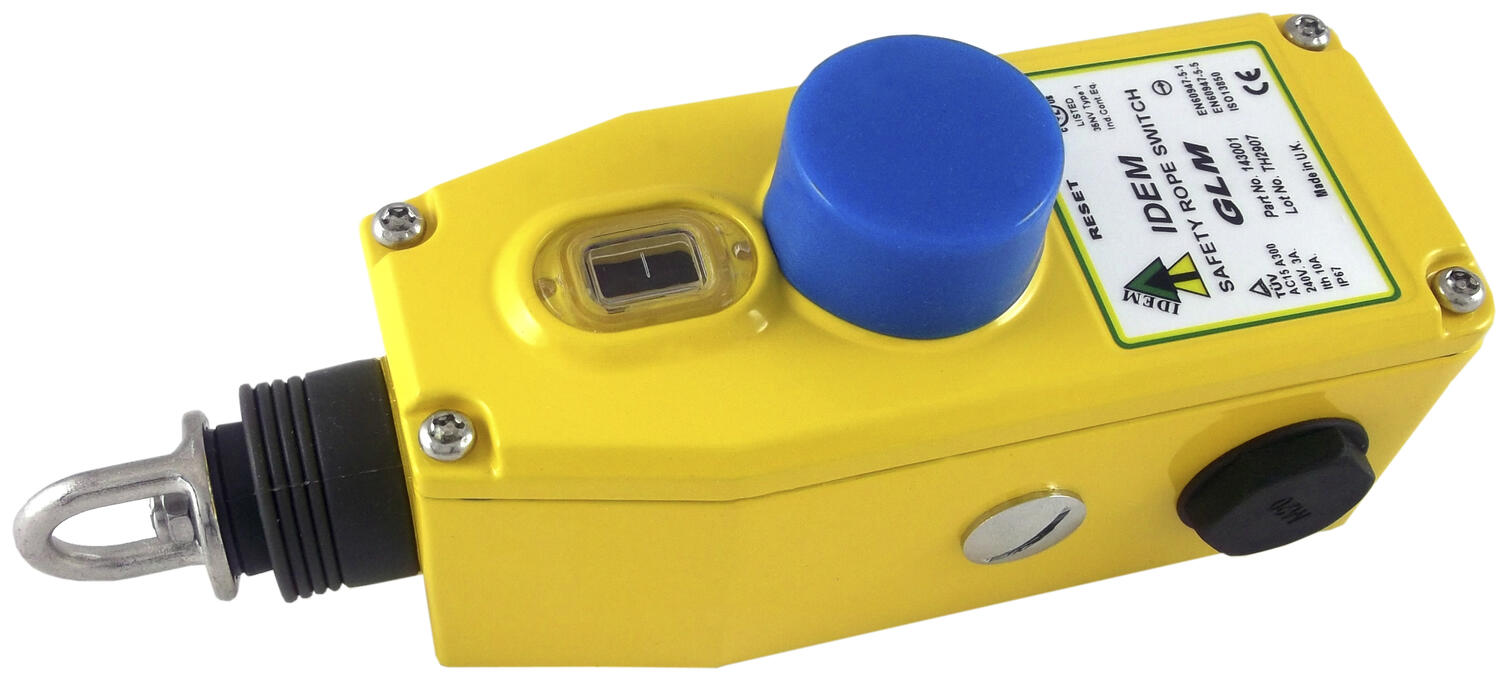

GLM Facing Left.tif
GLM M20 '2NC 1NO'
Art:
143001 Copied
3 x M20
2NC 1NO
No
No
GLM Facing Left.tif
GLM ½NPT '2NC 1NO'
Art:
143002 Copied
3 x 1/2" NPT
2NC 1NO
No
No
GLM Facing Left.tif
GLM M20 '3NC'
Art:
143003 Copied
3 x M20
3NC
No
No
GLM Facing Left.tif
GLM ½NPT '3NC'
Art:
143004 Copied
3 x 1/2" NPT
3NC
No
No

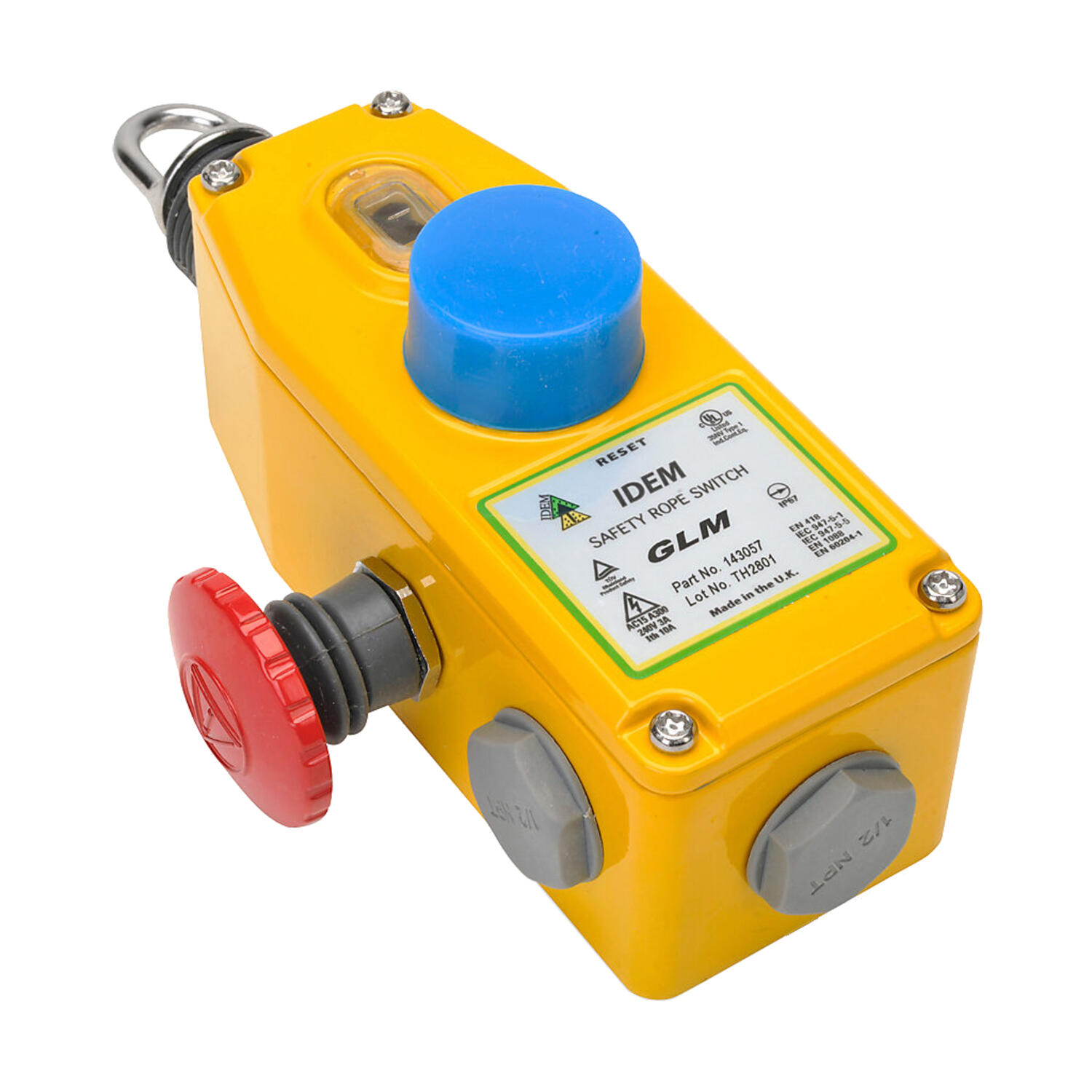

GLM new.tif
GLM M20 '2NC 1NO' E Stop
Art:
143005 Copied
3 x M20
2NC 1NO
E-stop
Yes
No
GLM new.tif
GLM ½NPT '2NC 1NO' E Stop
Art:
143006 Copied
3 x 1/2" NPT
2NC 1NO
E-stop
Yes
No
GLM new.tif
GLM M20 '3NC' E Stop
Art:
143007 Copied
3 x M20
3NC
E-stop
Yes
No
GLM new.tif
GLM ½NPT '3NC' E Stop
Art:
143008 Copied
3 x 1/2" NPT
3NC
E-stop
Yes
No
GLM Facing Left.tif
GLM M20 '3NC 1NO'
Art:
143050 Copied
3 x M20
3NC 1NO
No
No
GLM Facing Left.tif
GLM ½NPT '3NC 1NO'
Art:
143051 Copied
3 x 1/2" NPT
3NC 1NO
No
No
GLM Facing Left.tif
GLM M20 '2NC 2NO'
Art:
143052 Copied
3 x M20
2NC 2NO
No
No
GLM Facing Left.tif
GLM ½NPT '2NC 2NO'
Art:
143053 Copied
3 x 1/2" NPT
2NC 2NO
No
No
GLM Facing Left.tif
GLM M20 '4NC'
Art:
143054 Copied
3 x M20
4NC
No
No
GLM Facing Left.tif
GLM ½NPT '4NC'
Art:
143055 Copied
3 x 1/2" NPT
4NC
No
No
GLM new.tif
Art:
143056 Copied
3 x M20
3NC 1NO
E-stop
Yes
No
GLM new.tif
GLM ½NPT '3NC 1NO' E Stop
Art:
143057 Copied
3 x 1/2" NPT
3NC 1NO
E-stop
Yes
No
GLM new.tif
GLM M20 '2NC 2NO' E Stop
Art:
143058 Copied
3 x M20
2NC 2NO
E-stop
Yes
No
GLM new.tif
GLM ½NPT '2NC 2NO' E Stop
Art:
143059 Copied
3 x 1/2" NPT
2NC 2NO
E-stop
Yes
No
GLM new.tif
GLM M20 '4NC' E Stop
Art:
143060 Copied
3 x M20
4NC
E-stop
Yes
No
GLM new.tif
GLM ½NPT '4NC' E Stop
Art:
143061 Copied
3 x 1/2" NPT
4NC
E-stop
Yes
No
GLM nowy.tif
GLM M20 '3NC 1NO' LED 24V
Art:
143062A Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Flashing red
24Vdc
GLM nowy.tif
GLM M20 '3NC 1NO' Steady LED 24V
Art:
143062-AS Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Steady red
24Vdc
GLM nowy.tif
GLM M20 '3NC 1NO' LED 110V
Art:
143062B Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Flashing red
110Vac
GLM nowy.tif
GLM M20 '3NC 1NO' LED 230V
Art:
143062C Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Flashing red
230Vac
GLM nowy.tif
GLM ½NPT '3NC 1NO' LED 24V
Art:
143063A Copied
3 x 1/2" NPT
3NC 1NO
LED
No
Yes
Steady green/Flashing red
24Vdc
GLM nowy.tif
GLM ½NPT '3NC 1NO' LED 110V
Art:
143063B Copied
3 x 1/2" NPT
3NC 1NO
LED
No
Yes
Steady green/Flashing red
110Vac
GLM nowy.tif
GLM ½NPT '3NC 1NO' LED 230V
Art:
143063C Copied
3 x 1/2" NPT
3NC 1NO
LED
No
Yes
Steady green/Flashing red
230Vac
GLM nowy.tif
GLM M20 '2NC 2NO' LED 24V
Art:
143064A Copied
3 x M20
2NC 2NO
LED
No
Yes
Steady green/Flashing red
24Vdc
GLM nowy.tif
GLM M20 '2NC 2NO' LED 110V
Art:
143064B Copied
3 x M20
2NC 2NO
LED
No
Yes
Steady green/Flashing red
110Vac
GLM nowy.tif
GLM M20 '2NC 2NO' LED 230V
Art:
143064C Copied
3 x M20
2NC 2NO
LED
No
Yes
Steady green/Flashing red
230Vac
GLM nowy.tif
GLM ½NPT '2NC 2NO' 24V
Art:
143065A Copied
3 x 1/2" NPT
2NC 2NO
LED
No
Yes
Steady green/Flashing red
24Vdc
GLM nowy.tif
GLM ½NPT '2NC 2NO' 110V
Art:
143065B Copied
3 x 1/2" NPT
2NC 2NO
LED
No
Yes
Steady green/Flashing red
110Vac
GLM nowy.tif
GLM ½NPT '2NC 2NO' 230V
Art:
143065C Copied
3 x 1/2" NPT
2NC 2NO
LED
No
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & LED 24V
Art:
143066A Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & Steady LED 24V
Art:
143066-AS Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Steady red
24Vdc
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & LED 110V
Art:
143066B Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & LED 230V
Art:
143066C Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM ½NPT '3NC 1NO' E Stop & LED 24V
Art:
143067A Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM ½"NPT '3NC 1NO' E Stop & Steady LED 24V
Art:
143067-AS Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Steady red
24Vdc
GLM with LED.tif
GLM ½NPT '3NC 1NO' E Stop & LED 110V
Art:
143067B Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM ½"NPT '3NC 1NO' E Stop & Steady LED 110V
Art:
143067-BS Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Steady red
110Vac
GLM with LED.tif
GLM ½NPT '3NC 1NO' E Stop & LED 230V
Art:
143067C Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 24V
Art:
143068A Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 24V
Art:
143068-AS Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Steady red
24Vdc
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 110V
Art:
143068B Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 230V
Art:
143068C Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM ½NPT '2NC 2NO' E Stop & LED 24V
Art:
143069A Copied
3 x 1/2" NPT
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM ½NPT '2NC 2NO' E Stop & LED 110V
Art:
143069B Copied
3 x 1/2" NPT
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM ½NPT '2NC 2NO' E Stop & LED 230V
Art:
143069C Copied
3 x 1/2" NPT
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
