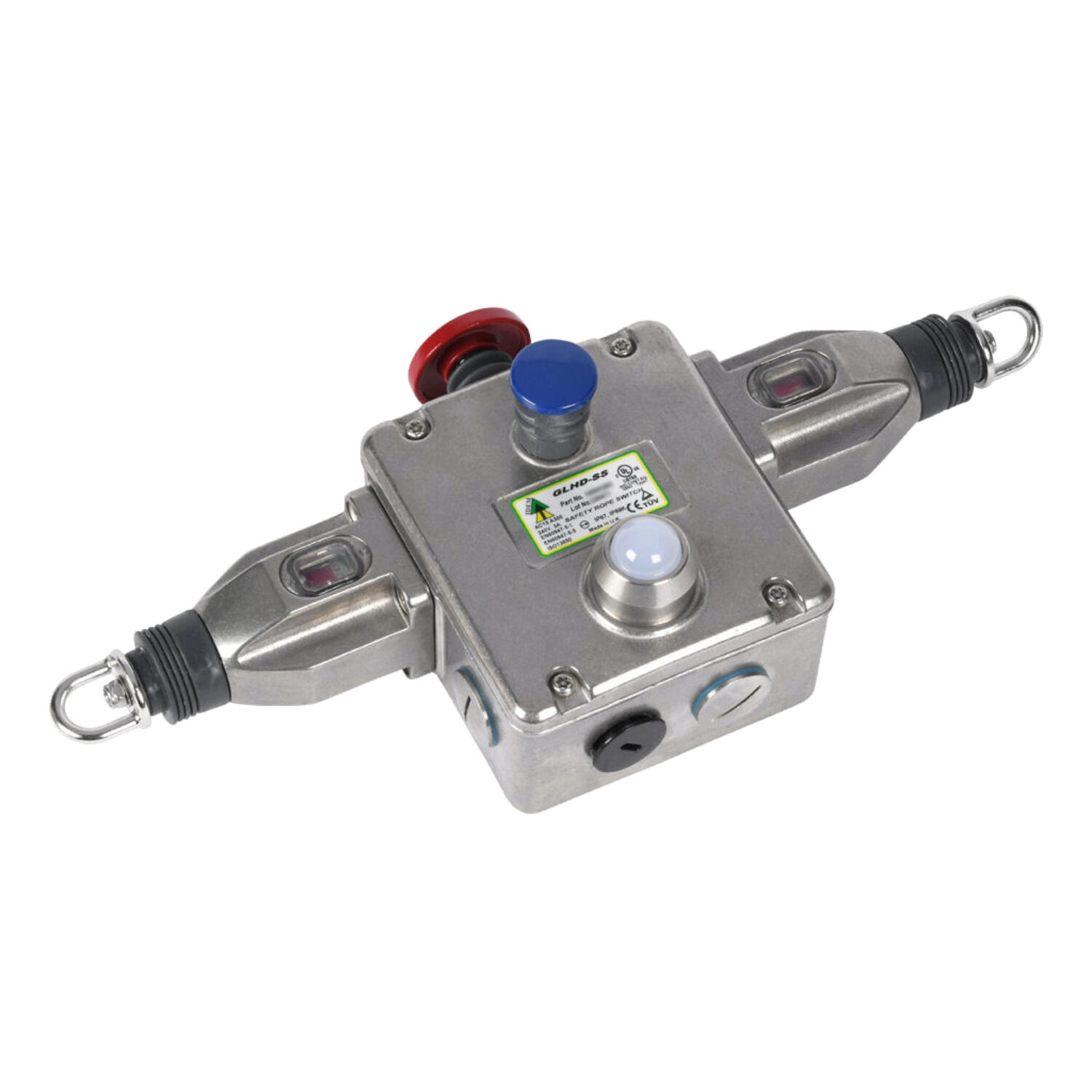

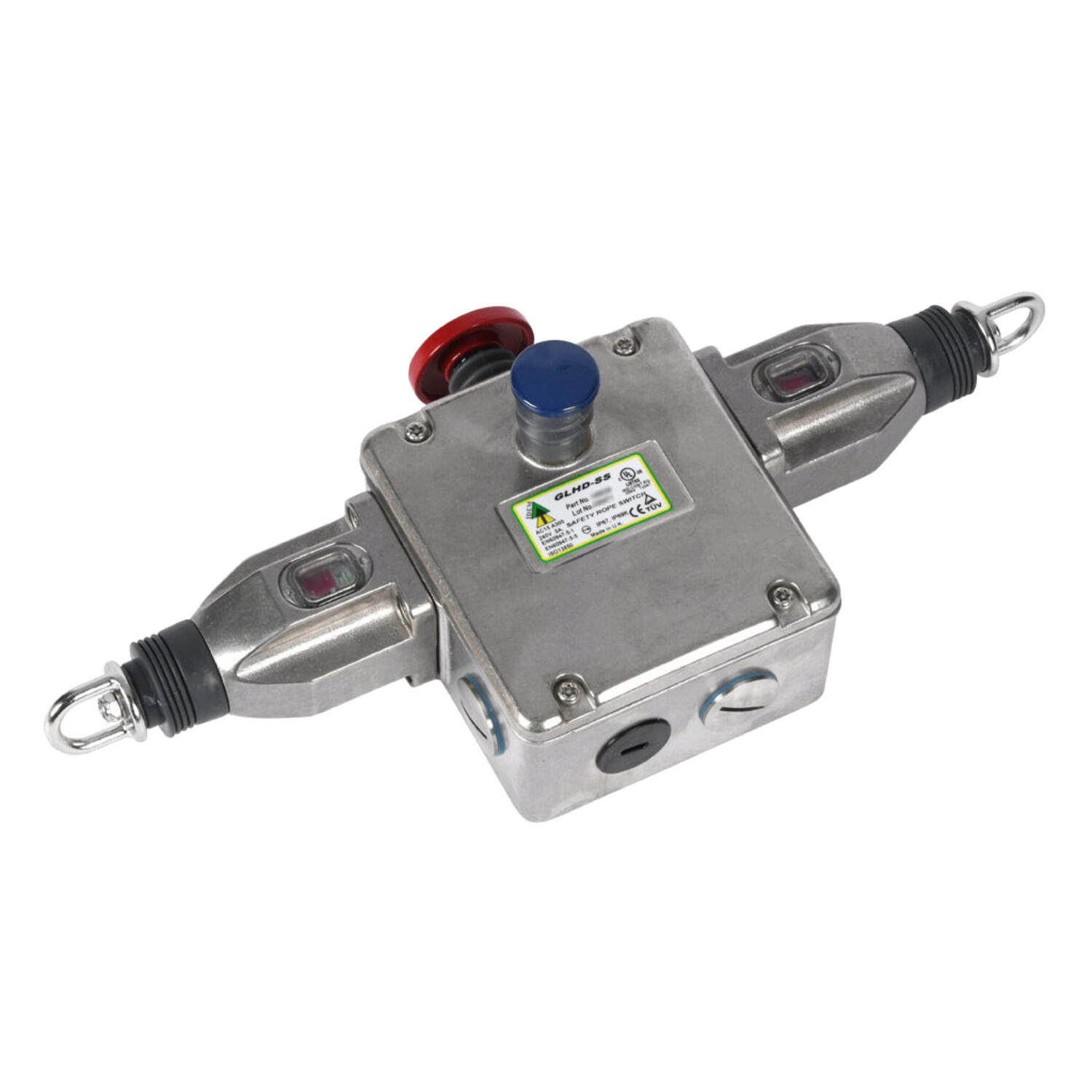

IDEM GLHD-SS wire switch in stainless steel
The GLHD-SS wireline switch in a stainless steel housing was created as a high-quality system for securing long conveyors, with a range of up to 200 m per one switch. It is suitable for long conveyor systems operating in difficult environments. Ideally suited for use in the food processing industry. The 2-color LED, signaling the operation of the switch, is visible from a large distance. The switch, combined with the GLHL-SS and GLHR-SS models, provides a range of up to 250 m per one set.
The GLHD-SS wire switches are equipped with 4 NC contacts and 2 NO contacts.

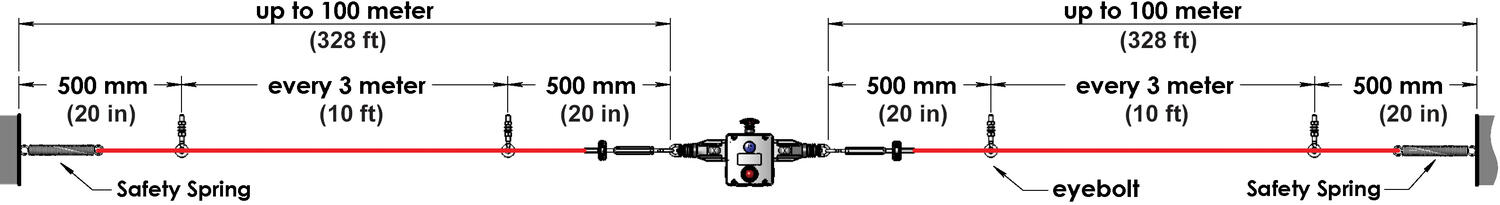

- Up to 200m for one switch
- 4 NC + 2 NO contacts
- 2 - color LED
- Integrated emergency button
- Available in the EX version
Selected variant
Selected variant
Specifications
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
|---|---|
| Approvals | EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, CE, cULus, TÜV, UL 508 |
| Central Material | Stainless steel 316 |
| Conduit entry | 4 x M20 |
| Contact Type | EN60947-5-1 double break type Zb. Snap action up to 4NC (positive break) 2NO (auxiliary) |
| Contacts | 4NC 2NO |
| Fittings | E-stop and LED |
| Integrated emergency stop button | Yes |
| Integrated LED indication | Yes |
| IP Class | IP69K, IP67 |
| LED Display | Steady green/Flashing red |
| LED supply voltage | 24Vdc |
| Materials Contacts | Silver |
| Mechanical reliability B10d | 1.5 x 10⁶ operations at 100mA load |

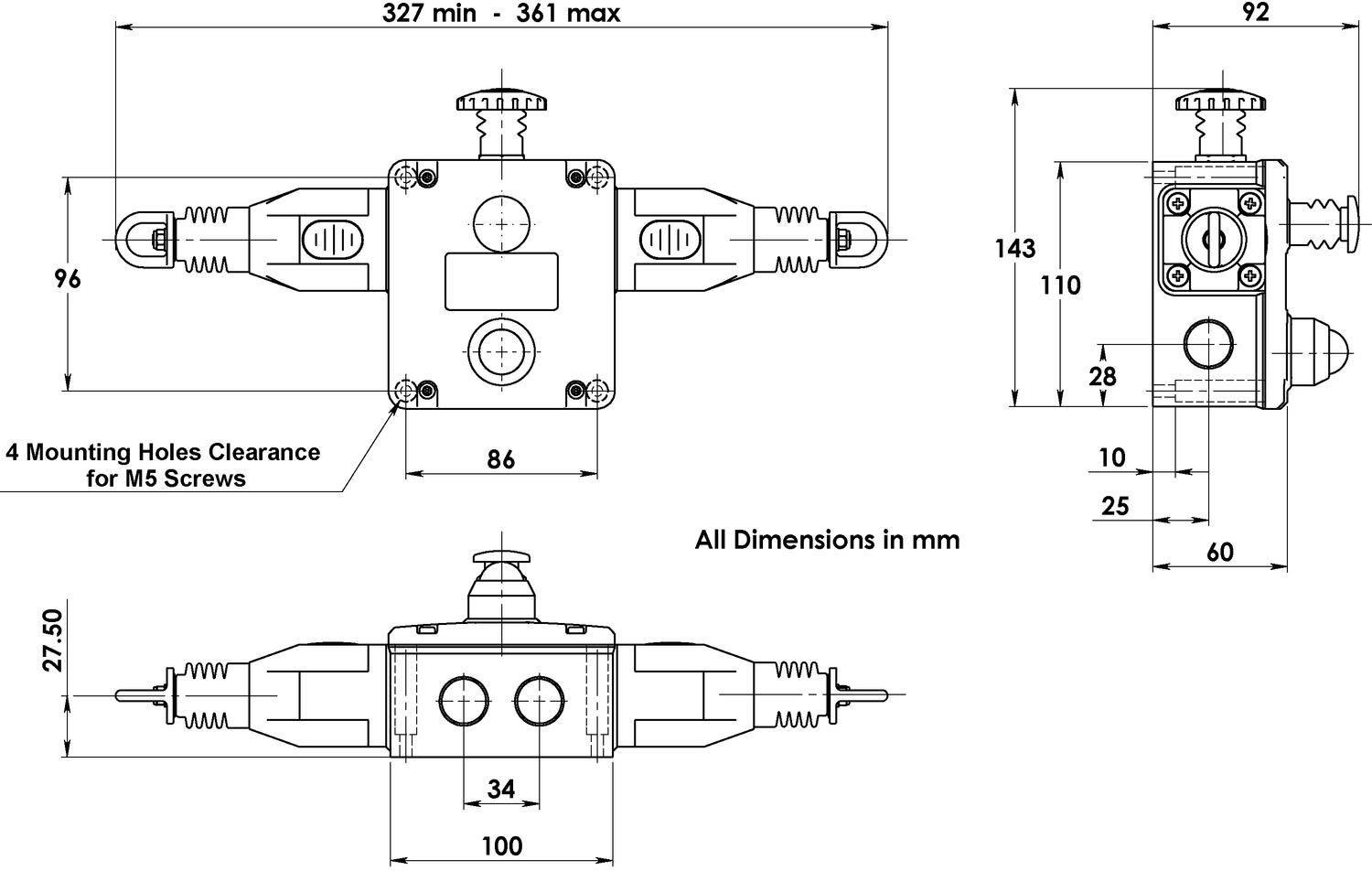

| Mounting | 4 x M5 |
| MTTFd | 214 years |
|---|---|
| Operating temperature | -25°C +80°C |
| PFHd | <1.0 x 10⁻⁷ |
| PL | up to PLe acc. ISO13849-1 |

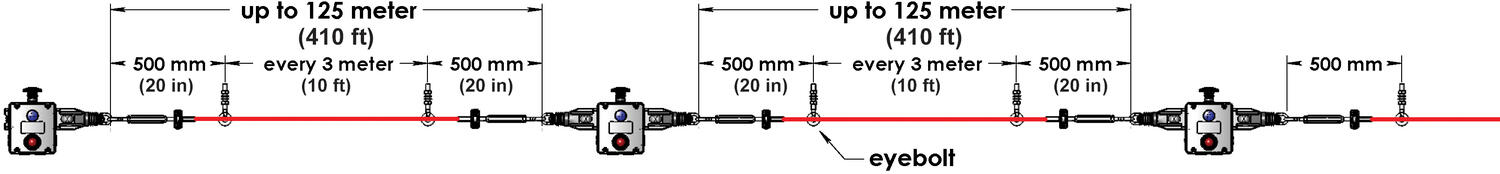

| Rope span | 250m dual head |
| Rope tension device | IDEM tensioner/gripper (quick fixing) |
| Rope type | 4.00mm outside diameter. Steel inner - PVC sheath |
| Short circuit overload protection | Fuse externally 10A(FF) |
| SIL | up to SIL 3 acc. EN62061 |
| Tension force (typical mid setting) | 130 |
| Termination | Clamp up to 2.5mm² conductors |
| Thermal current (lth) | 10 |
| Typical operating force (rope pulled) | <125N <300mm deflection |
| Weight | 2850 |
Product description
The GLHD-SS wireline switch in a stainless steel housing was created as a high-quality system for securing long conveyors, with a range of up to 200 m per one switch. It is suitable for long conveyor systems operating in difficult environments. Ideally suited for use in the food processing industry. The 2-color LED, signaling the operation of the switch, is visible from a large distance. The switch, combined with the GLHL-SS and GLHR-SS models, provides a range of up to 250 m per one set.
The GLHD-SS wire switches are equipped with 4 NC contacts and 2 NO contacts.
