IDEM
UGB-KLTM is a multifunctional device that provides integrated protection and comprehensive access control. The product is intended for applications in which the operator has full access to a dangerous zone.
The switch is available in a cast metal version. In addition, the switch can have 2 or 4 buttons (lamps, switches) that can be freely configured. The UGB-KLTM multifunctional access device is coded with RFID, which ensures the highest level of interference immunity in accordance with the requirements of ISO14119.
Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
---|---|
Central Material | Die cast metal |
Conduit entry | M20 |
Head material | Stainless steel 316 |
Holding force (F1Max) | 3000 |
Integrated LED indication | Yes |
IP Class | IP65 |
Maximum approach / withdrawal speed | 600 |
Mounting | 4 x M5 |
Operating temperature | -25°C ... +40°C |
PFHd | 4,77 x 10^-10 |
---|---|
PL | e |
Rated insulation voltage | 600 V AC |
SIL | 3 |
Solenoid Voltage | 24V dc |
Travel for positive opening | 10 |
Weight | 1980 |
Withstand voltage | 2500 V AC |
UGB-KLTM is a multifunctional device that provides integrated protection and comprehensive access control. The product is intended for applications in which the operator has full access to a dangerous zone.
The switch is available in a cast metal version. In addition, the switch can have 2 or 4 buttons (lamps, switches) that can be freely configured. The UGB-KLTM multifunctional access device is coded with RFID, which ensures the highest level of interference immunity in accordance with the requirements of ISO14119.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
The DF Electric 485121 fuse holder delivers reliable protection in a compact, DIN-rail-ready design. Built for panel builders who won’t compromise on safety or performance, it’s the trusted choice for tough environments and tight spaces.
STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.
Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Number of poles | Weight | Price | |
---|---|---|---|---|---|
![]()
UGB2-KLTM-RFID - Manual Override
Art:
525001
Copied
|
|
1980
|
| ||
![]()
UGB2-KLTM-RFID - No Manual Override
Art:
525003
Copied
|
2
|
|
| ||
![]()

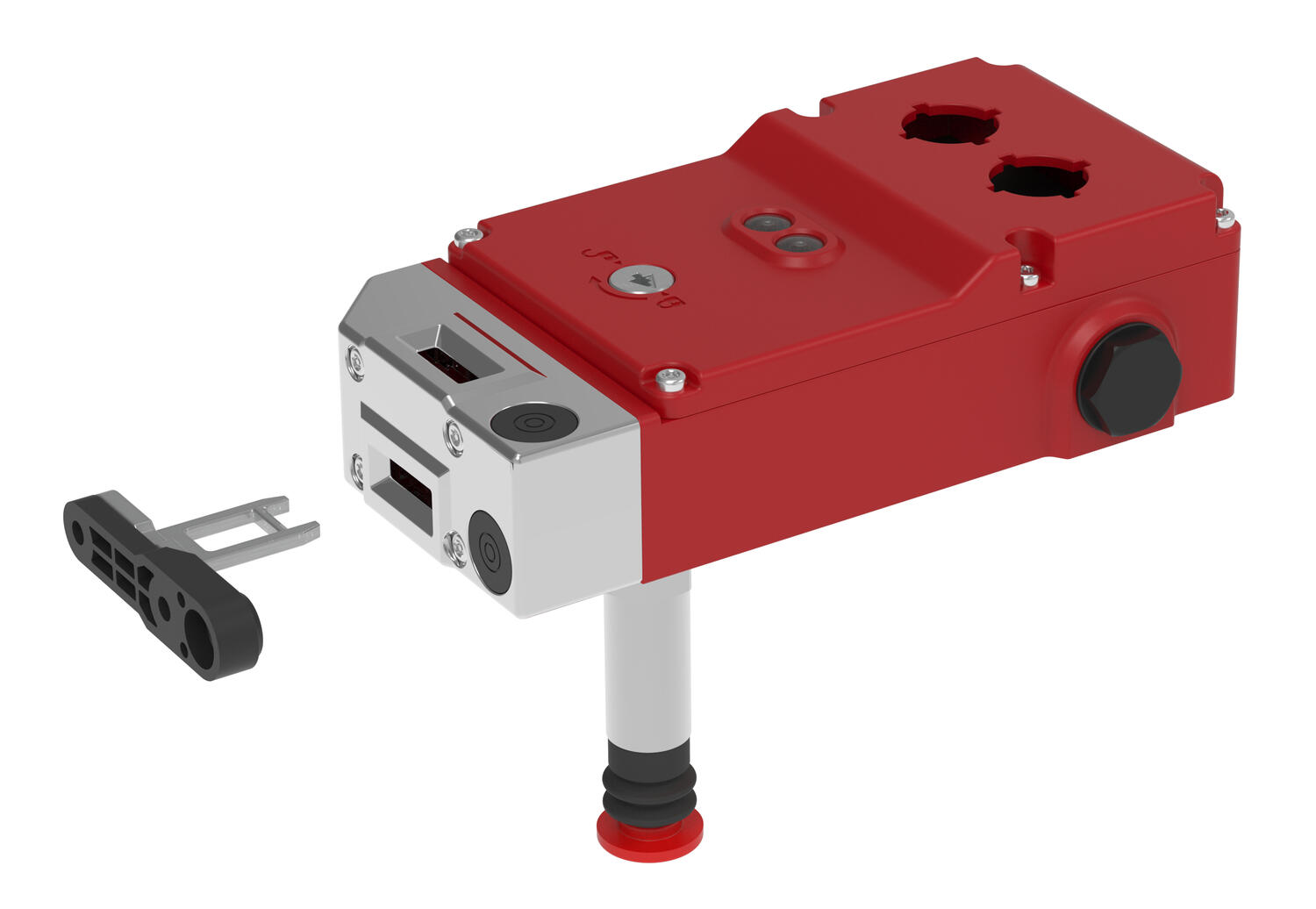

UGB2-KLTM-RFID-RR - Manual Override
Art:
525002
Copied
|
|
1980
|
| ||
![]()
UGB2-KLTM-RFID-RR - No Manual Override
Art:
525004
Copied
|
2
|
|
| ||
![]()

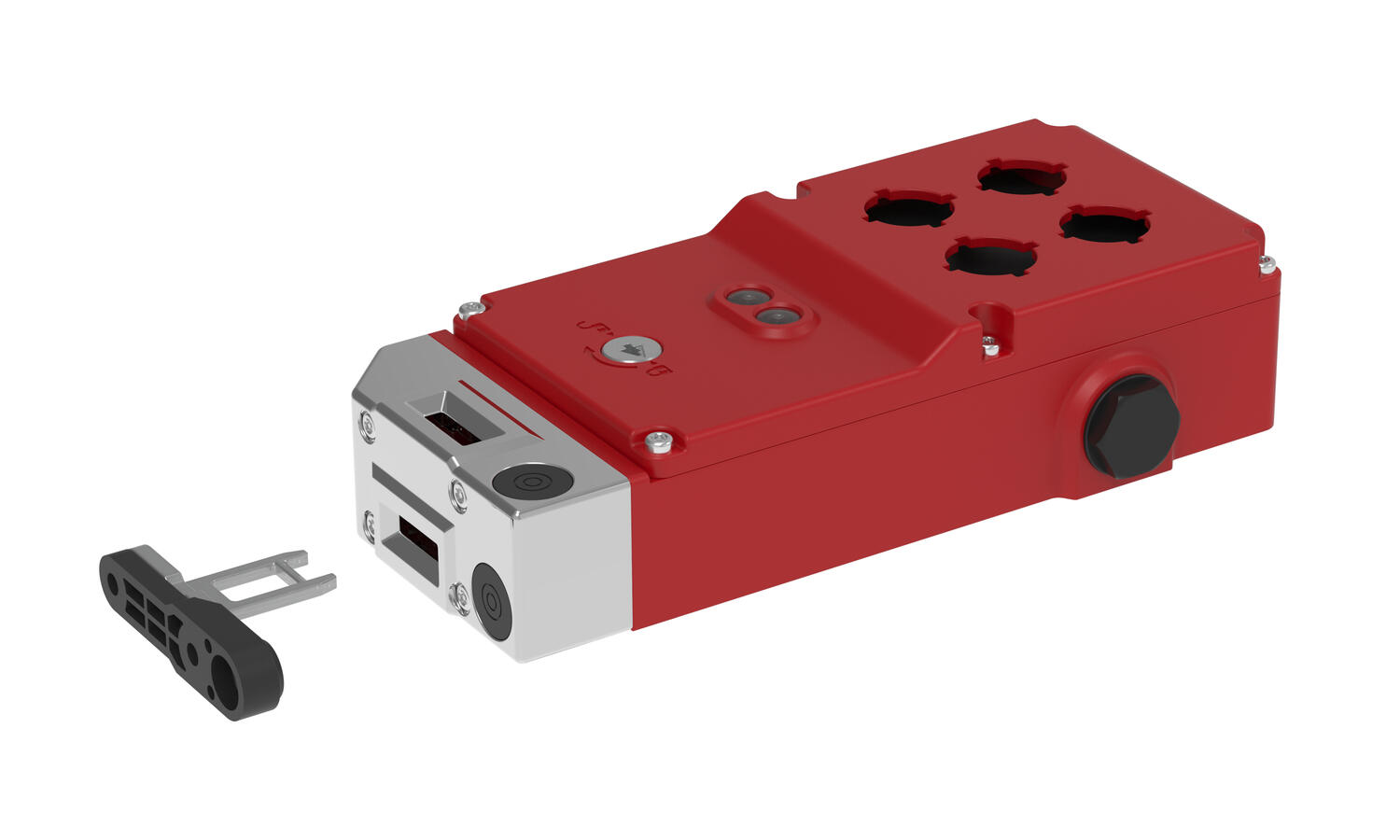

UGB4-KLTM-RFID - Manual Override
Art:
526001
Copied
|
|
1980
|
| ||
![]()
UGB4-KLTM-RFID - No Manual Override
Art:
526003
Copied
|
4
|
|
| ||
![]()

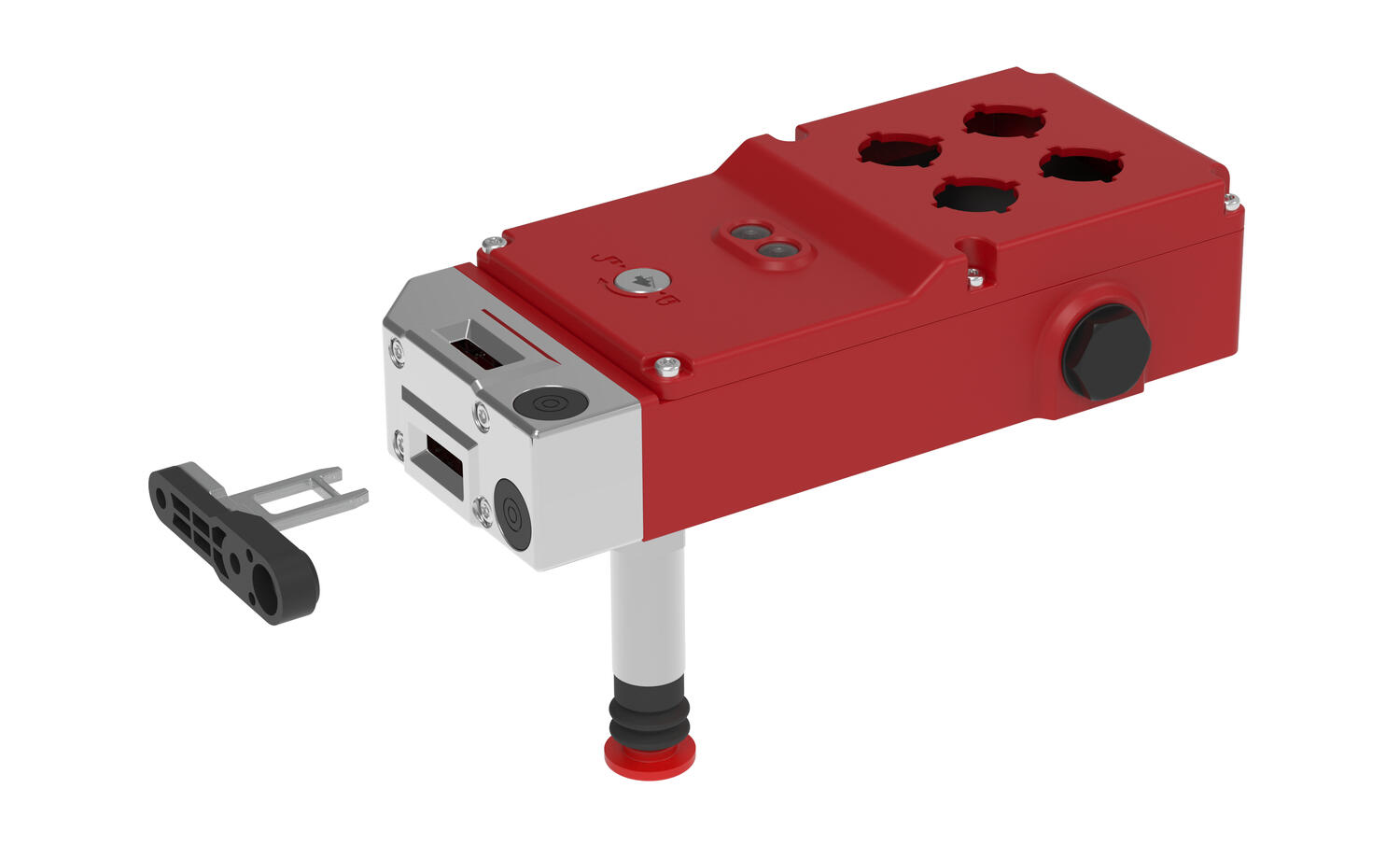

UGB4-KLTM-RFID-RR - Manual Override
Art:
526002
Copied
|
|
1980
|
| ||
![]()
UGB4-KLTM-RFID-RR - No Manual Override
Art:
526004
Copied
|
4
|
|
|
Select a variant in the list
