IDEM Emergency stop (E-Stop) switches ES-P & ES-SS
IDEM ES-P and ES-SS Standard Duty Emergency Stop Switches have been designed to provide robust emergency stop protection for machines or exposed conveyors and are suitable for use within virtually all industry sectors.

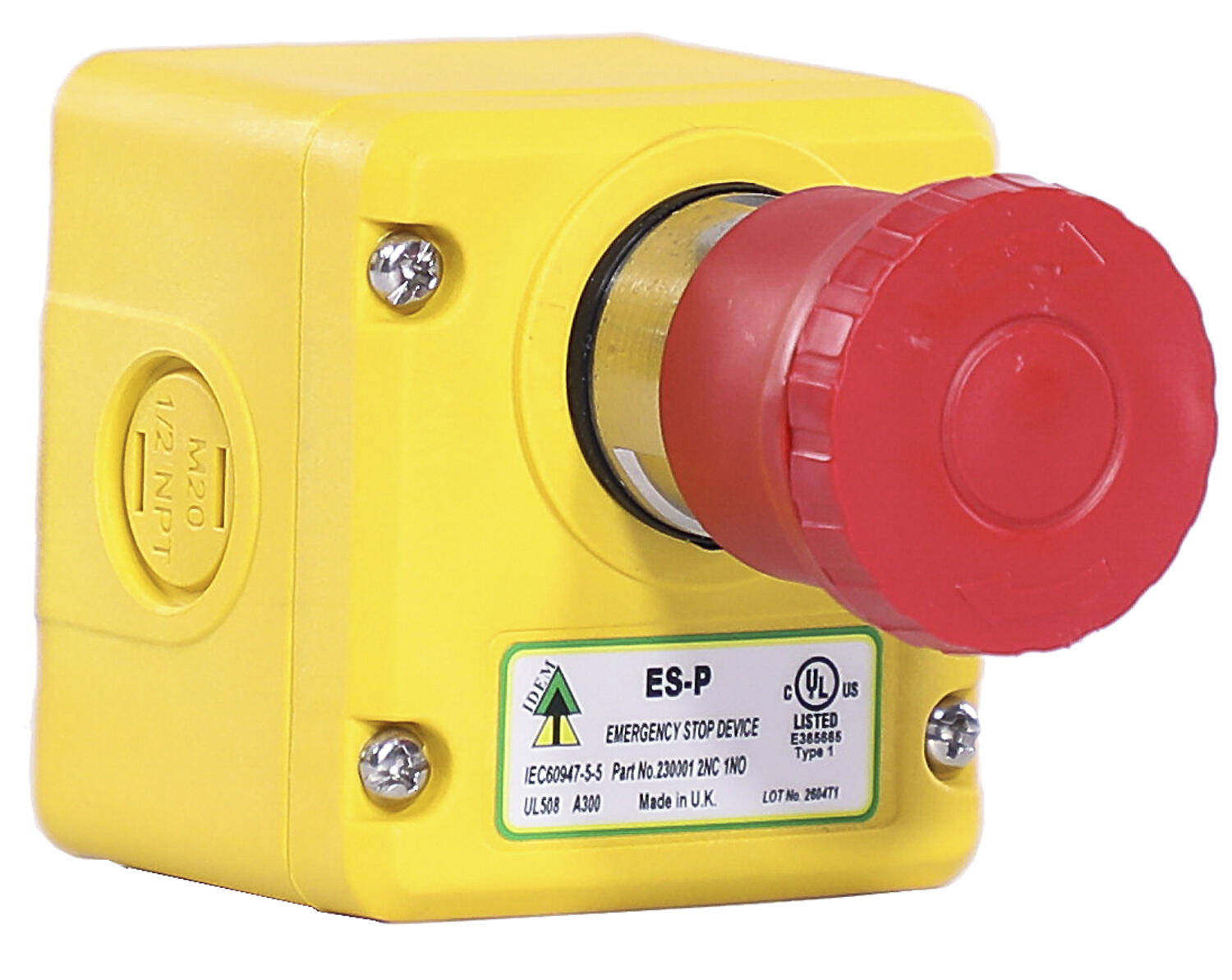

- Plastic bodies (IP67) or Stainless Steel 316 (IP69K)
- Conformance to ISO13850, EN60947-5-1 and EN60947-5-5
- A special lid safety trip mechanism means that the safety contacts will open if the lid is removed - this provides an extra degree of anti-tamper

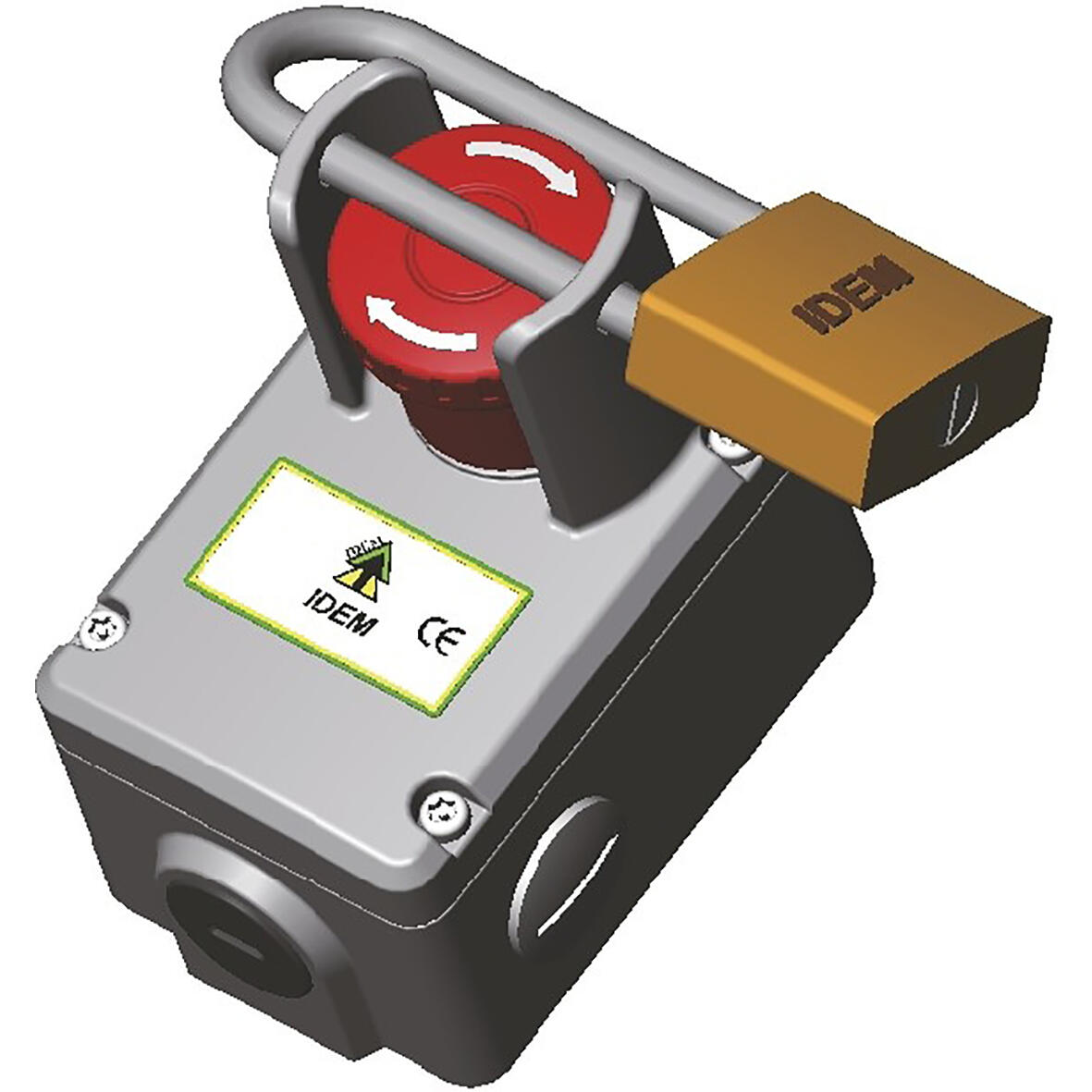

- Button protection shroud versions with padlock holes to enable “Lock Off” in maintenance situations
- 3 pole contact blocks provide positively operated switch contacts
- Stainless steel IP69K
- High temperature wash down
- 2 or 3 conduit entries
- 3 or 4 pole contacts
- 2NC 1NO; 2NC 2NO; or 3NC 1NO
Selected variant
Selected variant
Specifications
| Annual usage | 8 cycles per hour/24 hours per day/365 days |
|---|---|
| Approvals | UL 508, EN60947-5-1, EN60947-5-5, EN62061, ISO 13850, ISO 13849-1 |
| Atex approved | No |
| Conduit entry | 1/2"NPT |
| Contact Type | EN60947-5-1 double break type Zb Snap Action up to 3NC (positive break) 1NO (auxiliary |
| Contacts | 3NC |
| Integrated LED indication | No |
| IP Class | IP69K |
| Mechanical reliability B10d | 2.5x10⁶ operations at 100mA load |

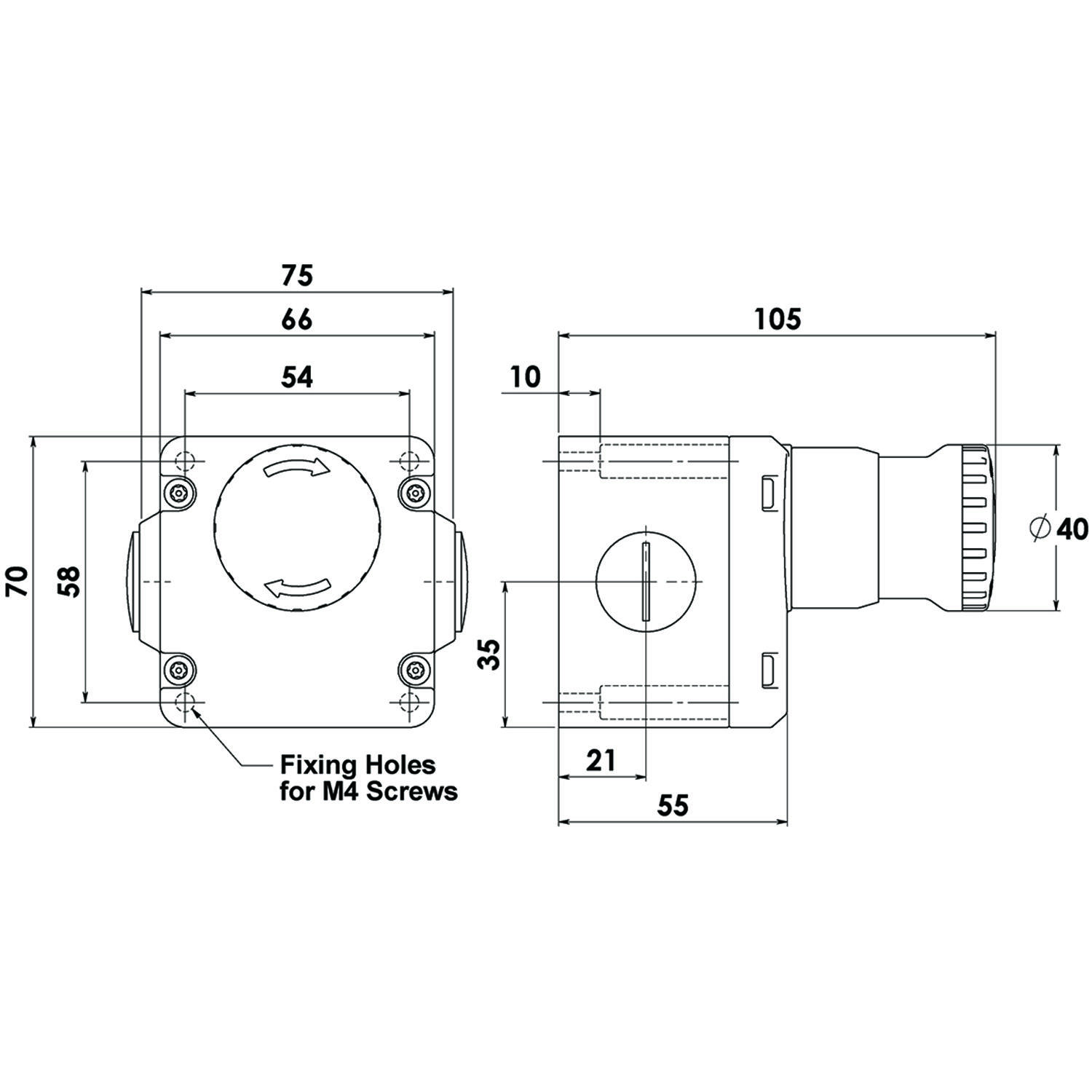

| Mounting | 4 x M4 |
| MTTFd | 214 years |
|---|---|
| Number of poles | 3 |
| Operating temperature | -25°C +80°C |
| Operational rating | 240V 3A |
| PFHd | <1.0 x 10⁻⁷ |
| Rated insulation voltage | 500V |
| Short circuit overload protection | Fuse externally 10A(FF) |
| Thermal current (lth) | 10 |
| Withstand voltage | 2500V |
Product description
IDEM ES-P and ES-SS Standard Duty Emergency Stop Switches have been designed to provide robust emergency stop protection for machines or exposed conveyors and are suitable for use within virtually all industry sectors.
- Plastic bodies (IP67) or Stainless Steel 316 (IP69K)
- Conformance to ISO13850, EN60947-5-1 and EN60947-5-5
- A special lid safety trip mechanism means that the safety contacts will open if the lid is removed - this provides an extra degree of anti-tamper
- Button protection shroud versions with padlock holes to enable “Lock Off” in maintenance situations
- 3 pole contact blocks provide positively operated switch contacts
