IDEM - Stainless steel tape convergence sensors

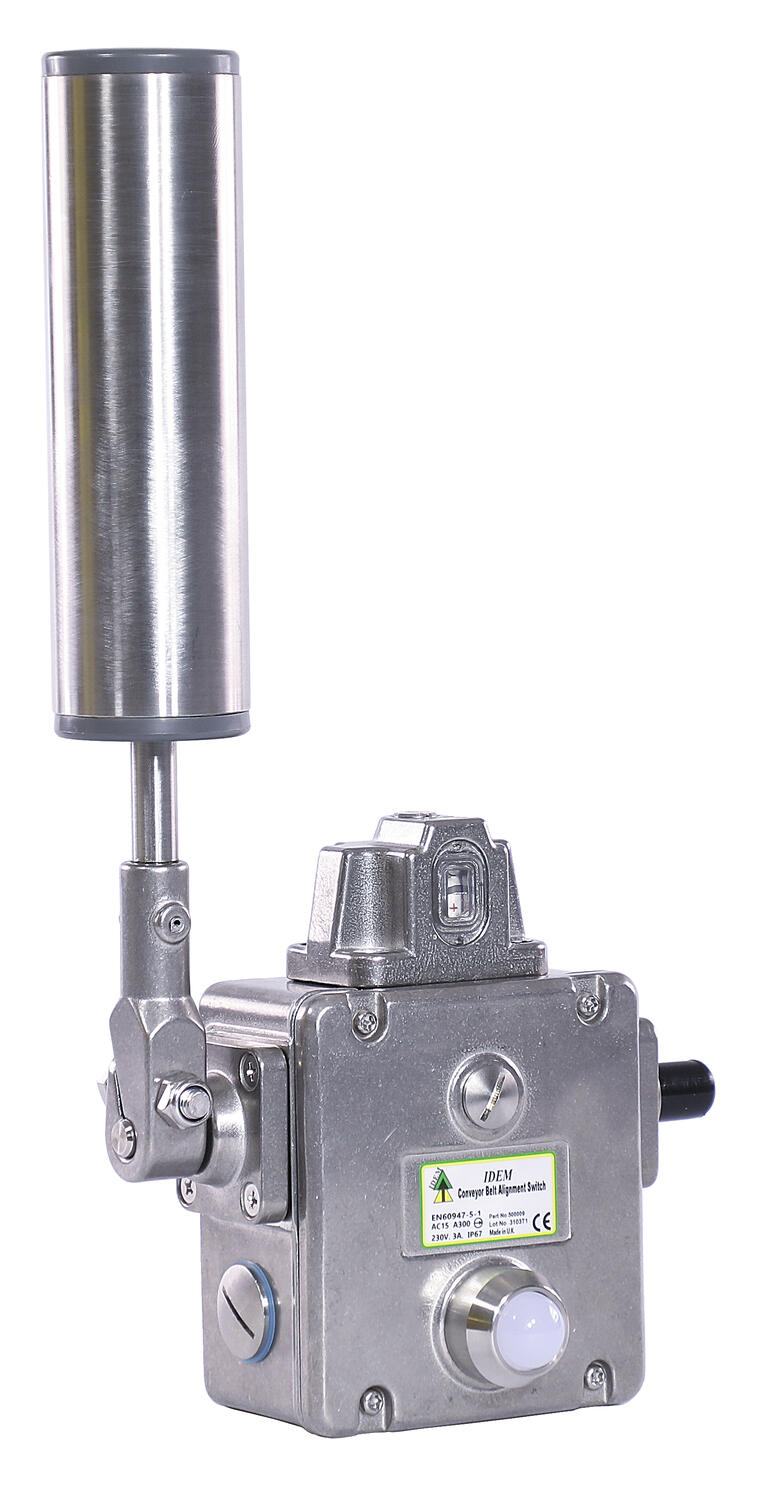

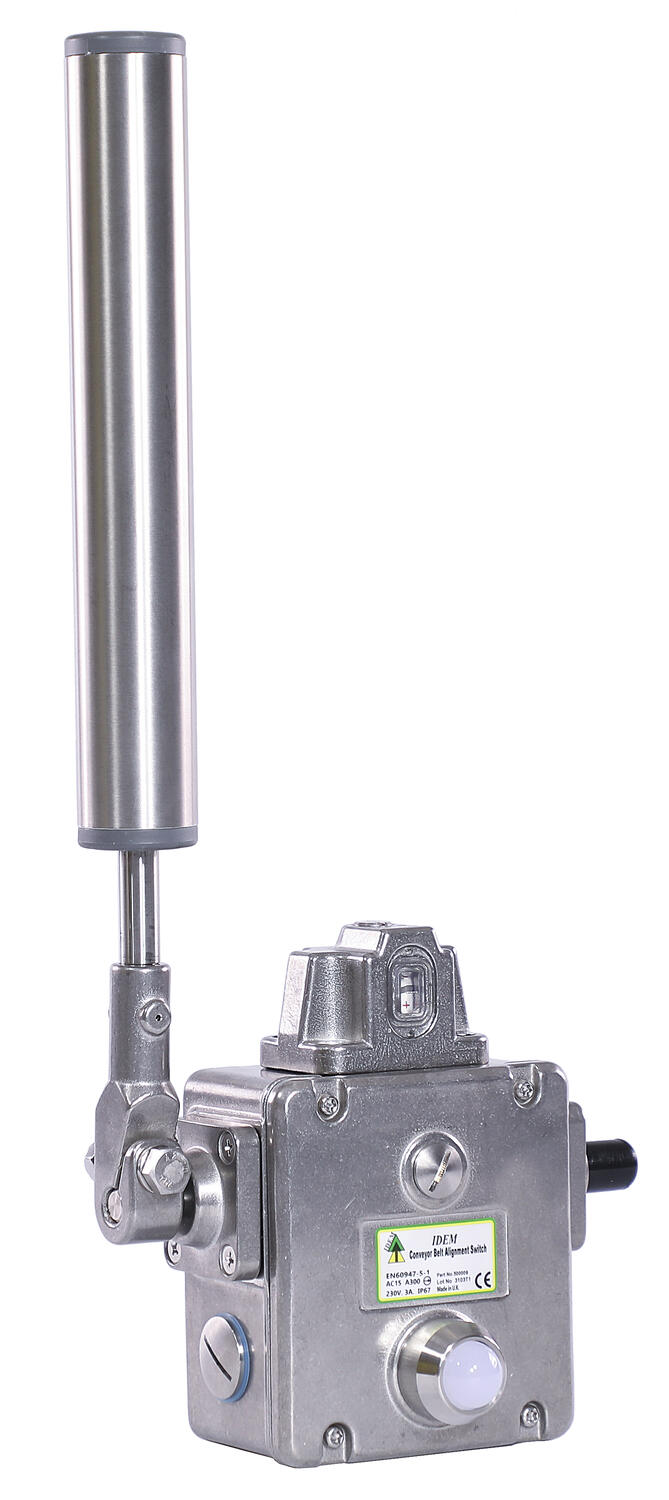

The IDEM sensor range complements a wide range of cable switches used for emergency stop along conveyors. They are mounted along the conveyor belt and indicate the crookedness of the conveyor belt. We offer standard models (aluminum alloy) and made of stainless steel. Sensors are available with different roll diameters, thus ensuring a long service life even under severe operating conditions.
- Two-step operation
- 3 types of lever rollers
- Adjustable angle of operation
- 2 independent contact blocks 1NO + 1NC
Selected variant
Selected variant
Specifications
| Approvals | IEC 60947-5-1 |
|---|---|
| Atex approved | No |
| Conduit entry | 4 x M20 |
| Contacts | 2NC 2NO |
| Integrated LED indication | No |
| IP Class | IP67 |
| Mounting | 4 x M5 |
| Operating temperature | -25°C...+80°C |
|---|---|
| Operational rating | AC15 A300 240V. 3A. / 120V. 6A. ac, 24V. 2,5A dc |
| Rated insulation voltage | 500V |
| Thermal current (lth) | 10 |
| Utilisation category | AC15 |
| Withstand voltage | 2500V |
Product description
The IDEM sensor range complements a wide range of cable switches used for emergency stop along conveyors. They are mounted along the conveyor belt and indicate the crookedness of the conveyor belt. We offer standard models (aluminum alloy) and made of stainless steel. Sensors are available with different roll diameters, thus ensuring a long service life even under severe operating conditions.
