DATALOGIC
Datalogic PowerScan PM9501

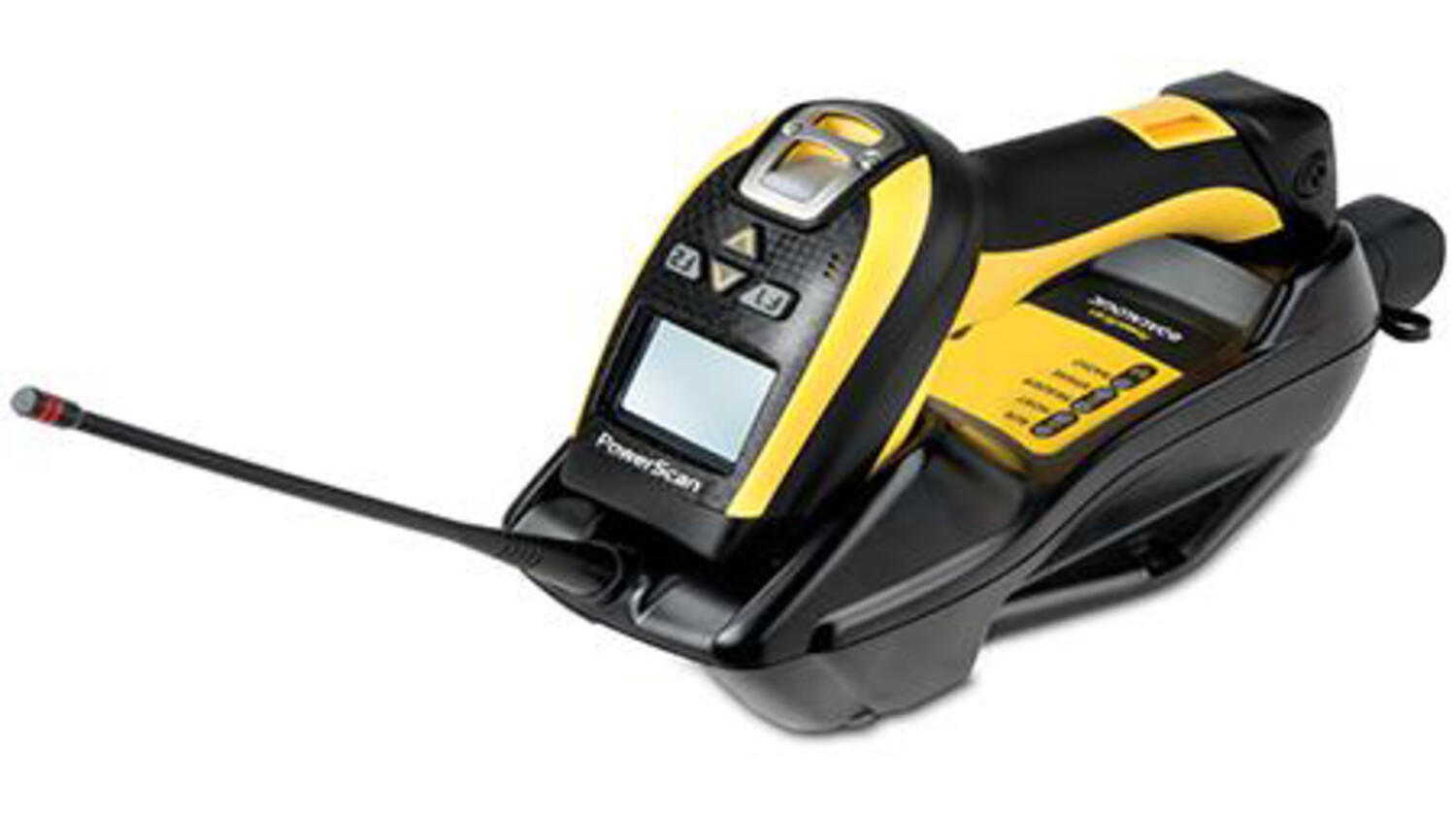

The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of Datalogic's STAR Cordless System, a proprietary radio which further improves the outstanding features of versatility, ease-of-use and radio range.
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
Long lasting battery life guarantees more than one shift of intensive scanning.
The handle shape, well-balanced weight and an intuitive aiming system allow high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

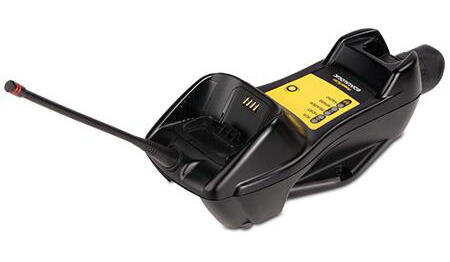

The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
- Detects 1D and 2D code types
- Reads up to 4mil/2.5mil 1D codes and 7.5 mil/4mil 2D codes
- 60,000+ reads per charge

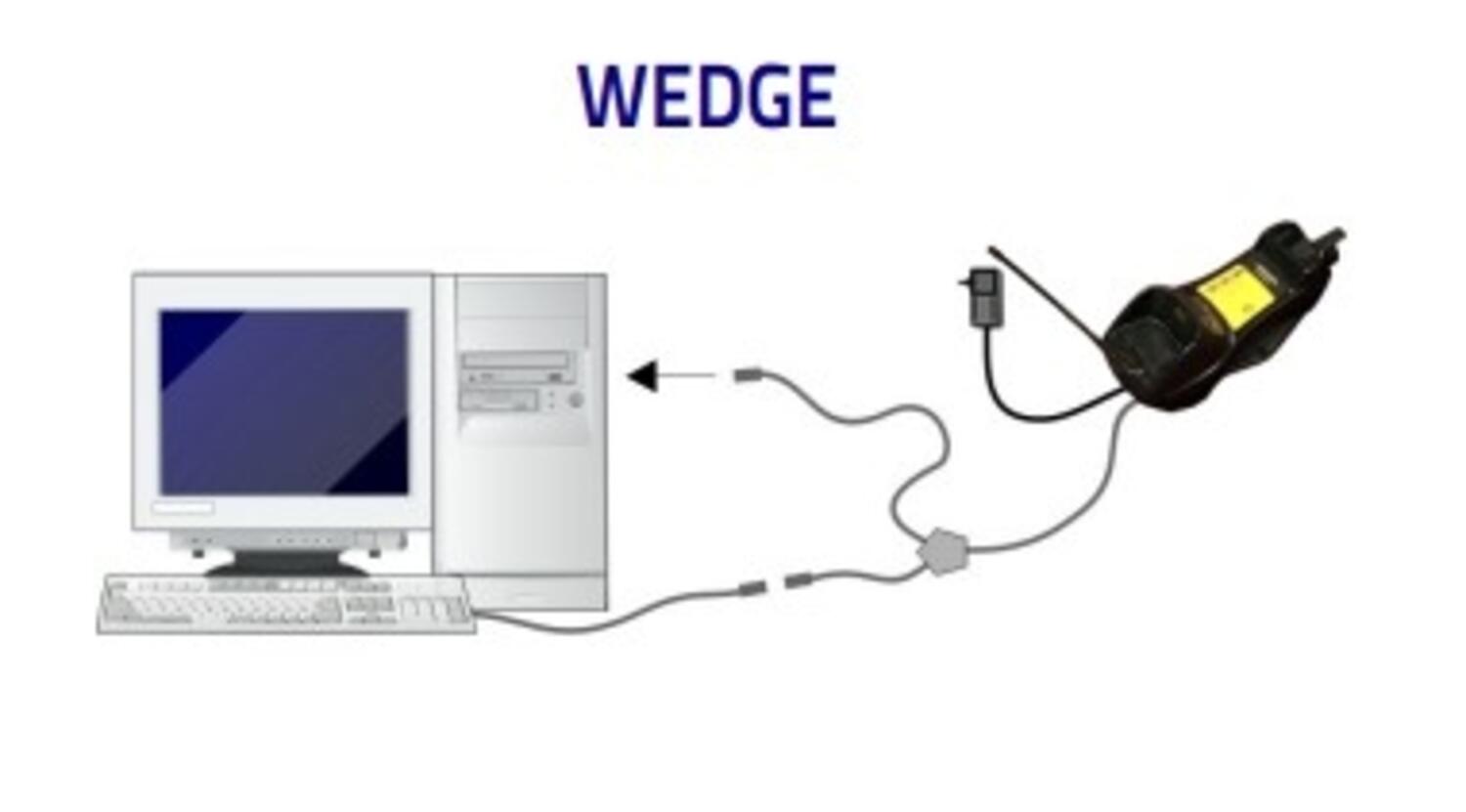

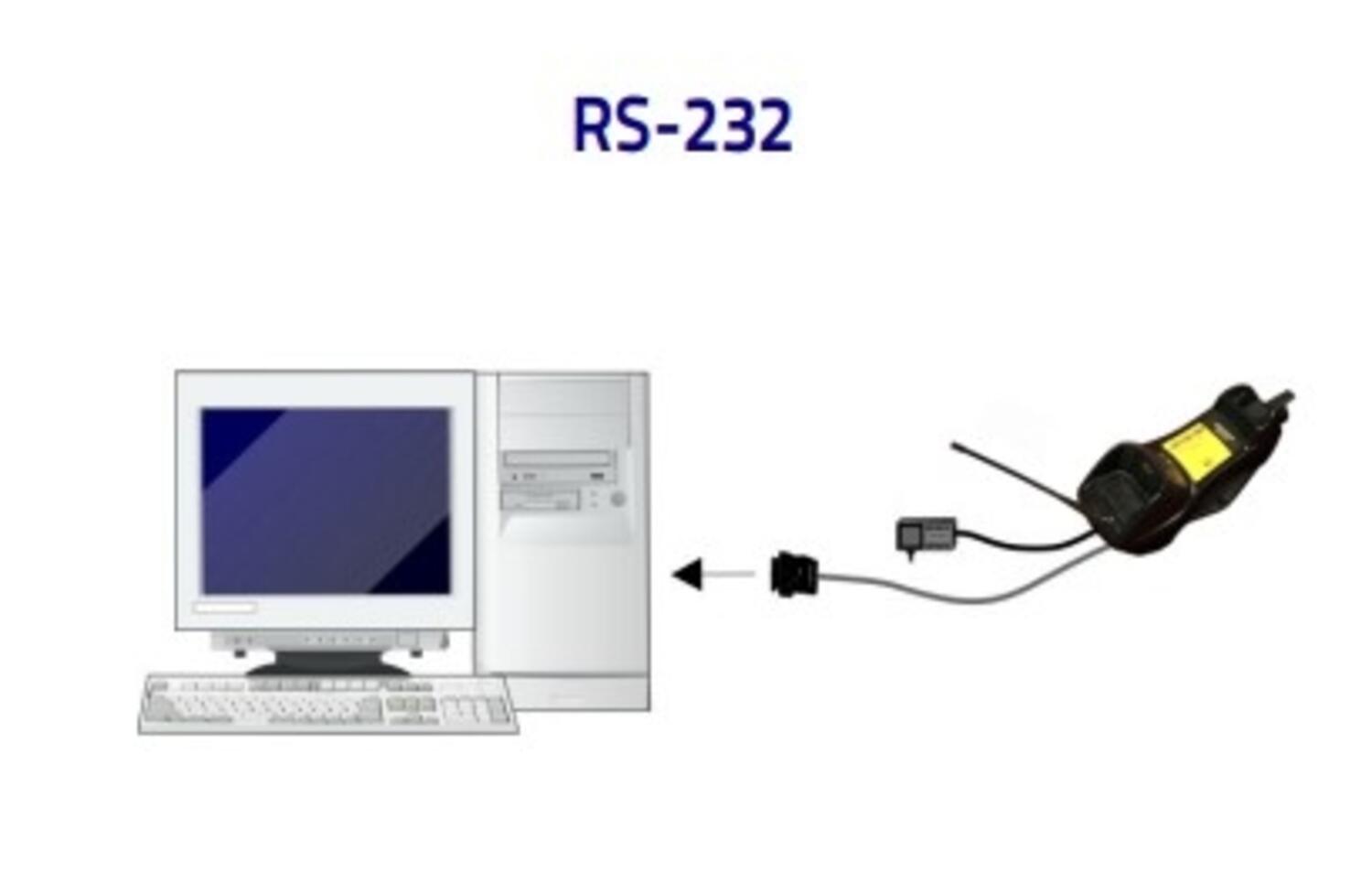

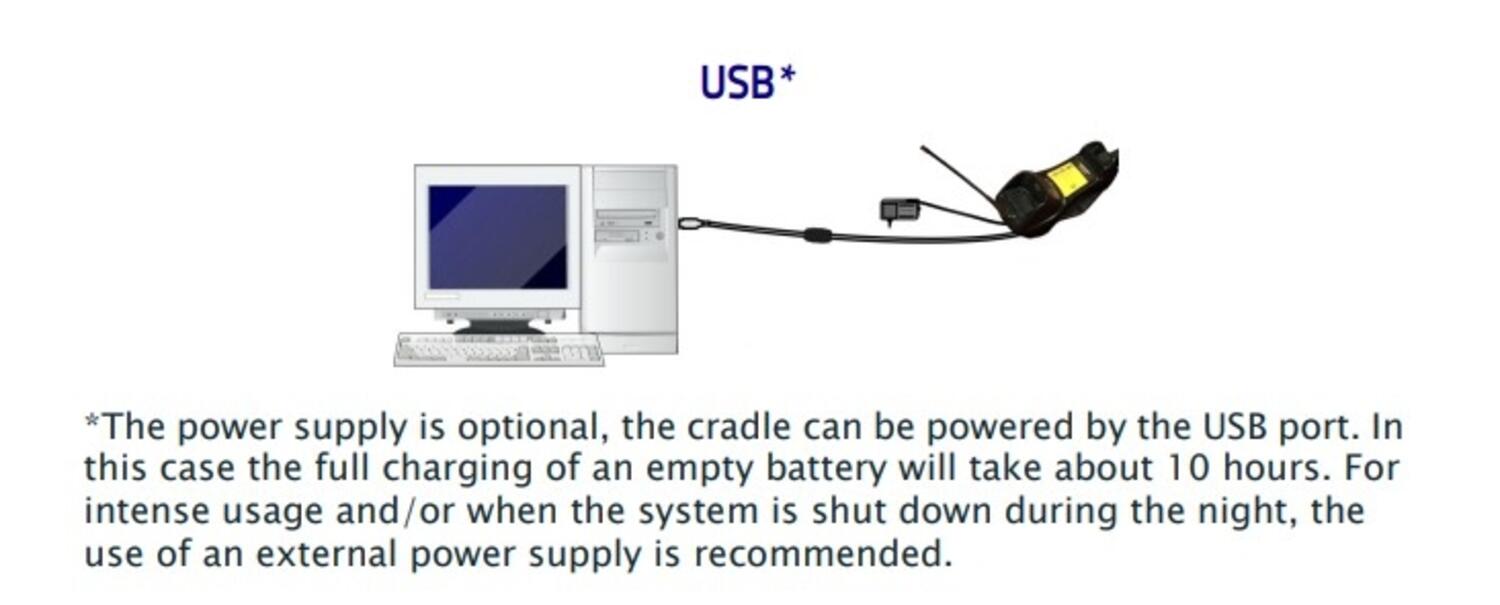

- Interfaces: RS-232, Keyboard Wedge, USB and Ethernet
Selected variant
Selected variant
Specifications
| 1D Code types | Auto discriminates all standard 1D codes |
|---|---|
| 2D Code Types | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Approvals | RoHS |
| Battery | Lithium-Ion: 3350 mAh |
| Charge time | 4.5hrs @ 10-30 VDC |
| Color | Black/yellow |
| Dimension (mm) | 212 x 110 x 74 |
| Drop resistance | Withstands 50 drops from 1.2m / 6.6ft onto a concrete surface |
| Humidity | 0-95% (Non-condensing) |
| Immunity To Ambient Light | 0-100,000 lux |
| IP Class | IP65 |
| Kit | No |
| Light Source | 630-680nm VLD |
| Postal Code Types | China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post |
| Readable code types | 1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes |
|---|---|
| Reading Angle Window | Pitch: +/-40°; Roll (Tilt): 360°; Skew (Yaw): +/-40° |
| Reads per charge | 60000 |
| Resolution | 7.5mils |
| Stacked Code Types | EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites |
| Temperature range bearing, from | -40 |
| Temperature range bearing, to | 70 |
| Temperature range from | -20 |
| Temperature range to | 50 |
| Weight | 445 |
| Wireless | Yes |
| Wireless Technology | Effective radiated power |
Product description
The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of Datalogic's STAR Cordless System, a proprietary radio which further improves the outstanding features of versatility, ease-of-use and radio range.
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
Long lasting battery life guarantees more than one shift of intensive scanning.
The handle shape, well-balanced weight and an intuitive aiming system allow high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
